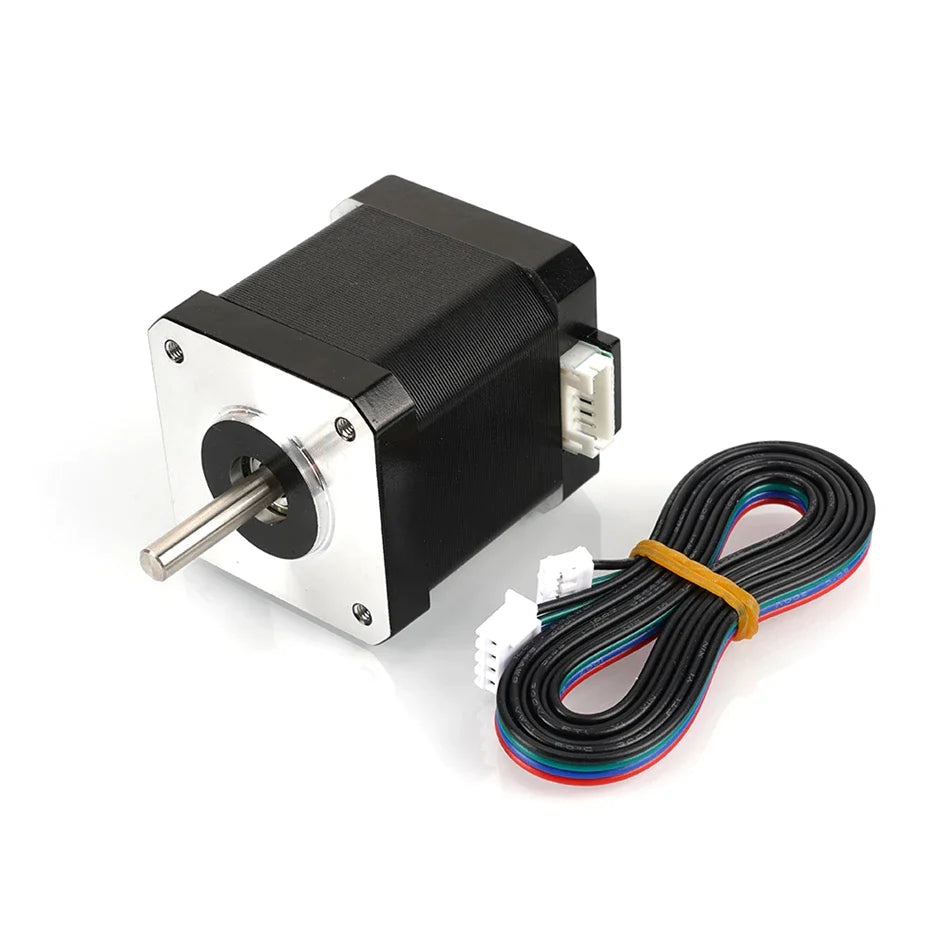

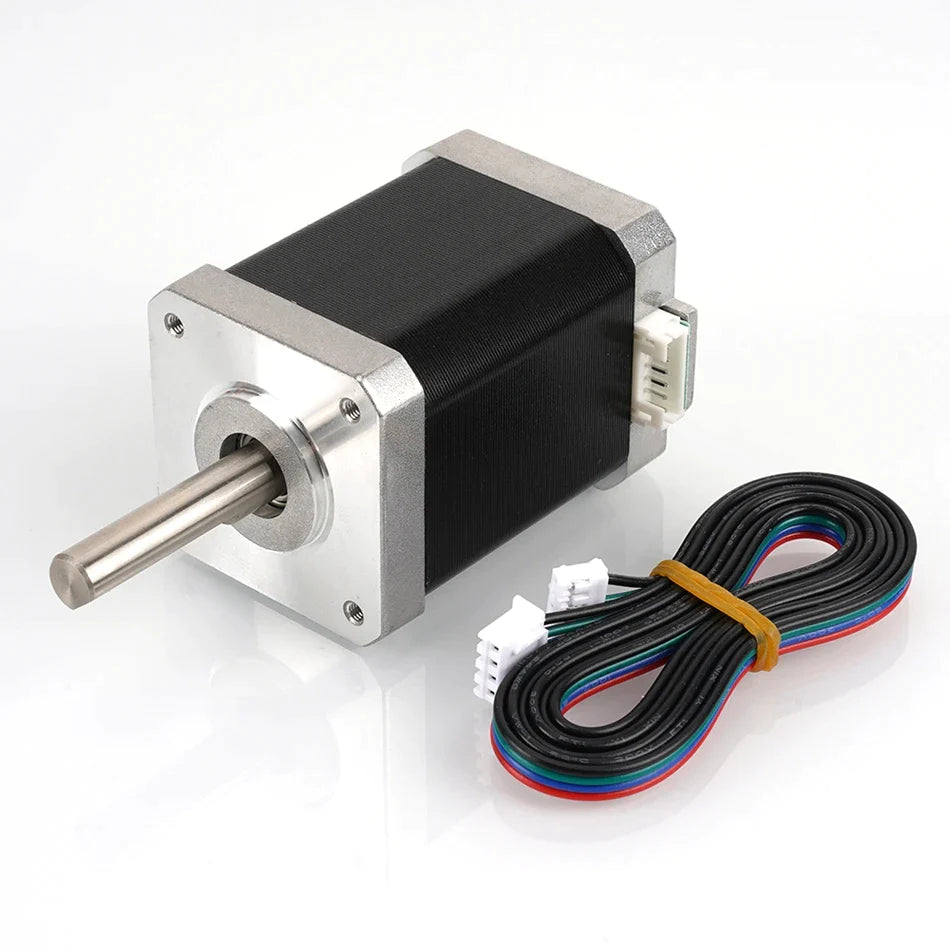

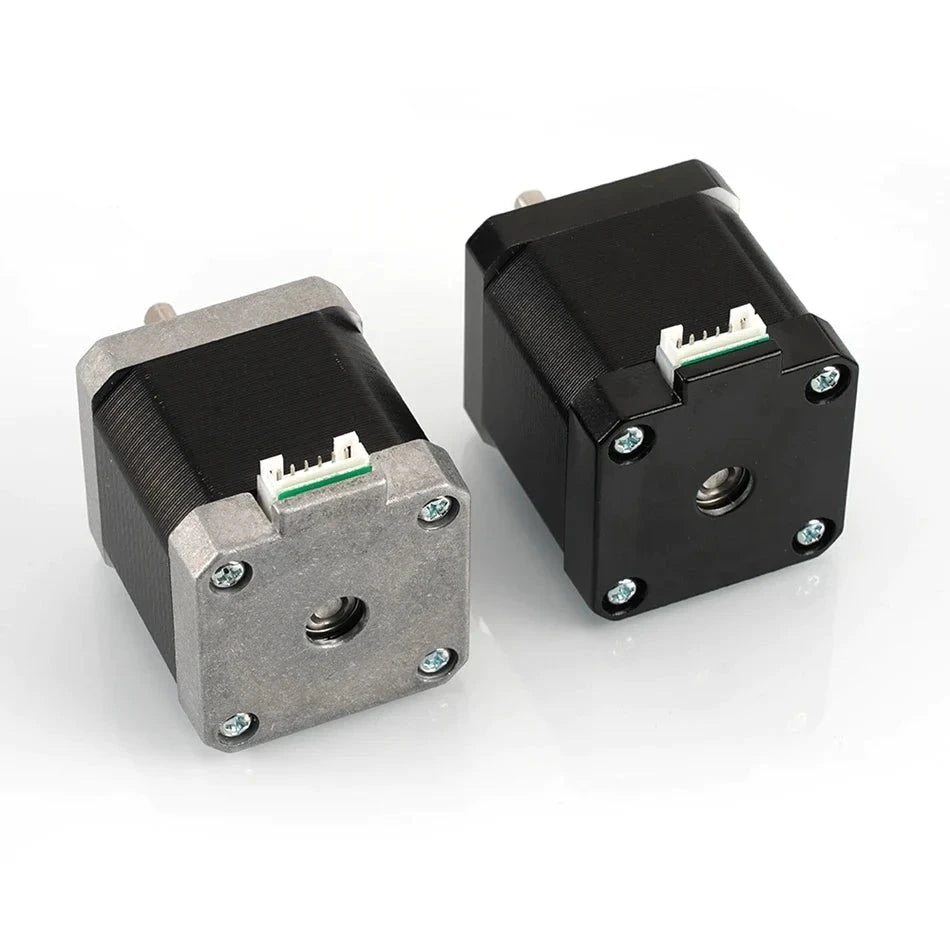

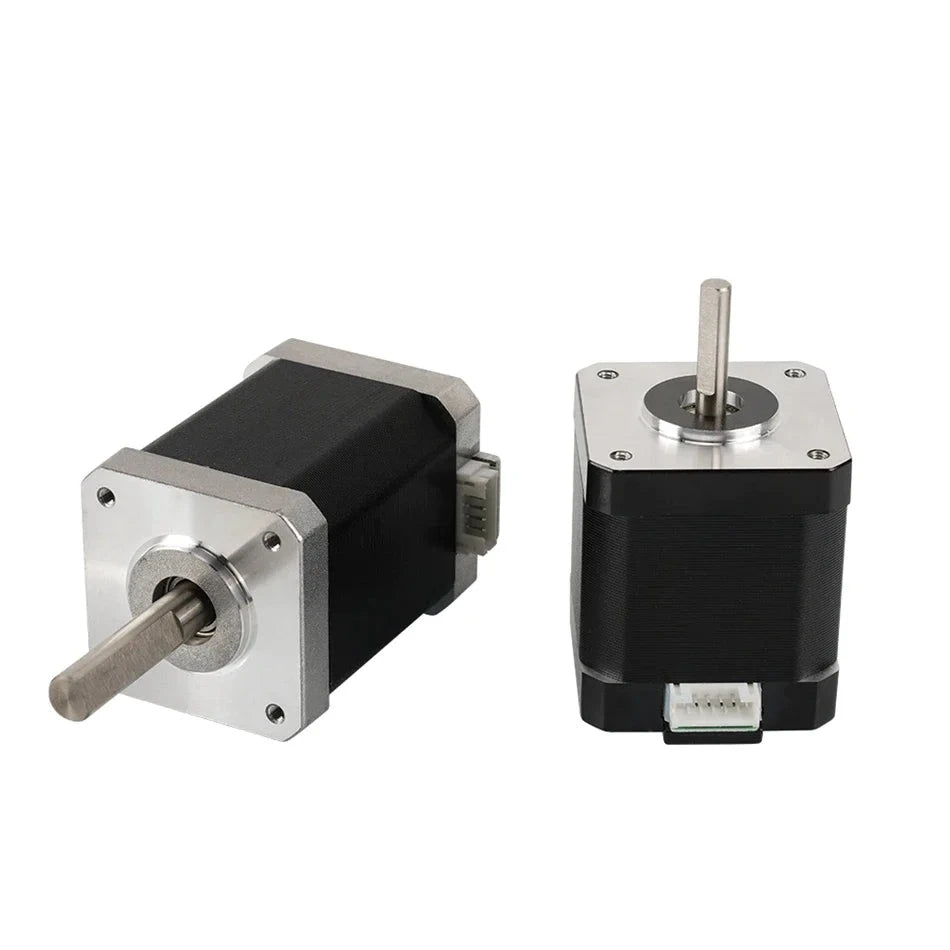

Motor paso a paso 42, motores cuadrados de altura de 48MM y 60MM, 17HS8401 17HS8401S con Cable negro plateado

En existencia
Precio regular $39.98
Color

Utilice este texto para fomentar la comunicación o promover el intercambio en las redes sociales.

También puedes agregar enlaces.

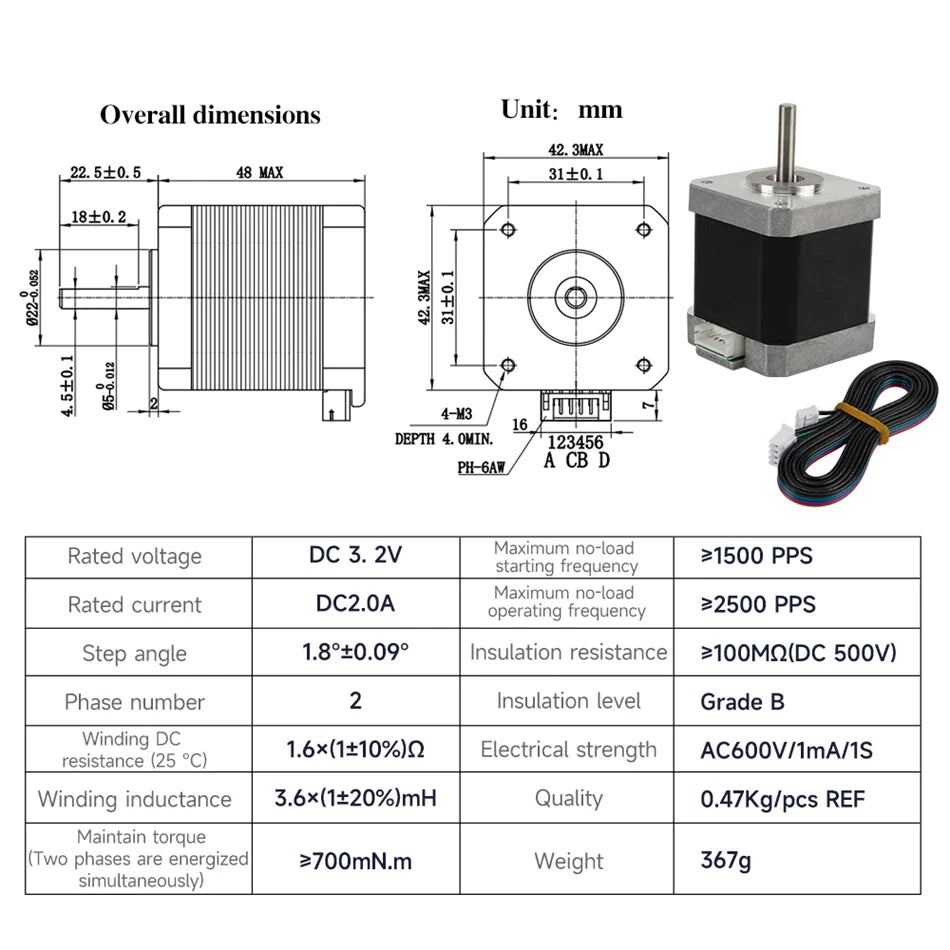

Stepper 42 Motor 48MM 60MM Height Square Motors 17HS8401 17HS8401S With Cable Black Sliver

Rated voltage DC 3. 2V Maximum no-load
starting frequency
≥1500 PPS
Rated current DC2.0A Maximum no-load
operating frequency
≥2500 PPS
Step angle 1.8°±0.09° Insulation resistance ≥100MΩ(DC 500V)
Phase number 2 Insulation level Grade B
Winding DC
resistance (25 °C)
1.6x(1±10%)Ω Electrical strength AC600V1mA/1S
Winding inductance 3.6x(1±20%)mH Quality 0.47Kg/pcs REF
Maintain torque
(Two phases are energized simultaneously)
≥700mN.m Weight 505.3g


Rated voltage DC 3. 2V Maximum no-load
starting frequency
≥1500 PPS
Rated current DC2.0A Maximum no-load
operating frequency
≥2500 PPS
Step angle 1.8°+0.09° Insulation resistance ≥100MΩ(DC 500V)
Phase number 2 Insulation level Grade B
Winding Dcresistance (25 °C) 1.6x(1+10%)Ω Electrical strength AC600V/1mA/1S
Winding inductance 3.6x(1±20%)mH Quality 0.47Kg/pcs REF
Maintain torque
(Two phases are energized simultaneously)
≥700mN.m Weight 367g
