Spare Parts for QIDI Box Accessories

QIDI BOX Upgrade Accessory Kit  is used to upgrade  to a version compatible with QIDI BOX, achieving automatic switching of consumables, multi-color and drying printing.

for QIDI BOX PLUS4  Upgrade Accessory Kit

for QIDI BOX  Q2 Upgrade Accessory Kit

For QIDI BOX Signal Cable for QIDI Q2 5-pin Signal Cable for QIDI Tech Q2 for QIDI Box Multicolor Print

The QIDI BOX signal line connects the printer and the QIDI BOX Hub for signal transmission between devices.

for QIDI BOX Hub Q2  Signal Cable

for QIDI BOX Hub Plus4  Signal Cable

The QIDI BOX Selector is used to monitor filament status in real time and automatically detect issues such as tangles. It integrates tubes from multiple QIDI BOX units into a single output, ensuring a continuous and stable filament supply to the printer, and enabling efficient multi-color or multi-material printing.

for QIDI Plus 4 BOX Hub Filament Selector With Signal Cable

for QIDI Plus 4 BOX Hub Filament Selector

for QIDI Q2 BOX Hub Filament Selector With Signal Cable

for QIDI Q2 BOX Hub Filament Selector

The temperature and humidity sensor monitors and transmits the QIDI BOX environmental temperature and humidity parameters in real time, providing basic data support for the printing process.

In the Box: Temperature and Humidity Sensor *1

QIDI BOX Active Support Shaft Assembly

QIDI BOX Active Support Shaft Assembly is a roller for supporting the filament spool and also for actively driving the spool to roll.

QIDI BOX Driven Support Shaft Assembly

QIDI BOX Driven Support Shaft Assembly is a roller for supporting the filament spool.

8P-4P Signal Cable

The 8P-4P signal line connects the printer and the QIDI BOX for signal transmission between devices.

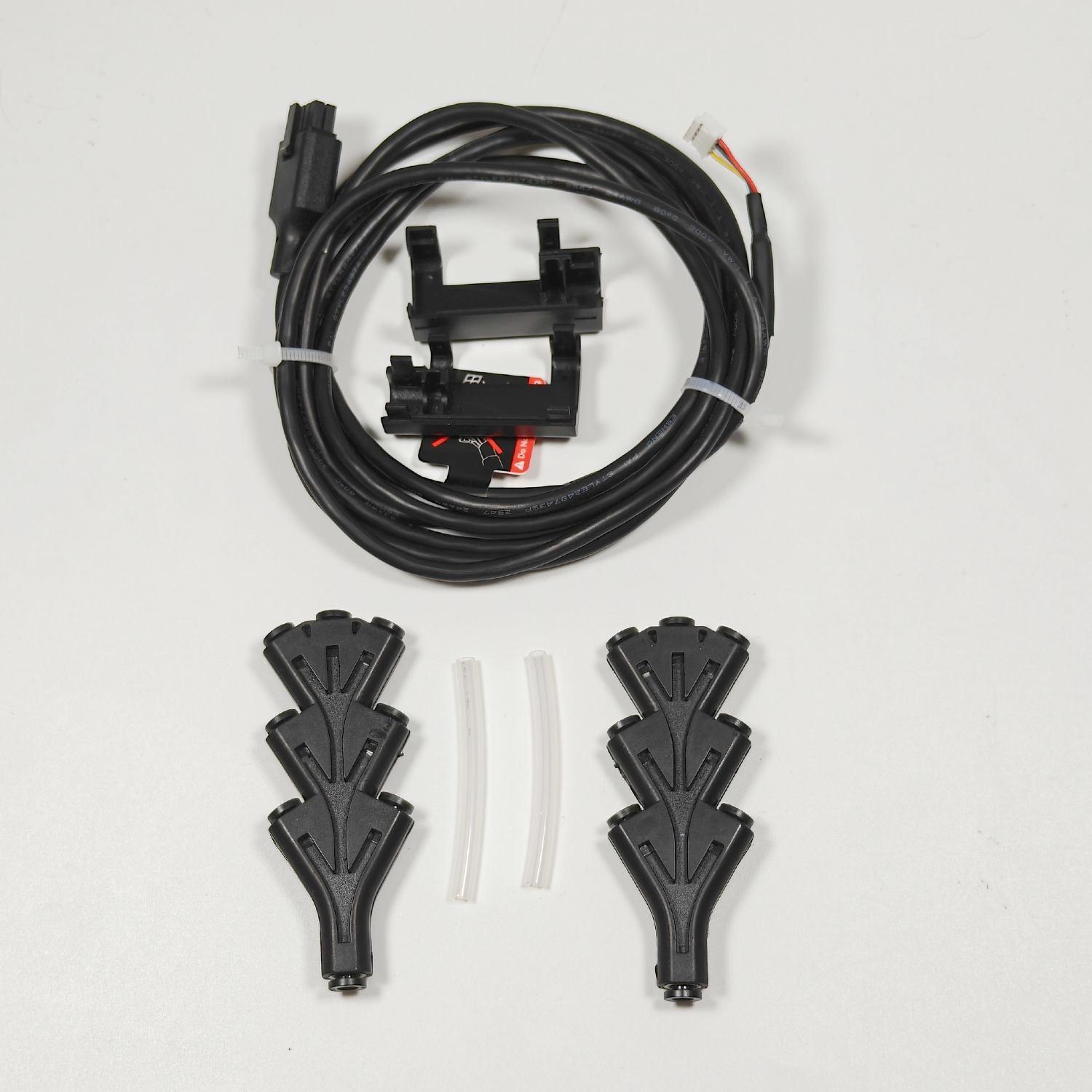

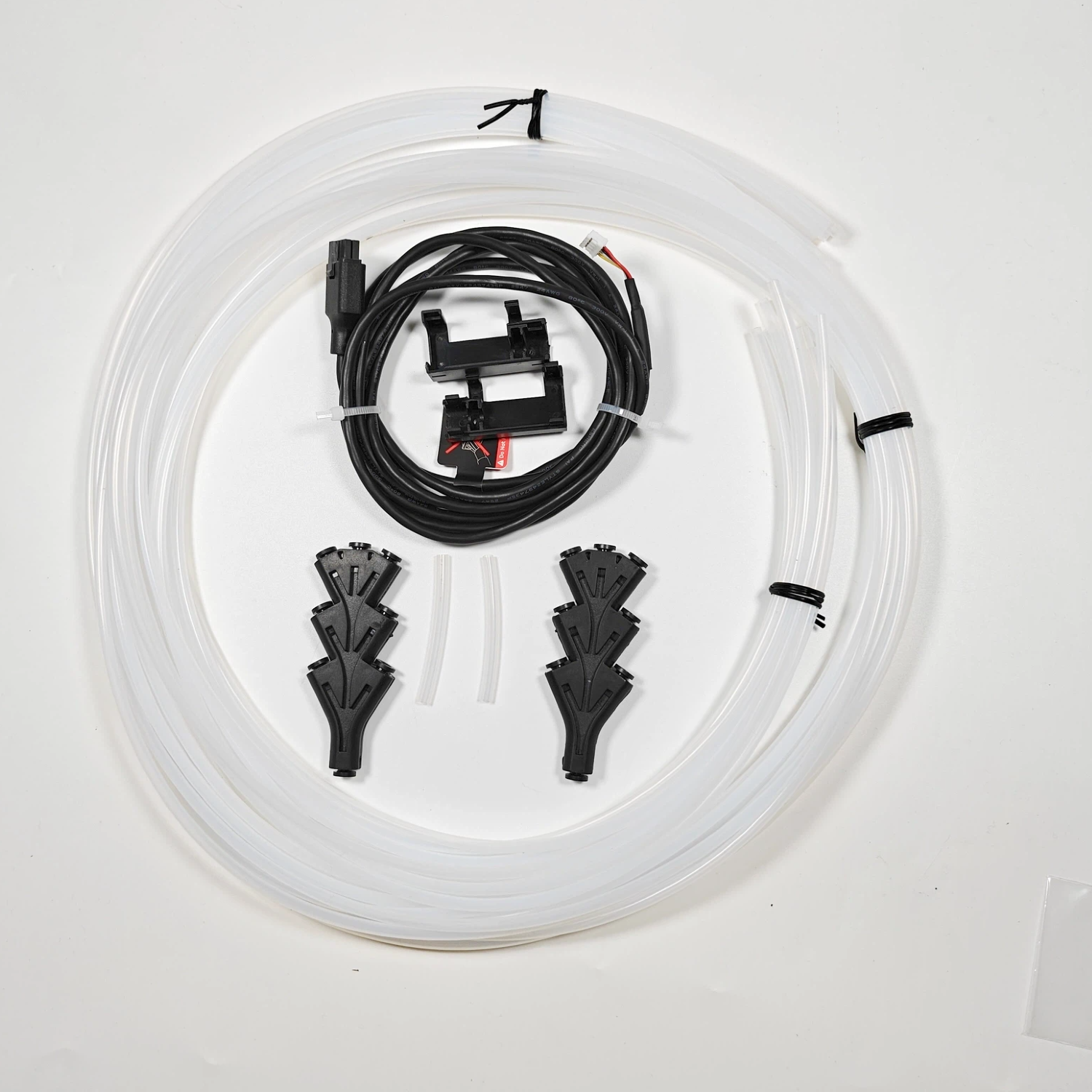

for QIDI BOX PLUS4  / Q2  Expansion Kit

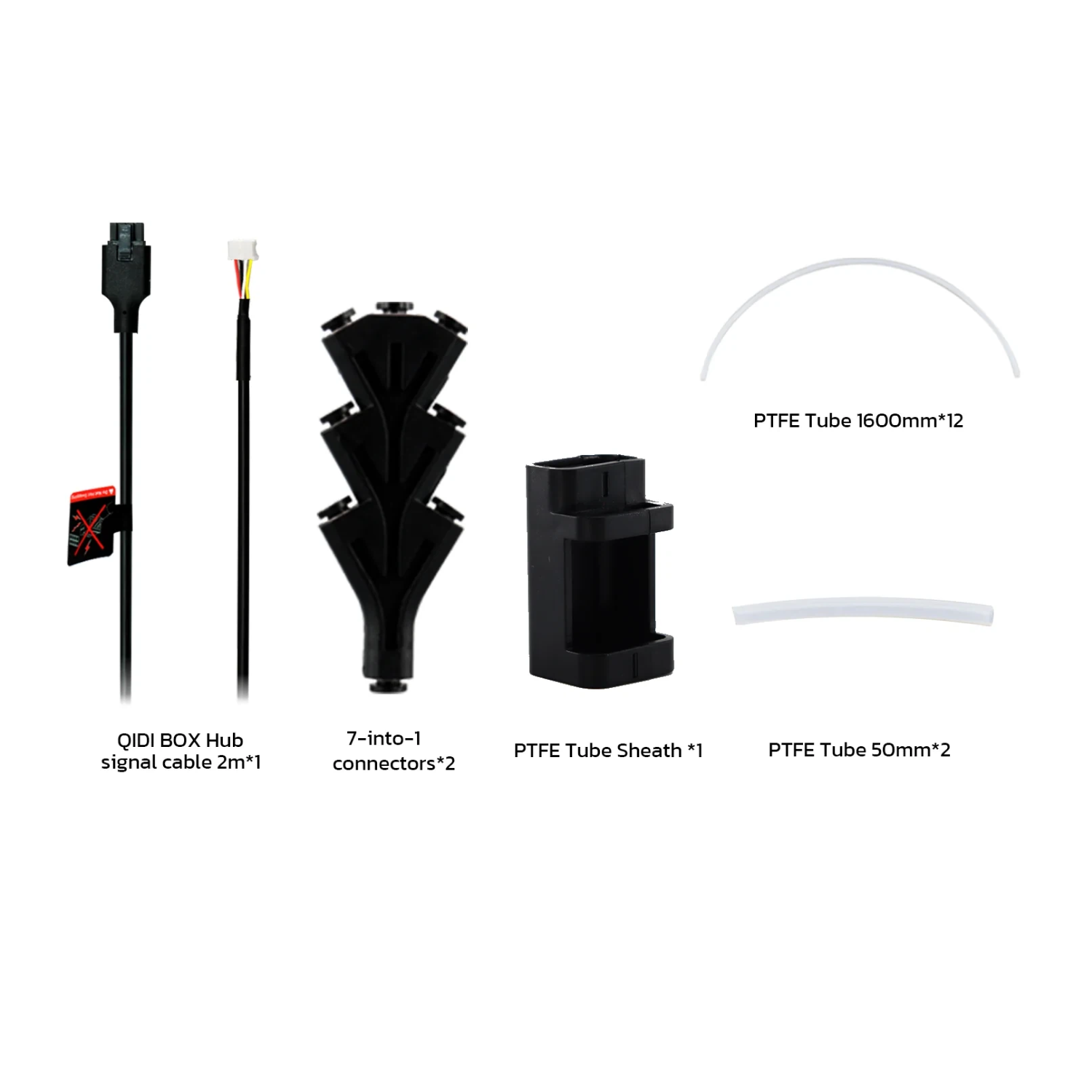

QIDI BOX Expansion Kit includes 2pcs 7-into-1 connectors, PTFE Tube 1600mm*12, PTFE Tube 50mm*2,1 pc PTFE Tube Sheath, 1 pc QIDI BOX signal cable 2m, which supports the expansion of 4 multi-color boxes to achieve 16-color printing.

In the Box：

7-into-1 connectors *2

 PTFE Tube 1600mm *12

PTFE Tube 50mm *2

PTFE Tube Sheath *1

QIDI BOX Hub signal cable 2m *1

PTFE Tube 1600mm *5

The function of PTFE Tube is to reduce resistance and guide filament. The tube’s inner diameter is 2.5mm, and its outer diameter is 4mm.

Please note that the PTFE tubes are consumables and are at risk of wear, as they may rub against the filament over time. We recommend that you check the PTFE tubes for wear during your maintenance of the machine.
If the tubes are worn and not replaced in time, this may lead to feeding failures, filament accumulation inside the QIDI BOX, etc.

In the Box：

PTFE Tube 1600mm * 5
