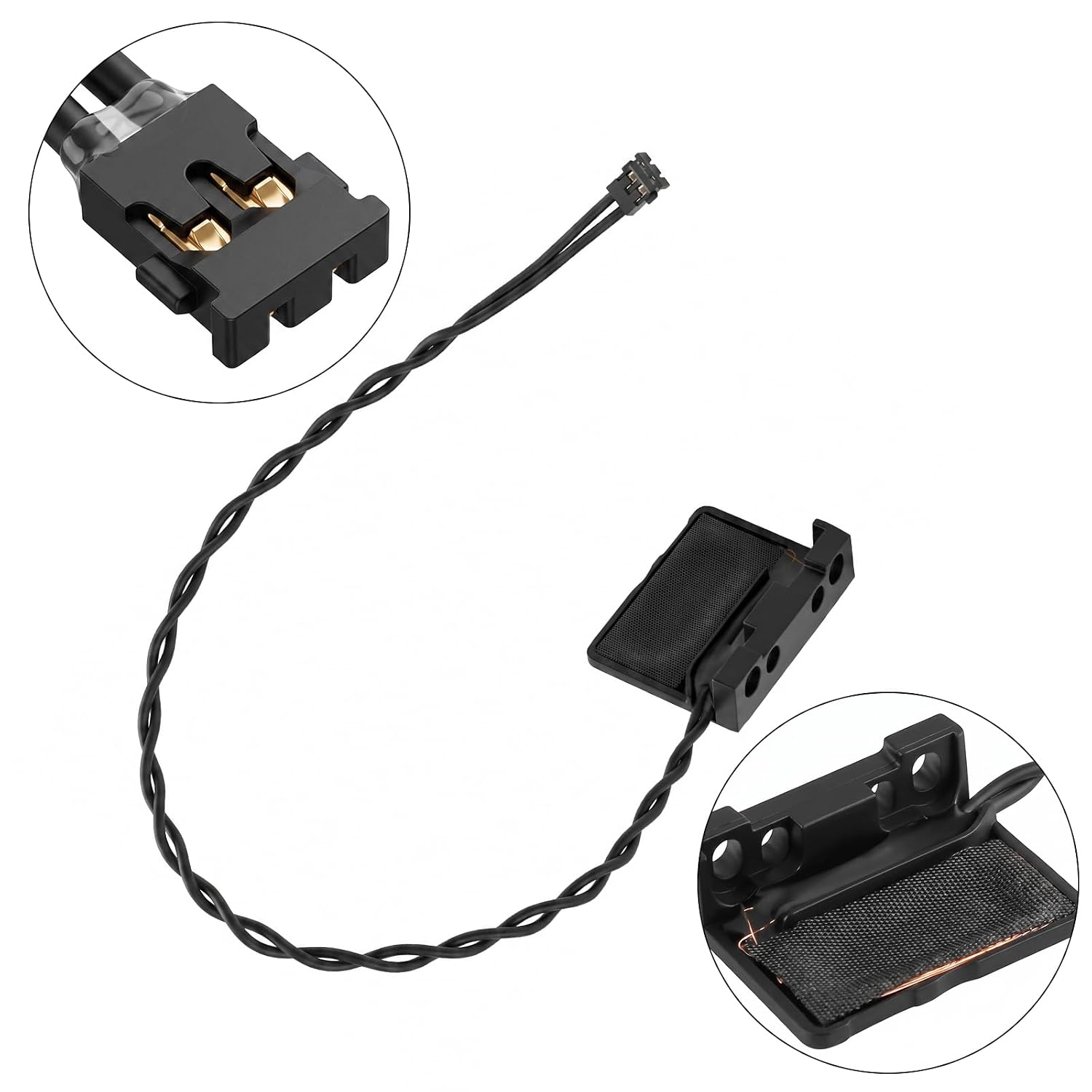

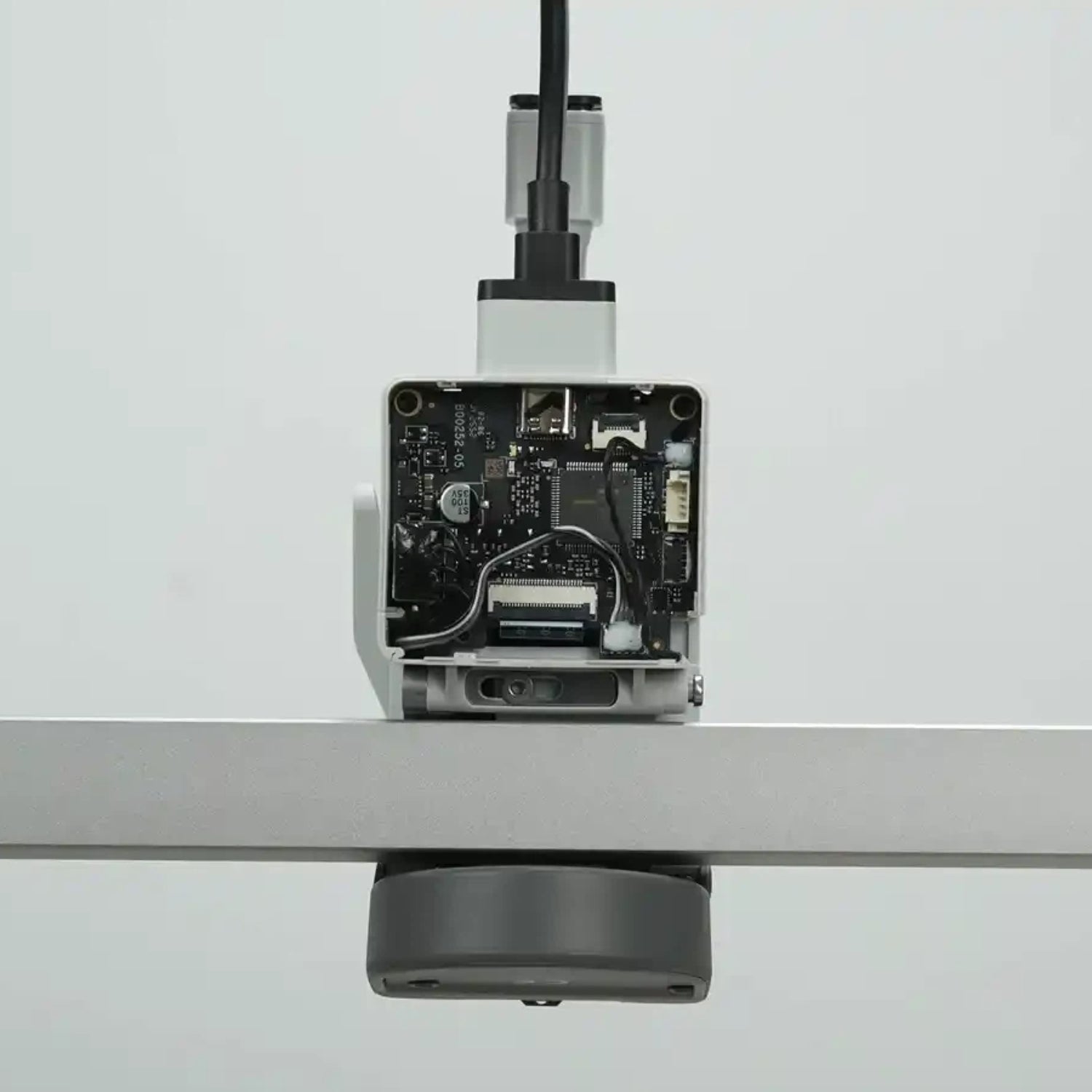

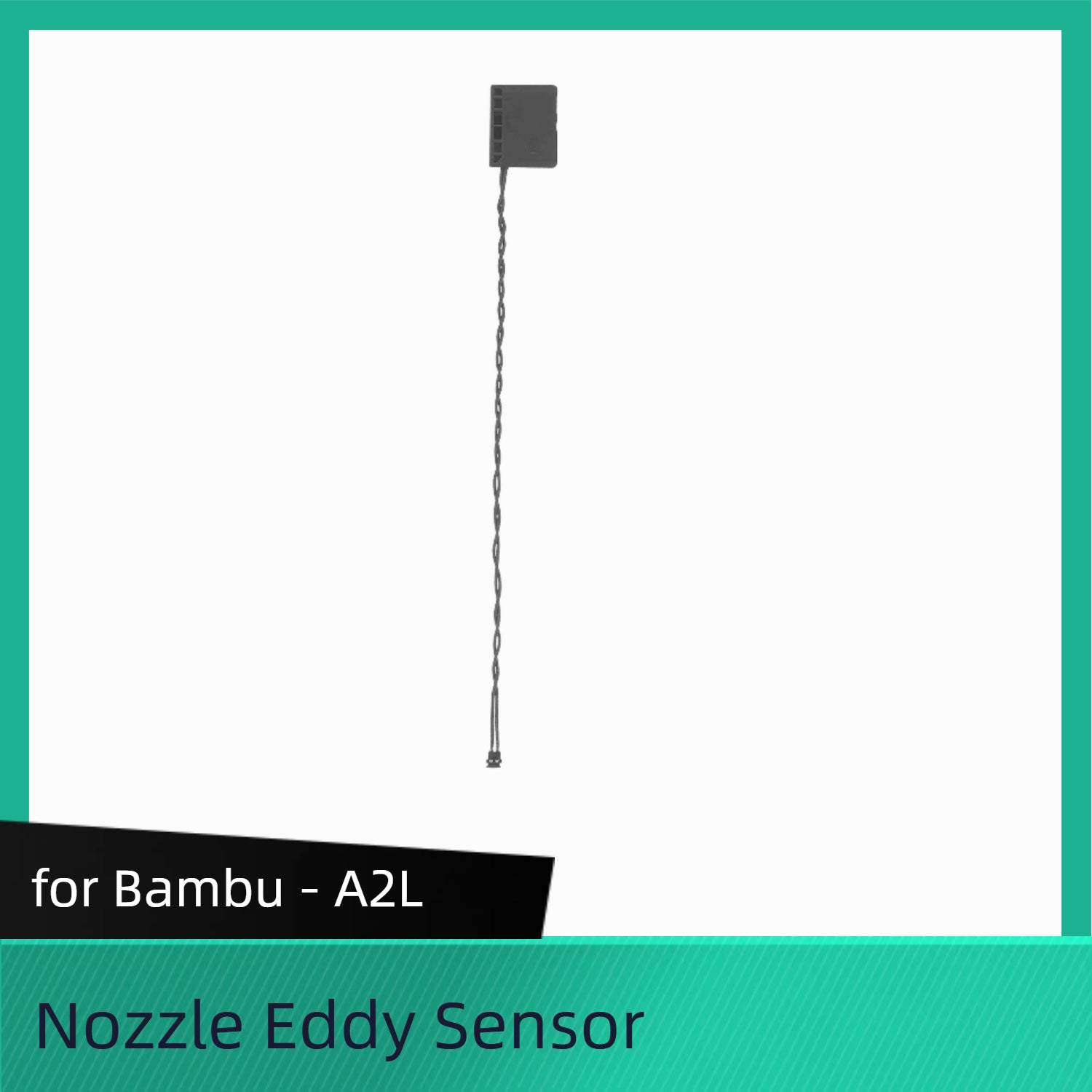

Nozzle Eddy Sensor - A2L for Bambu

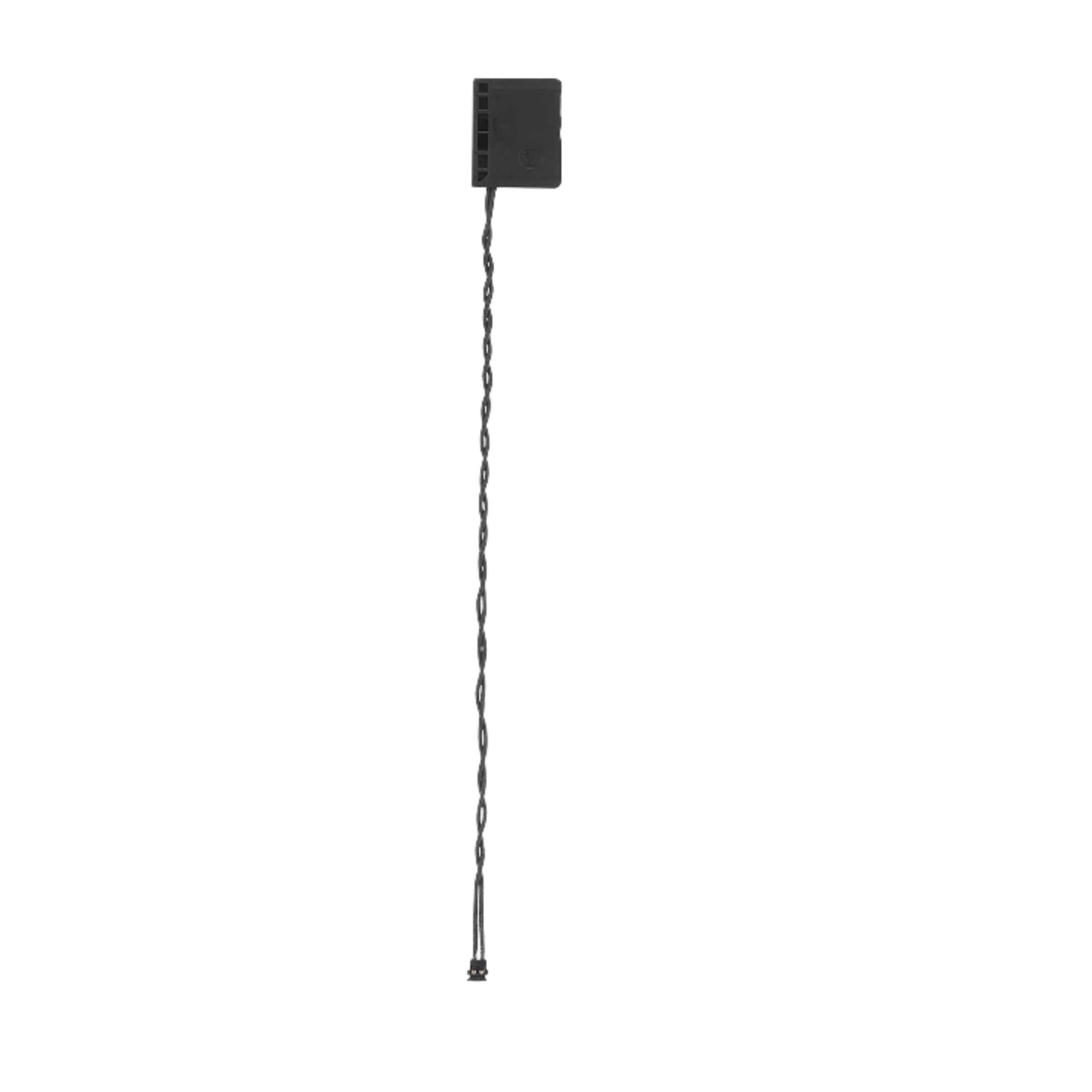

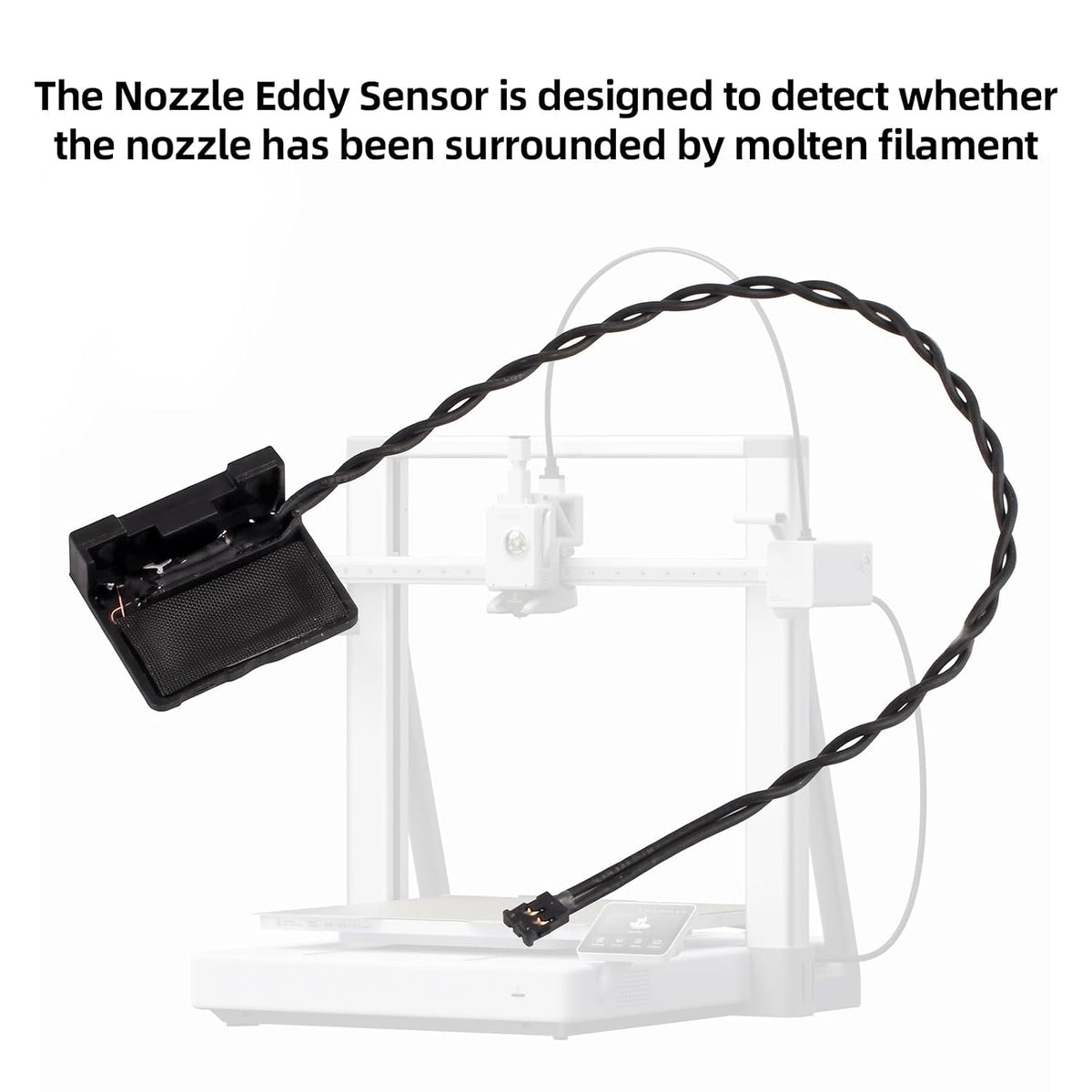

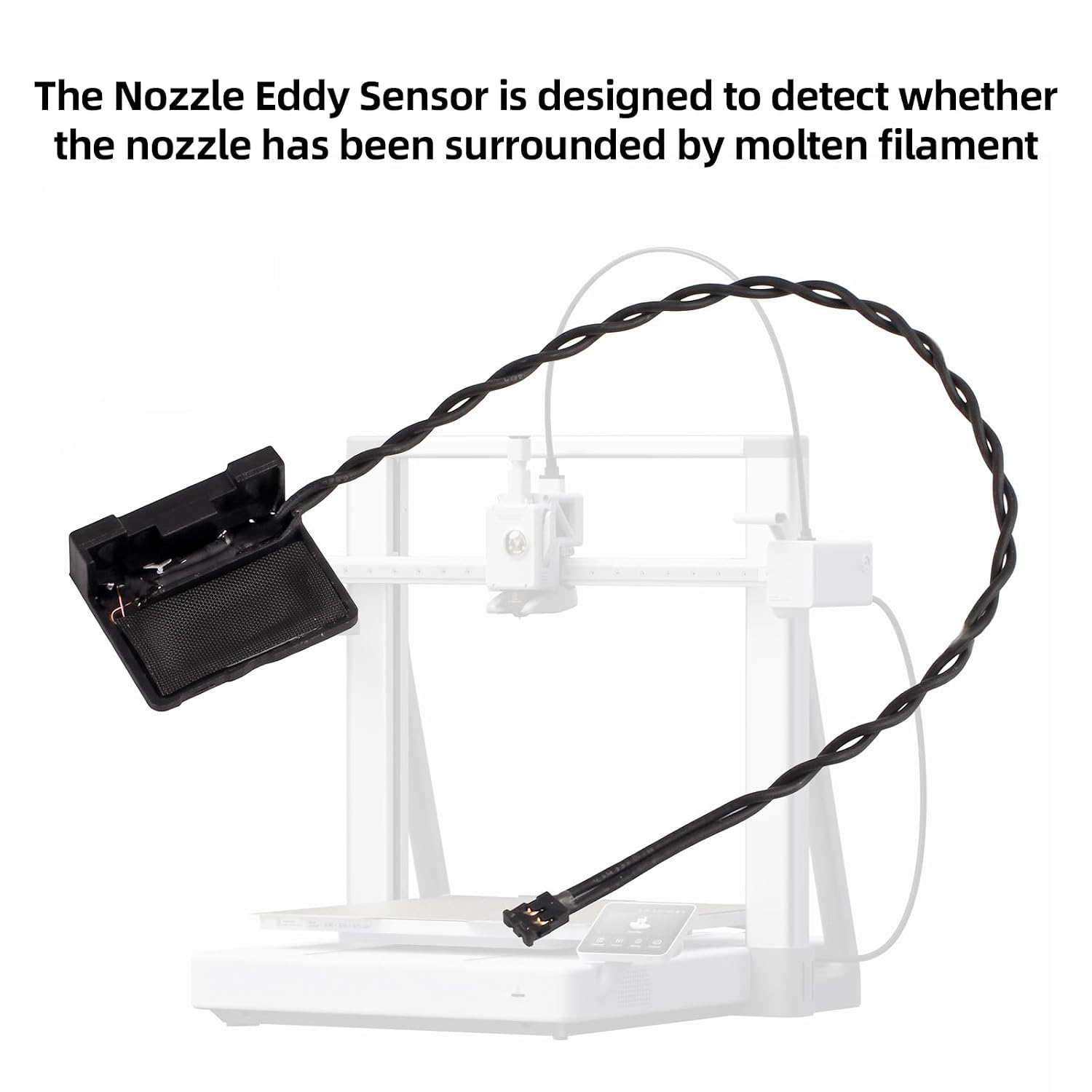

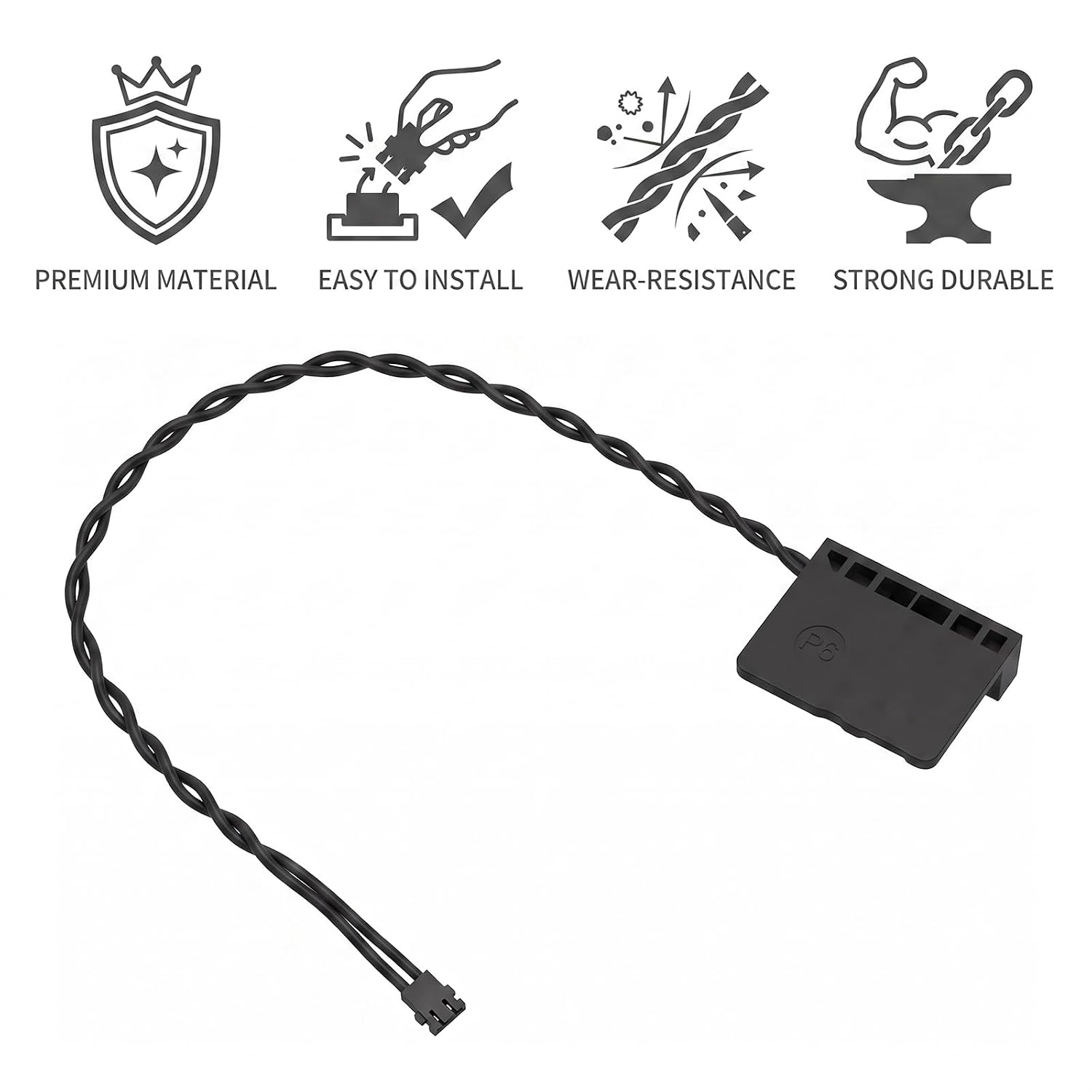

The Nozzle Eddy Sensor is designed to detect whether the nozzle has been surrounded by molten filament.

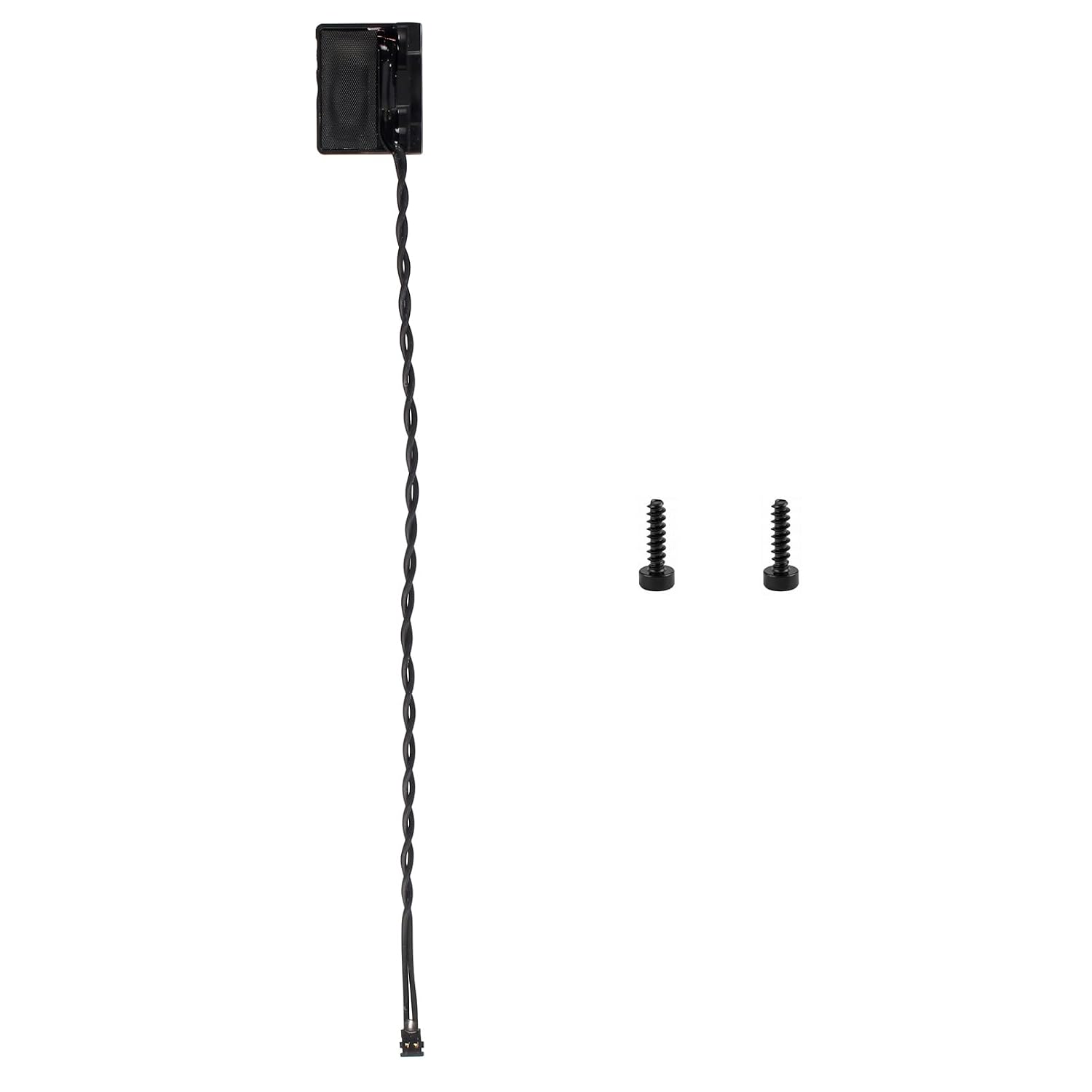

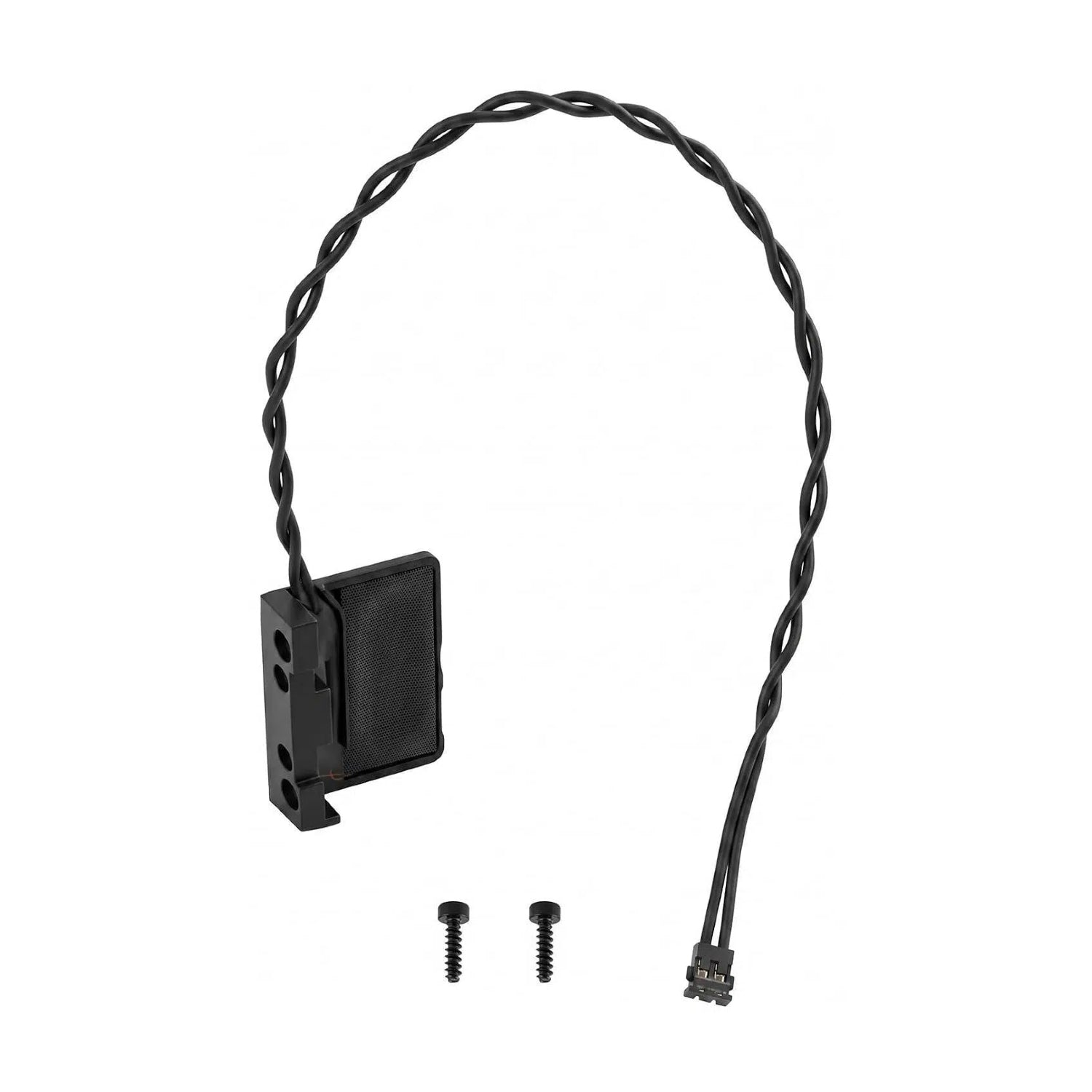

 In the Box

- Nozzle Eddy Sensor Coil *1

- BT1.6x6 Screw *2

 Compatibility

A2L

Nozzle Eddy Sensor Replacement Guide for the A2L

In this wiki, you will learn how to replace the nozzle eddy sensor on the A2L.

A2L Nozzle Eddy Sensor

🔎 Find the A2L nozzle eddy sensor in the Bambu Lab store.

When to Replace

The Z-axis homing has failed

The nozzle eddy sensor has an open circuit

Replacement recommended after Bambu Lab technical support

Required Tools and Materials

A2L nozzle eddy sensor

H2.0 hex screwdriver

H1.5 Allen Key

Tweezers

Replacing the nozzle eddy sensor takes around 25 minutes.

Safety Warning
⚠️ IMPORTANT!

It's crucial to power off the printer before conducting any maintenance work, including work on the printer's electronics and tool head wires. Performing tasks with the printer on can result in a short circuit, leading to electronic damage and safety hazards.

During maintenance or troubleshooting, you may need to disassemble parts, including the hotend. This exposes wires and electrical components that could short circuit if they contact each other, other metal, or electronic components while the printer is still on. This can result in damage to the printer's electronics and additional issues.

Therefore, it's crucial to turn off the printer and disconnect it from the power source before conducting any maintenance. This prevents short circuits or damage to the printer's electronics, ensuring safe and effective maintenance.

Remove the Eddy Sensor

Step 1. Remove the Cooling Fan for Hotend

Follow this wiki to remove the cooling fan for hotend: Replacing the cooling fan for hotend for the A2L.

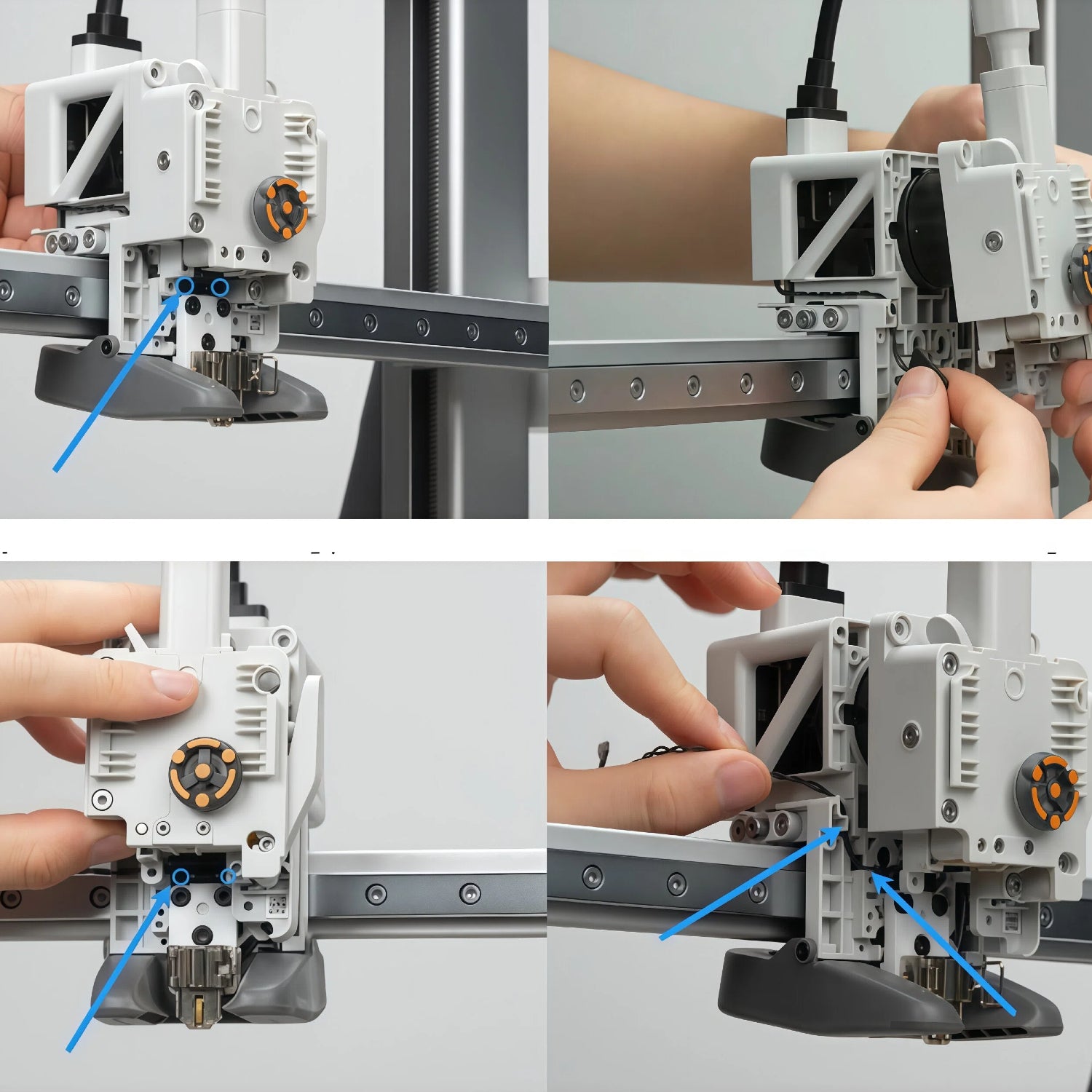

Step 2. Remove the Eddy Sensor

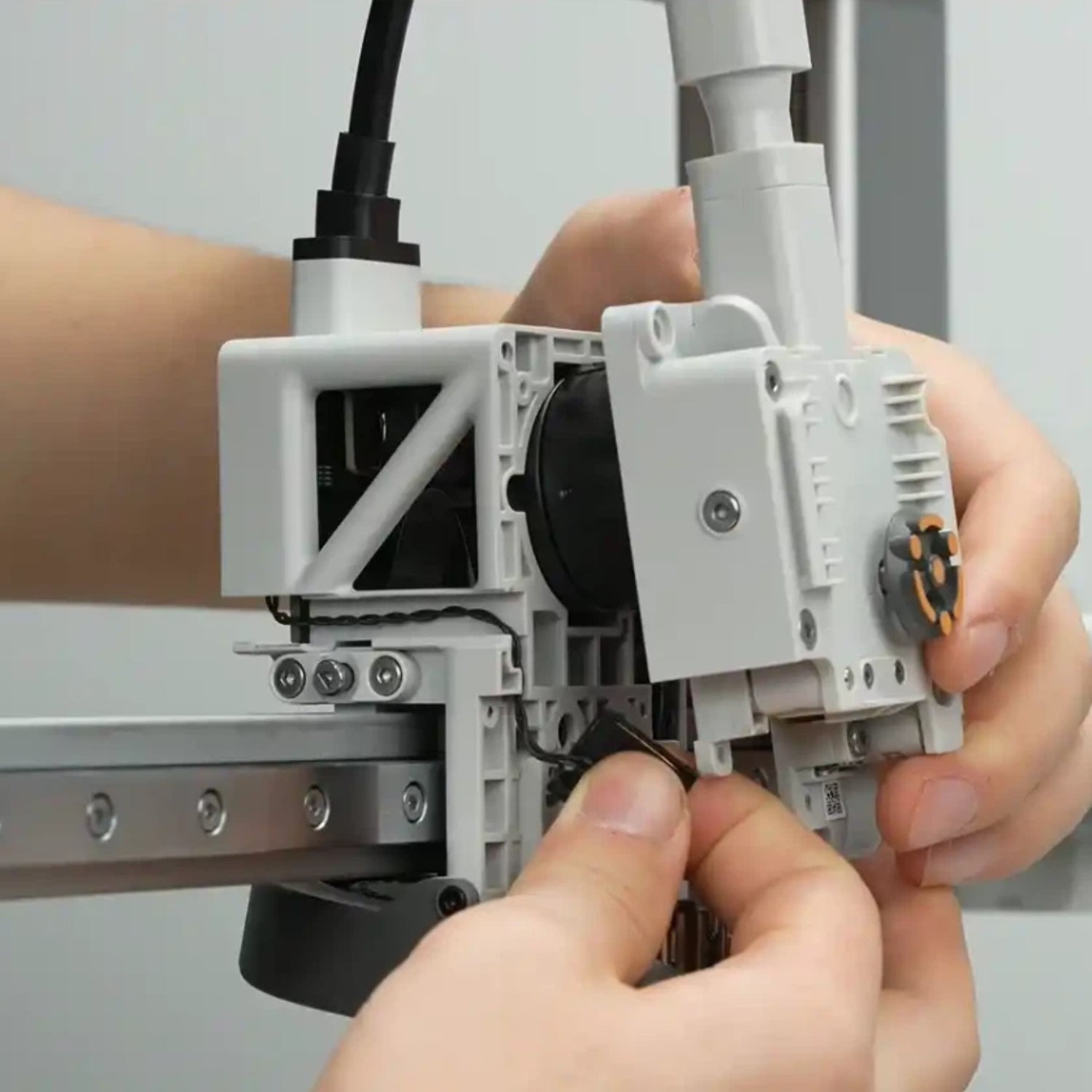

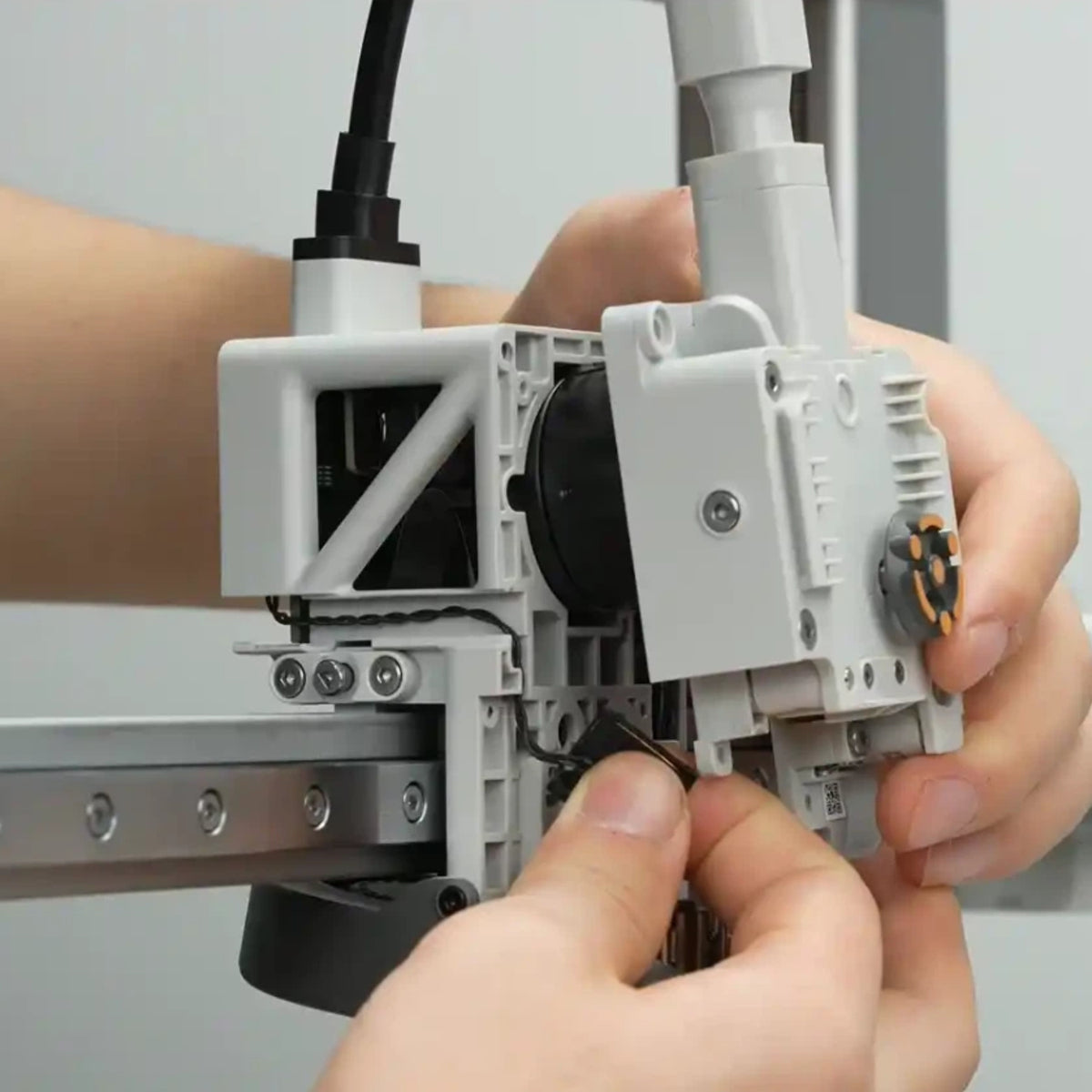

Hold the base of the connector by hand, lift vertically away from the PCB surface to unlock and disconnect the Eddy sensor connector. On initial disassembly, glue may secure the plug to prevent loosening; you can use tweezers or similar tools to assist in lifting the plug.

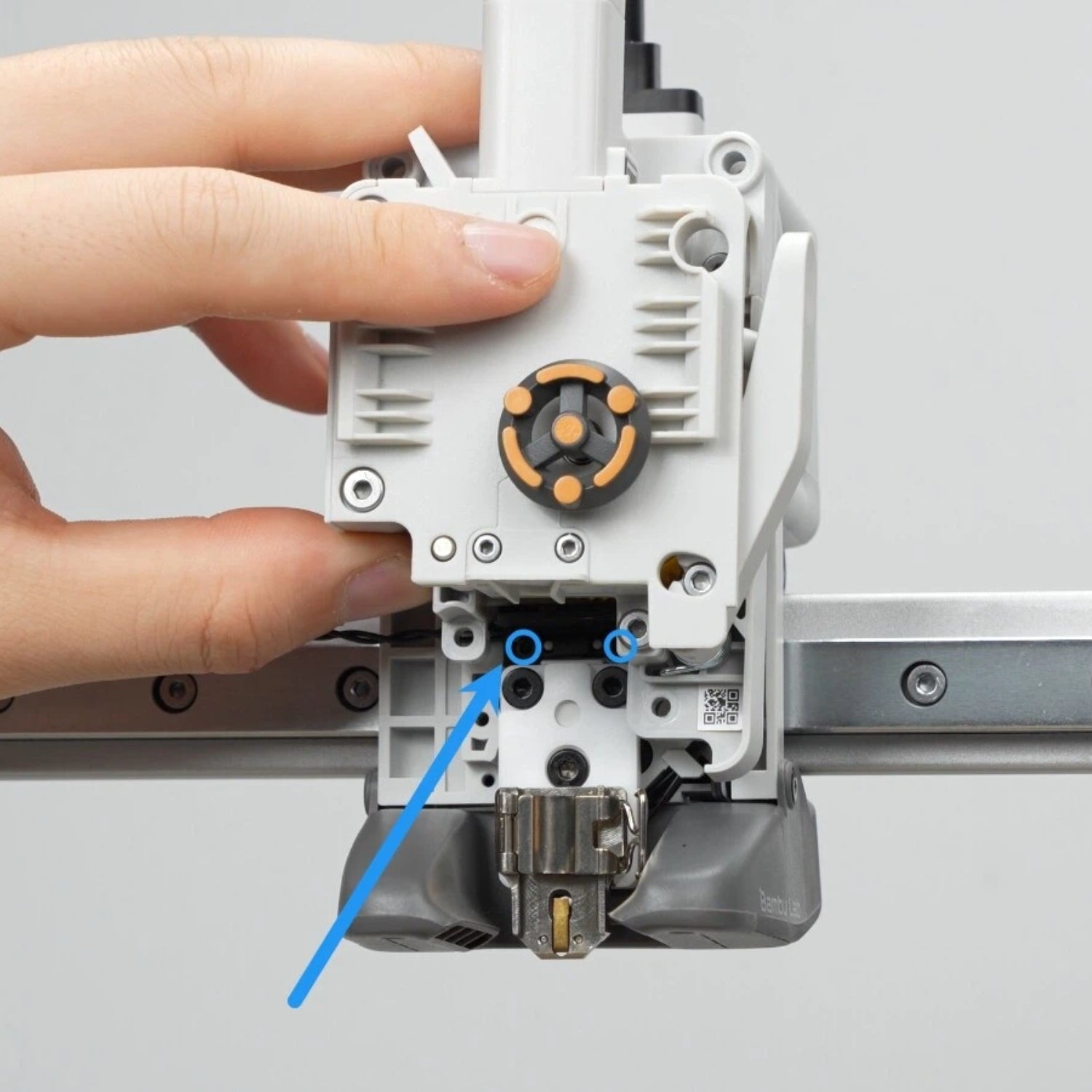

Use an H1.5 hex screwdriver to unscrew the two screws shown and remove the Eddy sensor.

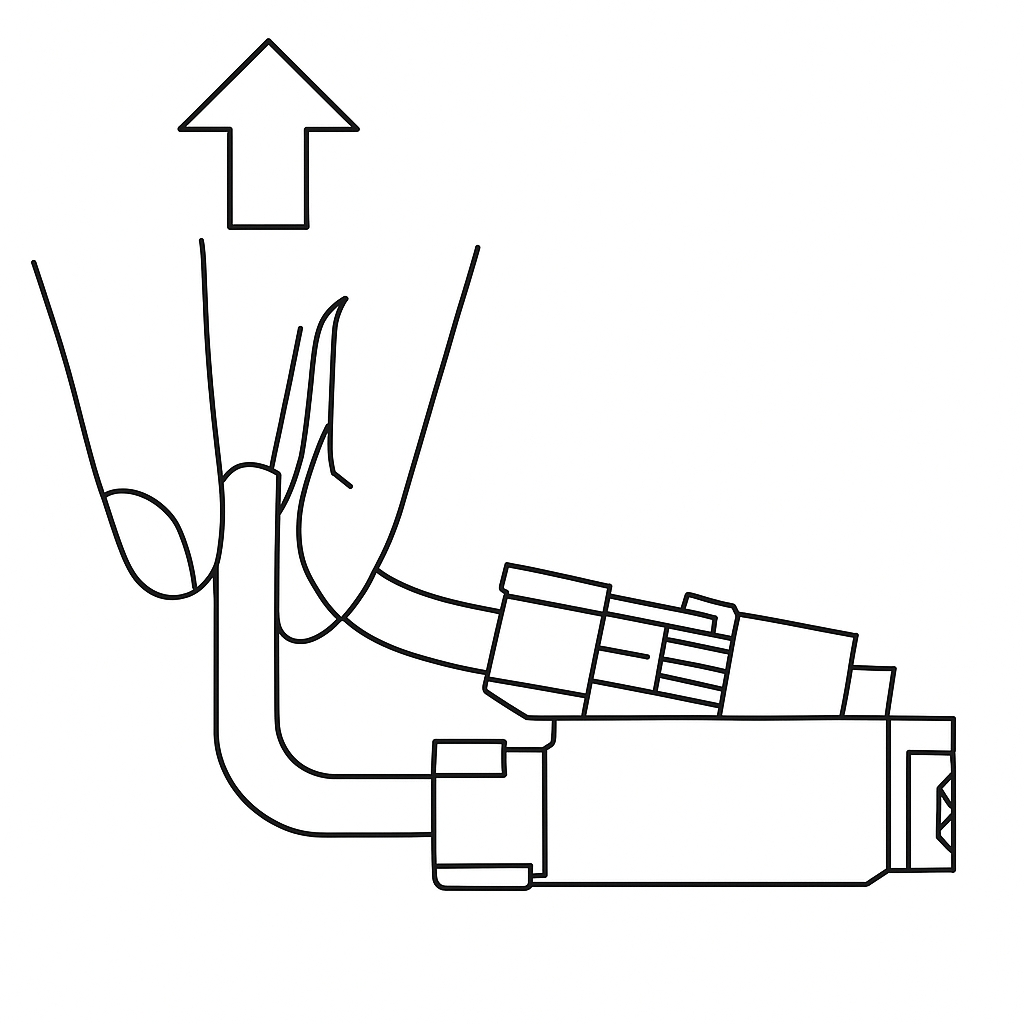

The cooling fan for hotend, part cooling fan, and eddy sensor plug on the TH board uses a small connector design. When unplugging, hold the plug base with your hand and lift vertically away from the PCB to unlock the plug. Do not apply force horizontally to avoid damaging the plug.

Install the New Eddy Sensor

Step 1. Install the Eddy Sensor

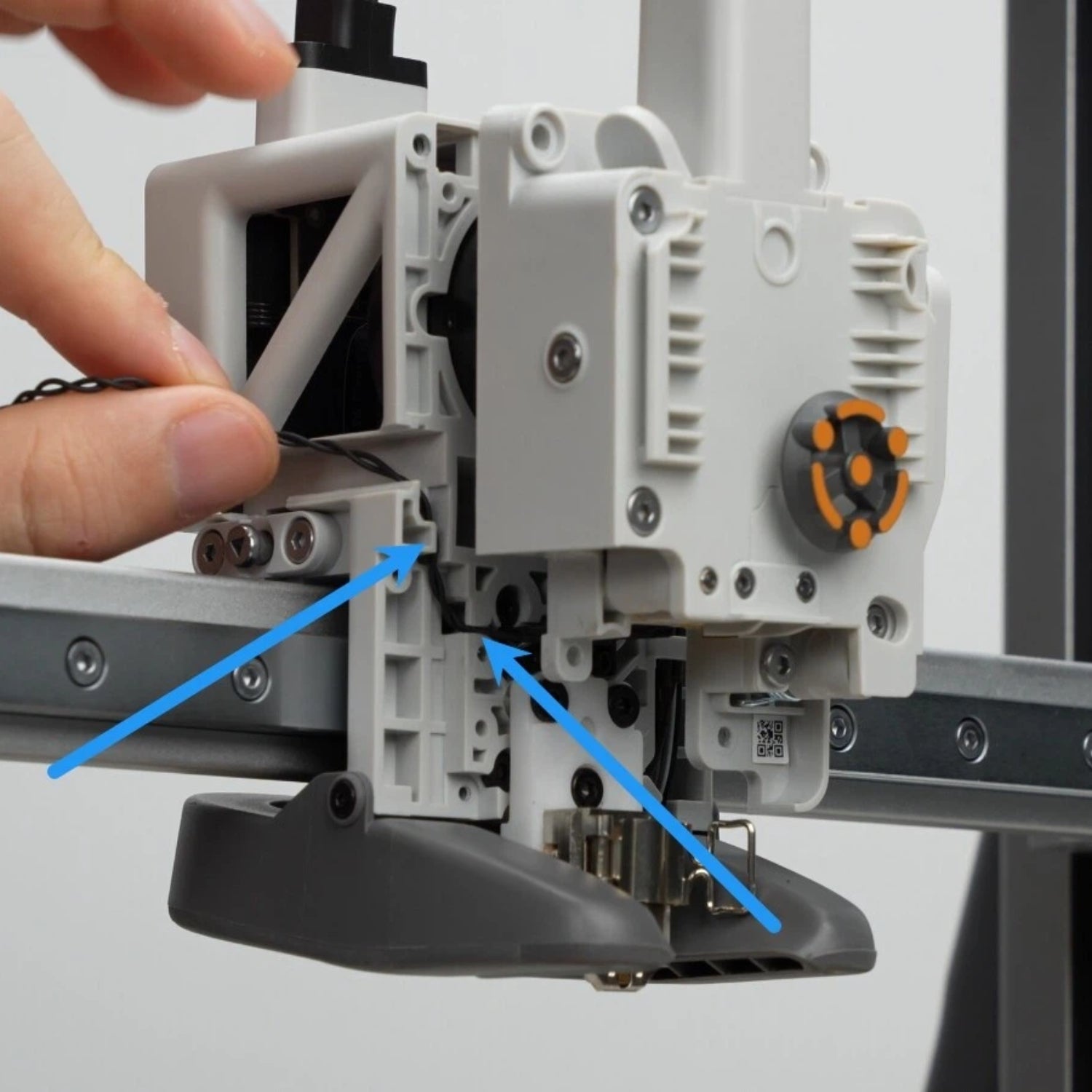

Align the eddy sensor with the locating pin on the toolhead bracket, use an H1.5 screwdriver to tighten the two screws, and secure the coil cables along the cable channel.

Step 2. Install the Cooling Fan for Hotend

Verifying Success

✅ Turn on the printer and perform homing. If no HMS errors occur, the replacement is sucessful.

Calibrate the 3D Printer after this operation. Additionally, it is strongly recommended to clean the Textured PEI Plate before printing, as the build plate may be contaminated during the replacement of the cooling fan for hotend and Eddy Current Coil.
