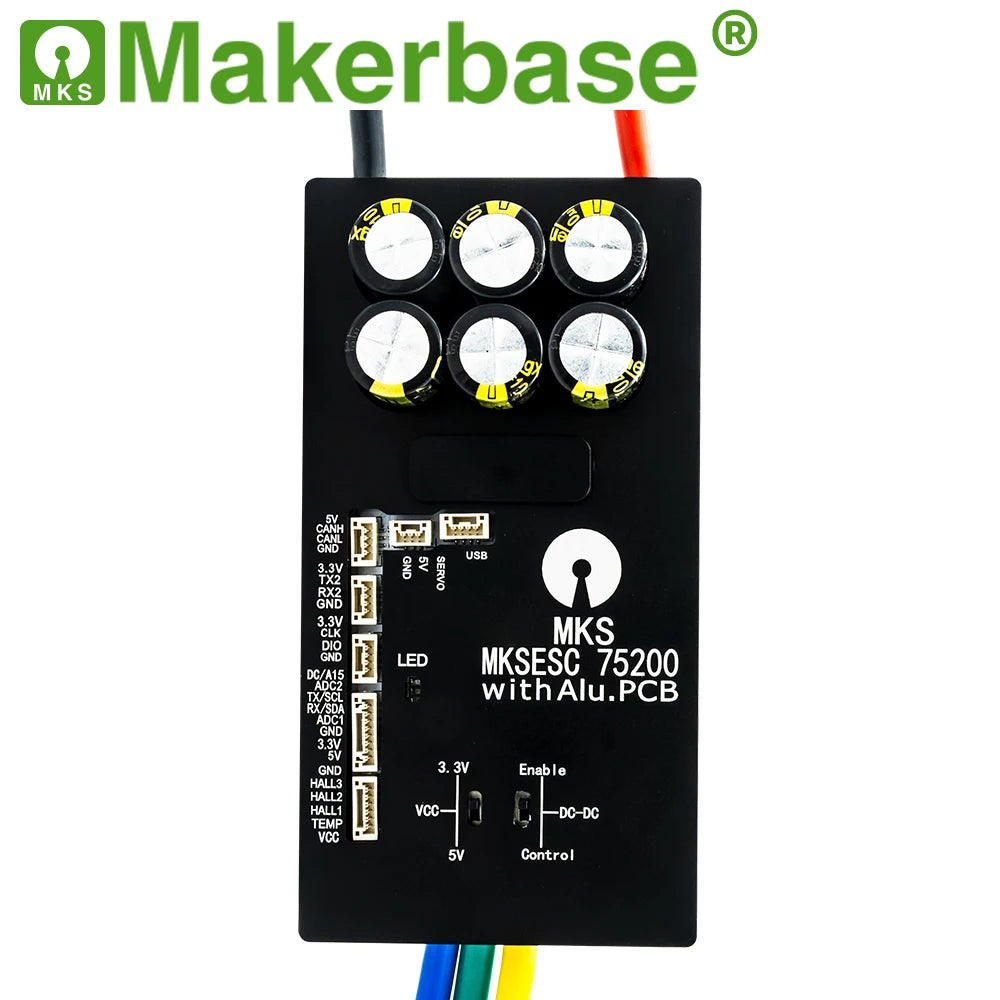

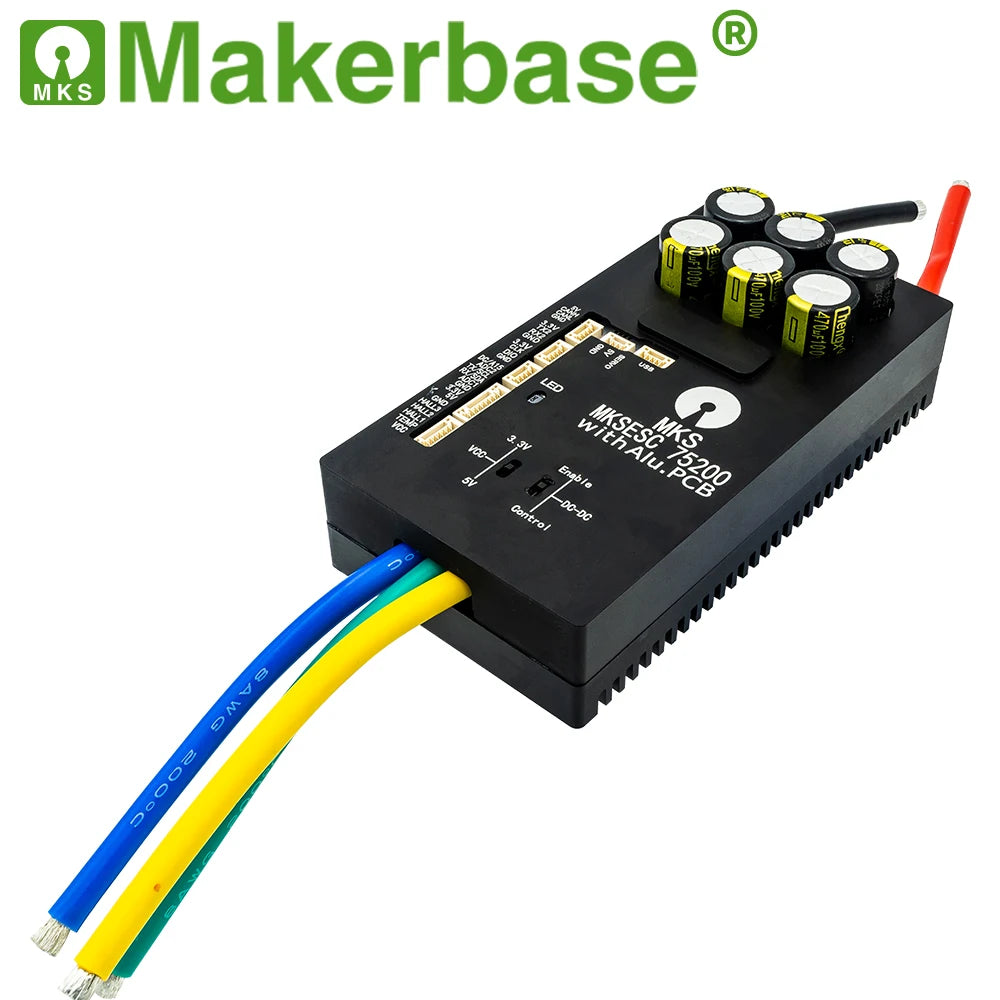

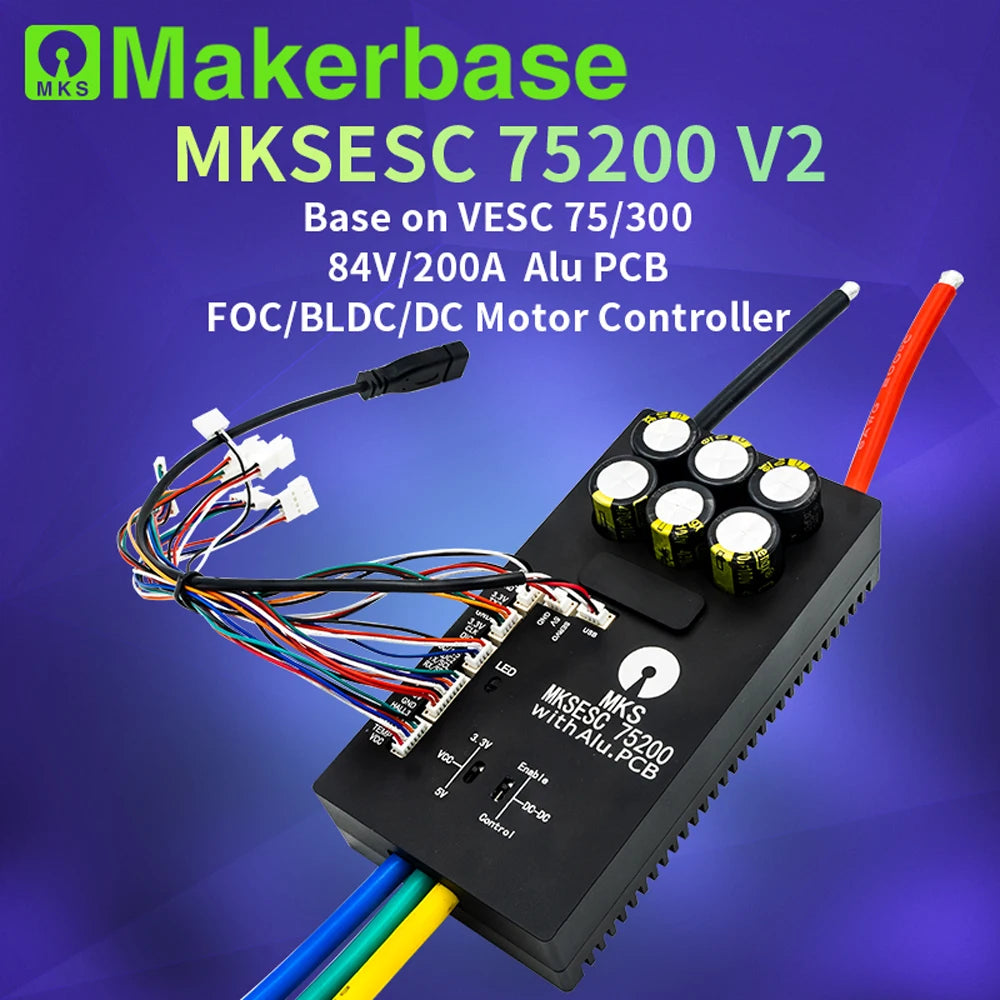

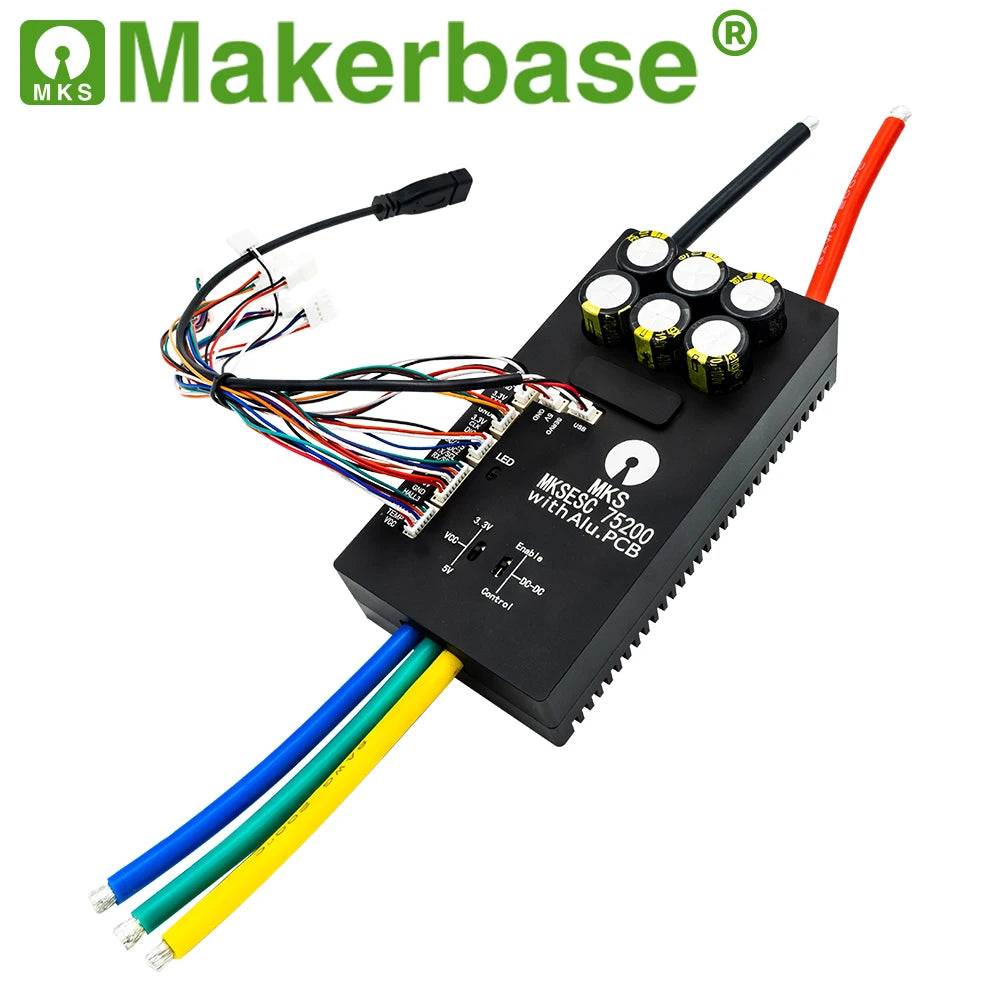

Makerbase VESC 75200 V2
No se pudo cargar la disponibilidad para recoger
Use this text to encourage communication or promote sharing on social networks.
The VESC75 series has larger voltage and current than VESC6 and VESc4. Like VEsC6, it has three-phase splitter and adjustable current/voltage filter, which can detect any connected motor more accurately and reliably. The limit speed of MKSESC 75200 V2 is up to 150000 ERPM.
Features:
1. Use ARM Cortex-M4 STM32F405RG processor with FPU floating point unit.
2. Continuous current up to 200A(duration depends on external heat dissipation), maximum current 300A
3. Limit speed of electric adjustment up to 150000 ERPM.
4. Built-in USB interface, VESC TOOL connection with PC device to complete all configuration.
5. With UART interface, it can communicate with Android mobile device through Bluetooth module to monitor and configure in real time.
6.Supports sensor less and sensor less operation.
7. Support a variety of control modes: duty cycle control, speed control and current control.
8. Support a variety of control motor interfaces: PPM signal (RC server), Analog, UART, 12C, USB and CAN bus.
9. lt has excellent soft strategy, soft compensation strategy for current limit and soft backoff strategy forRPM restriction.
168MHz Main Frequency CPU
Using ARM Cortex-M4 STM32F405RG processor, with FPU floating point arithmetic unit and DSP function.
High current MOSFET
Use 12 HYGO15N1ONS1TAHigh current MOSFET, parameter 100V/380A
T2 tinned red copper strip
With T2 tinned copper bar and 2MM thick copper bar, it had a good over current and heat removal performance

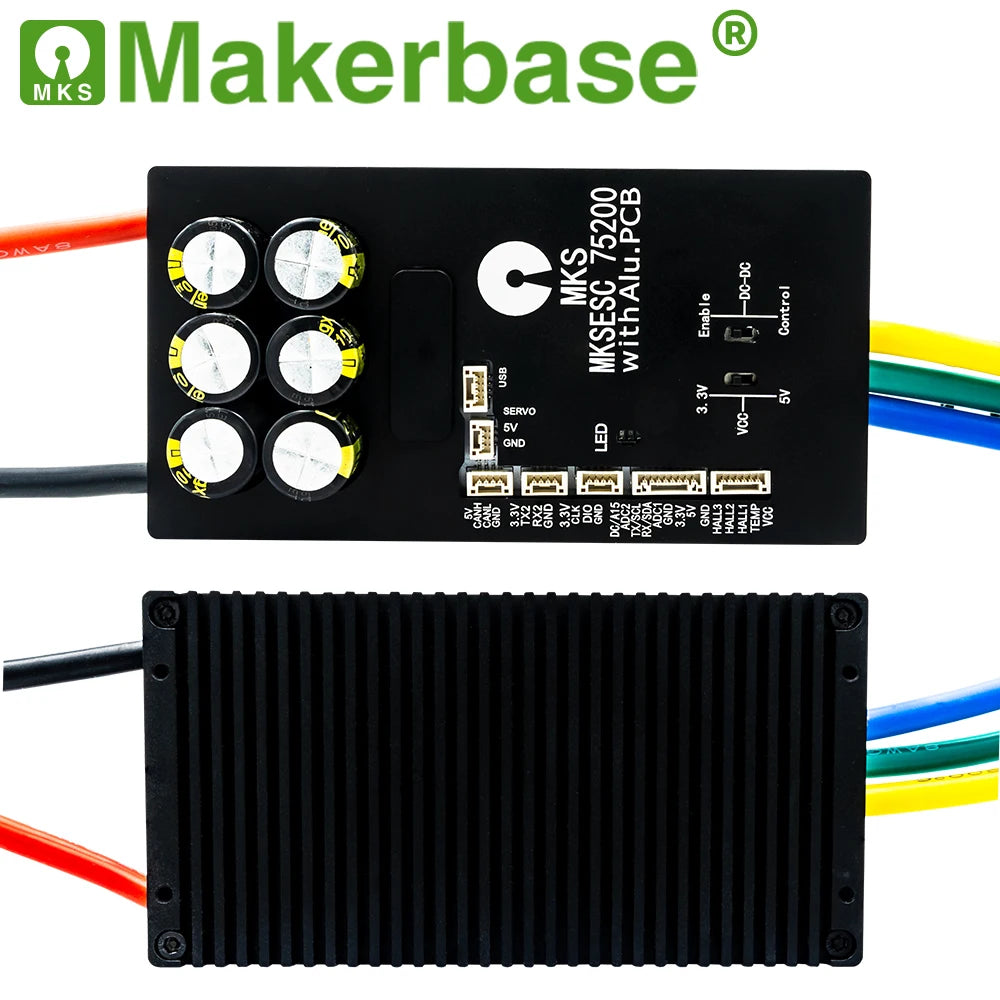

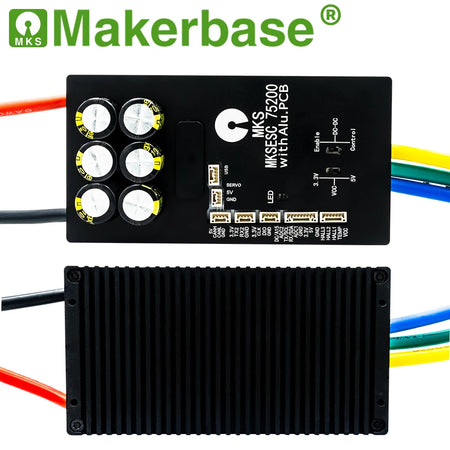

Flexible heat dissipation
Material of aluminum substrate for better heat dissipation
Warm tips:
1. Users who purchased before November 15, 2023 will receive the old version of MKSESC 75200 V2, which is not applicable to phase filtering (Motor Settings -> FOC -> Filter). When using the factory firmware model 75200 R2, please turn off the phase filtering function (Enable Phase Filters -> False). It is recommended to use the firmware model MKSESC_75200_V2_OLD for subsequent use.
2. Users who purchase after November 15, 2023 will receive the new version MKSESC 75200 V2, which supports phase filtering. The factory firmware version is V6.02, and the firmware model is MKSESC_75200_V2.
Makerbase VESC75 Series Upgrade Instructions in Github:
https://github.com/makerbase-mks/VESC-MKS/wiki/Makerbase-VESC75-Series-Upgrade-Instructions
Firmware upgrade video:
https://www.youtube.com/watch?v=3-lvTJFiX2w
