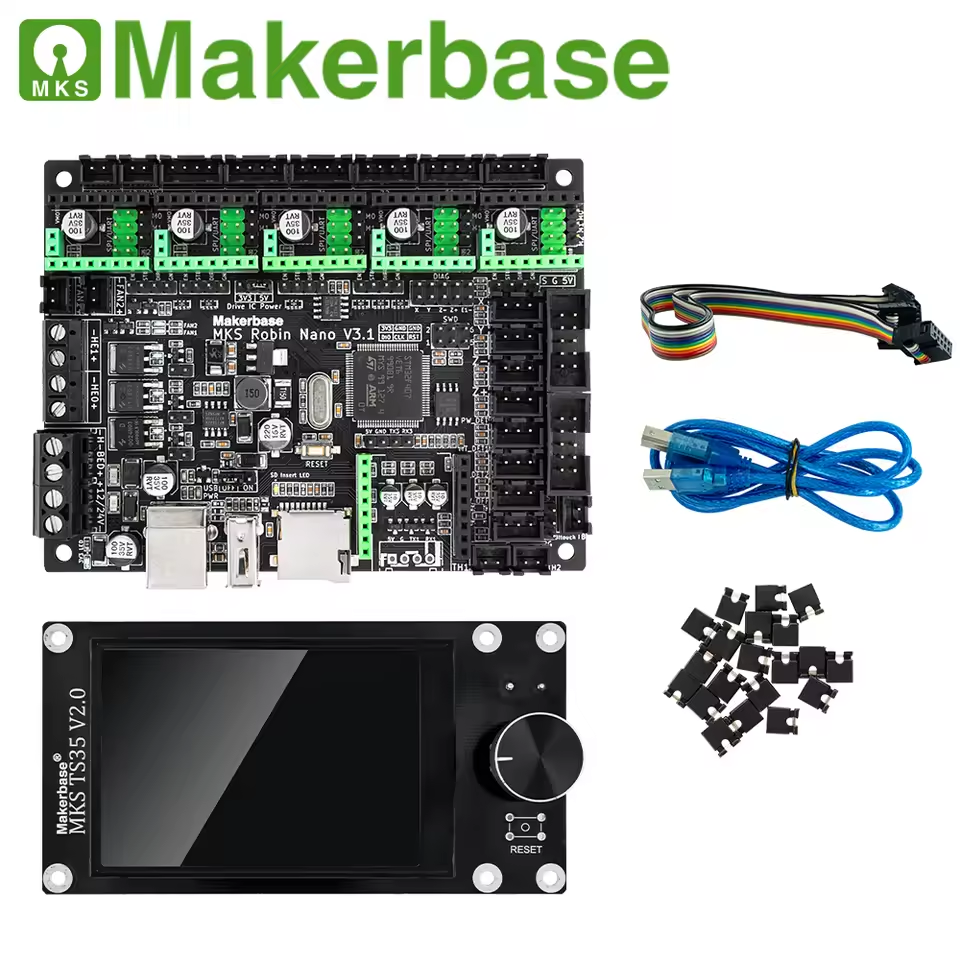

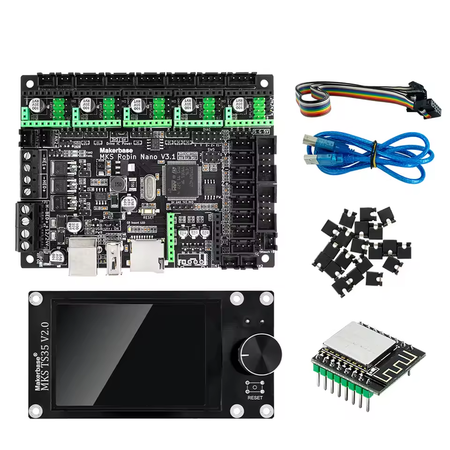

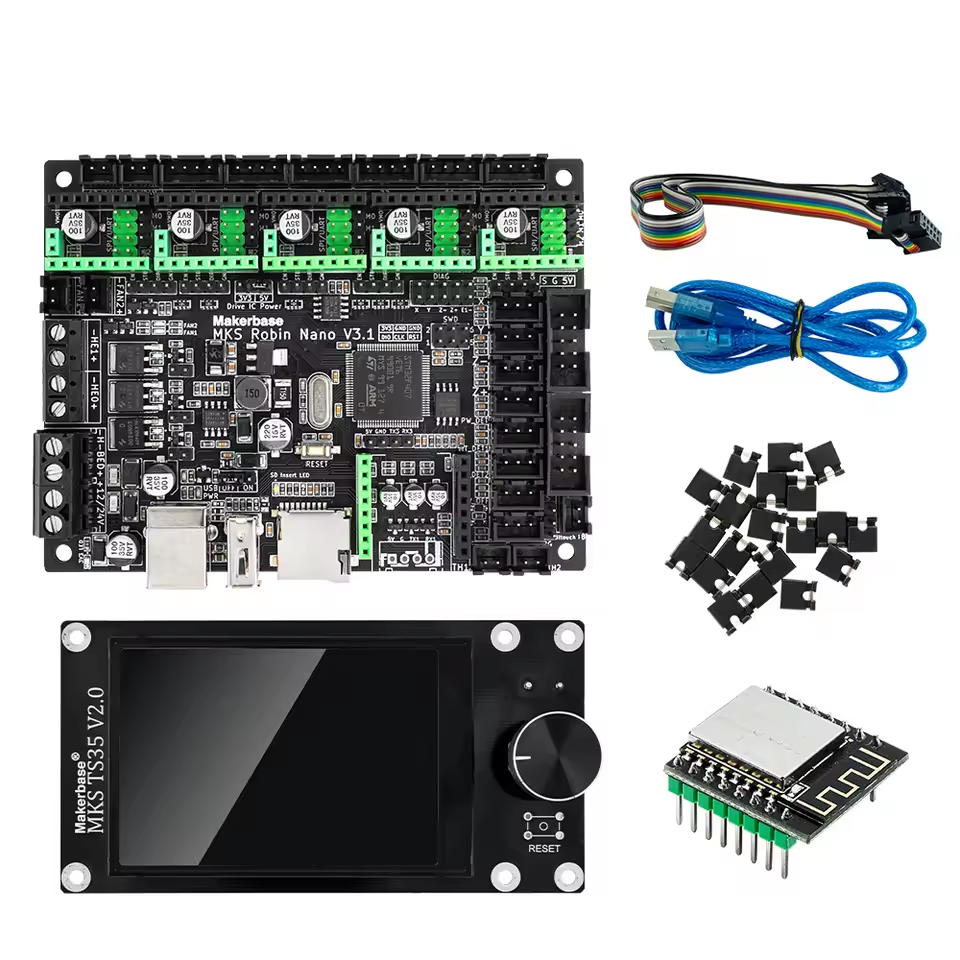

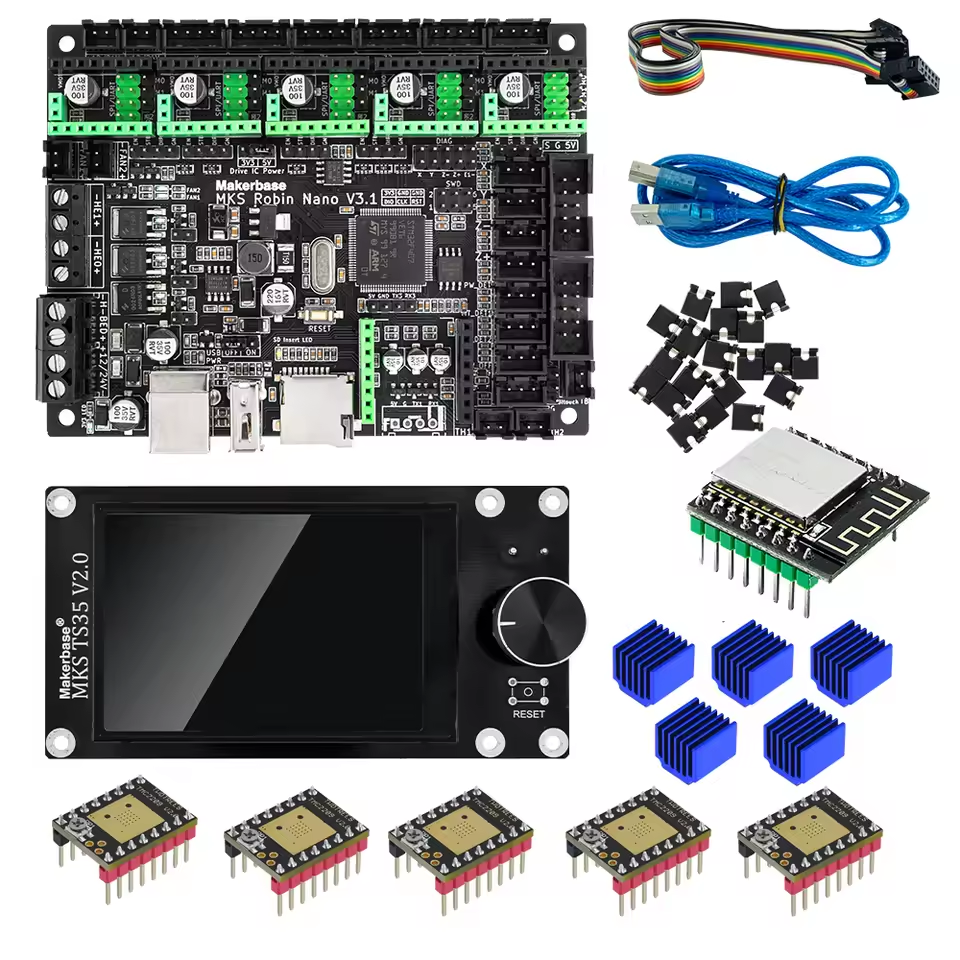

Makerbase Mks Robin Nano V3.1 Eagle 32bit Control Panel Motherboard

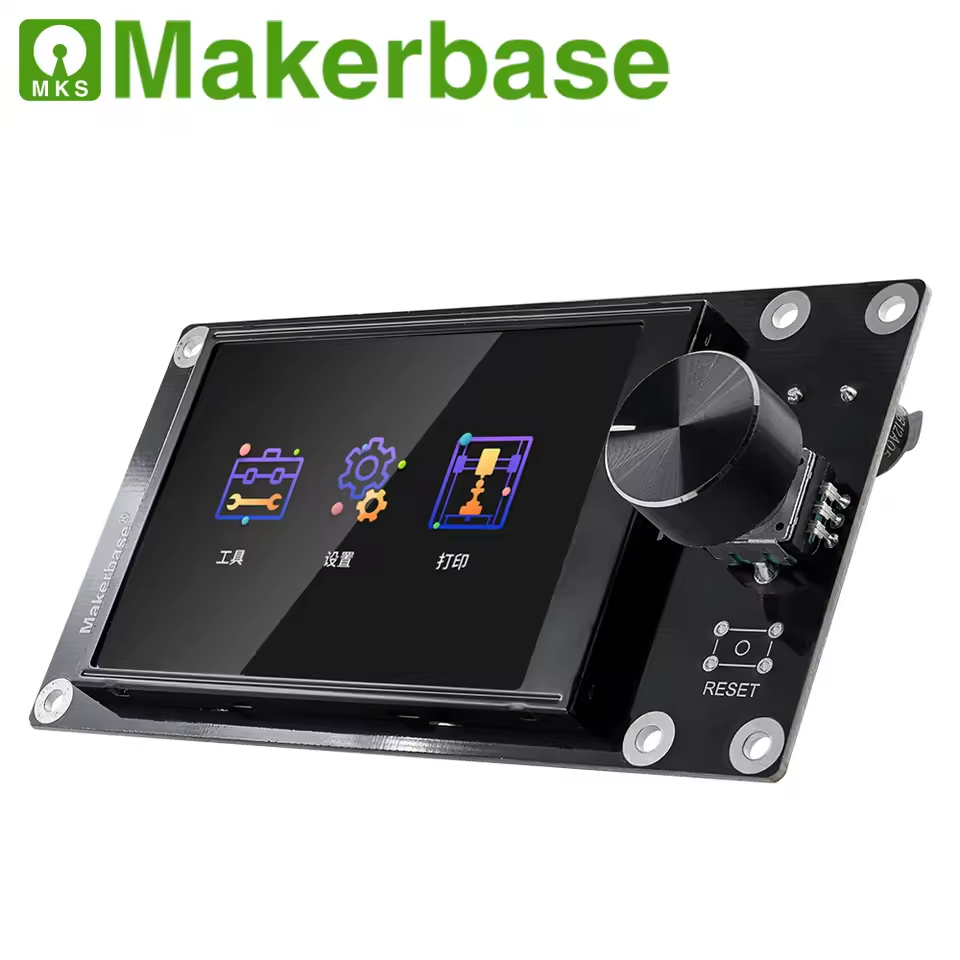

3D Touch Screen Interface:Features a TS35 3D touch screen for intuitive control and user-friendly navigation.

Compatibility with BigTreeTech SKR Mini E3:Designed to work seamlessly with BigTreeTech SKR Mini E3, offering a hassle-free upgrade path.

Improved Anti-Interference:Boasts enhanced anti-interference with Schottky diodes and TVS protection for stable operation.

USB Drive Support:Includes USB drive support, enabling easy firmware updates and storage of 3D printing files.

Duet Health|Duet Washer|32bit MCU Upgrade:Features an upgraded 32bit MCU, ensuring faster processing and smoother 3D printing.

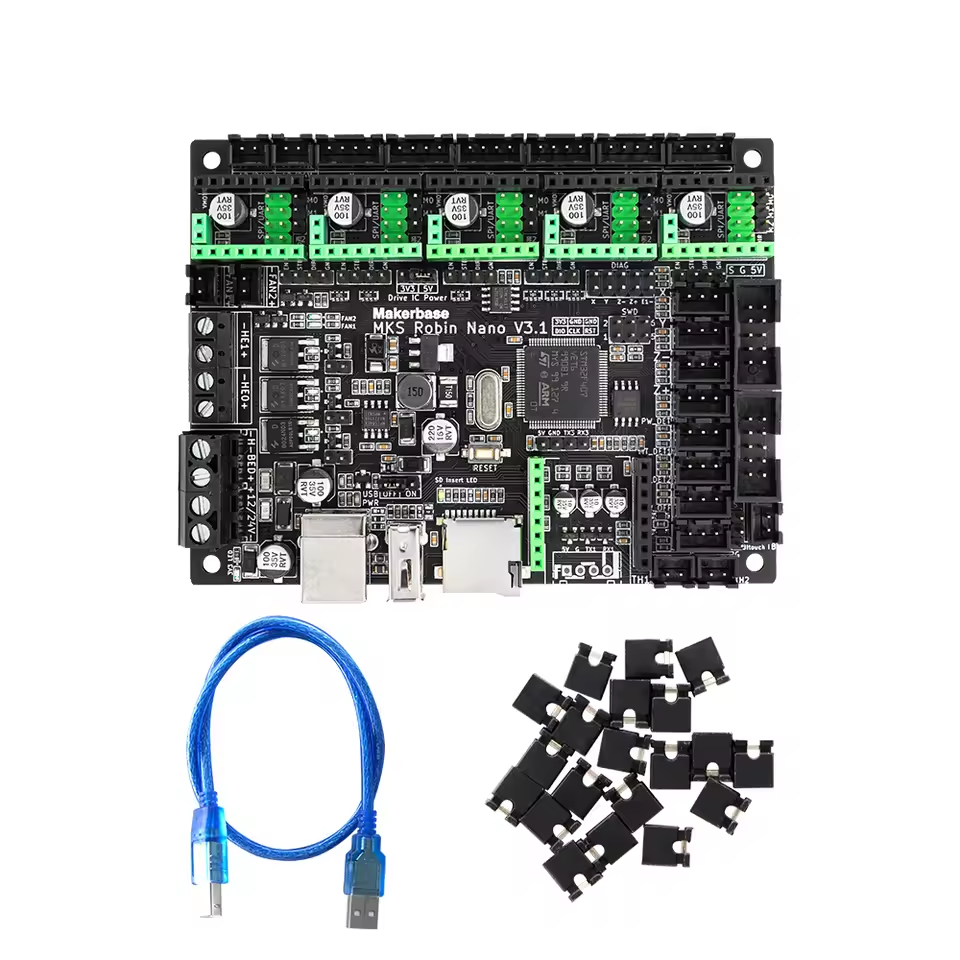

MKS Robin Nano V3.1 motherboard, MCU upgraded to M4 core, added support for USB drives. It can adapt to most FDM 3D printers in the market, and is suitable for manufacturers that produce 3D printers in bulk as the main control board and players upgrading 3D printers.

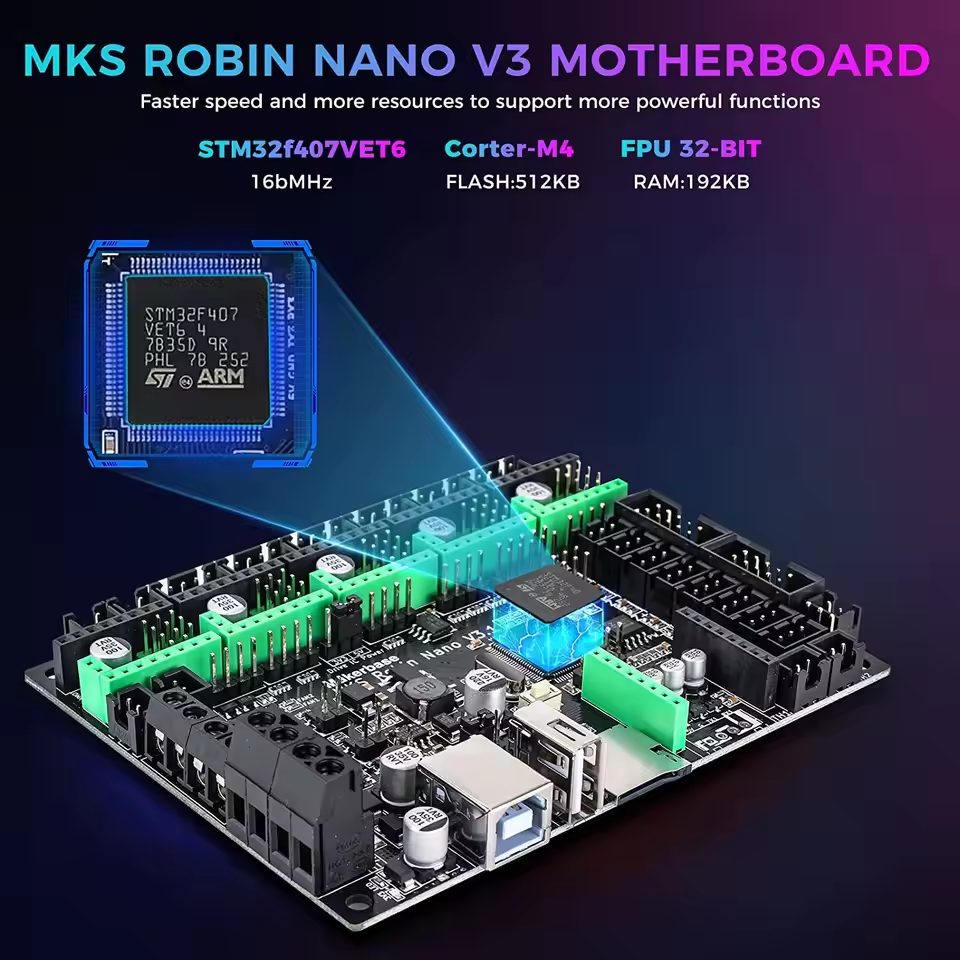

Robin Nano V3.1 is an upgraded version of Robin Nano V3.0, change the MCU from the STM32F407VGT6 to STM32F407VET6. What is more, Robin Nano V3.1 improves the anti-interference performance, such as adding Schottky diodes to the temperature measurement circuit and MOS circuit, and adding TVS protection to the power innut

1. MKS Robin Nano v3.0 operation instructions：

https://blog.csdn.net/gjy_skyblue/article/details/118754258?spm=1001.2014.3001.5501

2. MKS Robin Nano V3 Github:
https://github.com/makerbase-mks/MKS-Robin-Nano-V3.X

3. Firmware Source
https://github.com/makerbase-mks/Mks-Robin-Nano-Marlin2.0-Firmware

Specifications

MCU: Upgraded to M4 core
Storage: 8M SPI flash

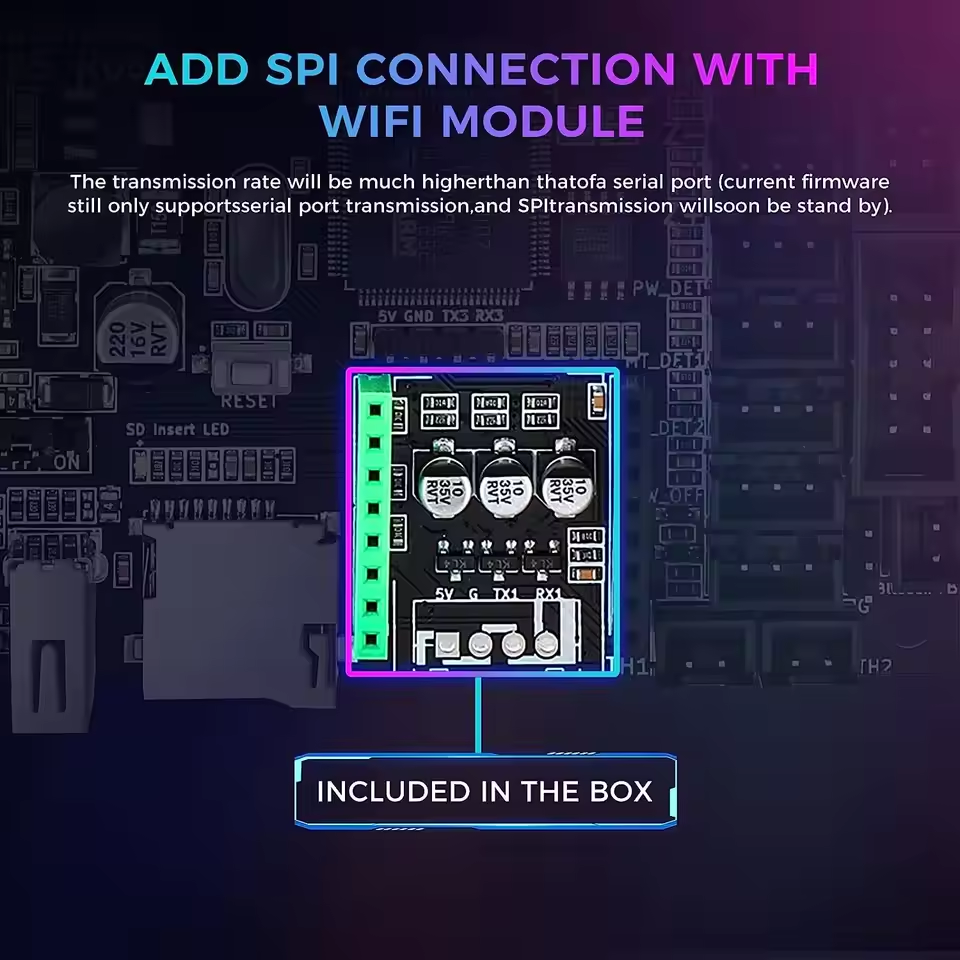

Connectivity: Supports UART3
Compatibility: Designed for MKS Robin Nano V3

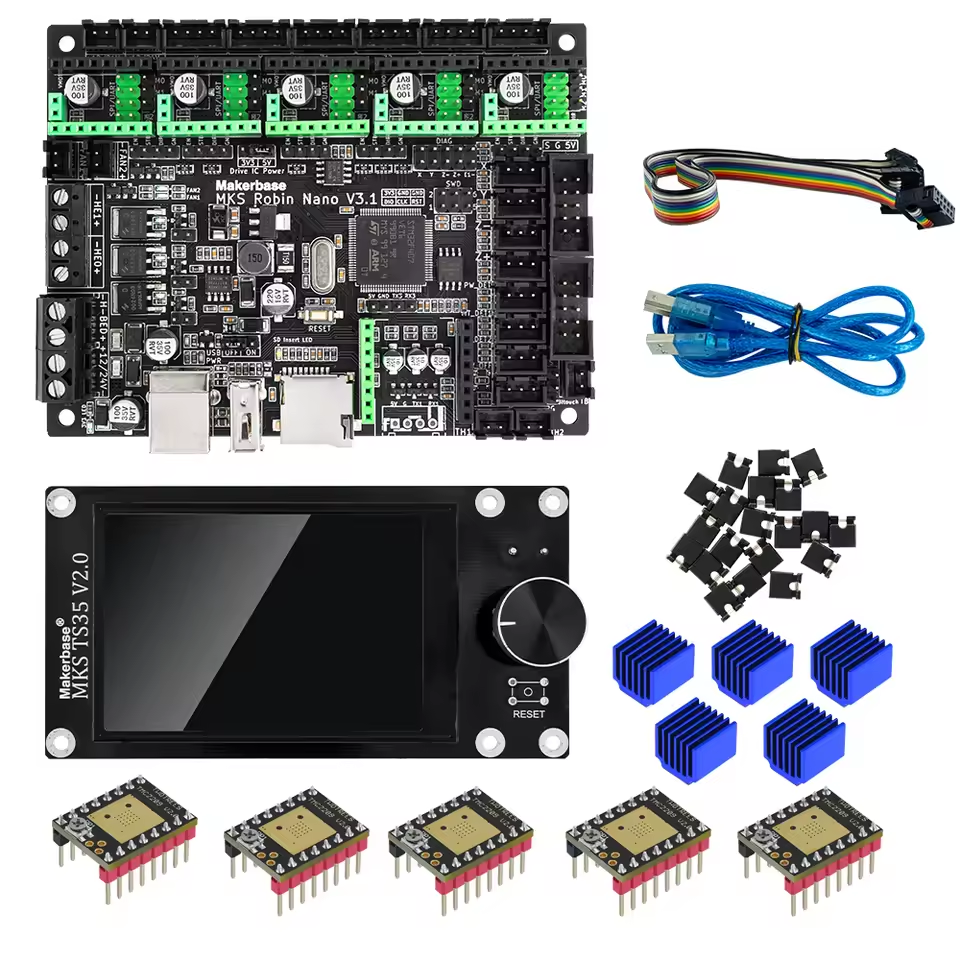

Motor Drive: Integrated TMC2209 with SPI mode

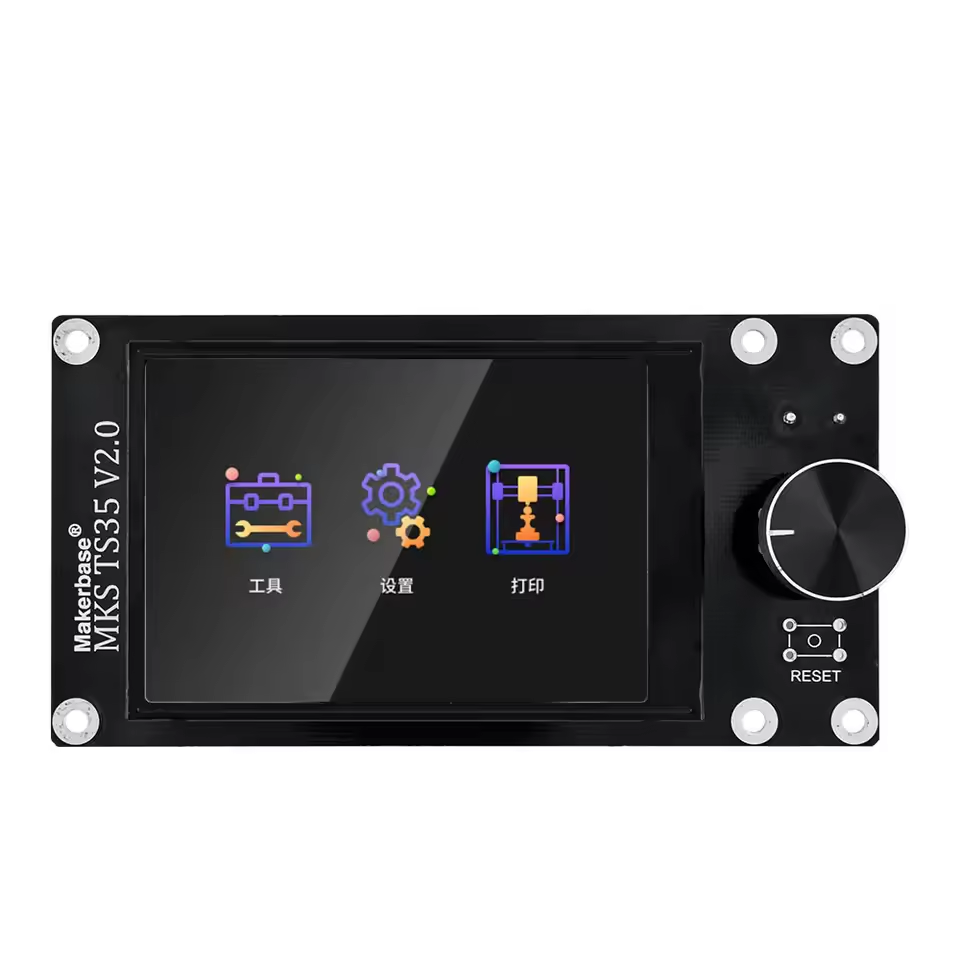

Display: TS35 3D Touch Screen

Features:

**Advanced Control and Connectivity**
The Makerbase Mks Robin Nano V3 Eagle 32bit Control Panel is a cutting-edge solution for 3D printing enthusiasts and professionals alike. With its upgraded M4 core MCU and 8M SPI flash, this control board offers ample storage and processing power to handle complex 3D printing tasks. The addition of UART3 support ensures seamless communication with other devices, enhancing the overall functionality of your 3D printer setup.

*Robust Motor Drive and User-Friendly Interface**

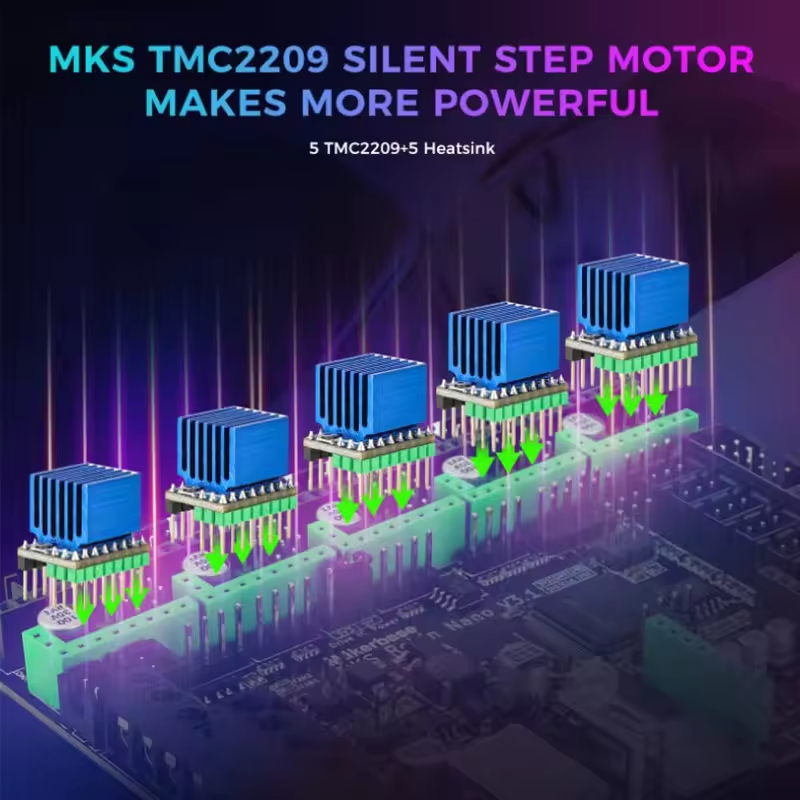

The TMC2209 motor drive integrated into the MKS Robin Nano V3 provides precise and reliable stepper motor control, ensuring smooth and accurate movement during 3D printing. The SPI mode of the TMC2209 motor drive offers a more efficient and stable connection, reducing the risk of interference and improving the overall performance of your 3D printer. The TS35 3D Touch Screen offers an intuitive interface, allowing for easy navigation and control of your 3D printing process.

**Versatile Compatibility and Upgrade Potential**
Designed to be compatible with a wide range of FDM 3D printers, the MKS Robin Nano V3 is an ideal choice for manufacturers looking to equip their machines with a reliable and versatile control board. Its compatibility with the bigtreetech skr mini e3 v3.0 and bigtreetech skr mini e3 v2 ensures that it can be easily integrated into existing setups. Moreover, the board's open-source firmware and GitHub repository provide users with the flexibility to customize and upgrade their 3D printer control systems, ensuring that they stay at the forefront of 3D printing technology.
