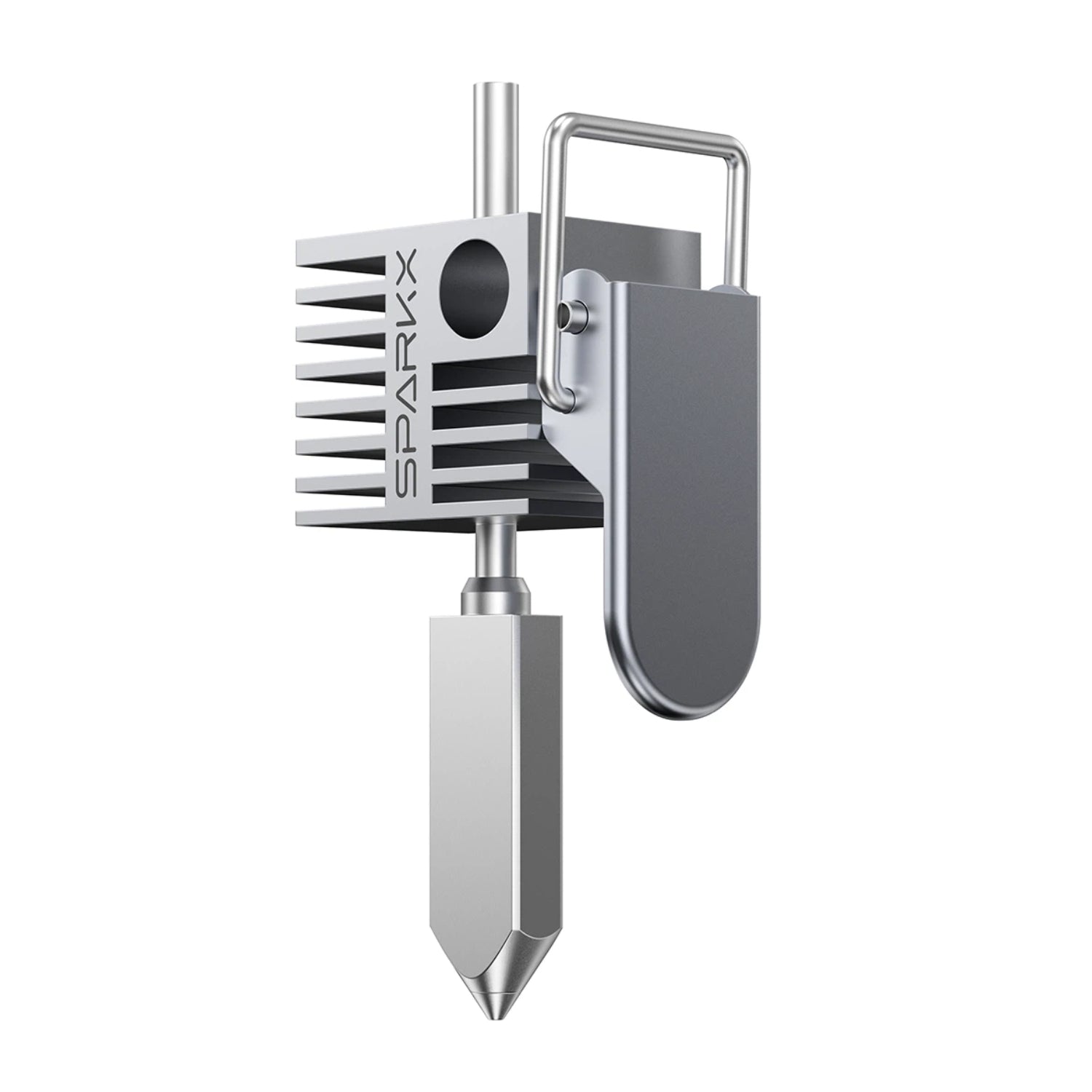

i7 Hotend for Creality

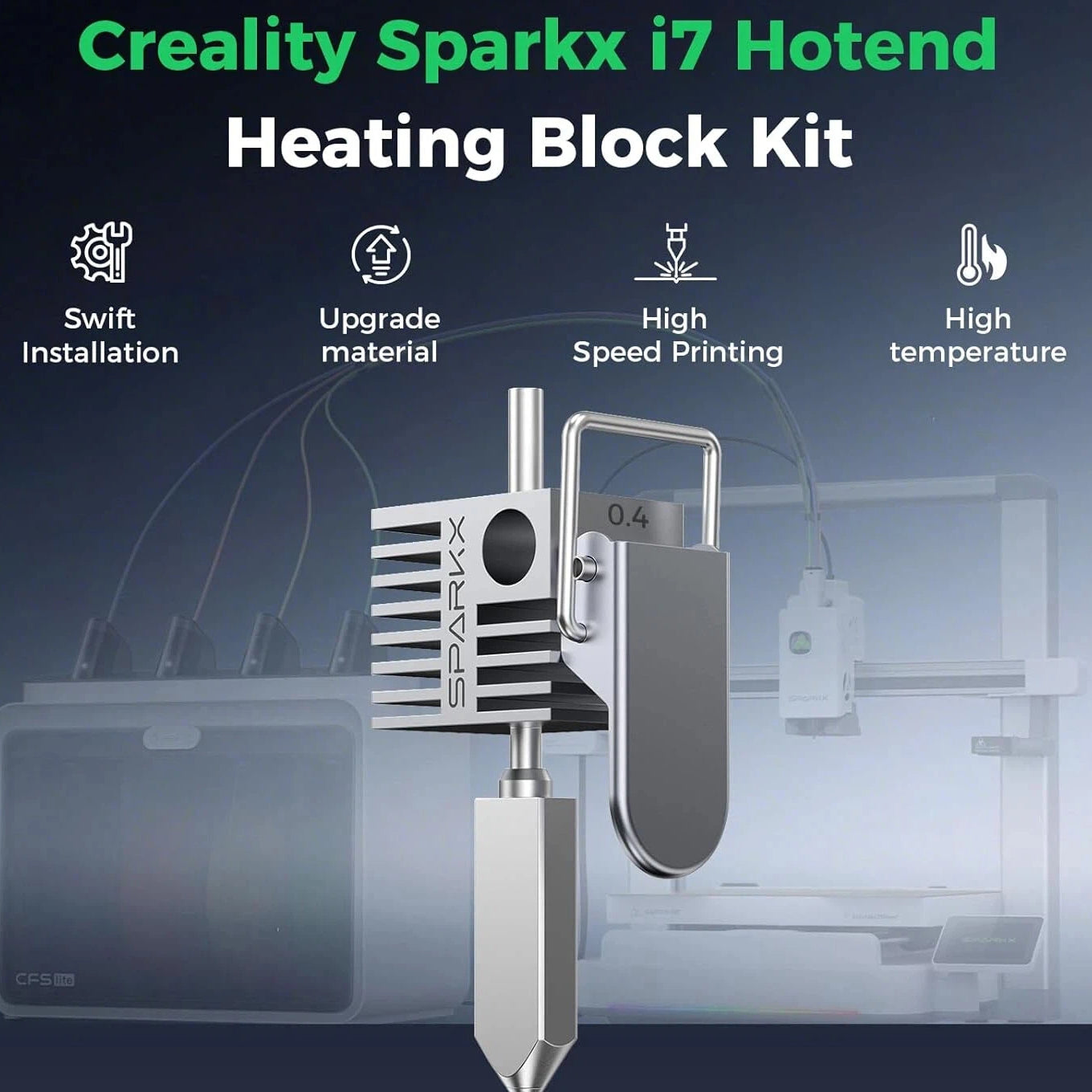

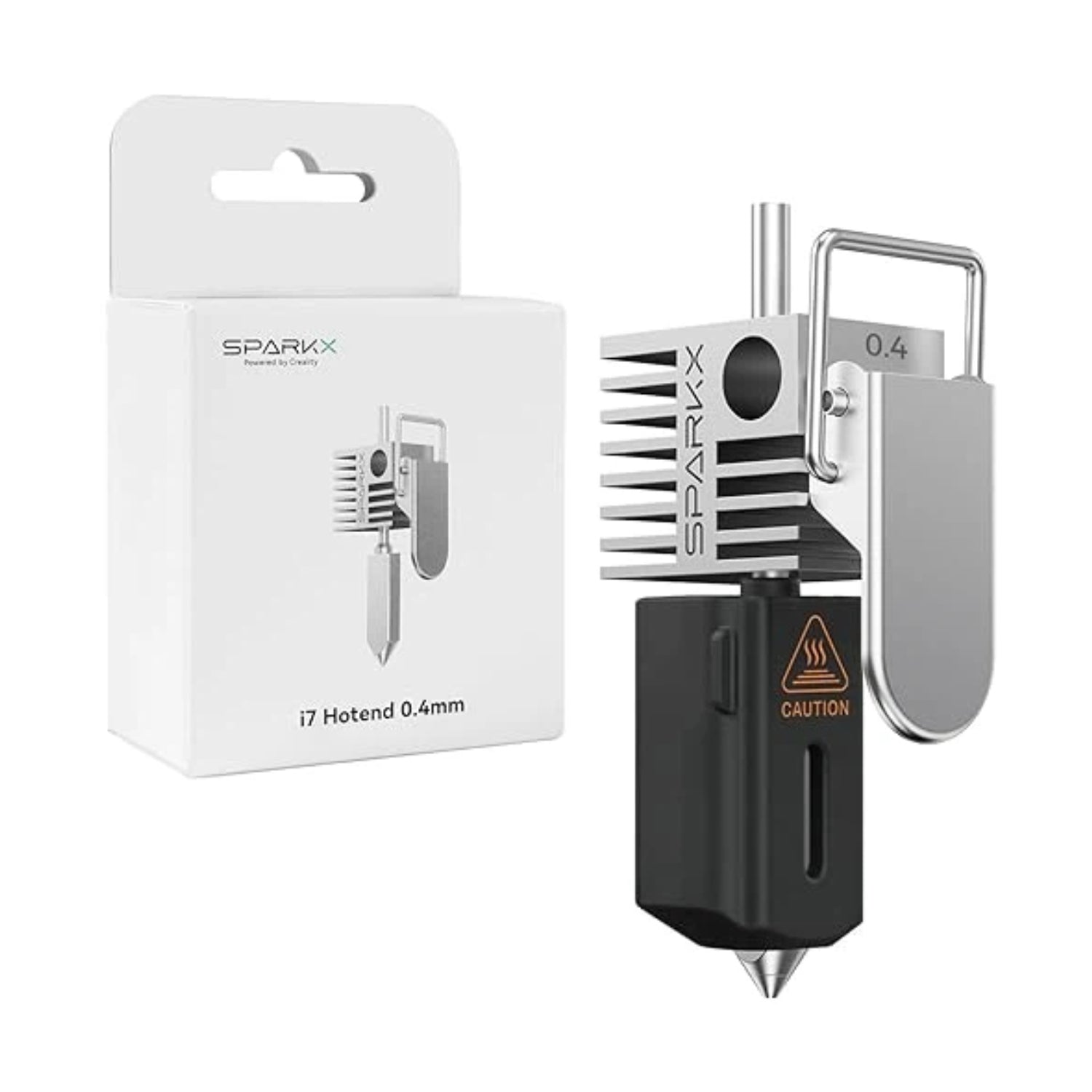

SPARKX i7 Hotend: Designed specifically for the Creative SPARKX i7, featuring a new Integrated and snap-on design; Equipped with a 0.6mm nozzle and silicone protective sleeve.

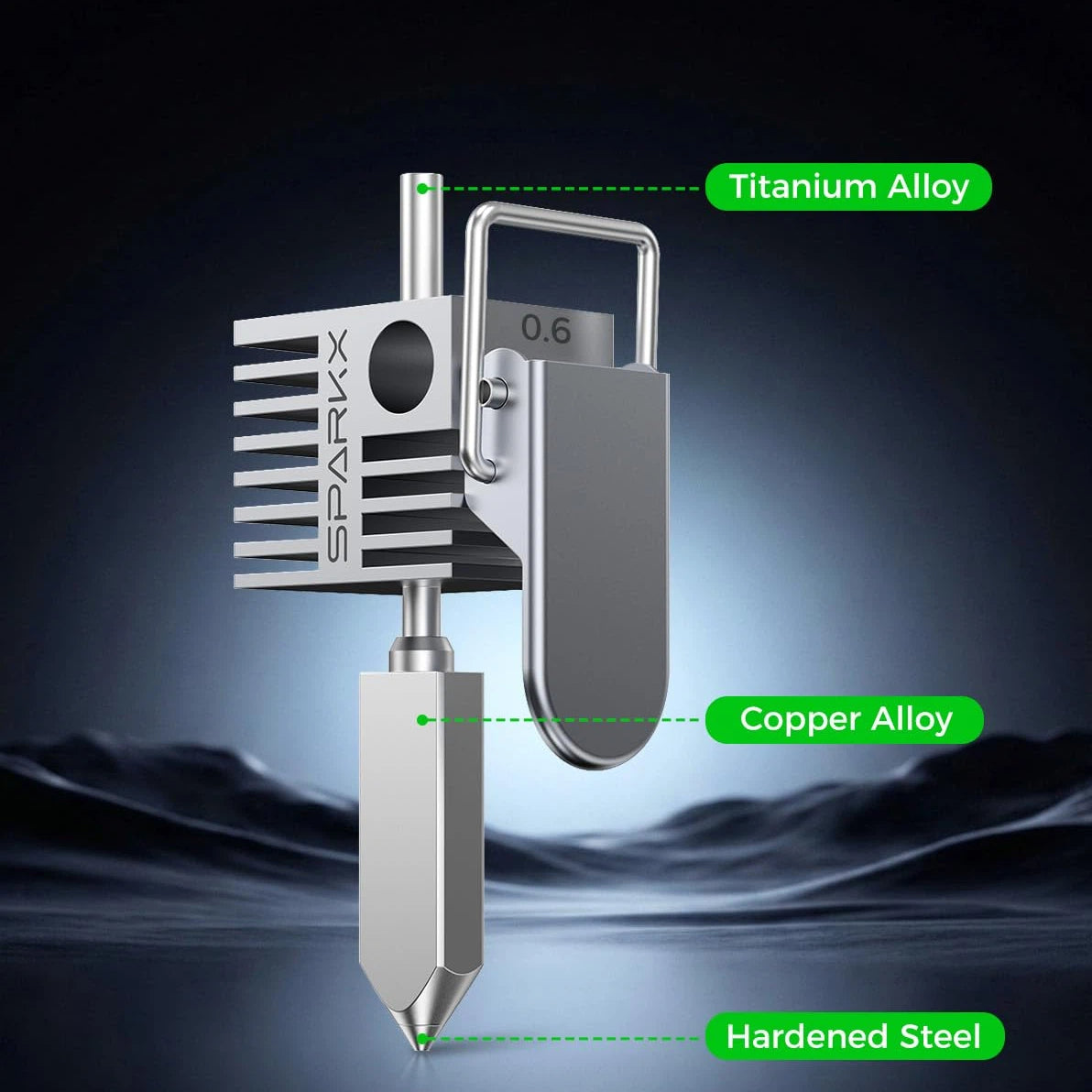

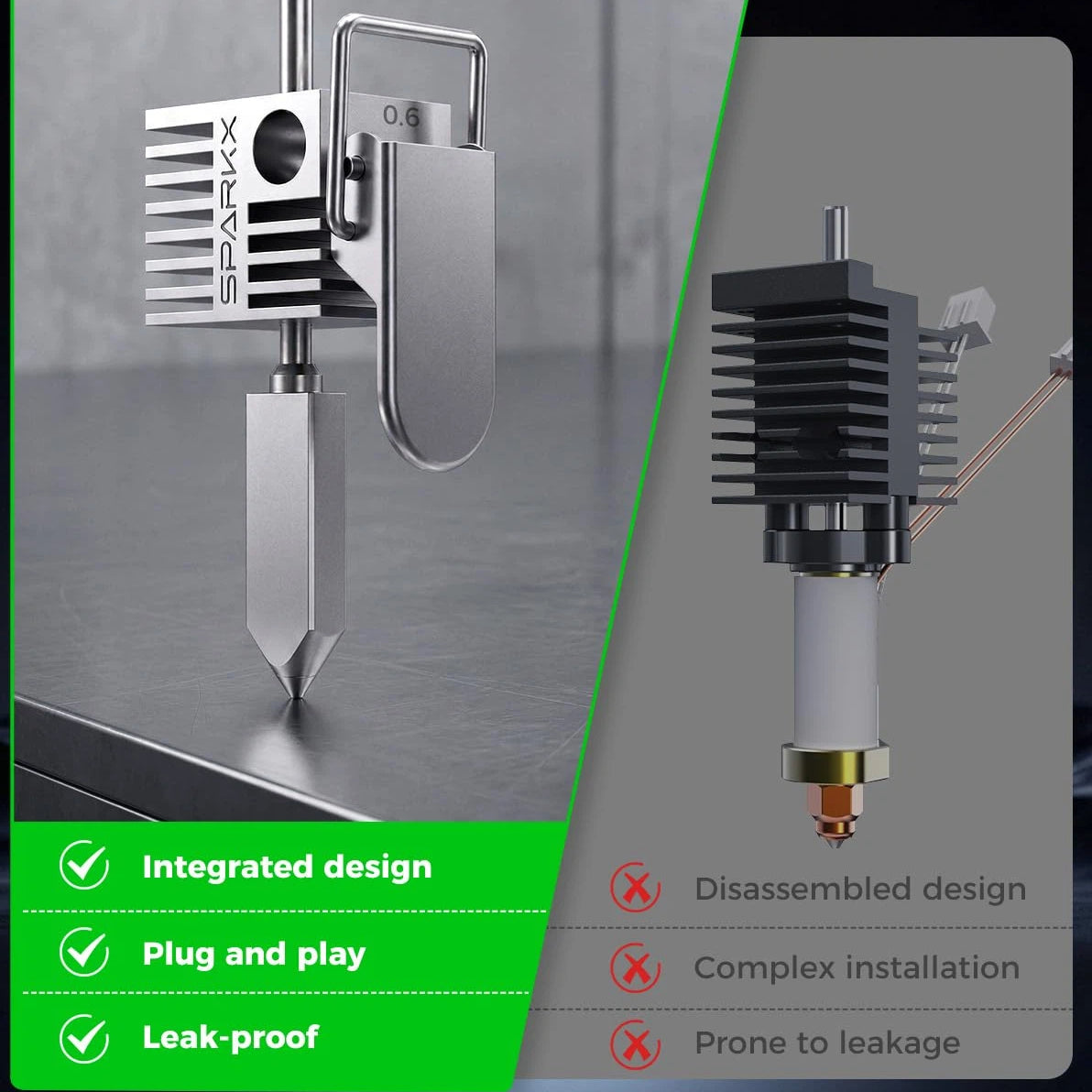

All-metal Integrated Design: Newly upgraded, the SPARKX i7 hot end and nozzle adopt an all-metal integrated design; The integrated design minimizes filament leakage and reduces clogging.

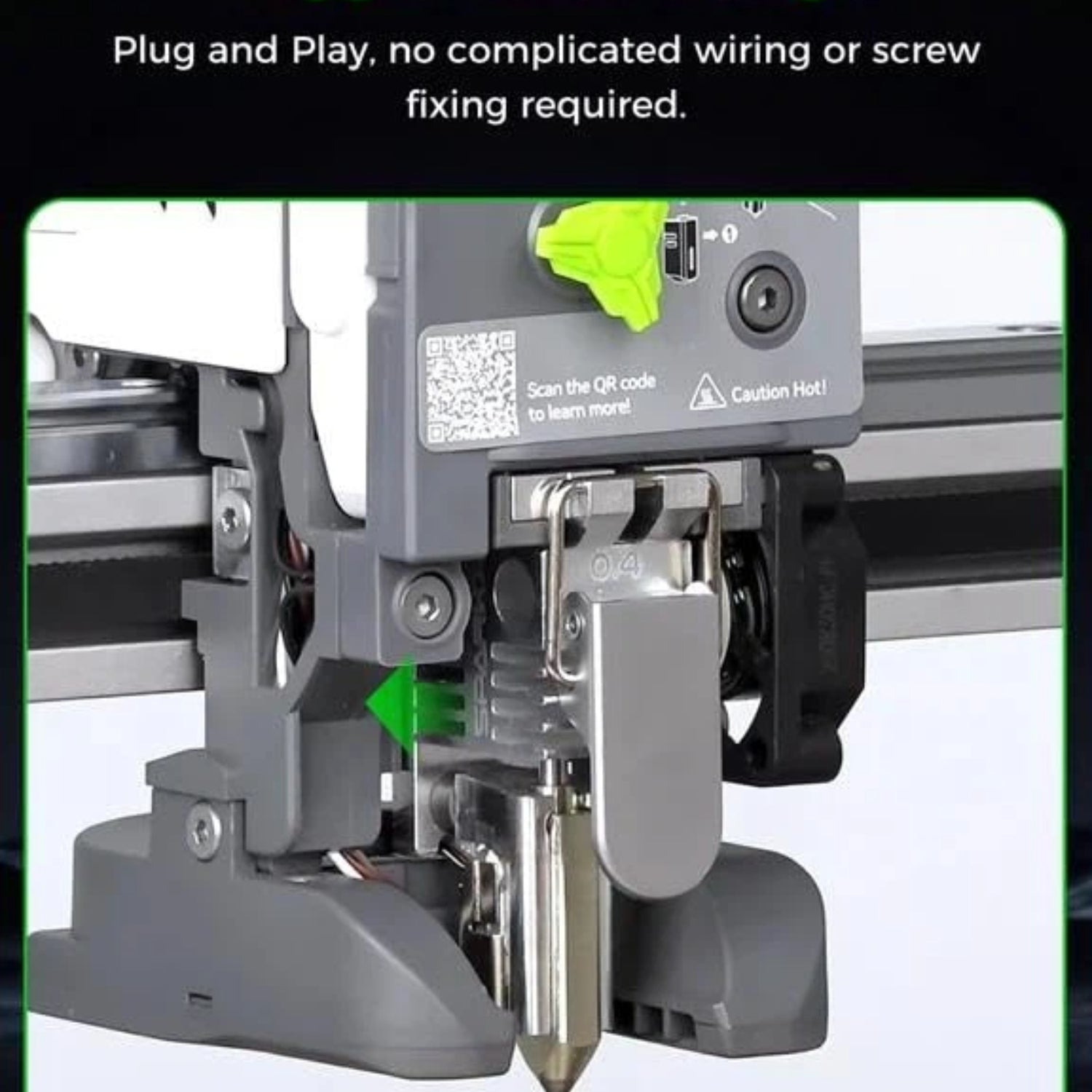

Plug & Play: Hook and Loop design, no complicated wiring or screwing required; No tools required, just a few steps to install/remove the SPARKX i7 hotend; Note: Please reduce the heating head temperature during replacement to avoid burns.

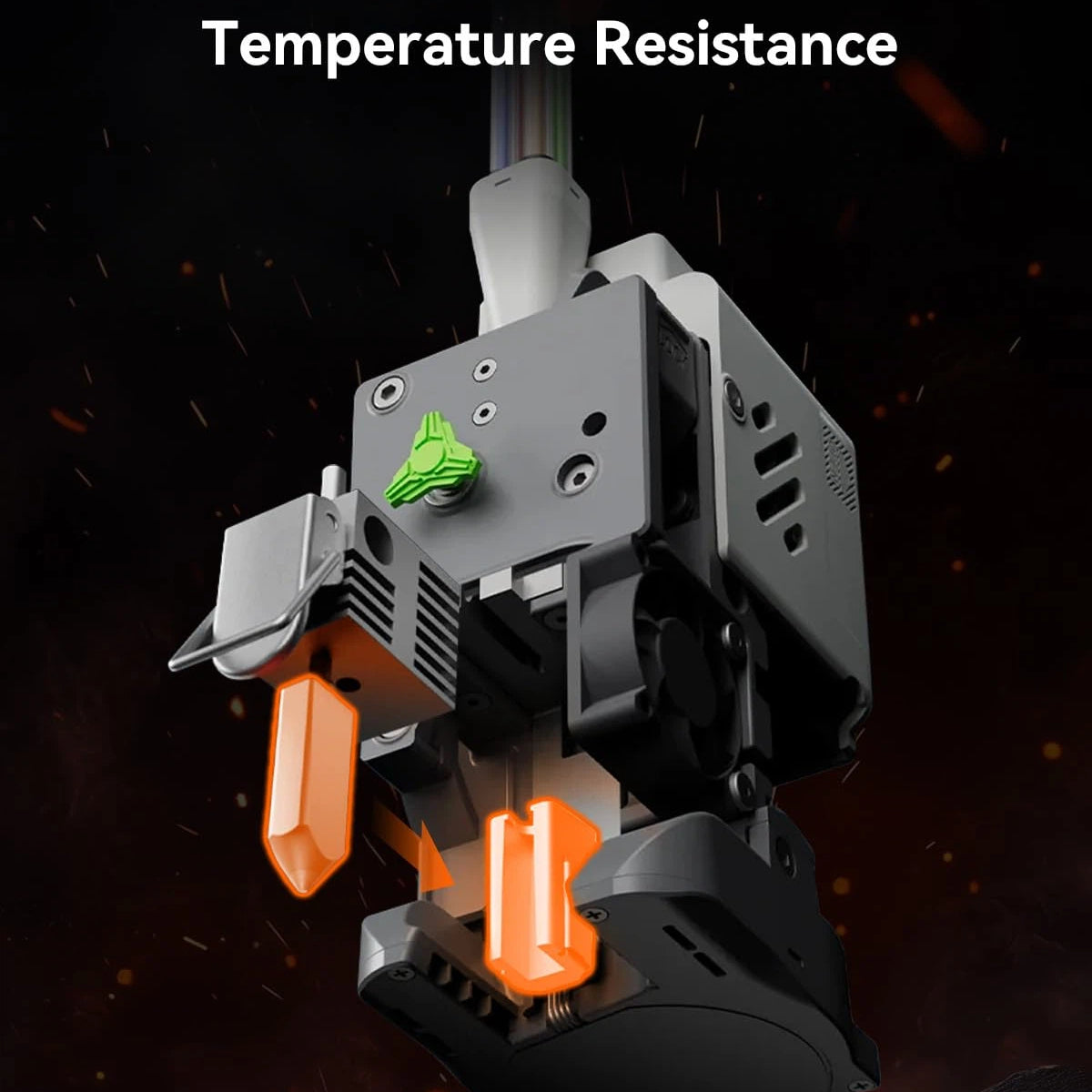

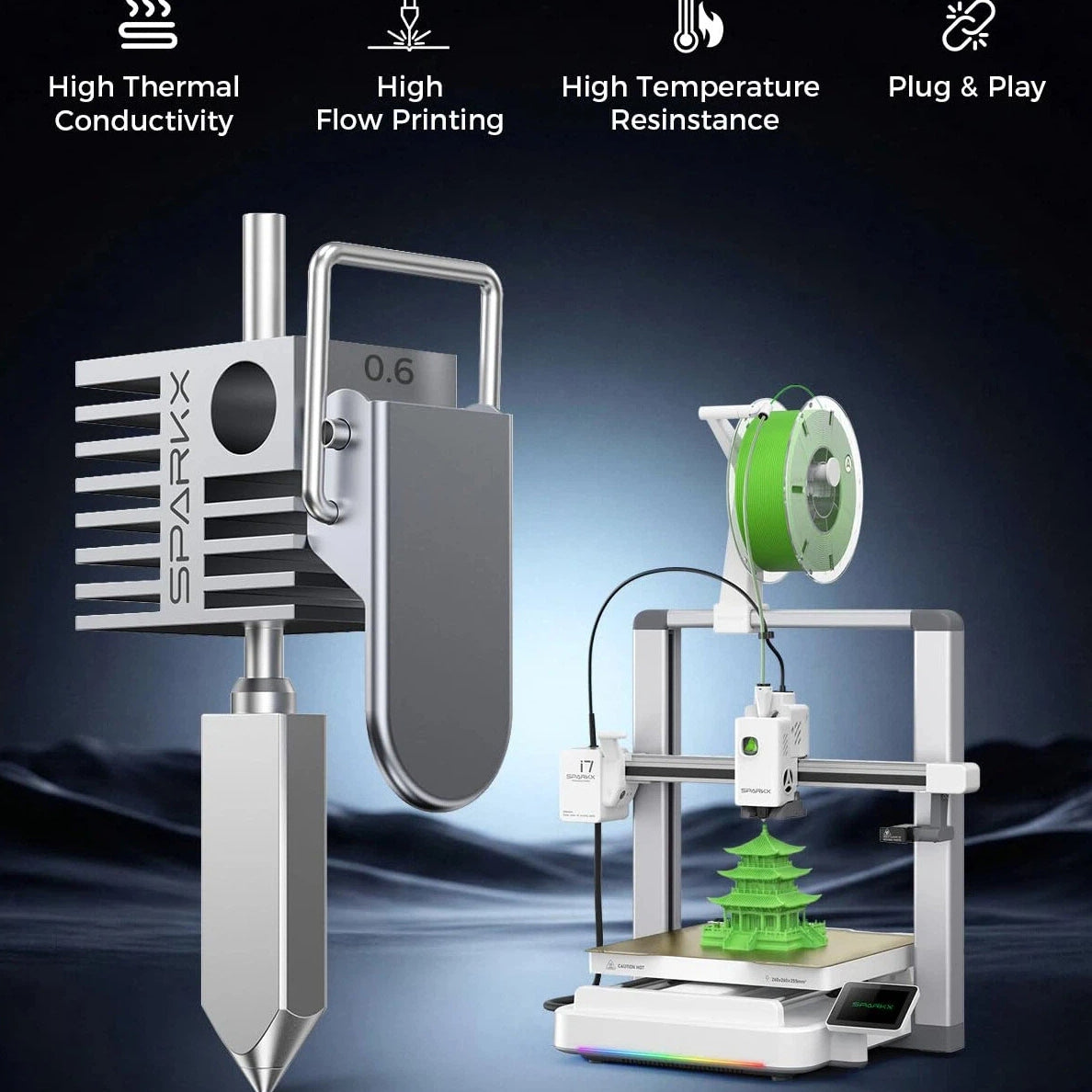

High-Temperature & High-Speed: Maximum temperature up to 300℃, providing uniform heating; It supports high-speed printing at 500mm/s.

Wide Compatibility: The SPARKX i7 heating block is composed of high-quality materials, supporting the printing of various filaments, such as PLA, PETG, PLA-CF, TPU (Shore 64D or harder).

Tool-Free Quick Swap for Maximum Convenience – The quick-swap design with an integrated lever allows you to replace the hotend in seconds without any tools. Even when the hotend is warm up to 220°C, the swap remains safe and straightforward, keeping your printing workflow smooth and uninterrupted.

Official Creality OEM Part – Designed for Reliability – Manufactured by Creality as a genuine replacement component, this hotend ensures stable extrusion, efficient heat transfer, and consistent print quality. It is specifically engineered to fit the SPARKX i7 perfectly, so you never have to worry about compatibility issues.

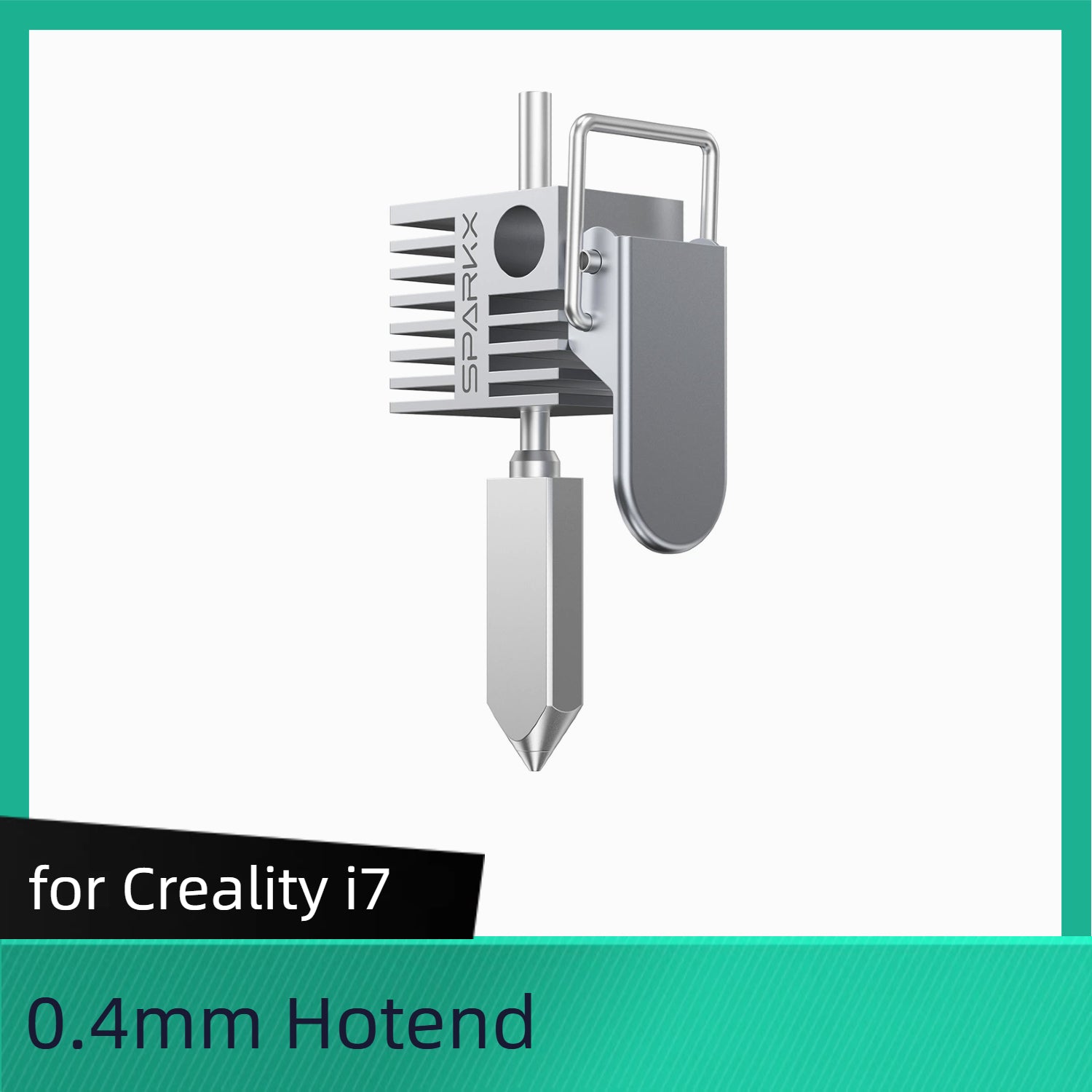

Supports High-Speed Printing up to 500mm/s – Fully compatible with the SPARKX i7’s high-speed capabilities, this 0.4mm hotend allows you to take full advantage of the printer’s 500mm/s max print speed and 300°C nozzle temperature. Combined with the quick-swap design, you can switch from functional to high-speed prints effortlessly.

i7 Series Quick-Release Hotend Replacement Guide

About the i7 Hotend

The hotend is installed on the toolhead and is responsible for extruding filament. For the SparkX i7 printer, we offer hotends with four nozzle diameters: 0.2 mm, 0.4 mm, 0.6 mm, and 0.8 mm, allowing you to choose the most suitable option based on your printing needs.

The i7 hotend features a quick-release design. In this guide, we will demonstrate how to replace the i7 series quick-release hotend.

Note: If you replace the hotend with a different nozzle size, please remember to update the nozzle settings on the printer accordingly.

When to Replace the Hotend

When switching to a different nozzle size

When the hotend is clogged

When the hotend is damaged

After more than six months of use, replacement is recommended

Required Tools

A new i7 Hotend Assembly

Heat-resistant gloves

Safety Preparation

Before starting, make sure that the hotend and heated bed have cooled down to avoid burns. If the operation must be performed while the hotend is still warm, always wear heat-resistant gloves to ensure personal safety.

Replacement Procedure

The hotend can only be replaced when the toolhead is not loaded with filament. If filament is loaded, please unload it first, or manually press the cutter arm to cut the filament.

Removing the Old Hotend

Ensure the toolhead is unloaded, or confirm that the filament has been cut by the filament cutter.

Remove the toolhead front cover to expose the extruder and hotend.

Remove the hotend sock. You may use a wrench to gently pry it off for easier removal. Pinch both sides of the silicone sock and pull it outward and downward.

Flip the hotend release lever upward. Hook the latch onto the upper protrusion and pull the lever upward until the hotend is released.

If the hotend is too tight to remove, set the hotend temperature to 100 °C from the printer control interface, then try again.

Warning: Do not touch the nozzle after heating to avoid burns.

Hold the release lever and pull the integrated hotend assembly straight out horizontally.

Installing the New Hotend

Prepare the new hotend to be installed.

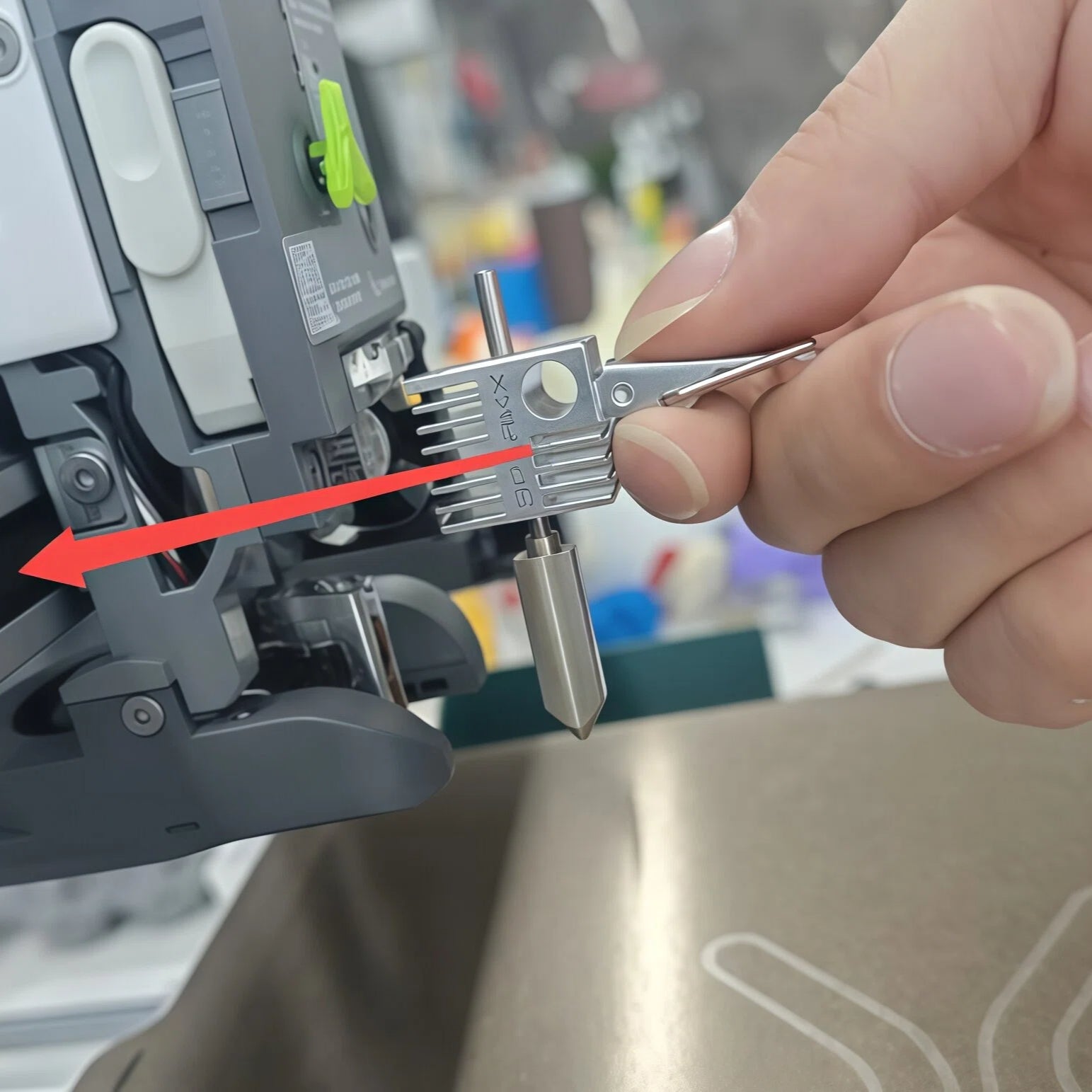

Hold the release lever and insert the hotend horizontally into the heating assembly, ensuring that the nozzle is properly seated.

As shown in the image, lift the Hotend upward.

Engage the latch hook into the upper slot and press the release lever downward to lock the hotend in place.

Reinstall the hotend sock and the toolhead front cover to complete the installation.

  Align the notch of the silicone sock with the nozzle, push it in at an angle, then reinstall the front cover horizontally.

Check whether the installed hotend specification matches the printer settings.

  On the printer, go to Settings → Print Settings → Nozzle to view and modify the nozzle parameters if necessary.
