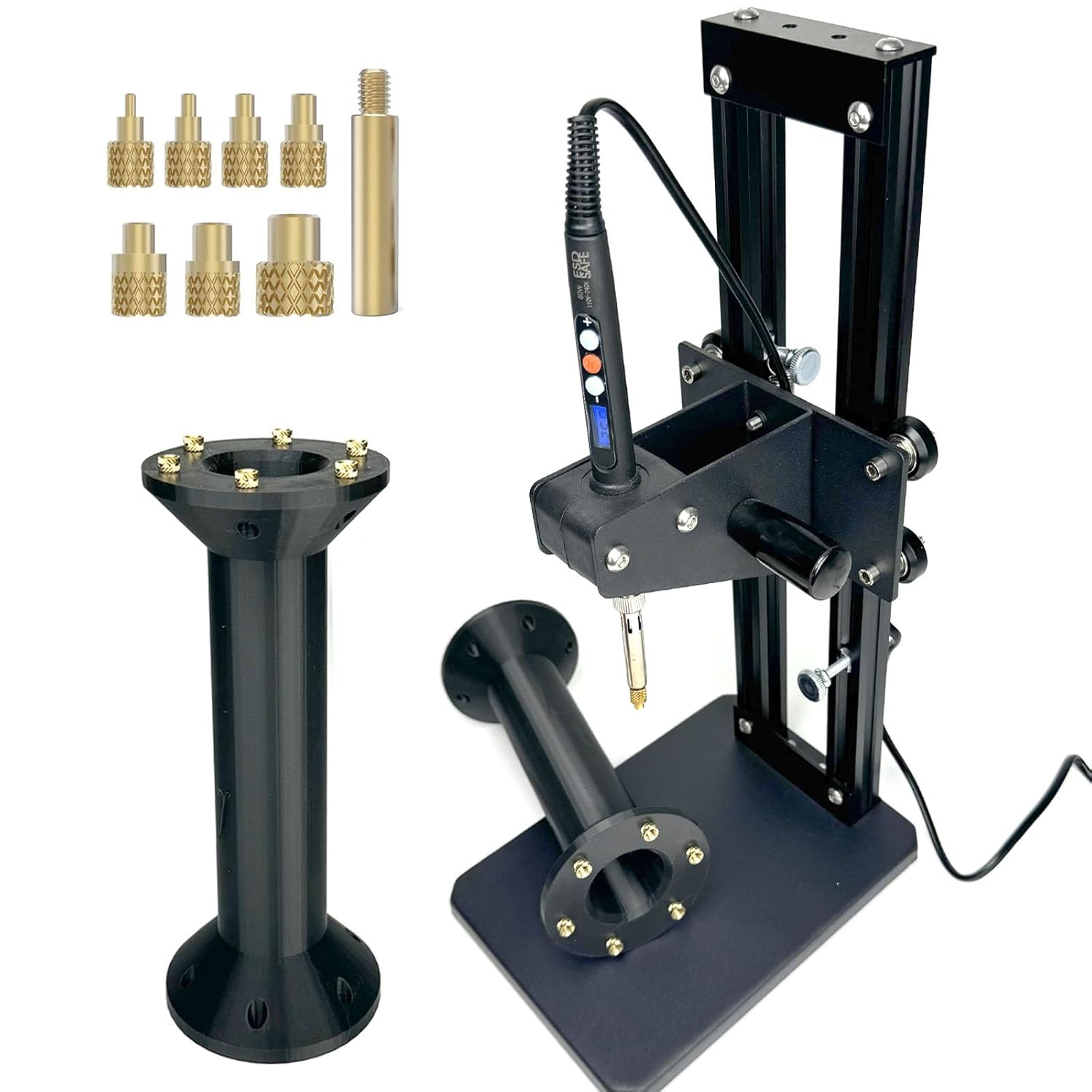

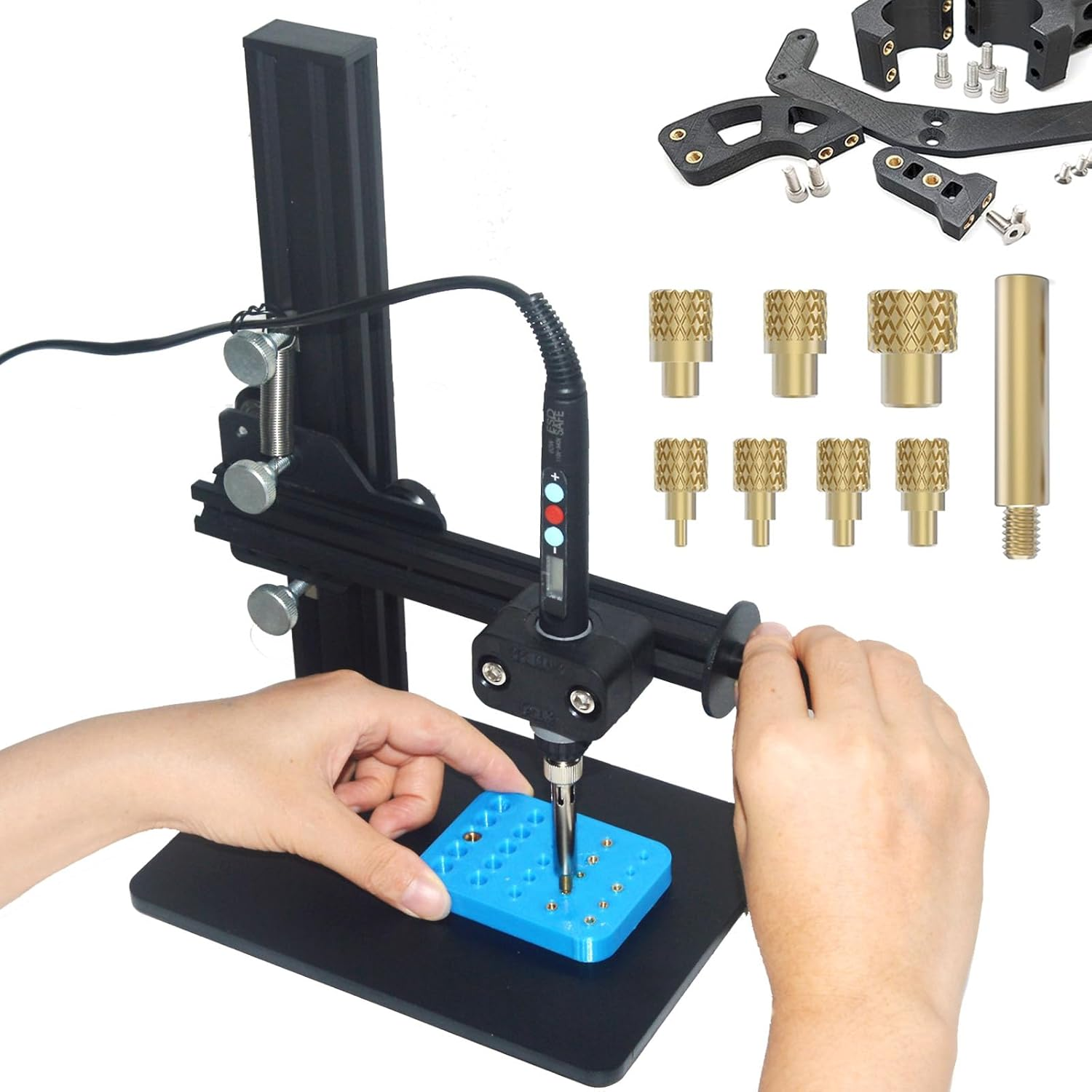

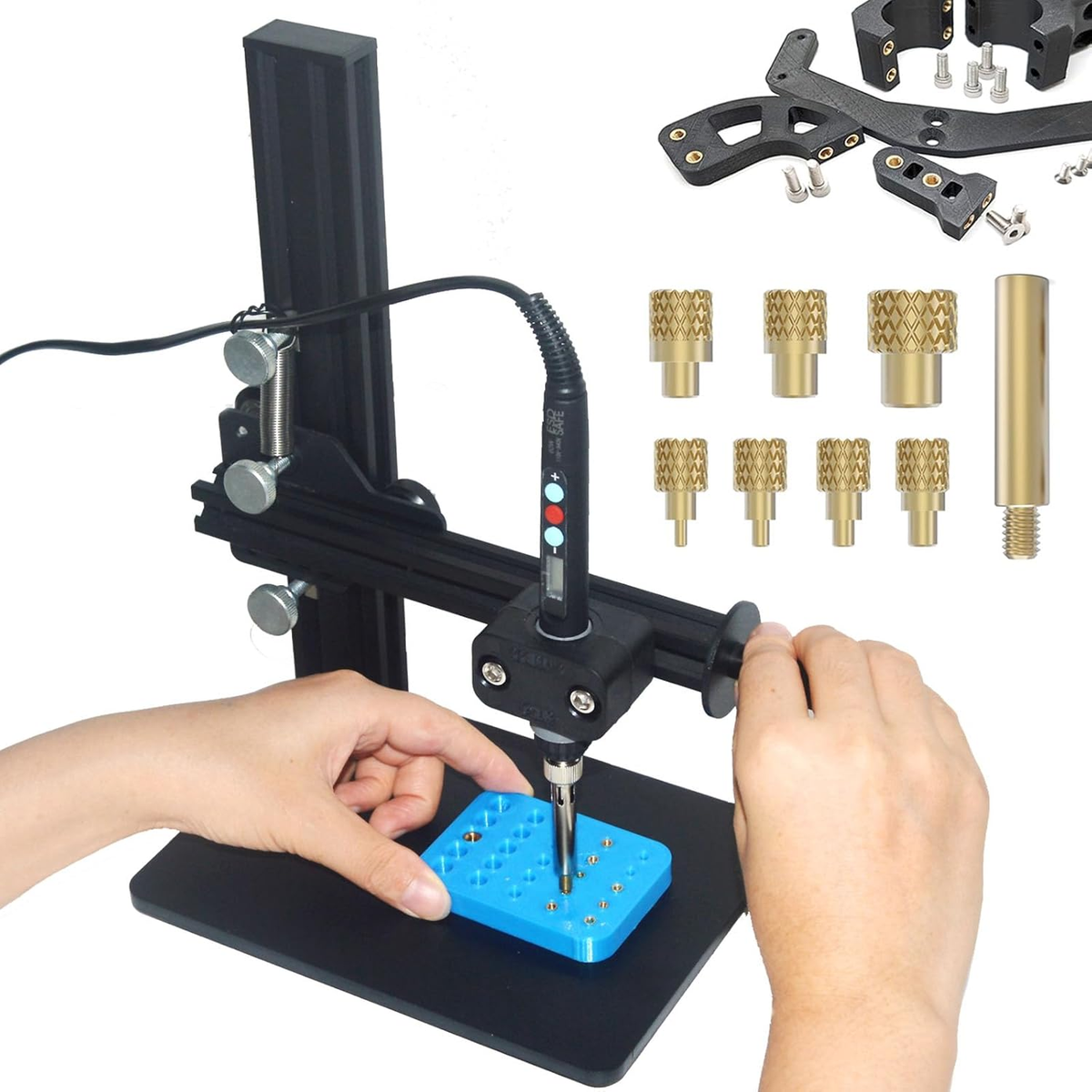

Heat Set Insert Tool with 370PCS Threaded Knurled Nut Inserts Brass

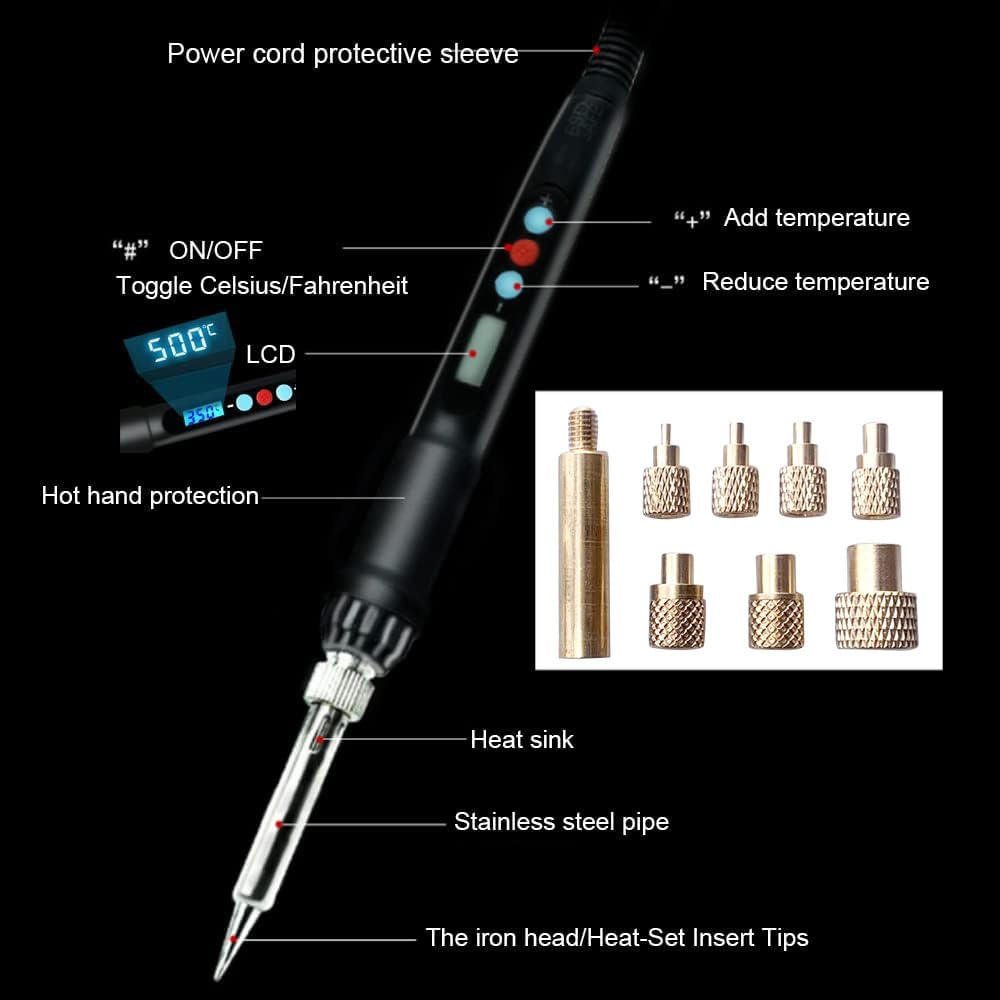

The digital soldering iron supports automatic voltage conversion of 110V/220V. Long press the # switch, with a temperature range of 180 ℃ (356 ℉) -500 ℃ (932 ℉). Long press the+- button to continuously adjust the temperature, and comes with a soldering iron tip and silicone protective cover

The set includes high-quality brass nuts, 120PCS threaded inserts M3xL4xD4.5

Insert Tips M2 M2.5 M3 M4 M5 M6 (1/4) M8 can match the electric soldering iron of ceramic tube D4xL24 on the market

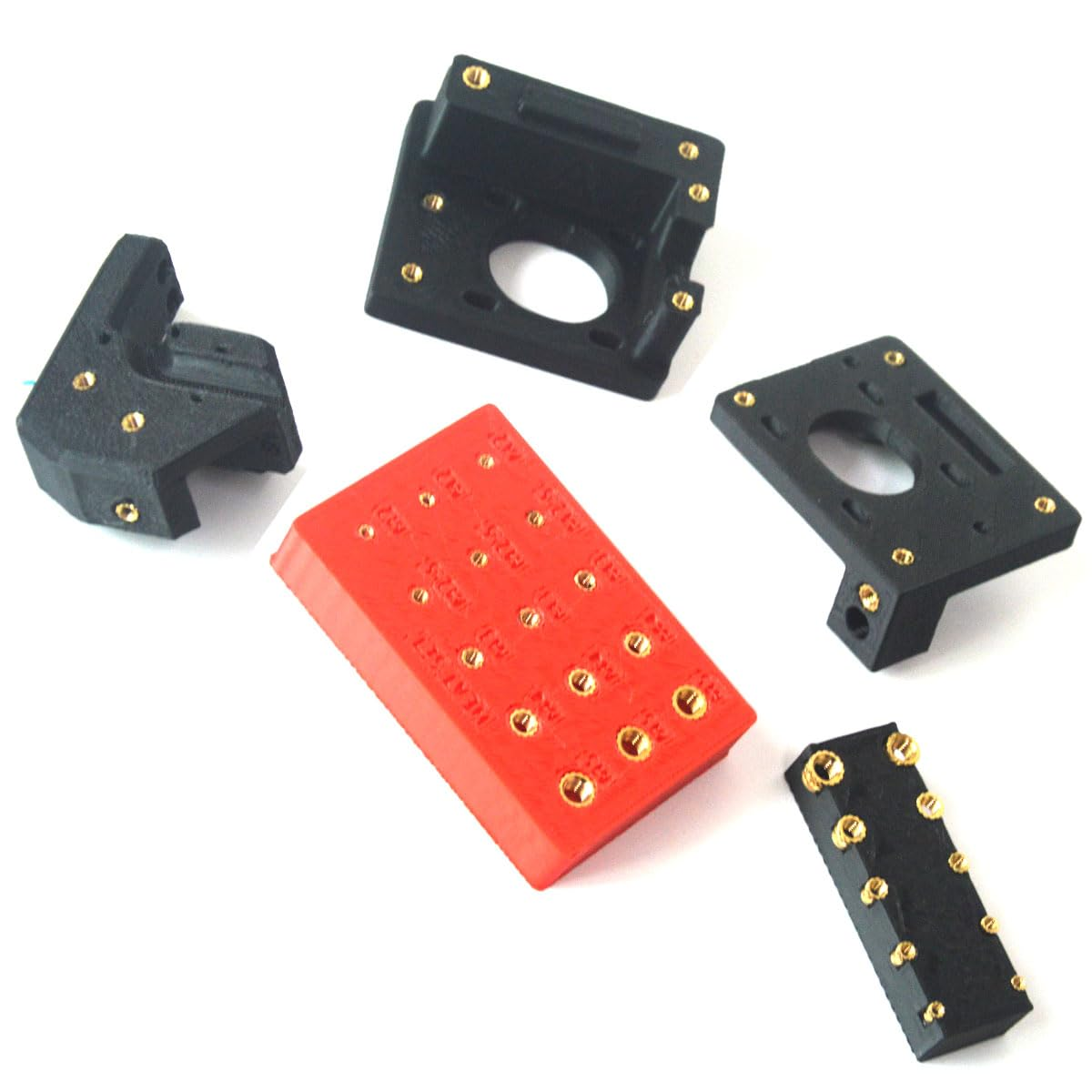

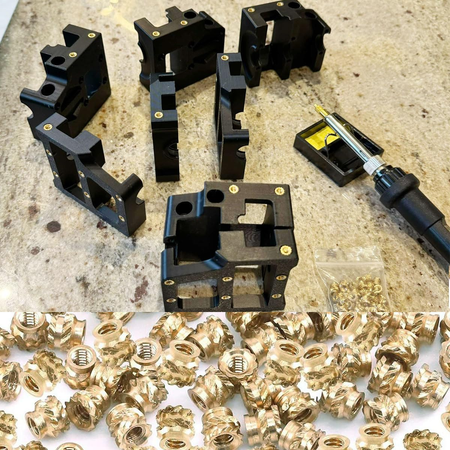

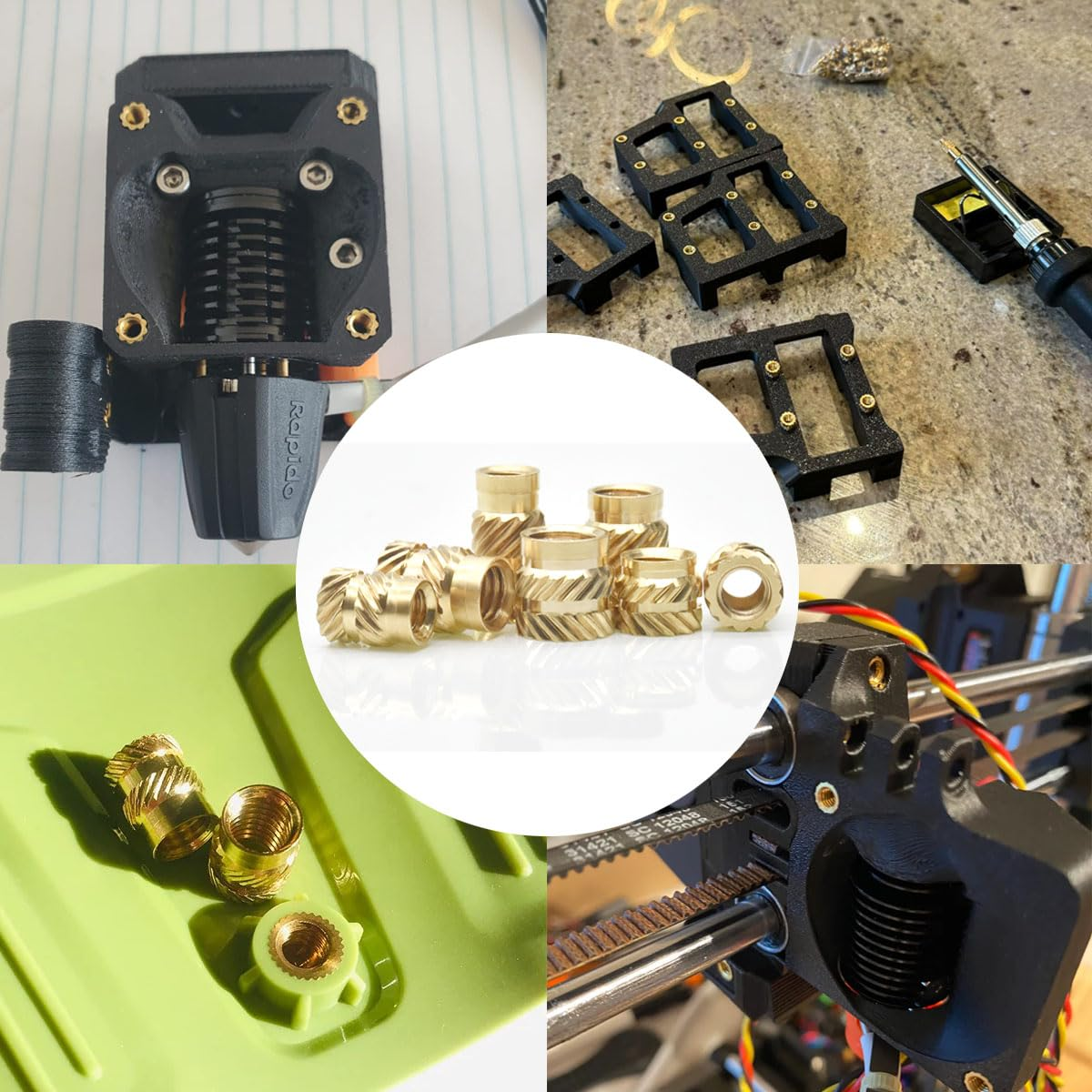

The kit can be used for 3D printing inserts and general plastic inserts,such as PC, PA, PLA, ABS, PETG

Material temperature recommendations PLA：180℃-220℃ 356F-428F PETG：210℃-230℃ 410F-446F ABS：230℃-250℃ 446F-482F Nylon/PC: 280℃-350℃ 536F-662F

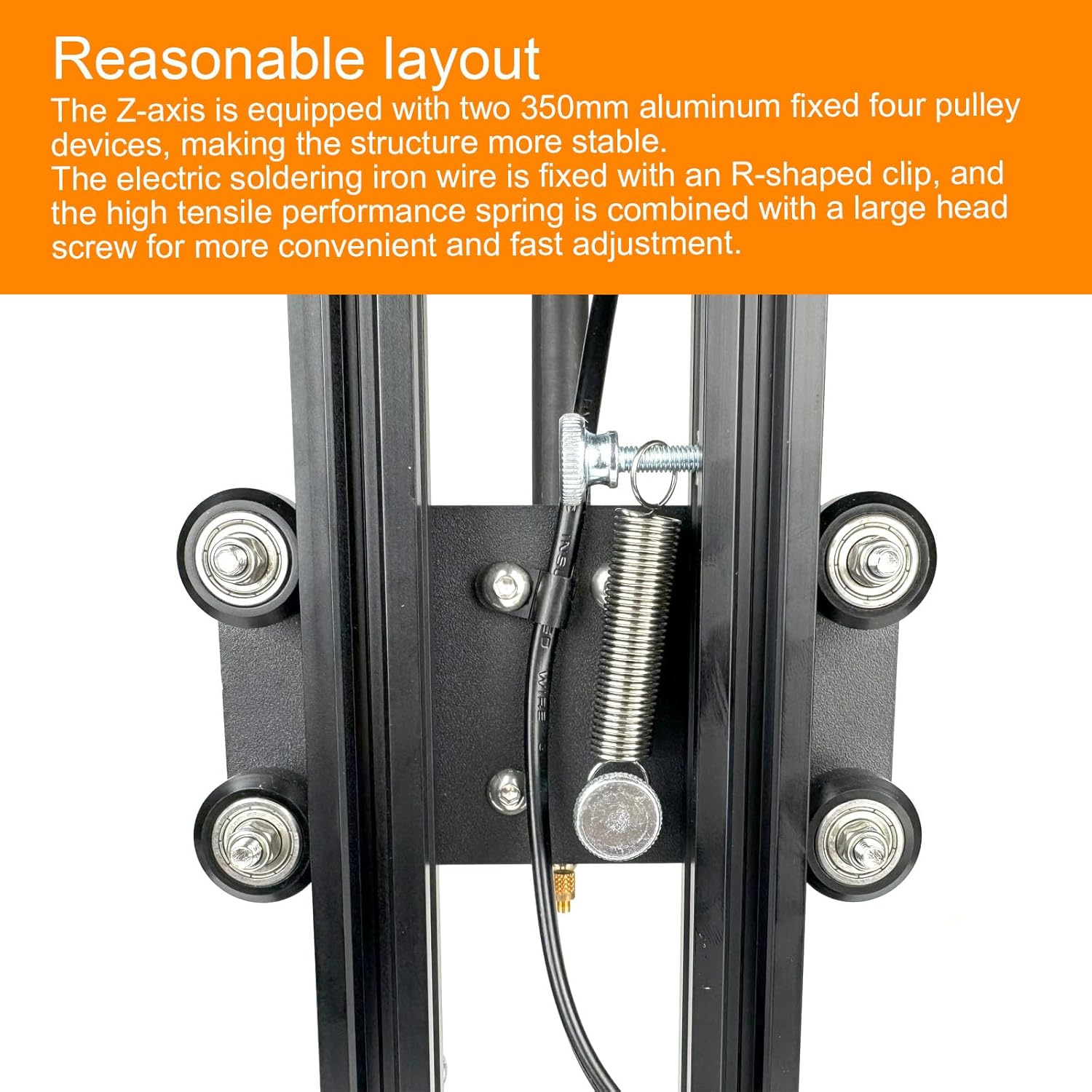

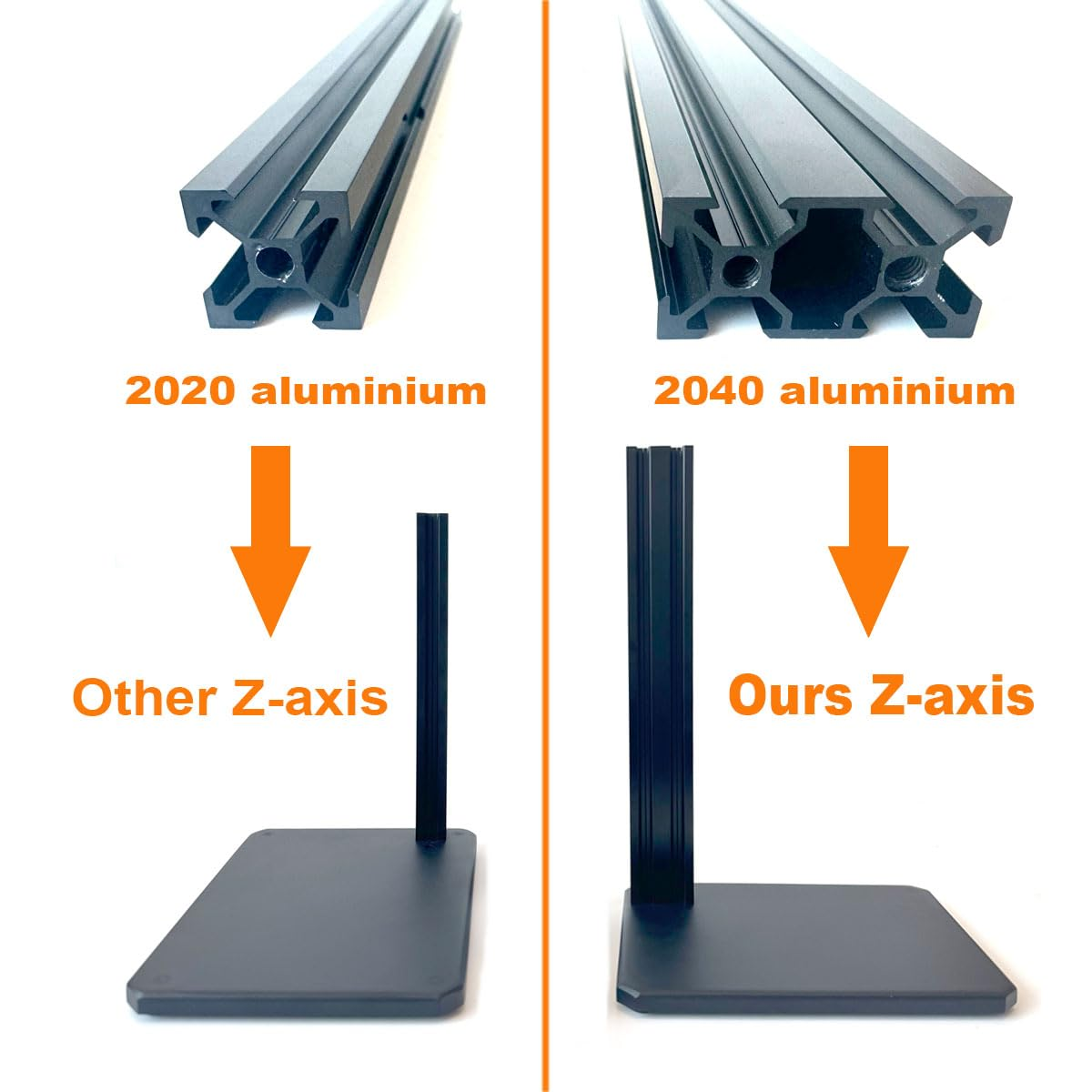

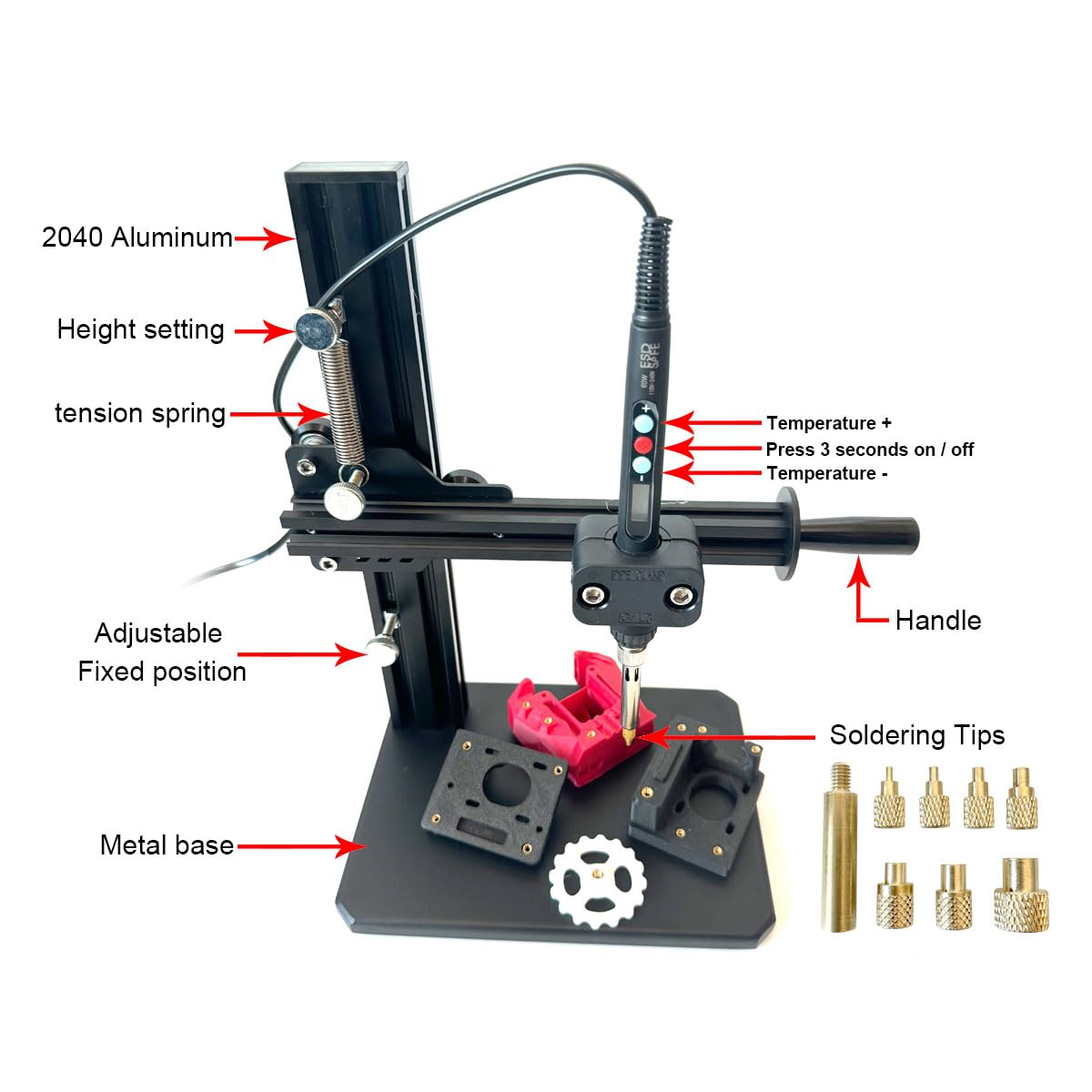

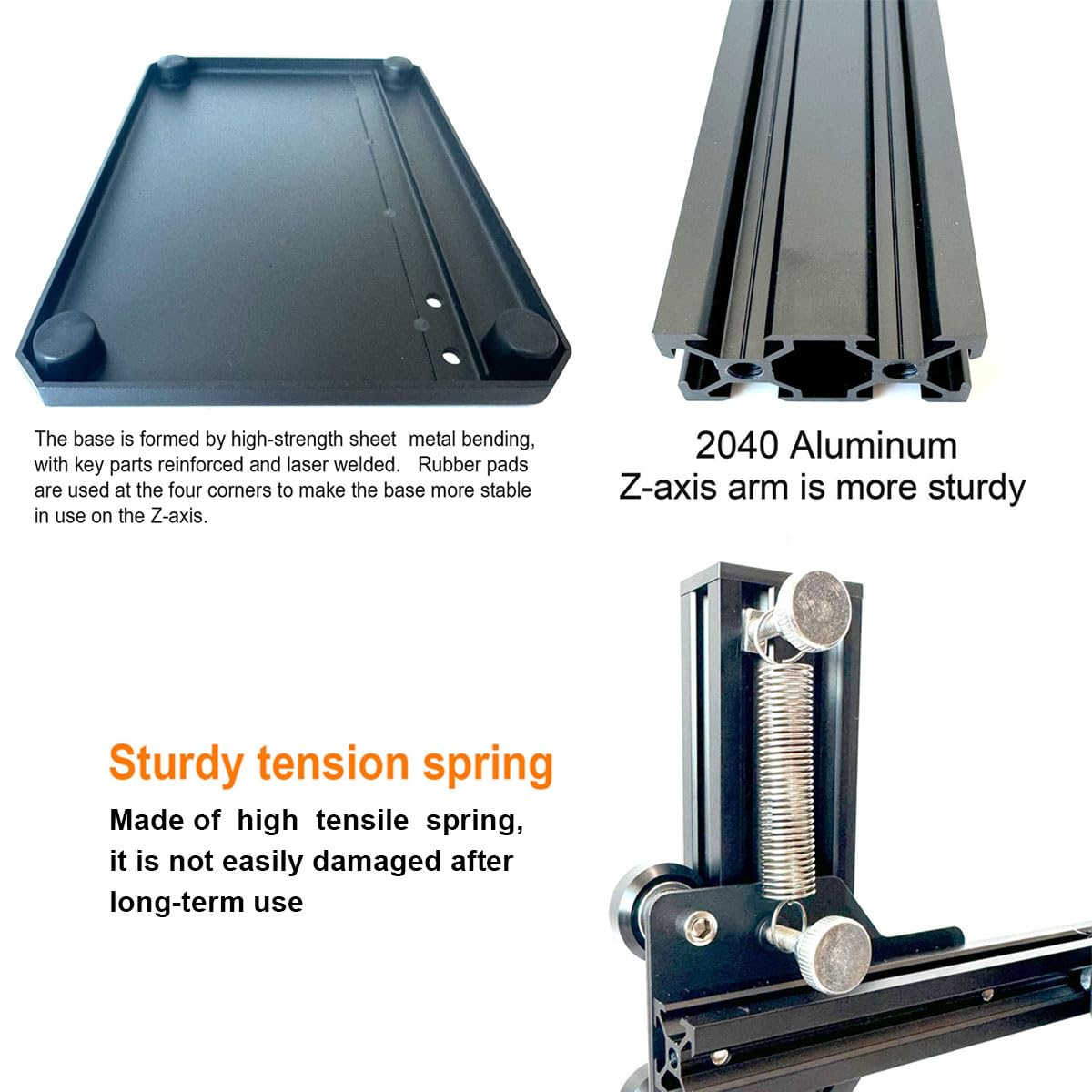

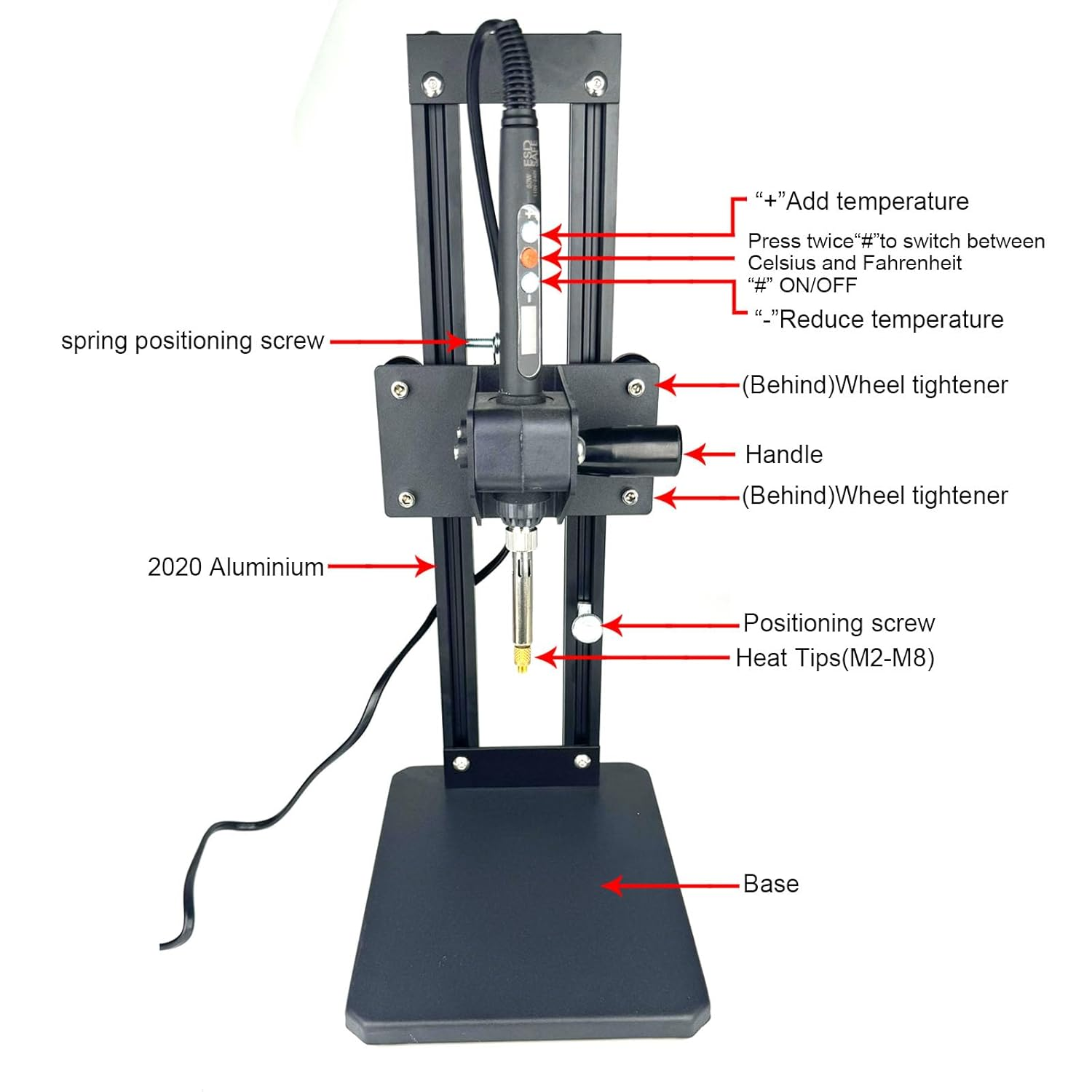

The base is made by bending and welding sheet metal, and reinforced welding is added at the bottom, equipped with anti slip foot pads. The Z-axis is a widened 2040 aluminum profile, which provides sufficient strength when the structure is pressed down. Three large V-shaped pulleys are tightly matched with the 2040 aluminum profile, and only one V-shaped pulley needs to be adjusted to clamp the aluminum profile. The metal tension spring can be used repeatedly without deformation, and it is easier to adjust the insertion height by hand tightening the nut

It can be used fo including PLA, PETG, ABS, PPS, PP, and more, this Machine find applications in 3D printers, electrical molding machines, automotive plastic shells, and laptop molds Threaded Inserts
If you have any questions, please feel free to contact us. We will provide the most satisfactory service.

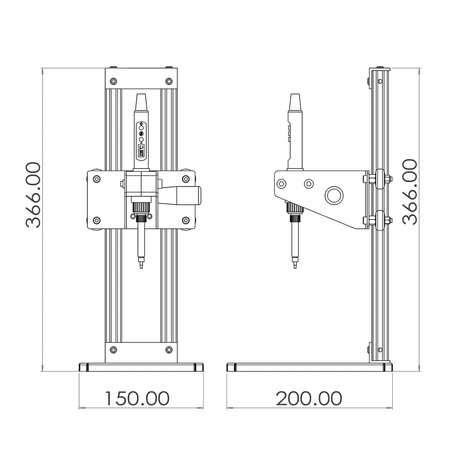

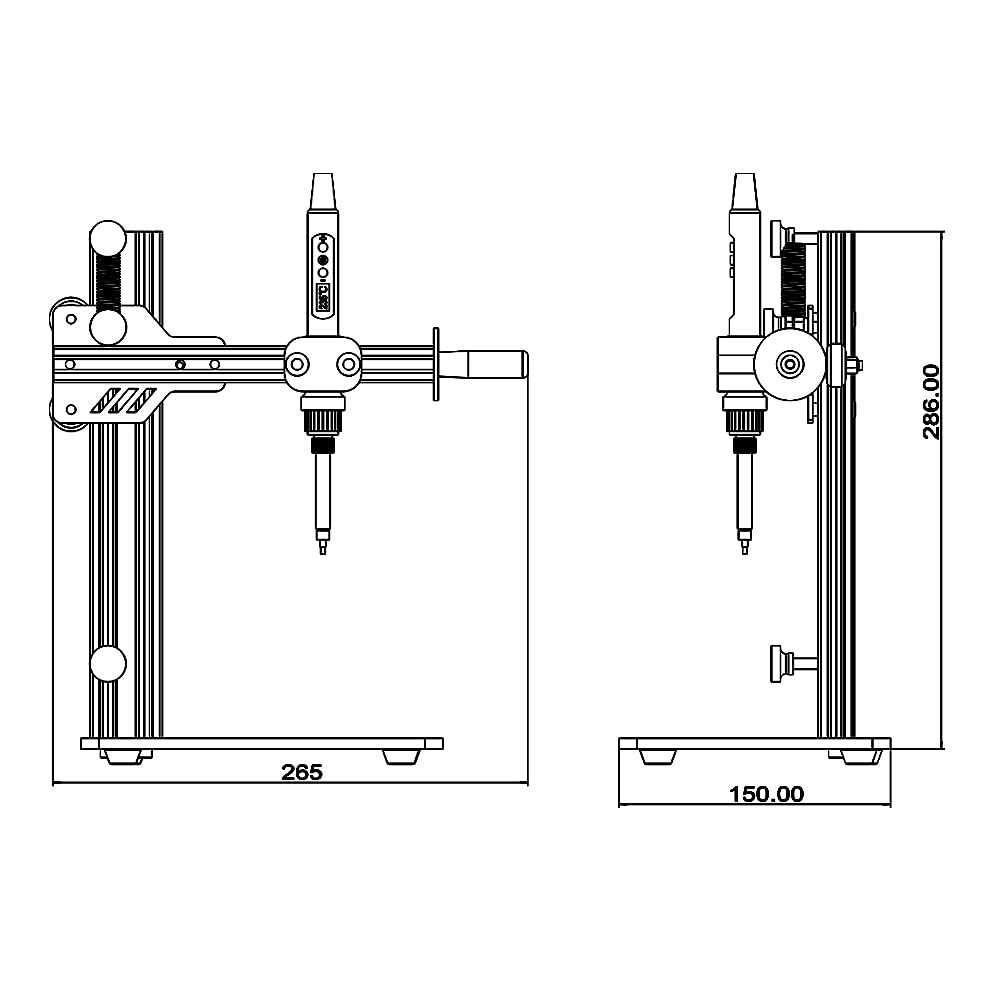

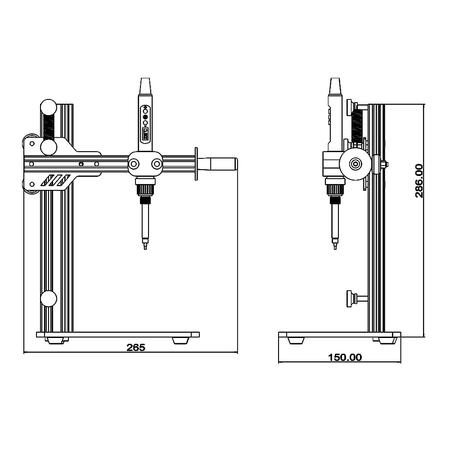

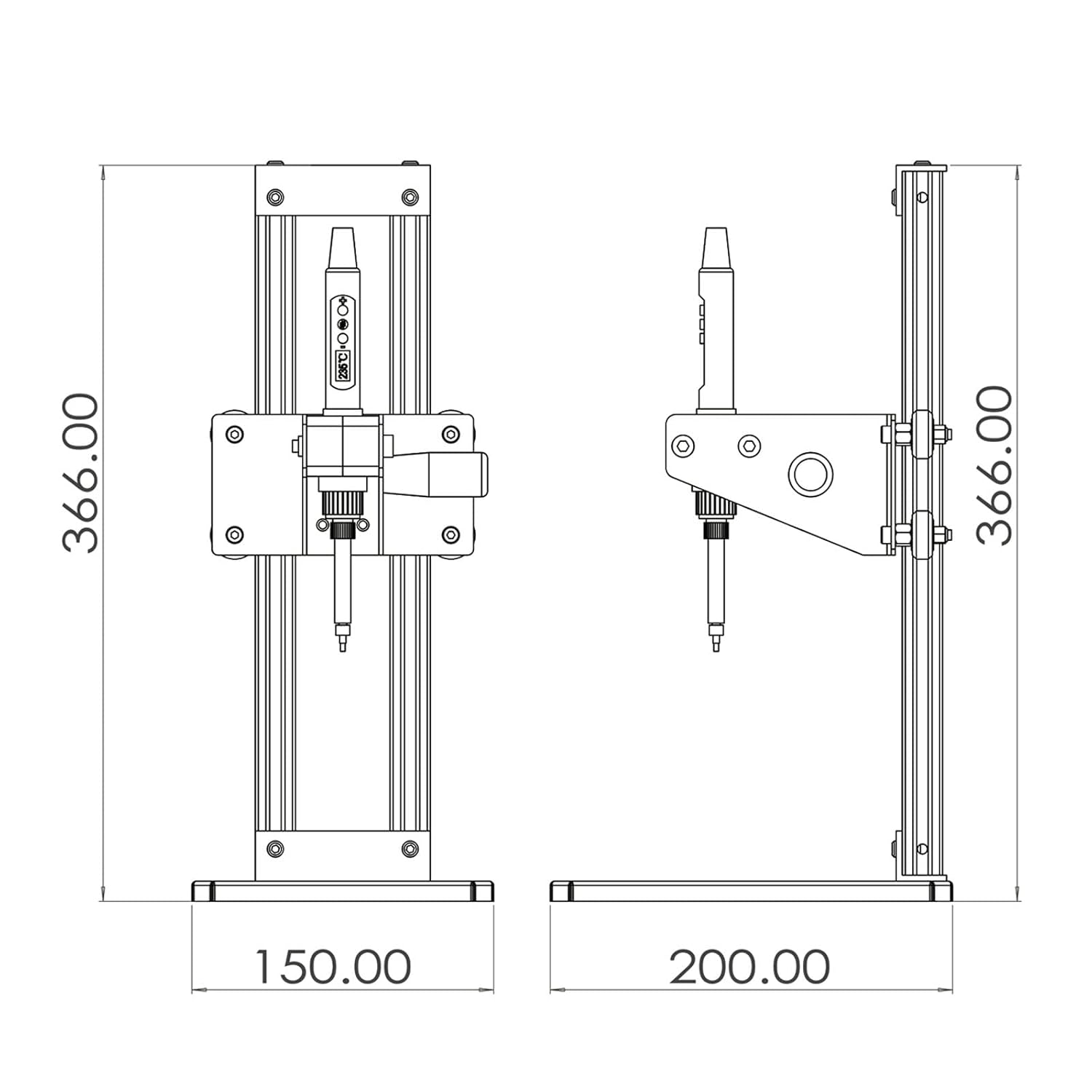

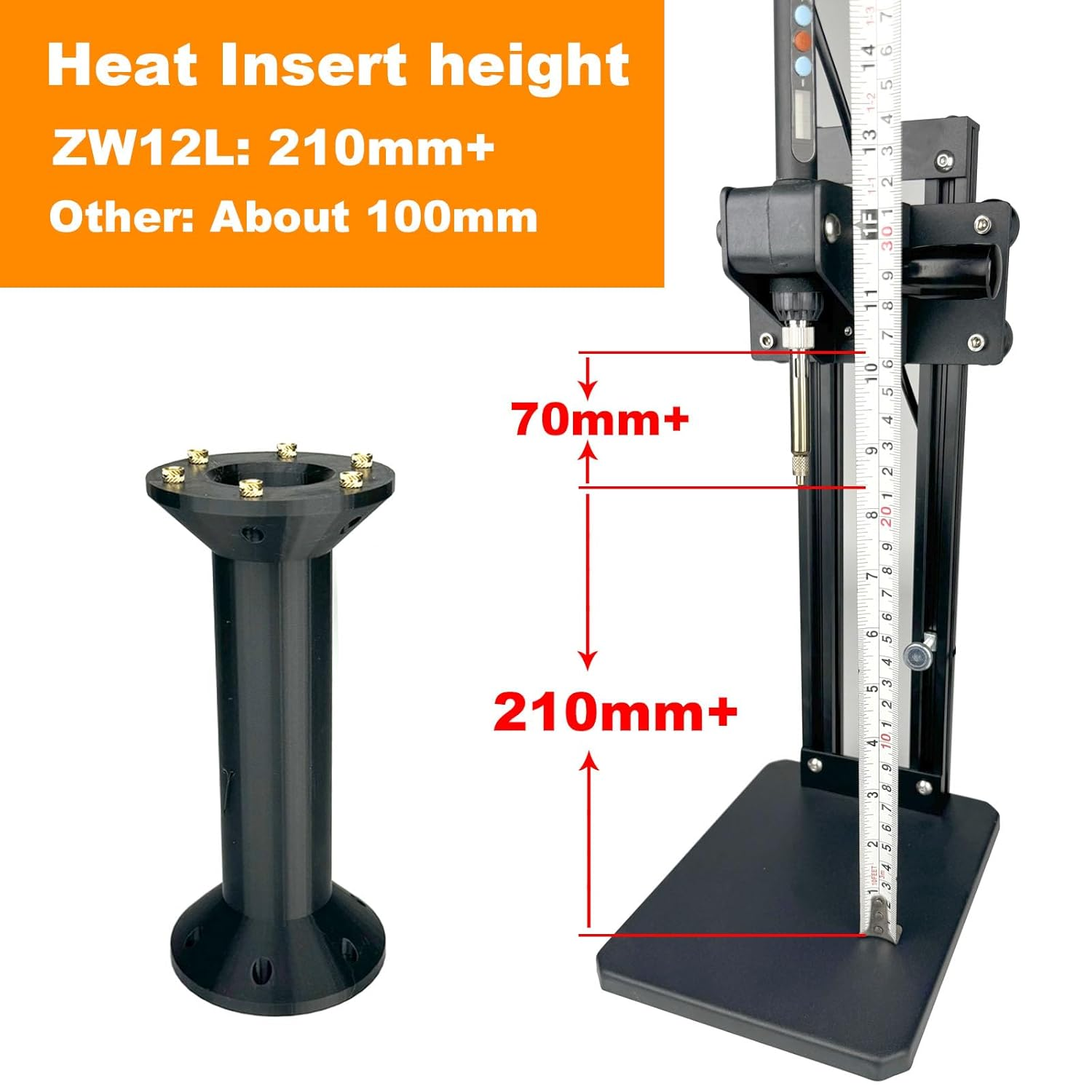

Structure: 90% of the components are made of aluminum, making the structure lighter and stronger. It supports hot insertion of models with a height ≤ 210mm, making it more widely used. (Similar products only have ≈ 100mm)

Electronics: 60W soldering iron supports input of 110V-230V, temperature range of 180 ℃ -500 ℃, supports free switching between Celsius and Fahrenheit degrees, and has fast heating speed.

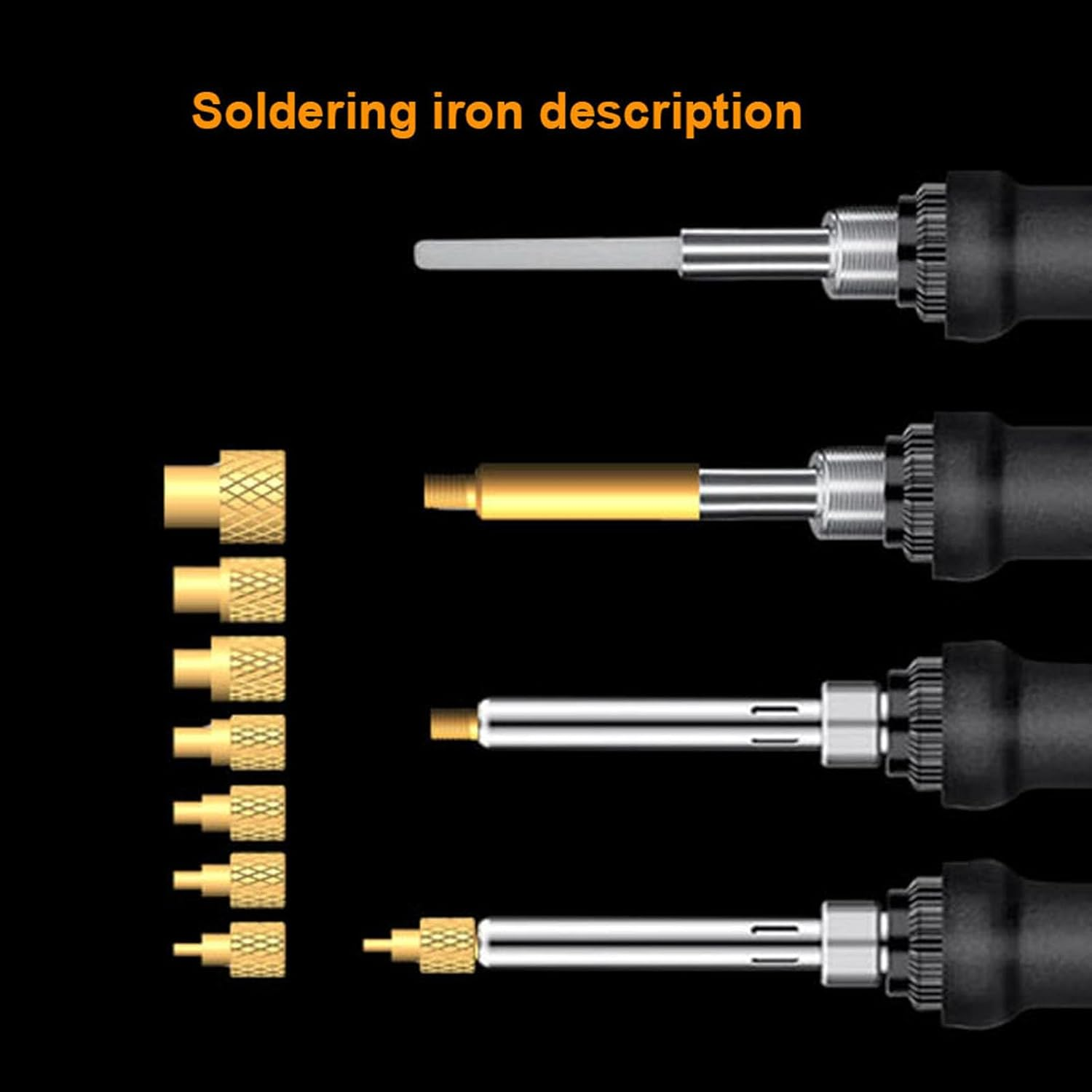

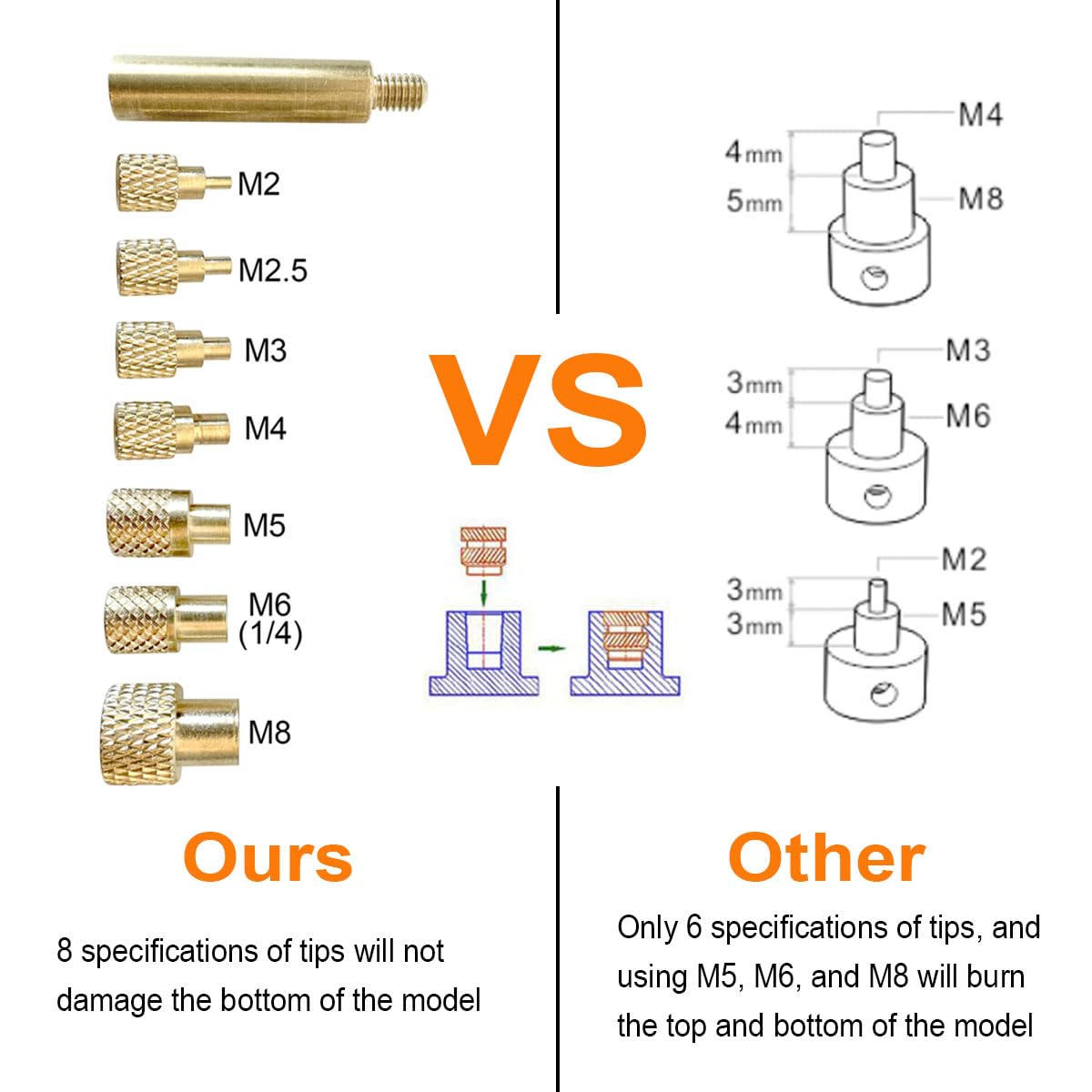

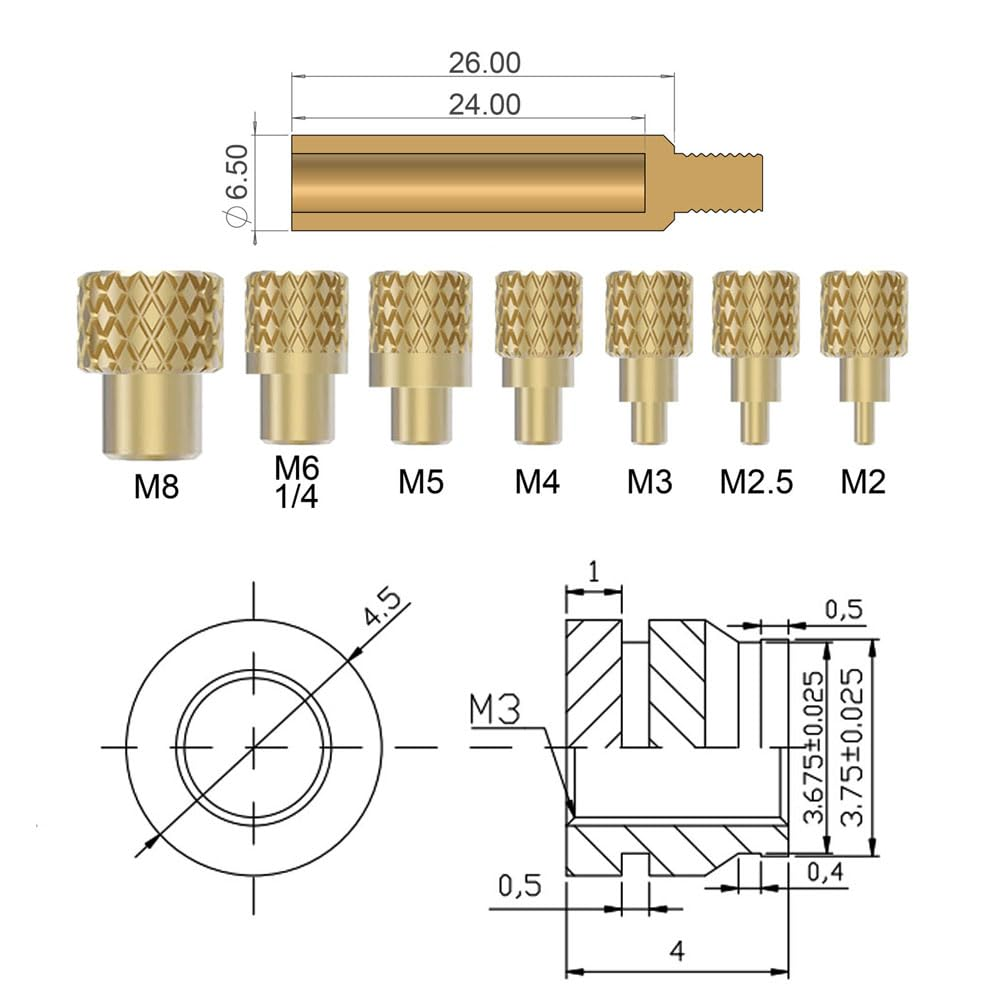

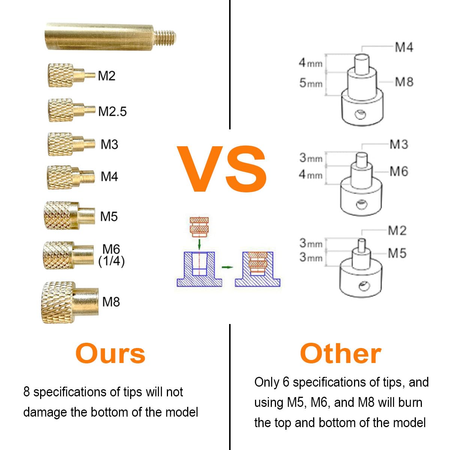

Tool: Equipped with detachable Tips, M2 M2.5 M3 M4 M5 M6 (1/4) M8, can quickly replace different models

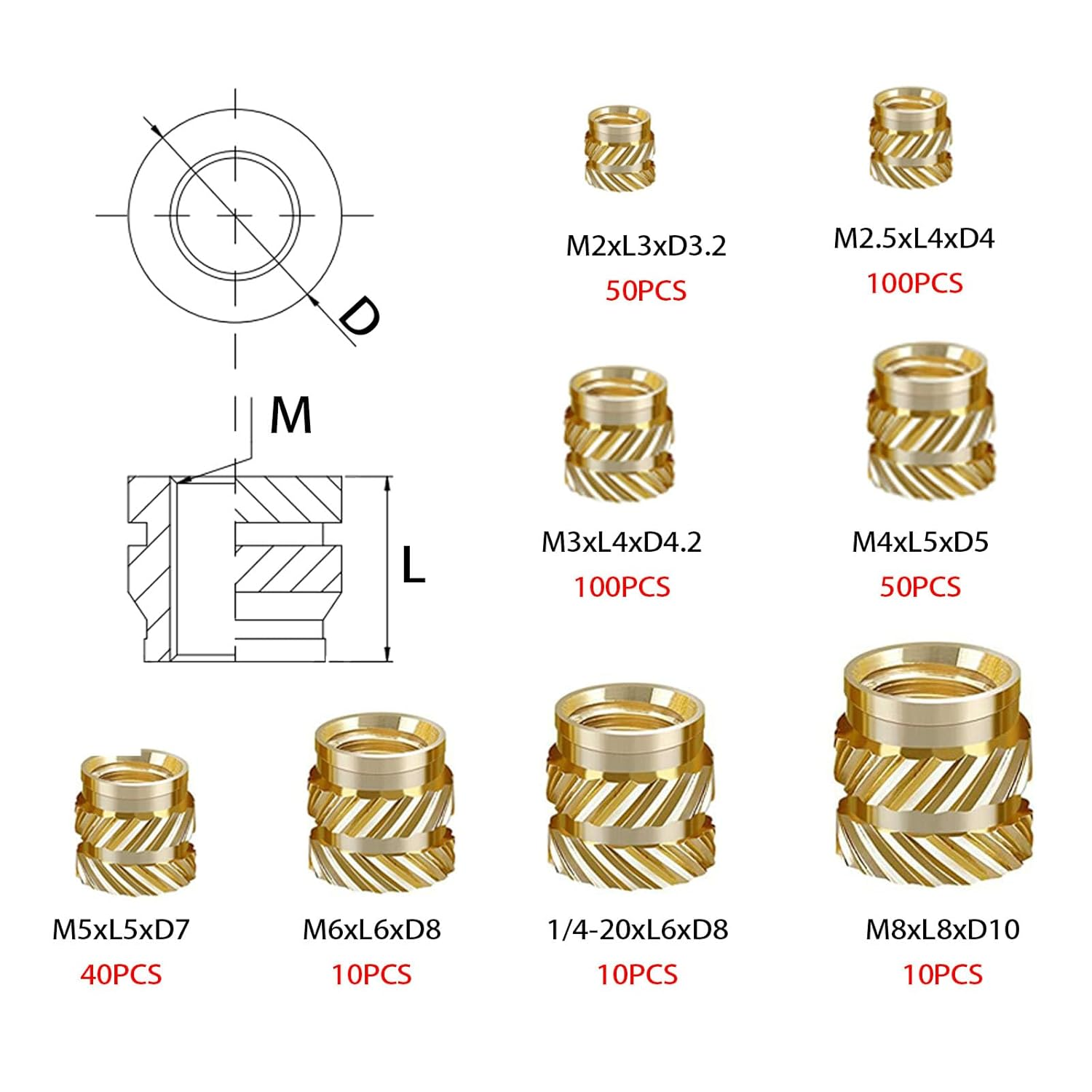

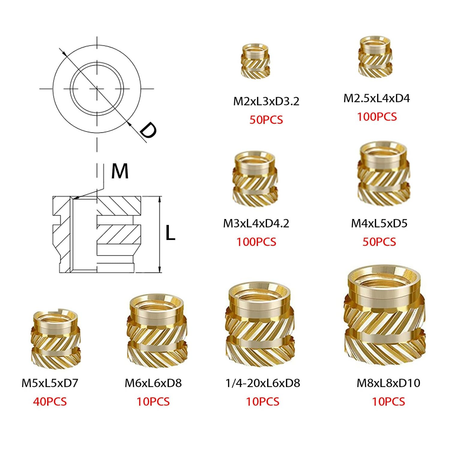

The Kit including 370Pcs threaded insert nuts, M2x3LxD3.2-50pcs M2.5xL4xD4-100pcs M3xL4xD4.2-100pcs M4xL4xD5-50pcs M5xL5xD7-40pcs M6xL6xD8-10pcs 1/4-20xL6xD8-10pcs M8xL8xD10-10pcs

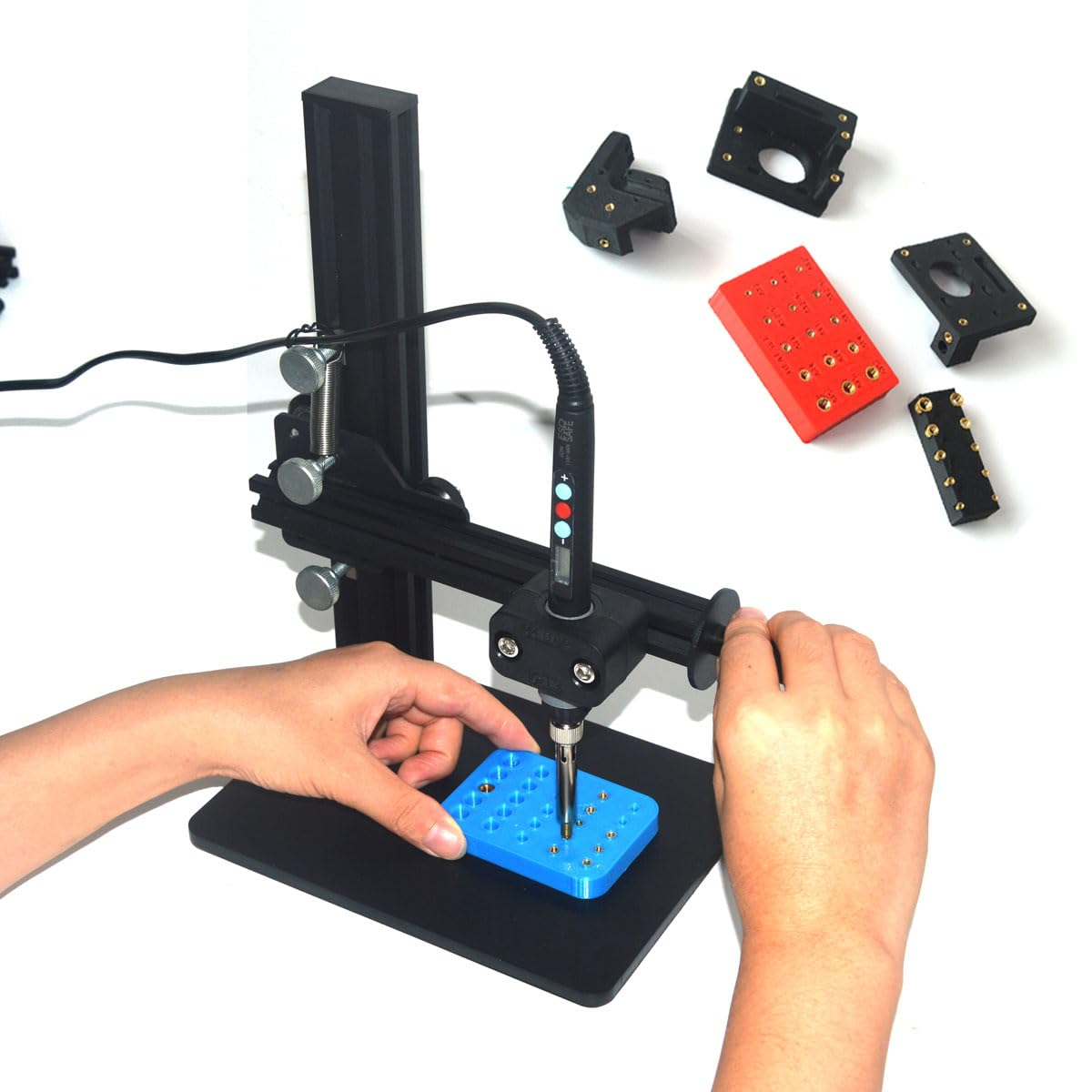

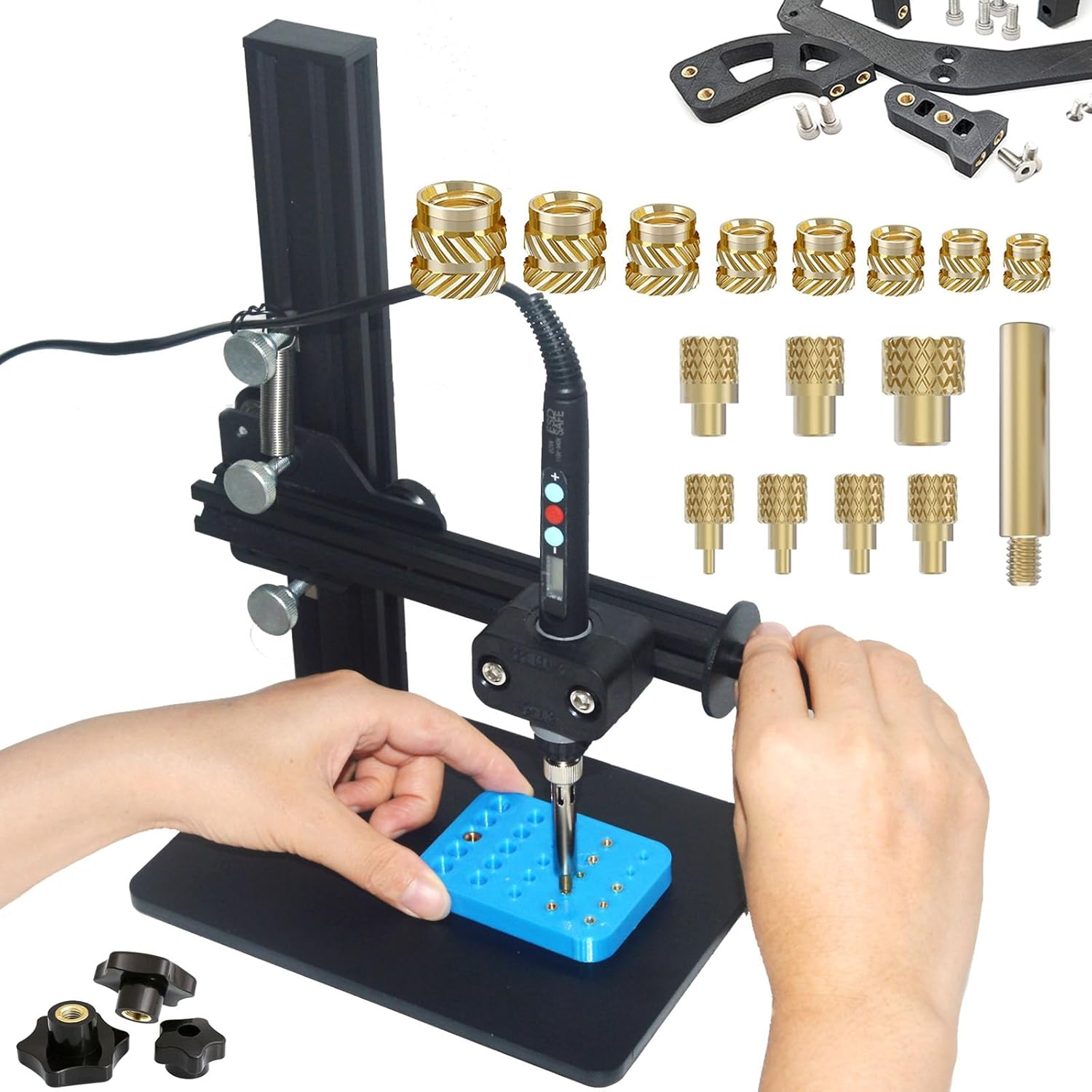

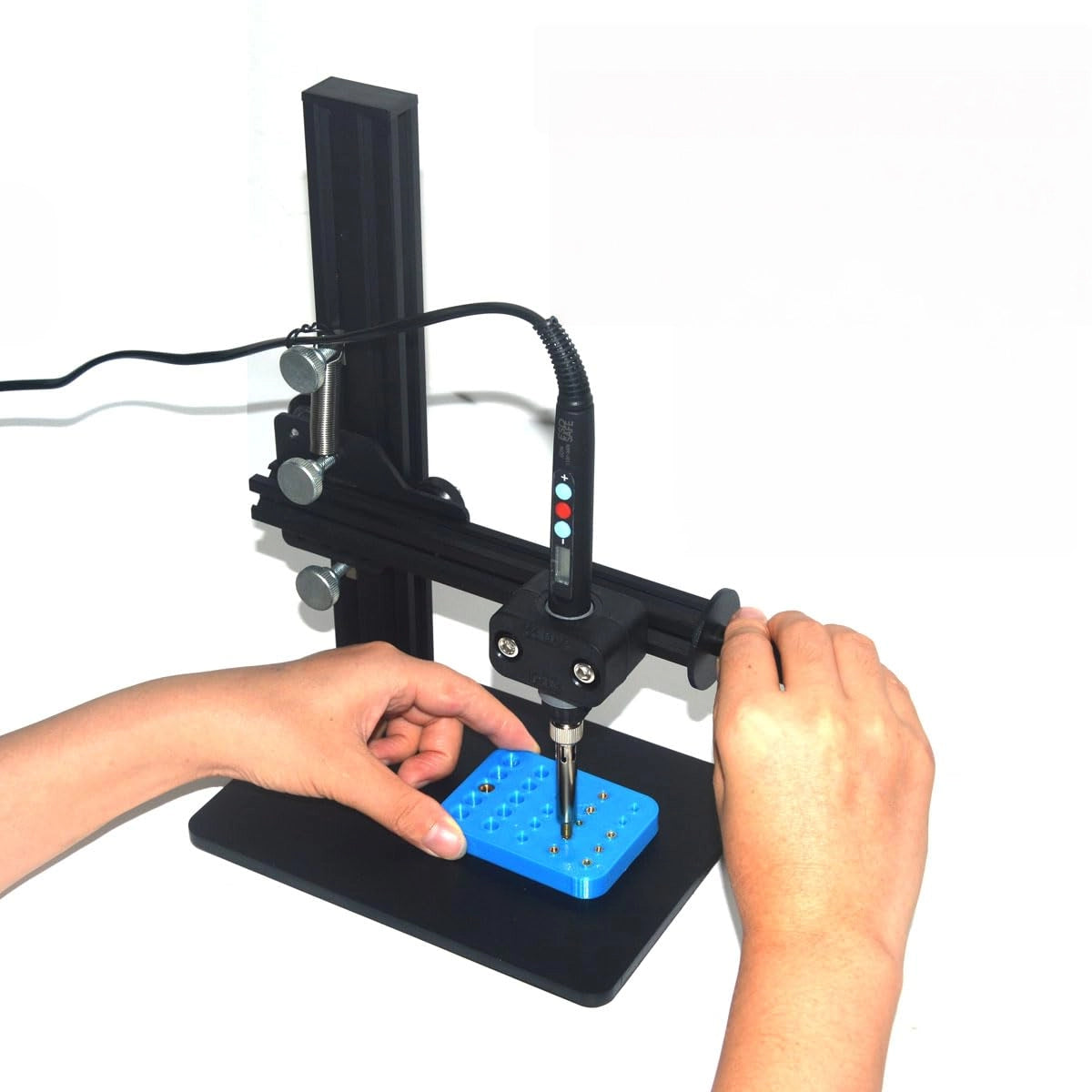

• It can be used for 3D printing Heat-Set Insert Installation and plastic parts to keep 90° vertical insertion

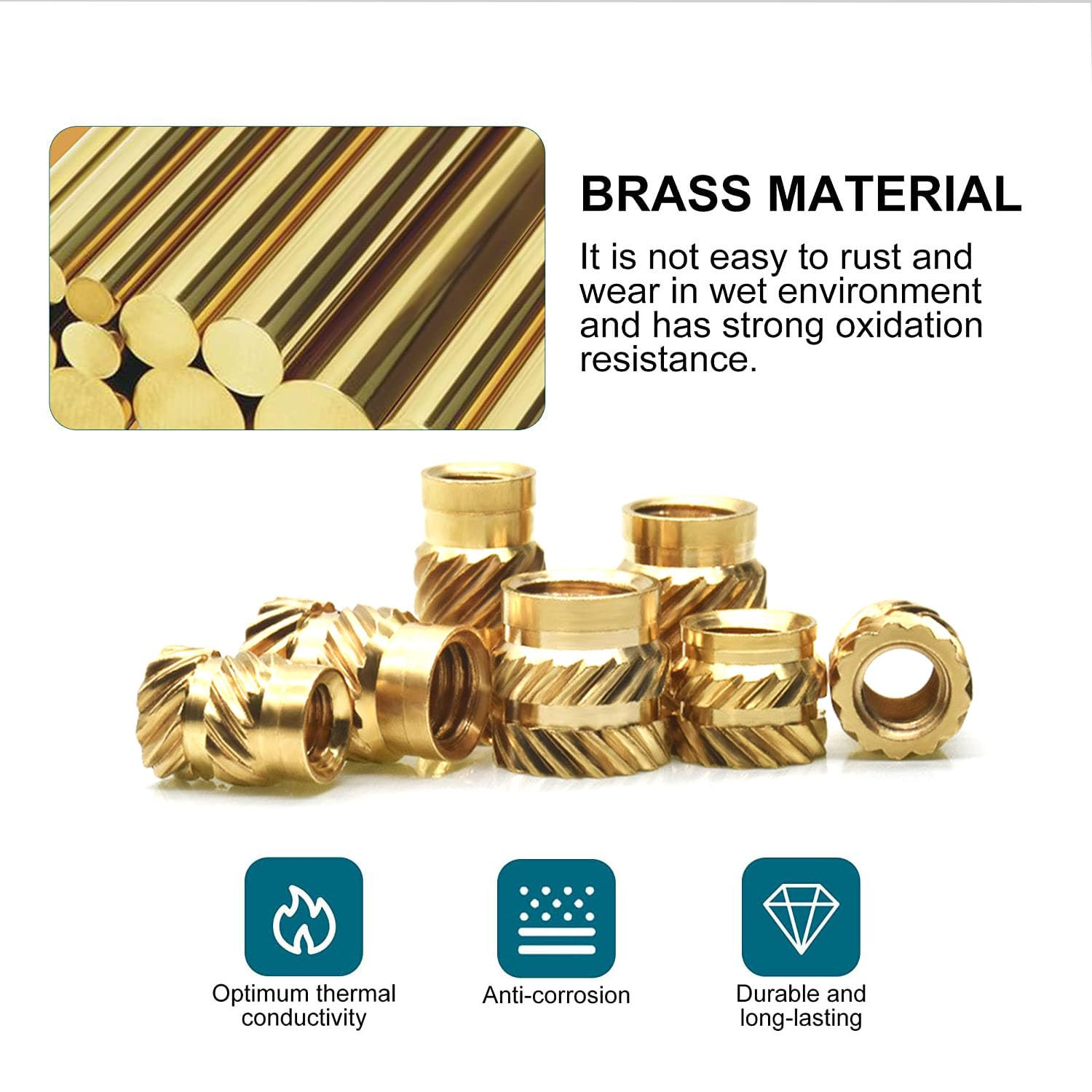

370Pcs Threaded Inserts

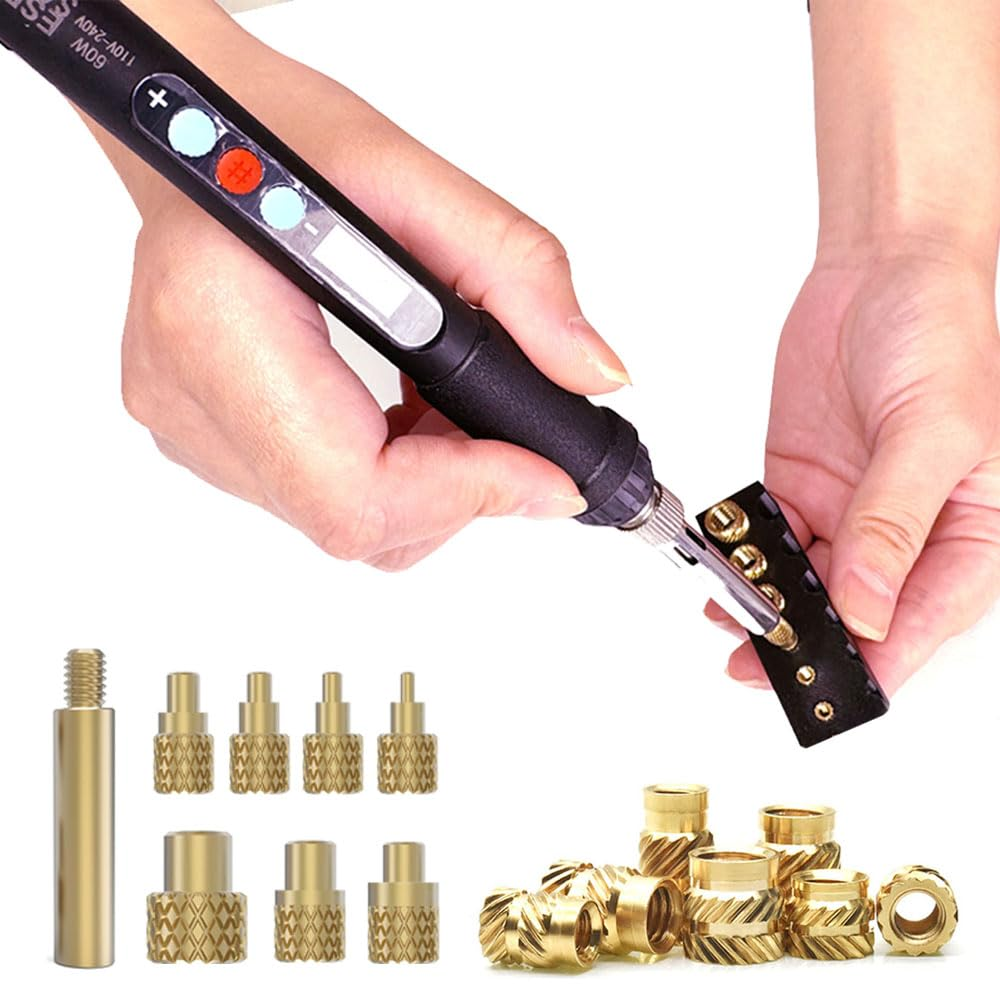

The removable Heat Set Insert Installation equipped with M2 M2.5 M3 M4 M5 M6(1/4) M8 can adapt to a variety of electric soldering irons，And a total of 370 threaded inserts, including M2x3x3.2-50pcs M2.5x4x4-100pcs M3x4x4.2-100pcs M4x4x5-50pcs M5x5x7-40pcs M6x6x8-10pcs 1/4-20x6x8-10pcs M8x8x10-10pcs

Instructions

Pre installed 90%, can be easily assembled in 10 minutes

Assembly Instructions

We have pre assembled the key parts, and the entire installation process is simple and can be completed in about 10 minutes. After completion, it is necessary to adjust the tension of the profile pulley.
