Buffer Component for Anycubic ACE Pro

The Anycubic Buffer Component is a component that connects and directs the four PTFE (Teflon) filament tubes exiting the ACE PRO (Anycubic Color Engine) system.

This component facilitates the neat and organized routing of filaments through the ACE PRO. Its compact design maintains overall system order and helps prevent tubes from becoming tangled or kinked.

The buffer is connected to the 4 PTFE tubes, through which the 4 filaments pass to the printer head. There they are connected to the Filament Hub.

More information can be found here - Anycubic Wiki and here - Anycubic Wiki.

Original replacement buffer component for Anycubic ACE Pro, Kobra 3 Combo, and Kobra S1 Combo 3D printers.

It serves as a filament reservoir between the spool holder and the extruder, ensuring smooth feeding and minimizing the risk of tangling or breakage.

Ensures smooth filament guidance into the extruder

Reduces feeding resistance and prevents filament tangling

Easy to install and maintain

Genuine Anycubic part for full compatibility

COMPATIBILITY

Anycubic ACE Pro
Anycubic Kobra 3 Combo
Anycubic Kobra S1 Combo

PACKAGE CONTENTS

1× Buffer Component

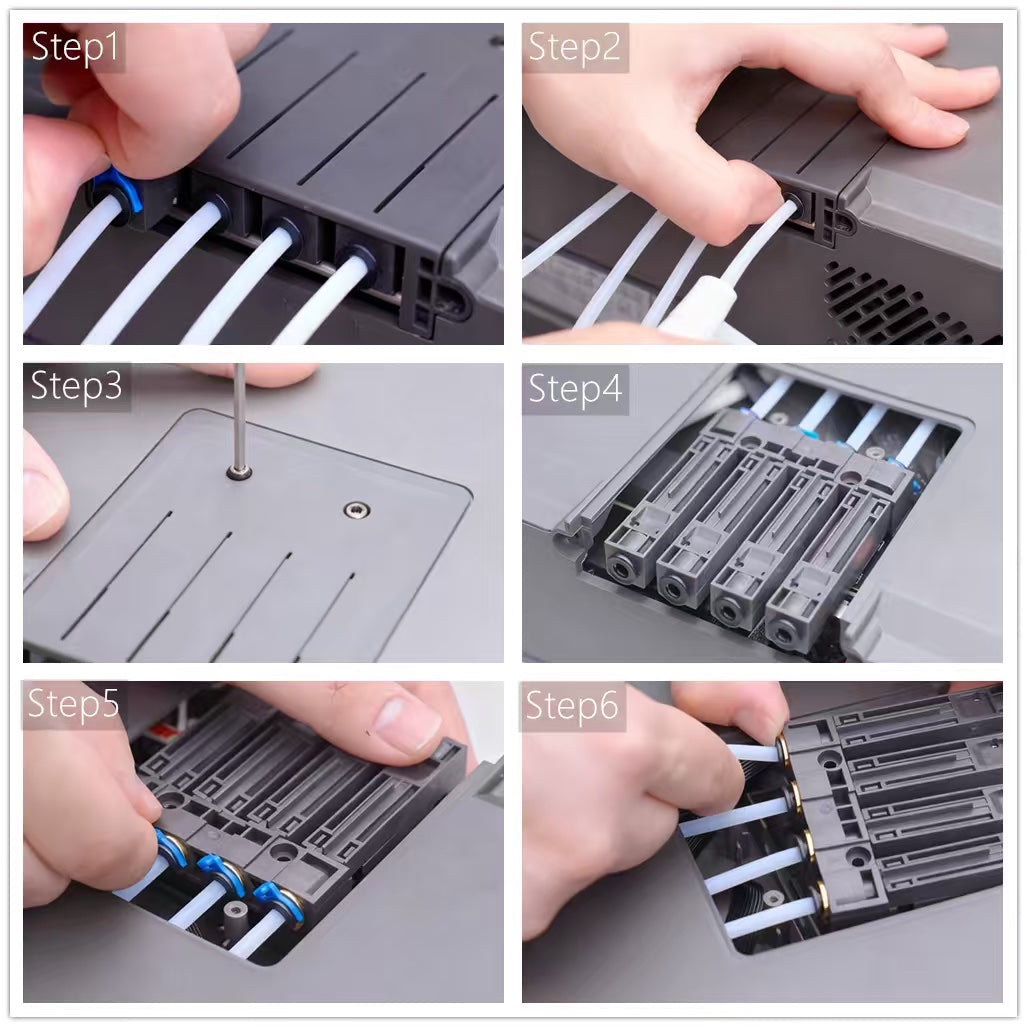

Change Buffer Component for Anycubic ACE Pro

 1.Turn off the printer power.

 2.Remove the Teflon tube

 2.1.Remove the blue buckle

 2.2.Press the black press head to remove the Teflon tube

3.Use an Allen key to unscrew the screws on the cover

4.Remove the blue buckle in sequence

5.Press the black pressure head, remove the Teflon tube, then take off the buffer device.

6.During installation, insert the Teflon tube into the interior of the new buffer device.

7.Insert the blue clip.

8. Refit the cover plate.

   9. Refit the Teflon tube.

   9.1 Insert the Teflon tube into the black pressure head.

   9.2 Insert the blue clip.
