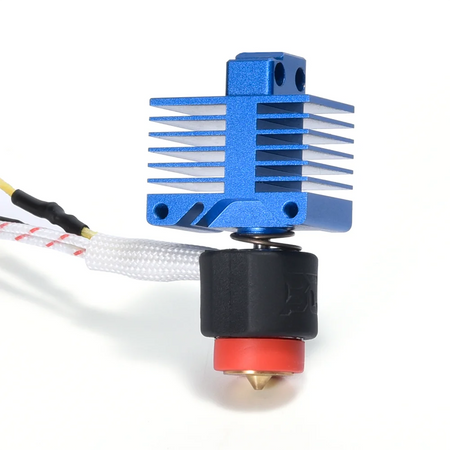

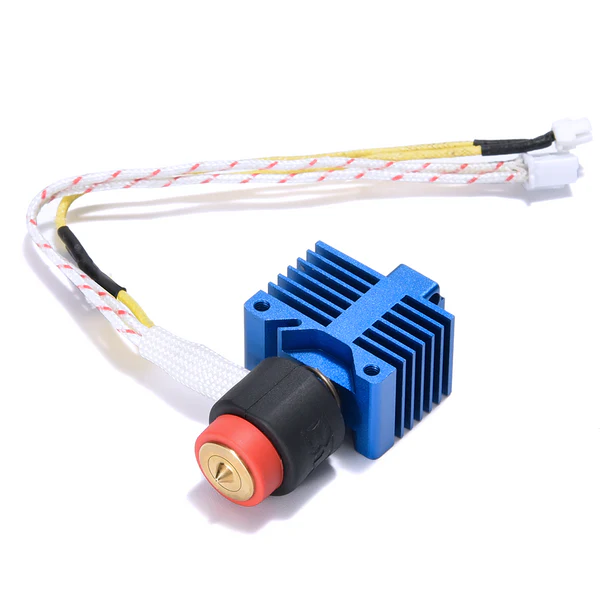

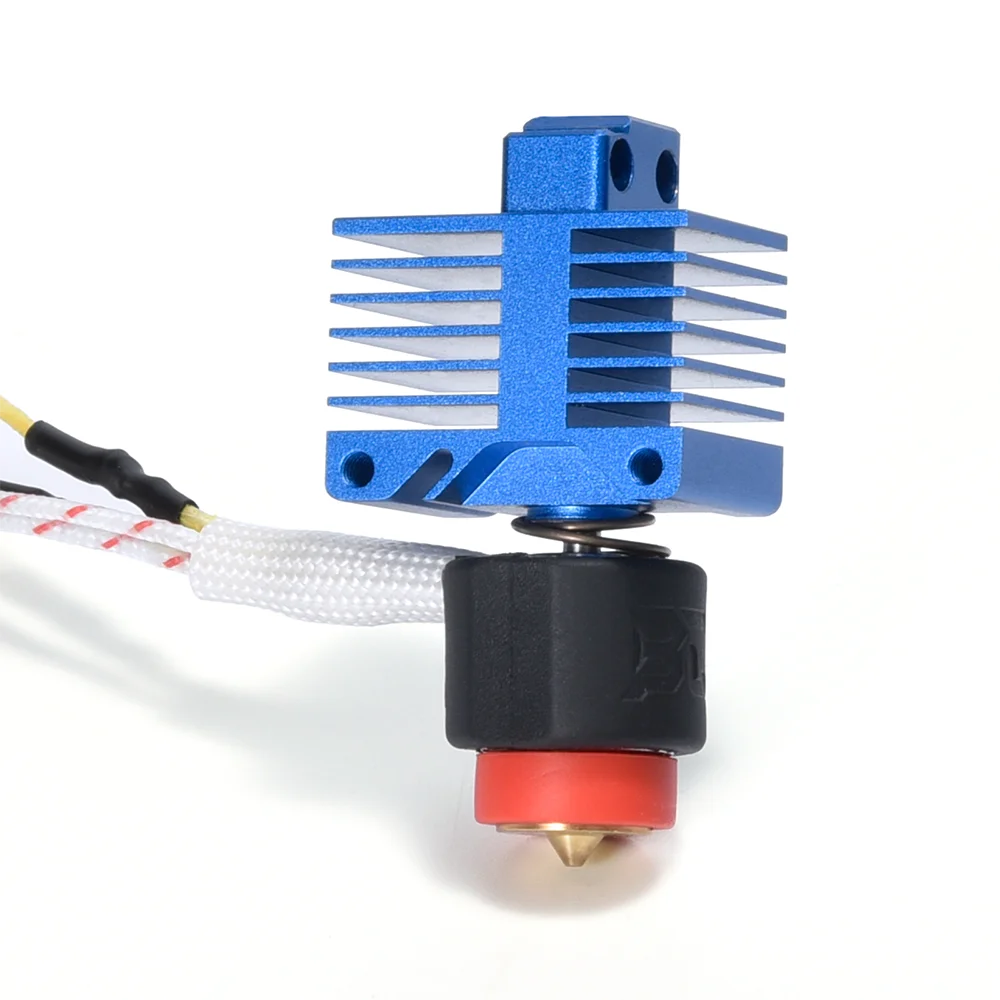

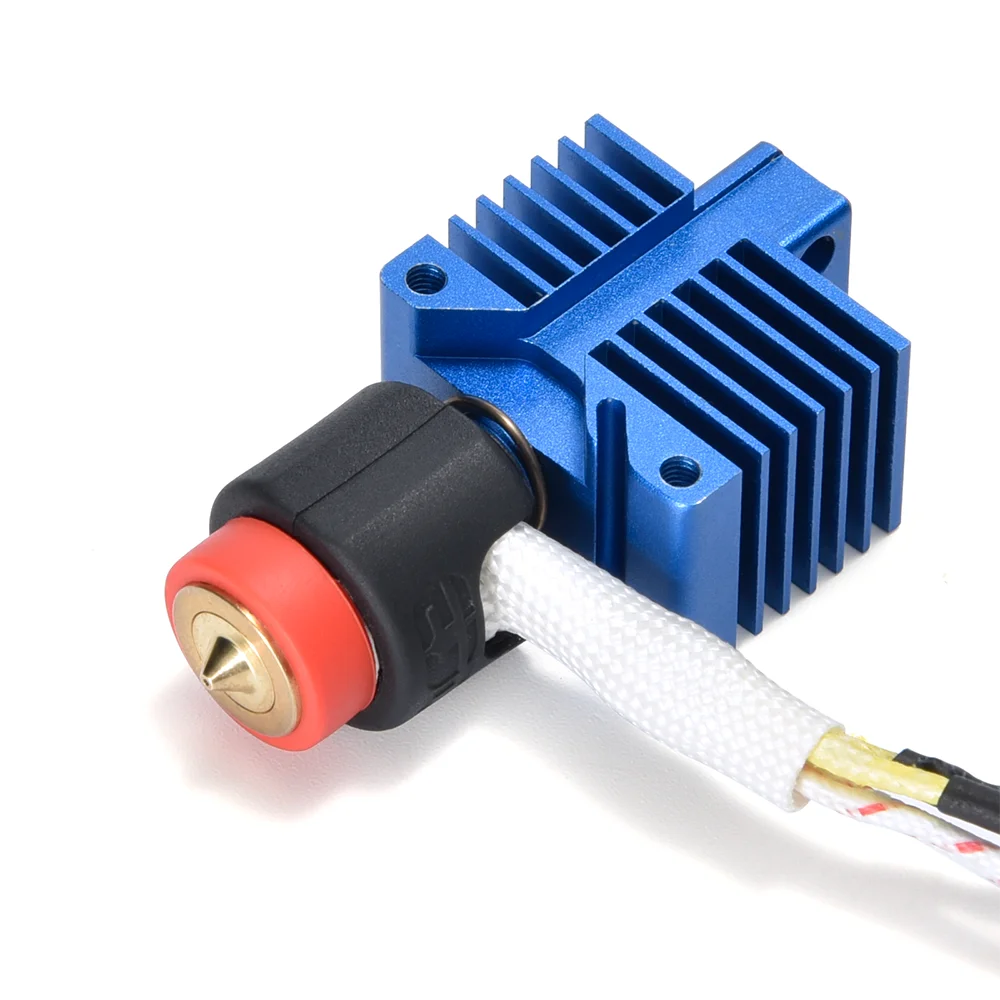

BIGTREETECH Panda Revo Hotend Plug And Print High Speed High Flow With E3DOnline Bontech For Bambu Lab P1P P1S BambuLab X1C X1E

Rapid Nozzle Swaps. Ultra-High Flow Rate

• 30 sec: Rapid Nozzle Swap
• 40 mm³/s: High Flow Rate
• 60 W: E3D HeaterCore

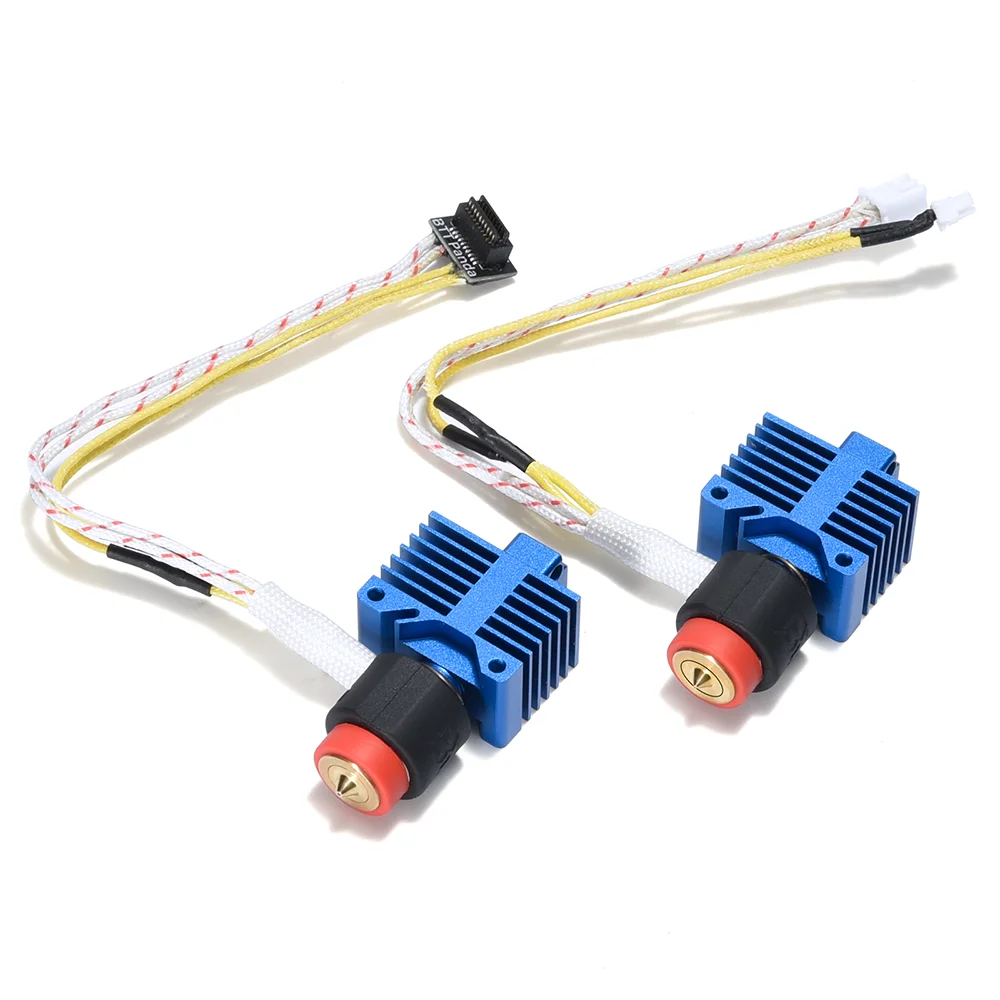

• Compatibility: Bambu Lab X1C/P1P/P1S

• 300 ℃：Max Temperature

Official Collaboration

Explore the fusion between BIQU’s expertise and E3D's RapidChange Revo™ Ecosystem with the Panda Revo: a high-efficiency hotend enabling swift 30-second nozzle changes and superior 40mm³/s flow rates, perfectly tailored to your Bambu Lab X1C, P1P, P1S printers.

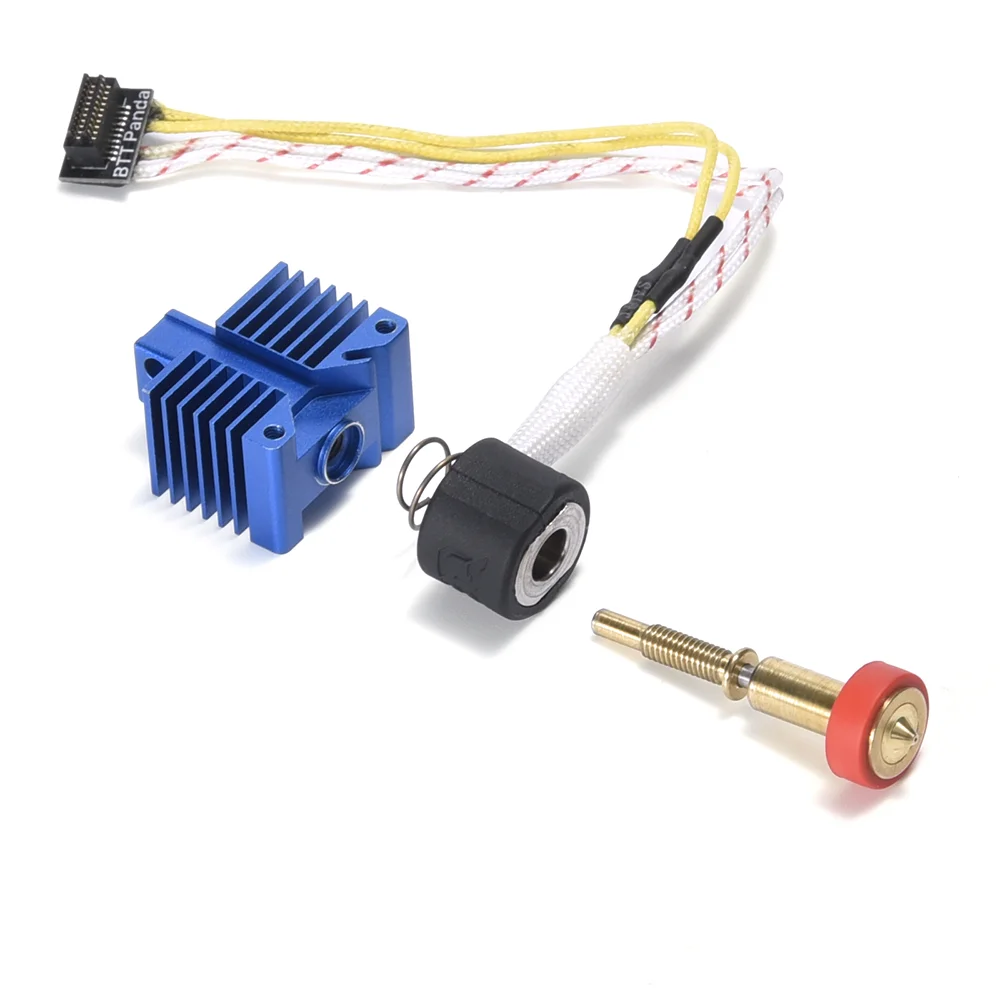

Nozzle Changing Has Never Been Easier

Effortlessly change nozzles at room temperature using just your fingers alone! No complex tools, no hot tightening.
Compatible with various RapidChange Revo™ nozzles to match your printing needs.
*The Revo™ belt nozzle is not compatible.

High Flow Rates Up to 40mm³/s

The 0.4mm Revo™ High Flow nozzle and 60W HeaterCore deliver extraordinary flow rates of up to 40mm³/s. Get ready for high-speed, high-efficiency printing.

60W Revo™ HeaterCore

Heats up quicker while being safer with its positive temperature coefficient (PTC).

Robust Construction

Factory-sealed Revo™ nozzles, leak-proof and bend-resistant.

Drop-in Upgrade

Simply reuse the stock screws, no extra mounts or adapters are needed! Compatible with Bambu Lab P1P, P1S, X1C.

Technical Specifications

Maximum Temperature：300℃
Maximum Flow Rate：40mm³/s
Nozzle Material：Brass
Nozzle Diameter：0.4mm
Nozzle Model：E3D Revo™ high Flow
Heater Voltage：24V
Heater Power：60W
Thermistor：NTC100k
Length：47.3mm
Compatibility: Bambu Lab P1P, P1S, X1C
