BIGTREETECH HDMI7 / HDMI5 Touch Screen 5/7 inch

BIGTREETECH HDMI7 V1.2 HDMI5 HDMI Touch Screen 5/7 inch IPS Screen Display 3D Printer Parts For Raspberry Pi 4 Manta M8P Board

BTT HDMI7 V1.2

1.HDMI input, can work with Raspberry Pi.

2.Connect to a PC, it can be used as a PC monitor.

3.Adopt a 7-inch IPS capacitive touch screen with a resolution of 1024x600, support 5-point touch.

4.Built-in audio decoding circuit, support 3.5mm headphone jack audio output.

5.Support brightness and display direction adjustment.

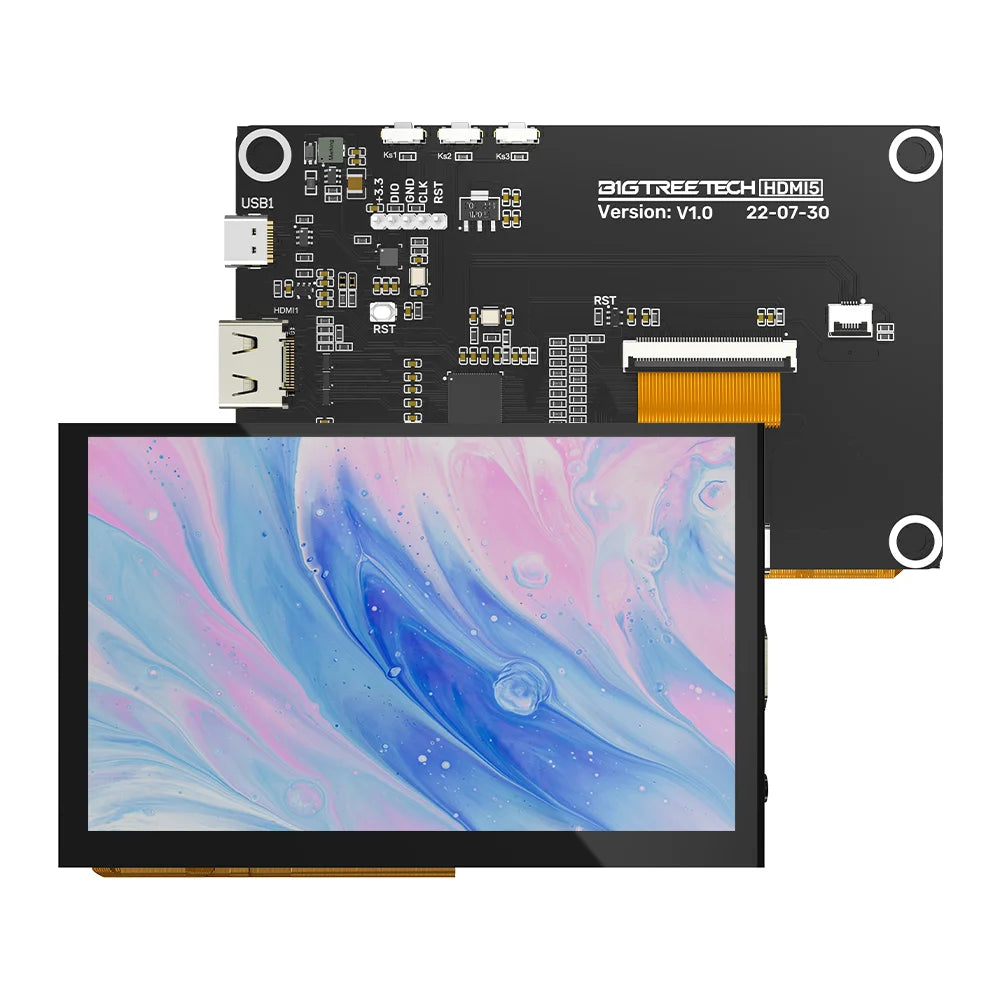

BTT HDMI5 V1.1

1.HDMI input, can work with Raspberry Pi.

2.Connect to a PC, it can be used as a PC monitor.

3.The LCD adopts a 5-inch IPS capacitive touch screen with a resolution of 800x480.

4.Support 5-point touch.

5.Built-in audio decoding circuit, support 3.5mm headphone jack audio output.

6.Support brightness and display direction adjustment.

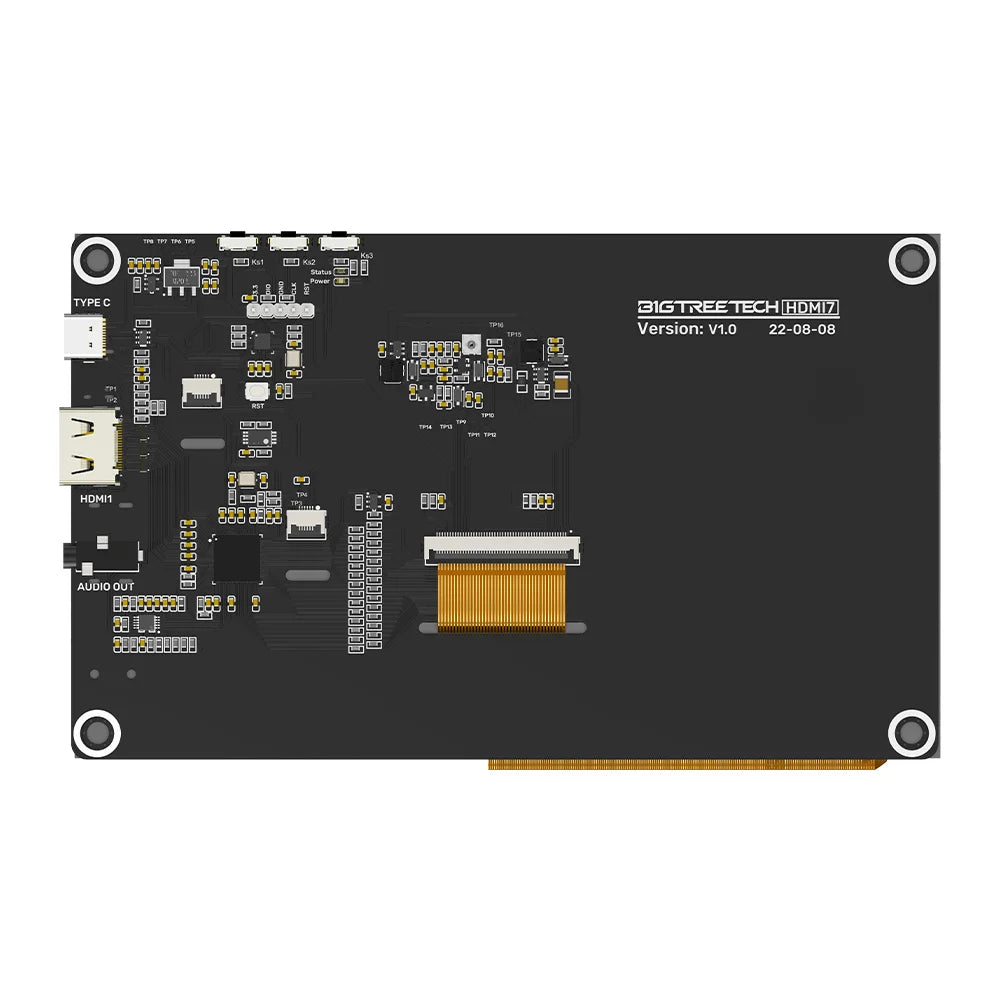

HDMI7 v1.2

Rear-Mounted Interface
We've positioned the interface at the rear instead of the side to optimize the overall appearance of the large displays, which also helps avoid twisted cables, shortens wiring requirements and offers a cleaner, more convenient operation.

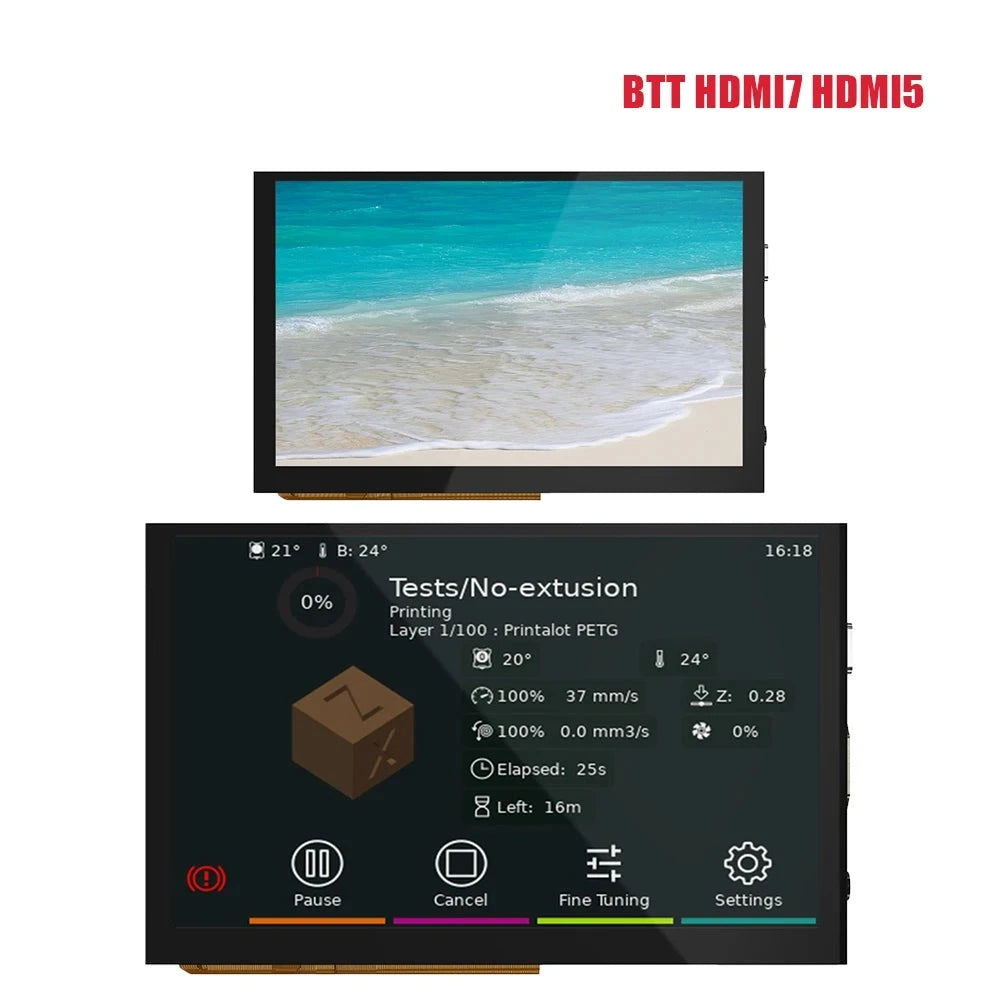

HDMI7 & HDMI5

7-inch I 5-inch

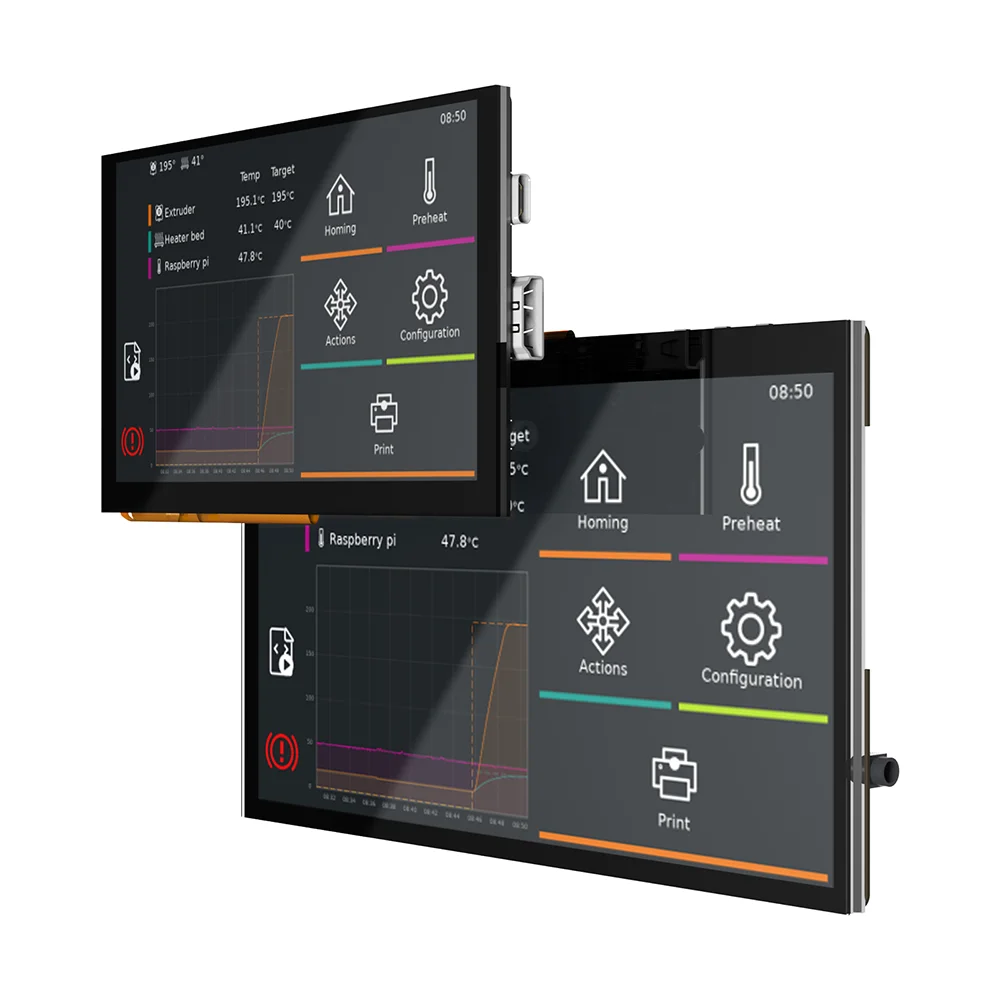

IPS Touch Screen

Creating an Intuitive,Responsive operation
Get a colorful display, easy-to-read data, easier and more convenient operation... significantly enhance the user experience of Klipper firmware.

Bright and clear
7"Screen-1024x600,5"Screen-800x480 optional.

160° wide viewing Angle
Offer clear images at any angle up to 160°

Adjustable Brightness
Brightness can be adjusted via the button on the top which makes it more suitable for night use or battery-powered applications

You can increase the brightness via the Ks1 button,Ks3 for decreasing, and Ks2 for 180° display direction adjustment.

3.5mm Audio output
3.5mm audio interface transmits the audio signal without noise and current, giving you pure and delicate sound.

4pin XH2.54 break out port
The 4 pins XH2.54 breakout port allows custom connection via USB protocol, as well as screen independent power (Dc 5v), giving users more DlY options.
※ The 4 pins XH2.54 socket needs to be purchased and soldered additionally.
