Bambu Lab Chamber Heater

Chamber Heater for Bambu Lab P1P, P1S, X1C

The chamber heater offers an additional chamber temperature heating control feature, with a max chamber temperature of 65℃. Higher chamber temperatures can reduce warping when printing high-temperature filaments and improve interlayer adhesion. Additionally, when printing with these high-temperature filaments, using the chamber heater can improve the print strength, particularly interlayer strength. For filaments such as PC, PA-CF, PAHT-CF, PET-CF, PPA-CF, PPS, and PPS-CF, setting the chamber temperature to 60°C can enhance dimensional accuracy and visual quality.

Warning: It is strongly recommended not to enable high chamber temperature when printing PLA, PETG, TPU, PVA and other low-temperature filaments. Enabling high chamber temperature may cause these filaments to soften and become lodged in the extruder, resulting in clogging issues.

Recommended chamber temp for various filaments

• Chamber temp for PLA, PETG, TPU, PVA, PLA's supports and other low-temperature filaments: off / 0 °C.
• Chamber temp for ASA, ABS: off / 0 ℃
• Chamber temp for PC, PA, PA-CF, PAHT-CF, PA6-CF, PET-CF, PPA-CF, PPA-GF, PPS, PPS-CF and other high-temperature filaments: 60 ℃

Specifications:

Maximum temperature: 65°C

Size: 17x18cm

How to Install the heater chamber for your 3D printer?

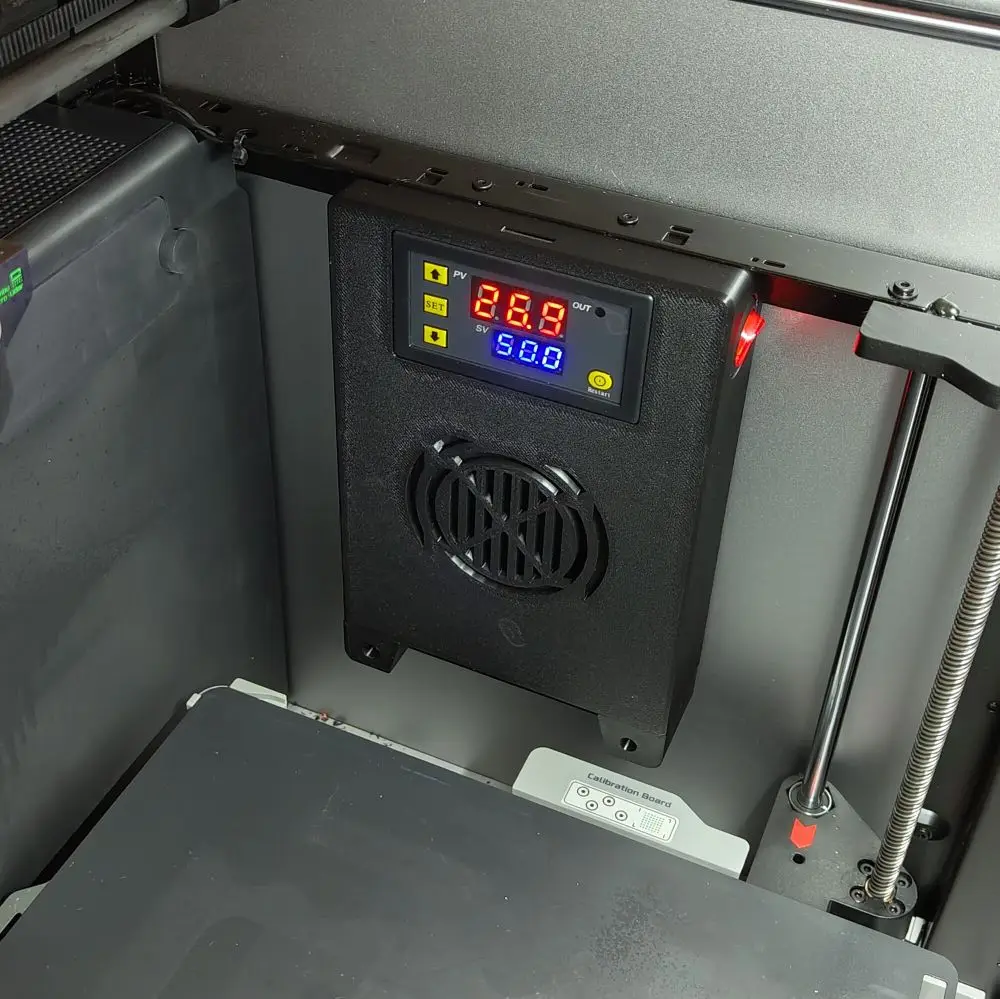

1. when assemble the heater, move the bed lowest, and install the heater on the right side of the printer

2. connect two wires of the chamber heater to the printer's power, to the AC L, and AC N.

For Bambu Lab X1 power supply info, you could refer to the Bambu Lab wiki page below:

Replacing the power unit / 24V Power Supply | Bambu Lab Wiki
