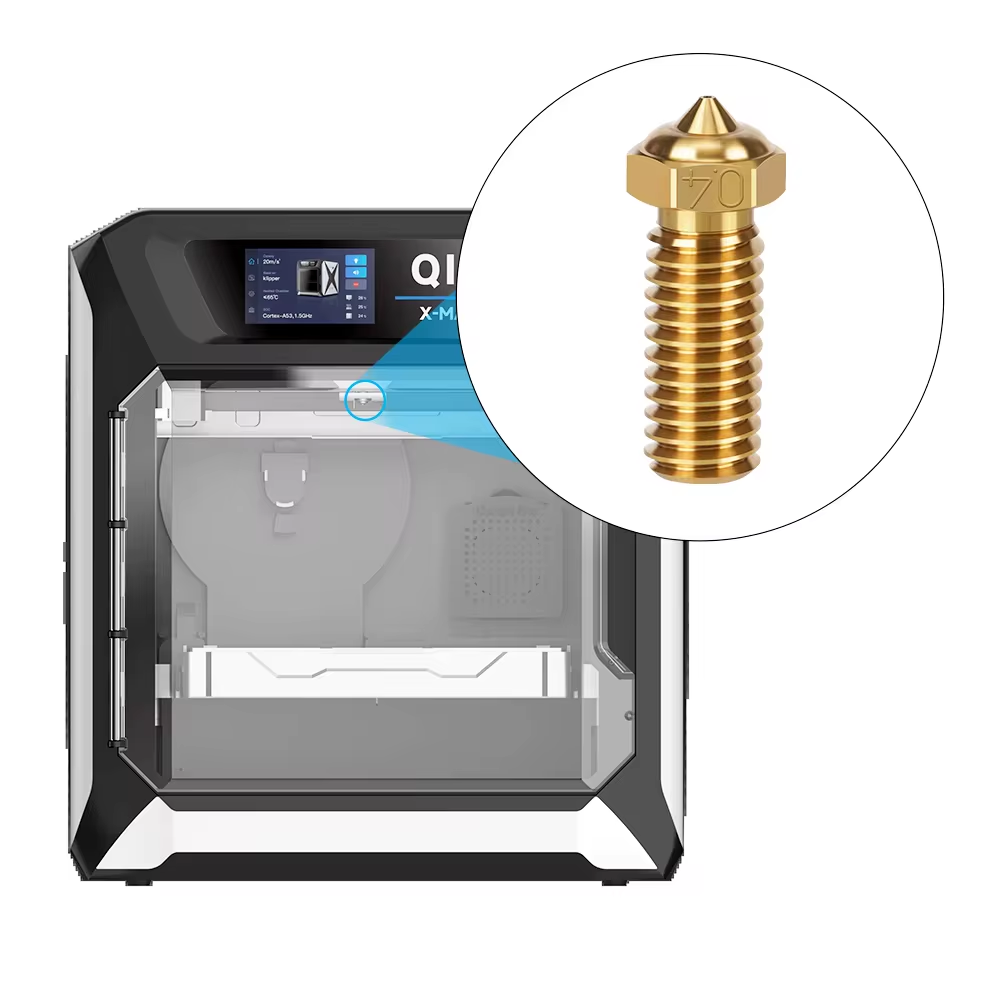

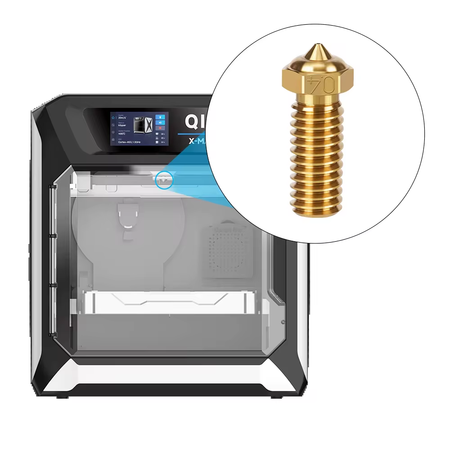

10PCS Volcano Brass Nozzle Kit for X-Max 3 / Q1 Pro/X-Plus 3 / X-Smart 3 3D Printer

En existencia
(0)
Precio regular $19.99
Type

Use this text to encourage communication or promote sharing on social networks.

You can also add links

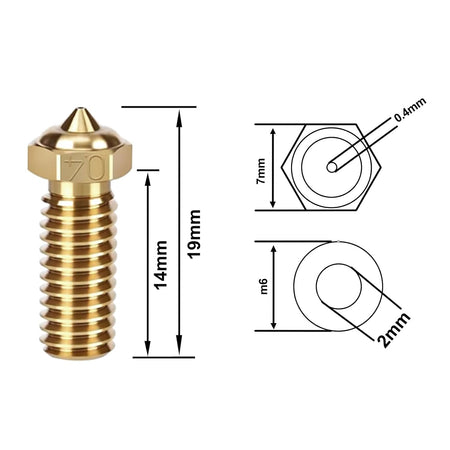

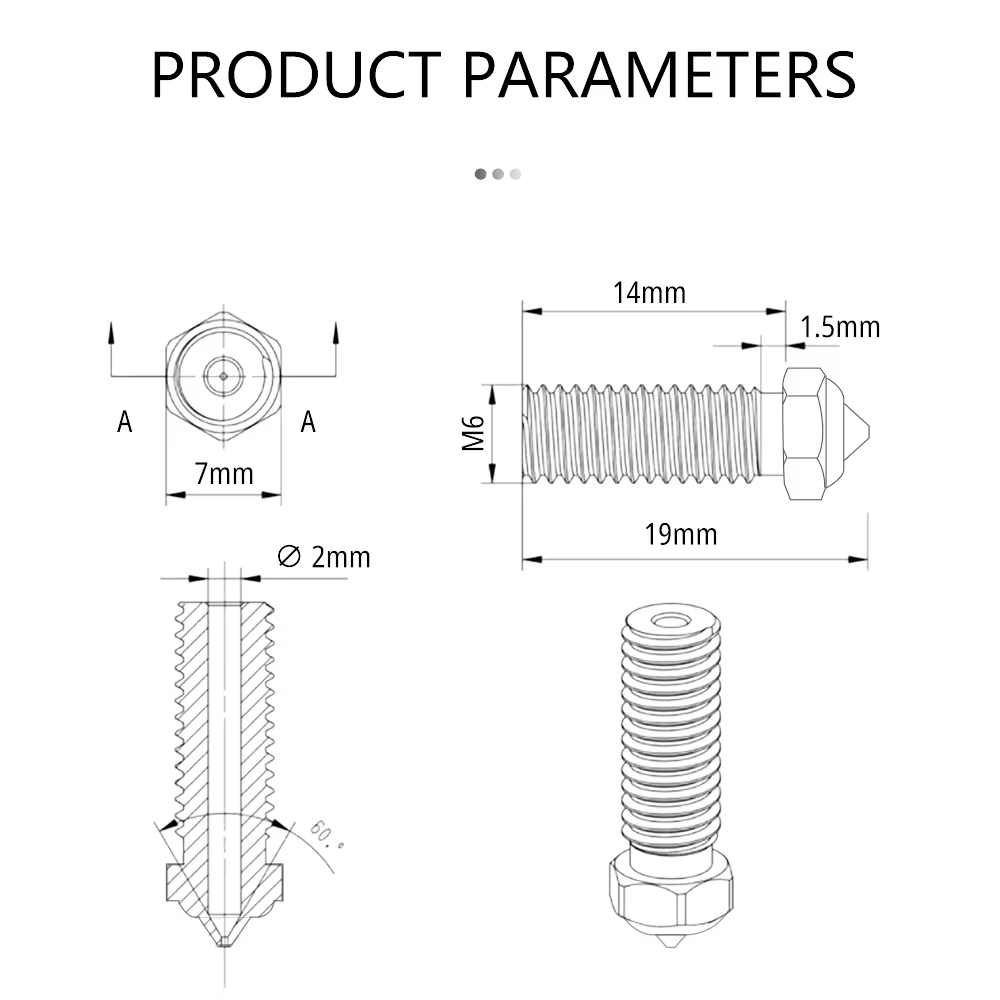

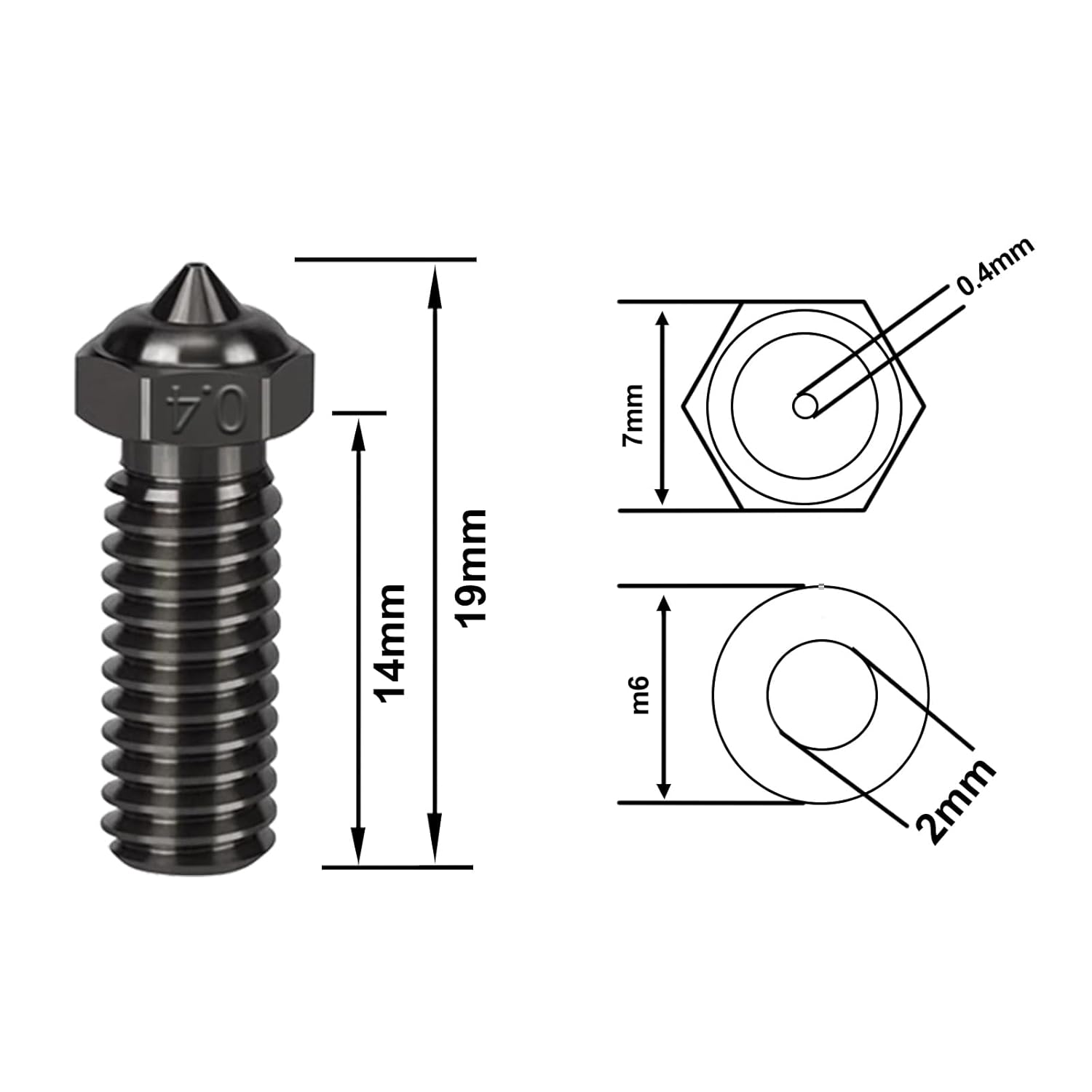

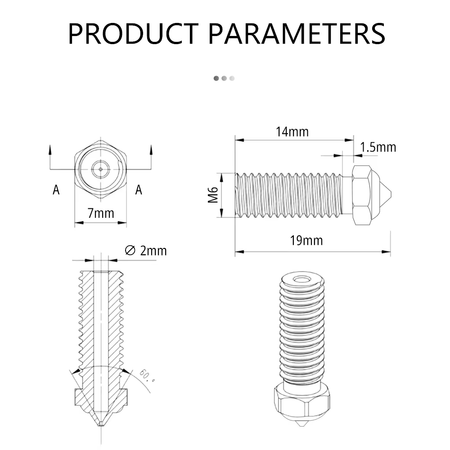

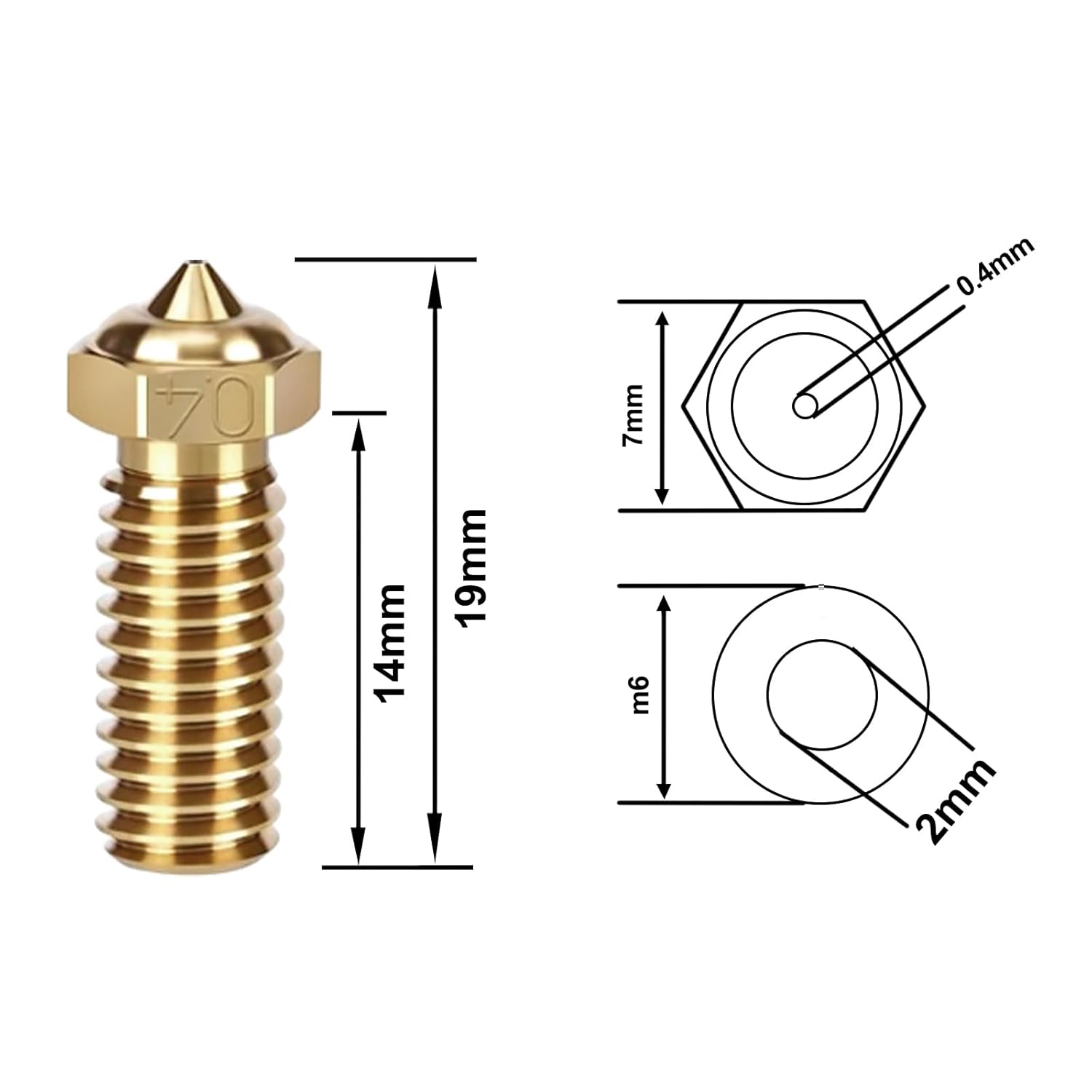

Nozzle Size: Input diameter 1.75mm, output diameter: 0.4, Out thread: M6.

These 3D printer replacement parts are compatible with QIDI X-Max 3/X-Plus 3/X-SMART3/Q1 Pro 3D printer, and other 1.75mm PLA ABS 3D printers.

3D extruder nozzle kits work with most FDM printing materials, including PLA, ABS, PETG, TPE, TPU, PC, etc.


Package includes 10 pcs 0.4mm Brass high-speed nozzles for high-speed printing.

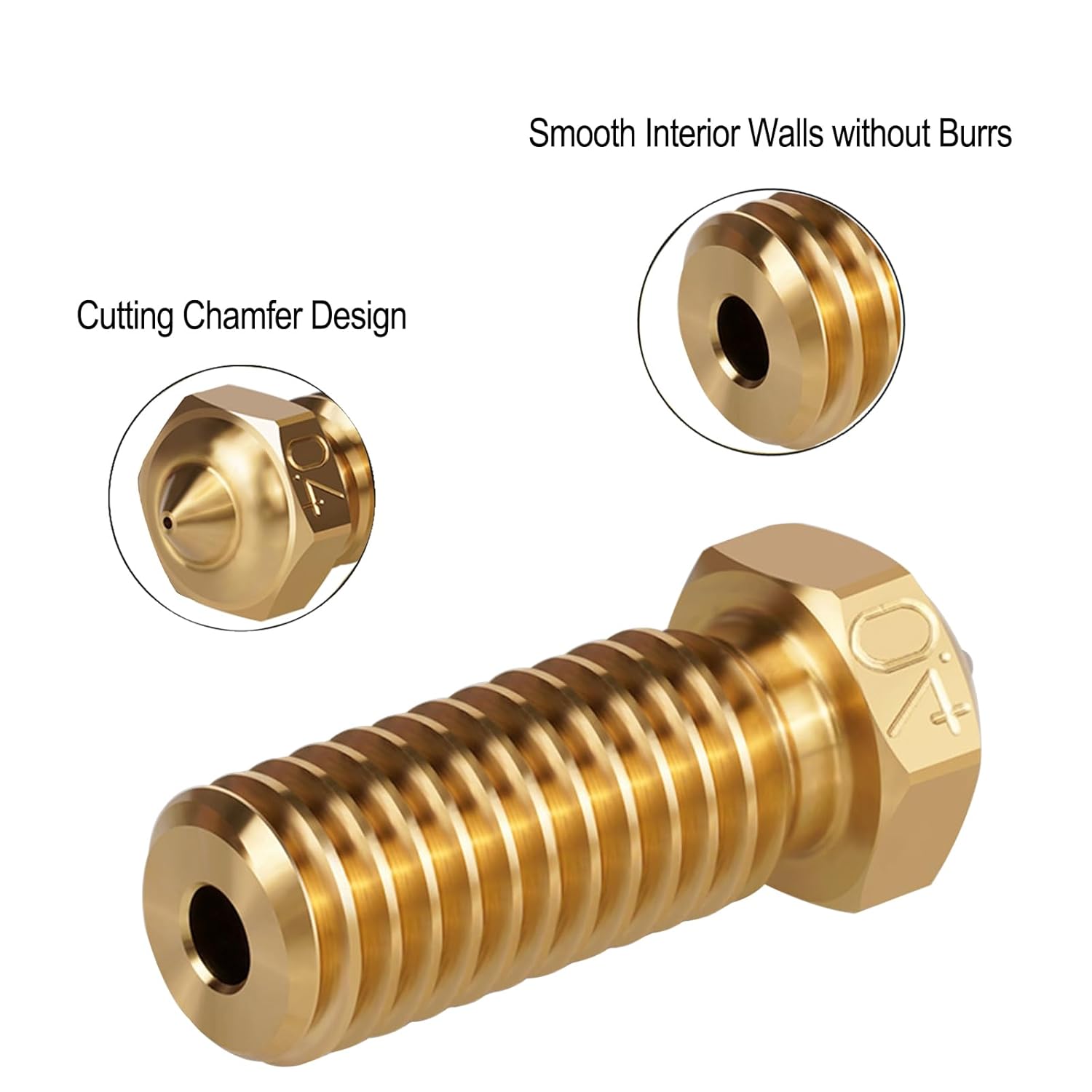

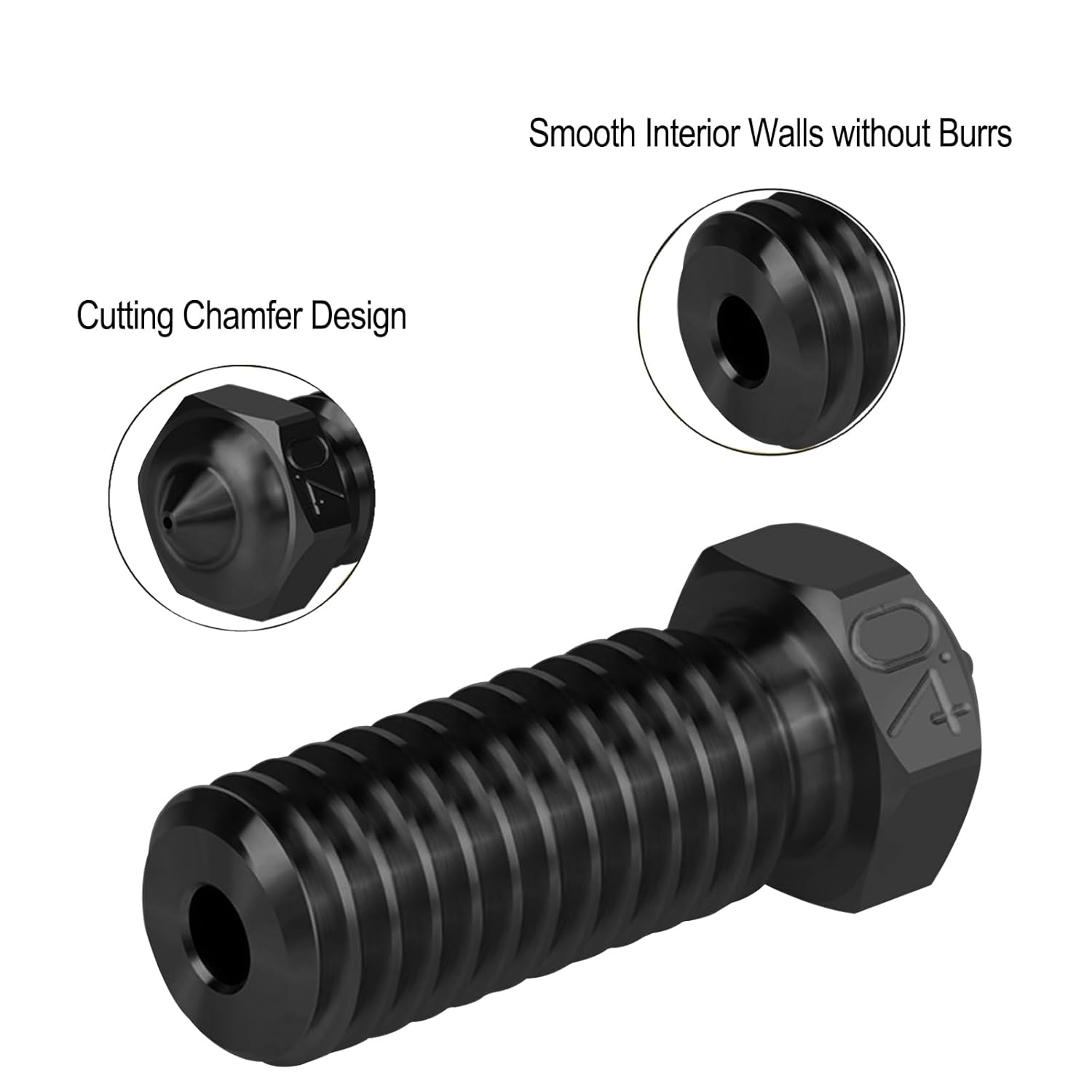

Nozzles are made of high-quality materials with smooth inner walls, low viscosity, and a cutting chamfer design for smooth feeding and minimal blocking.

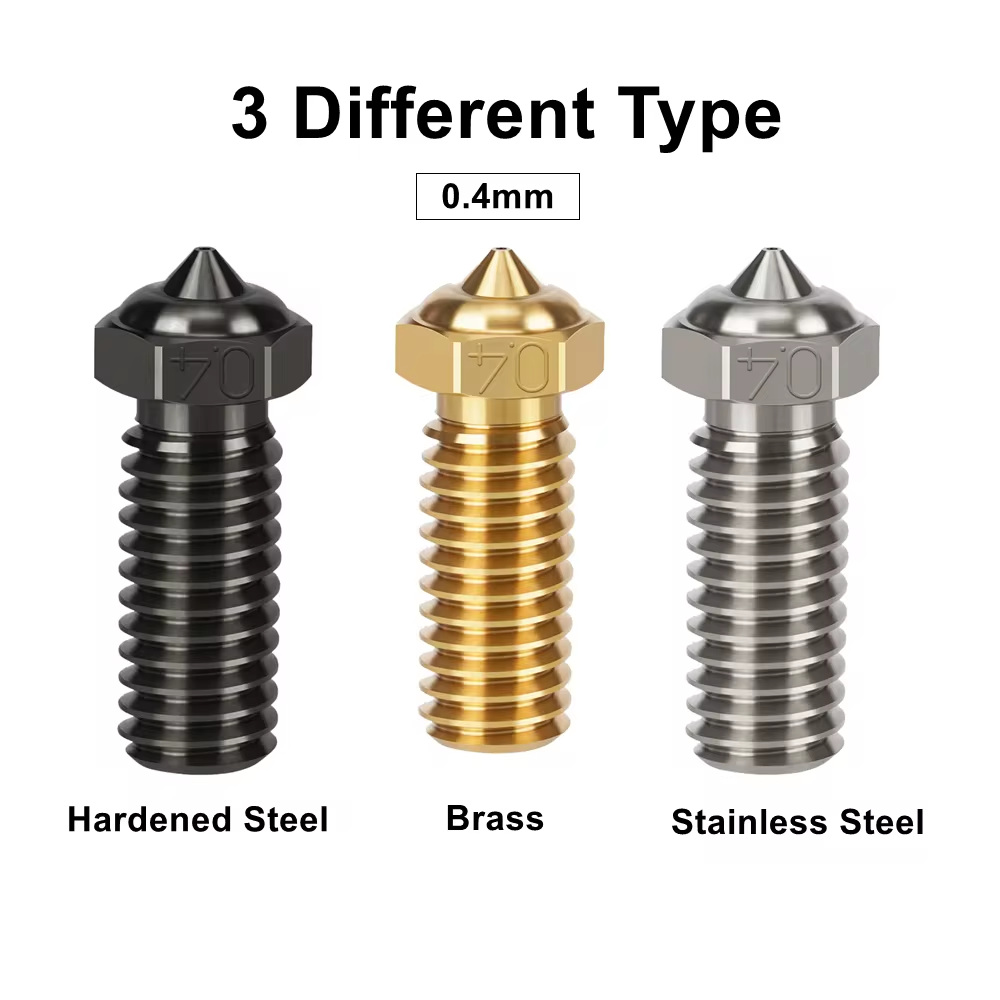

Materials: Brass

Compatible Filament: 1.75mm

Printing Materials: PLA, ABS, PETG, TPE, TPU, PC, etc.

Size: 0.4mm

Screw thread: M6

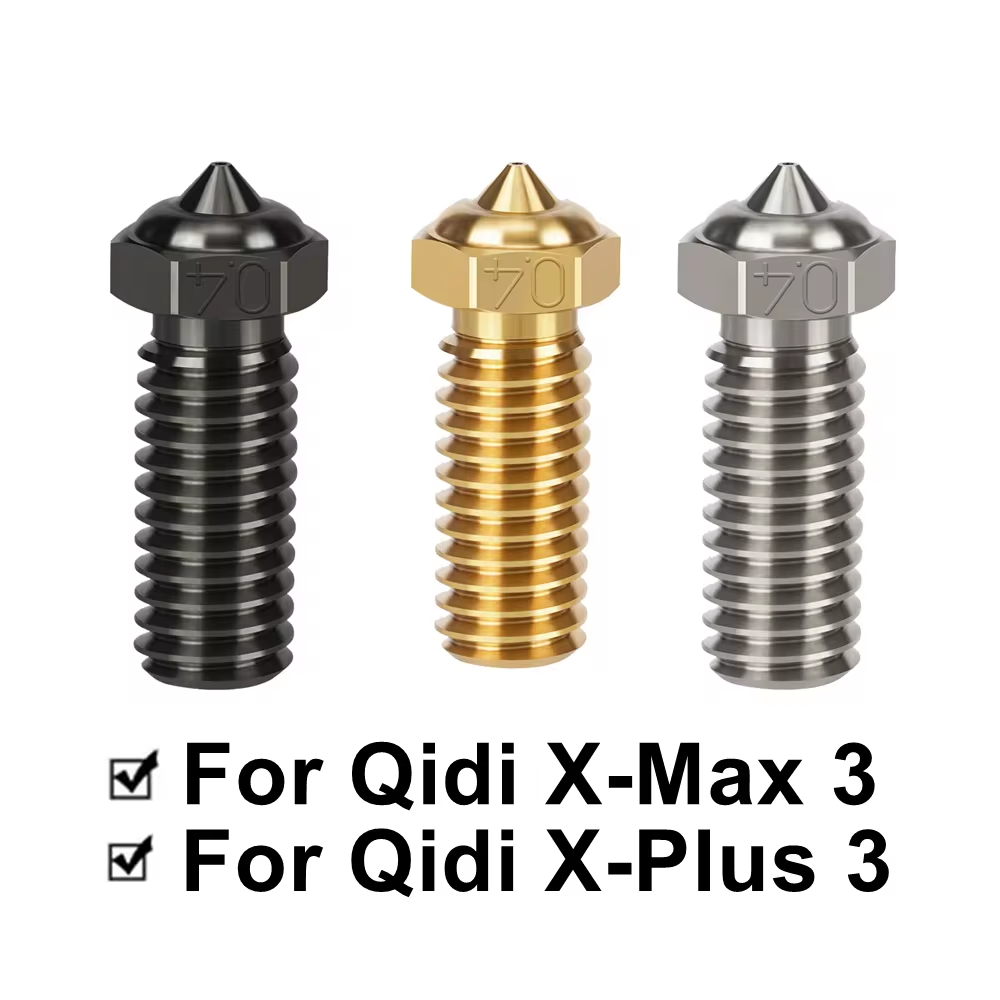

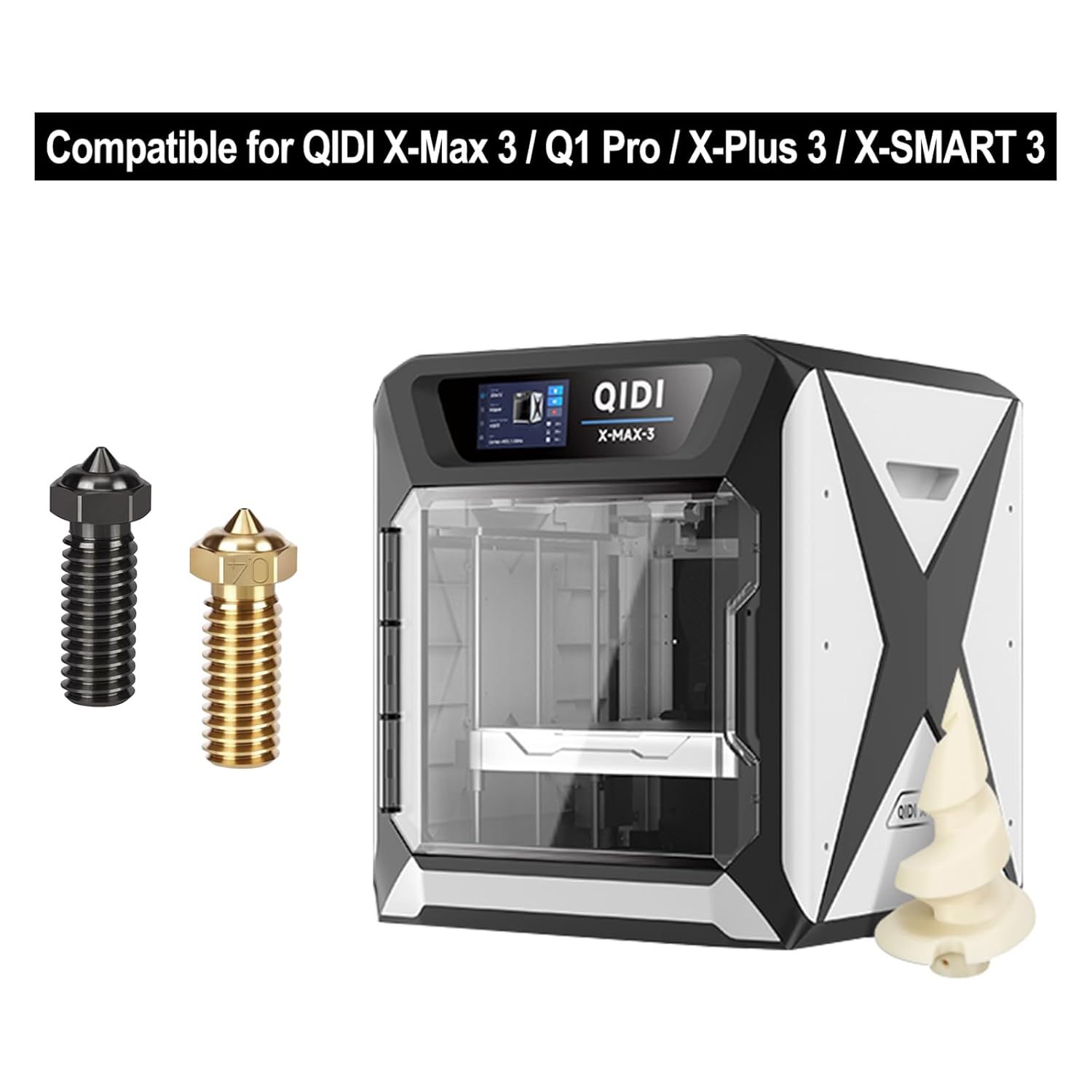

Compatible for QIDI X-Max 3 / Q1 Pro / X-Plus 3 / X-SMART 3 3D Printer

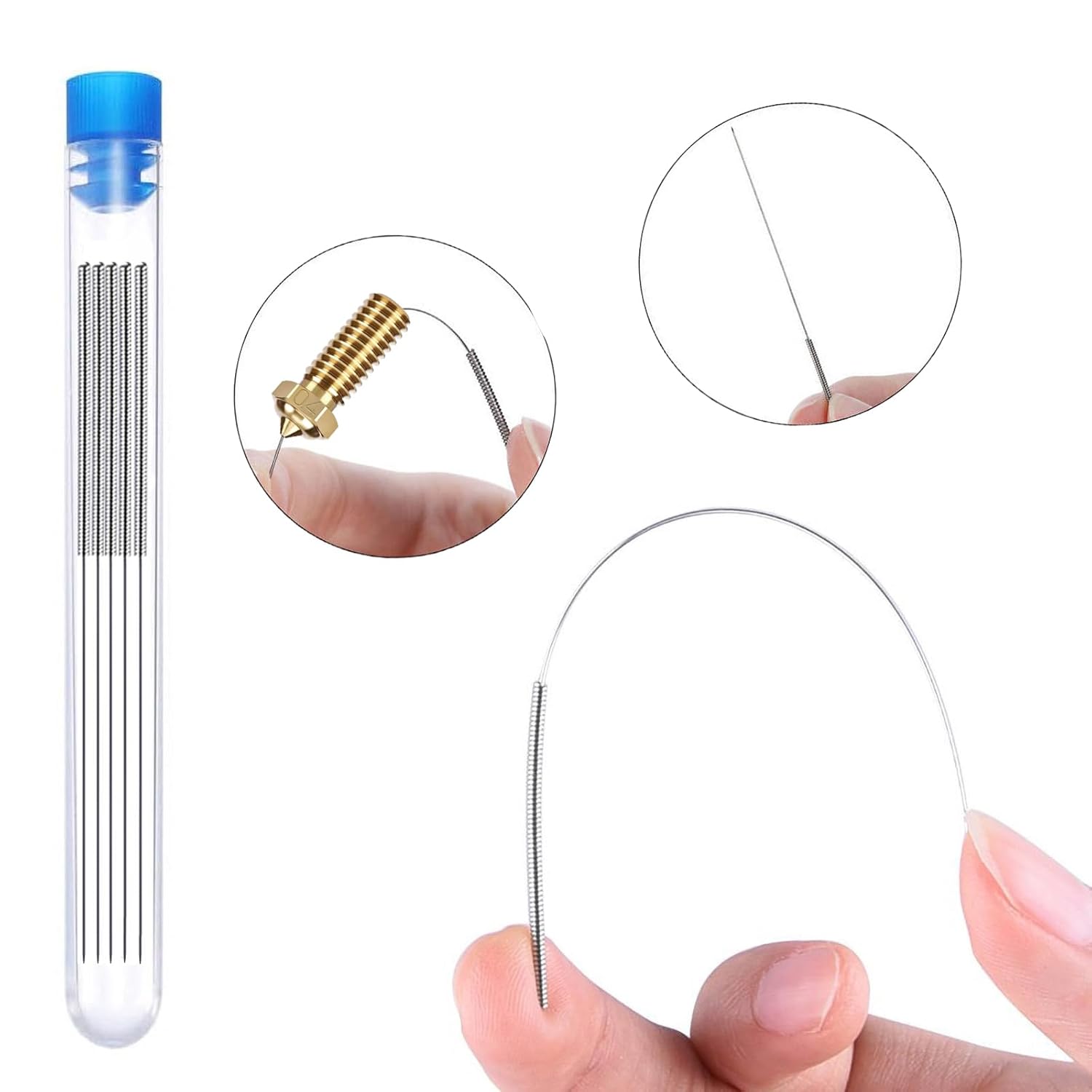

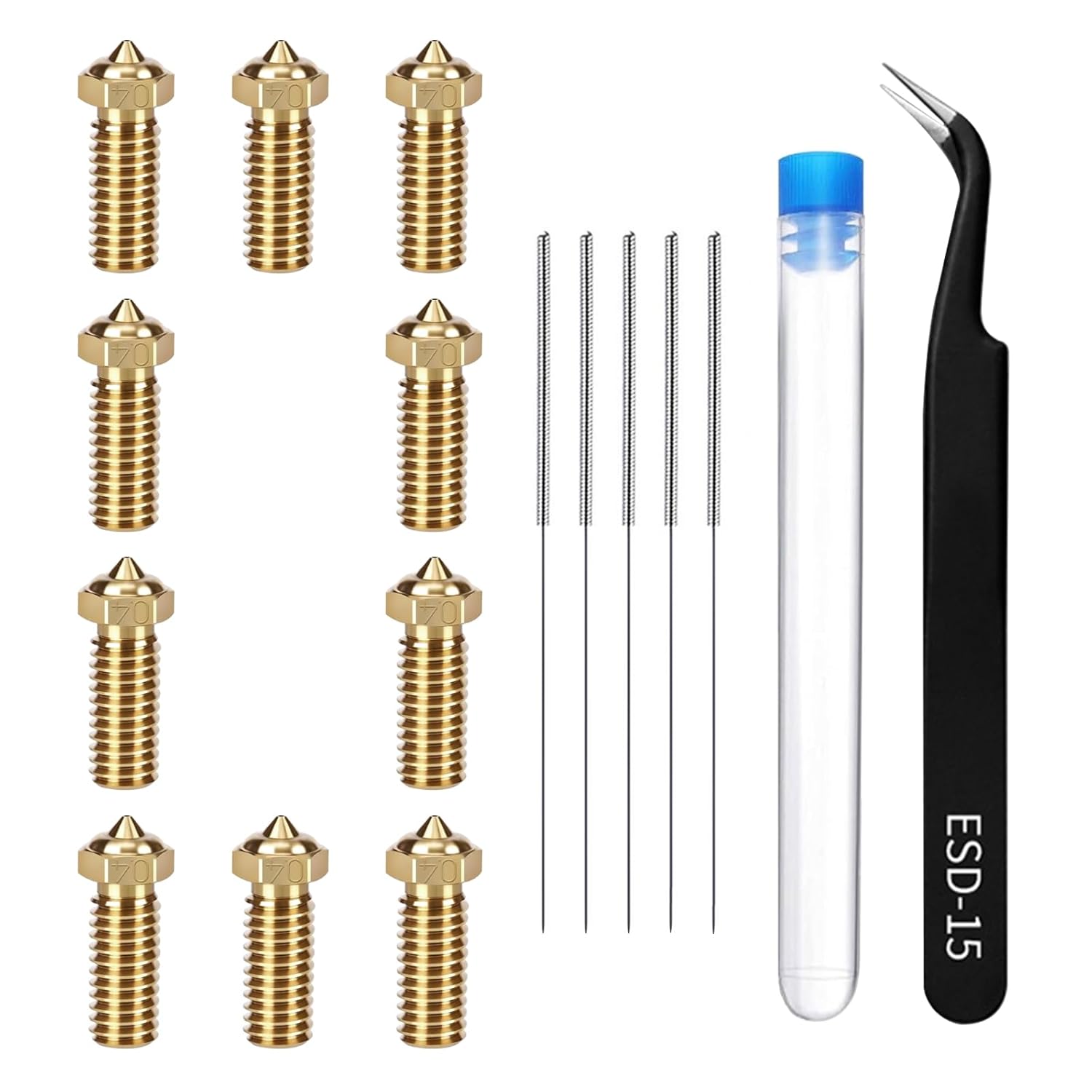

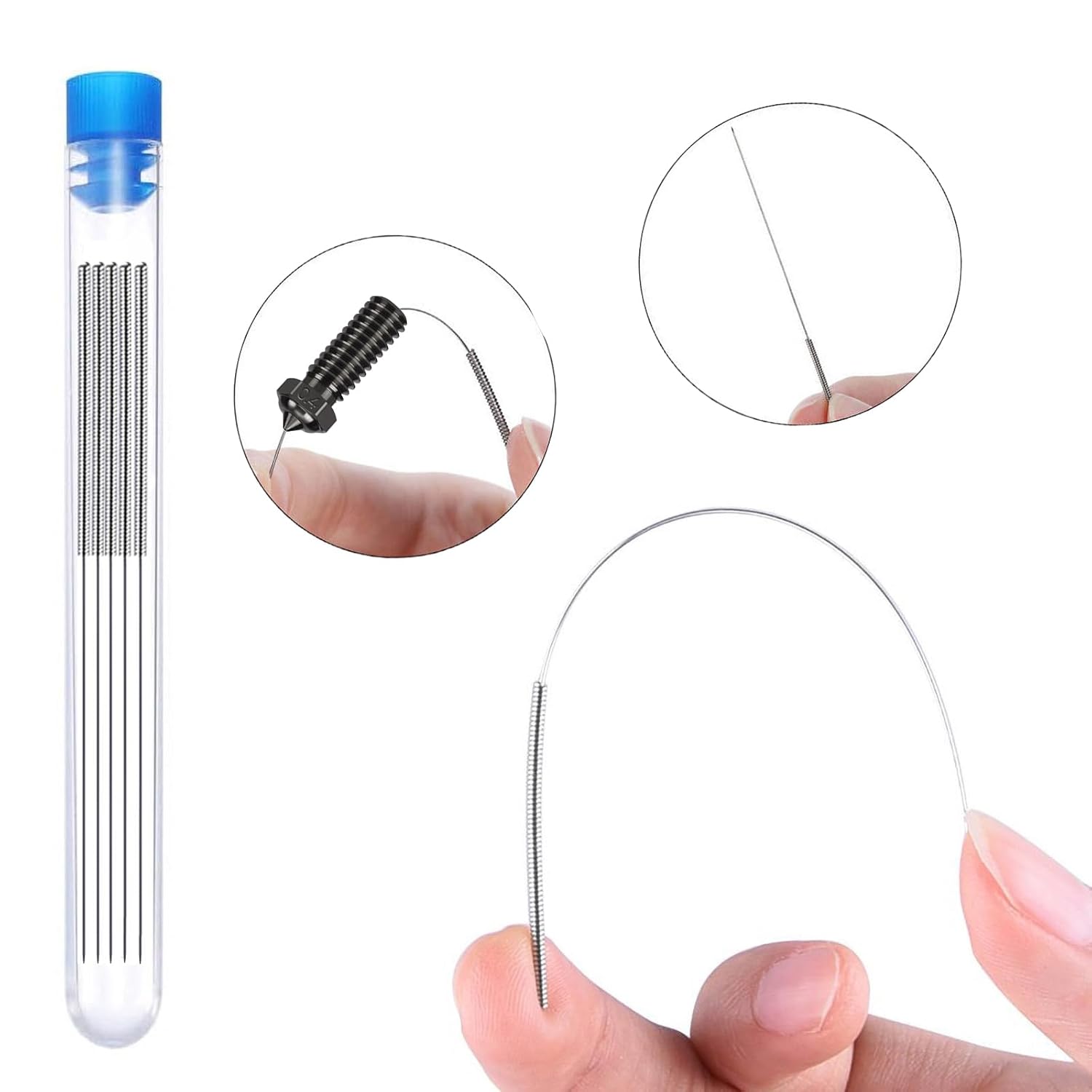

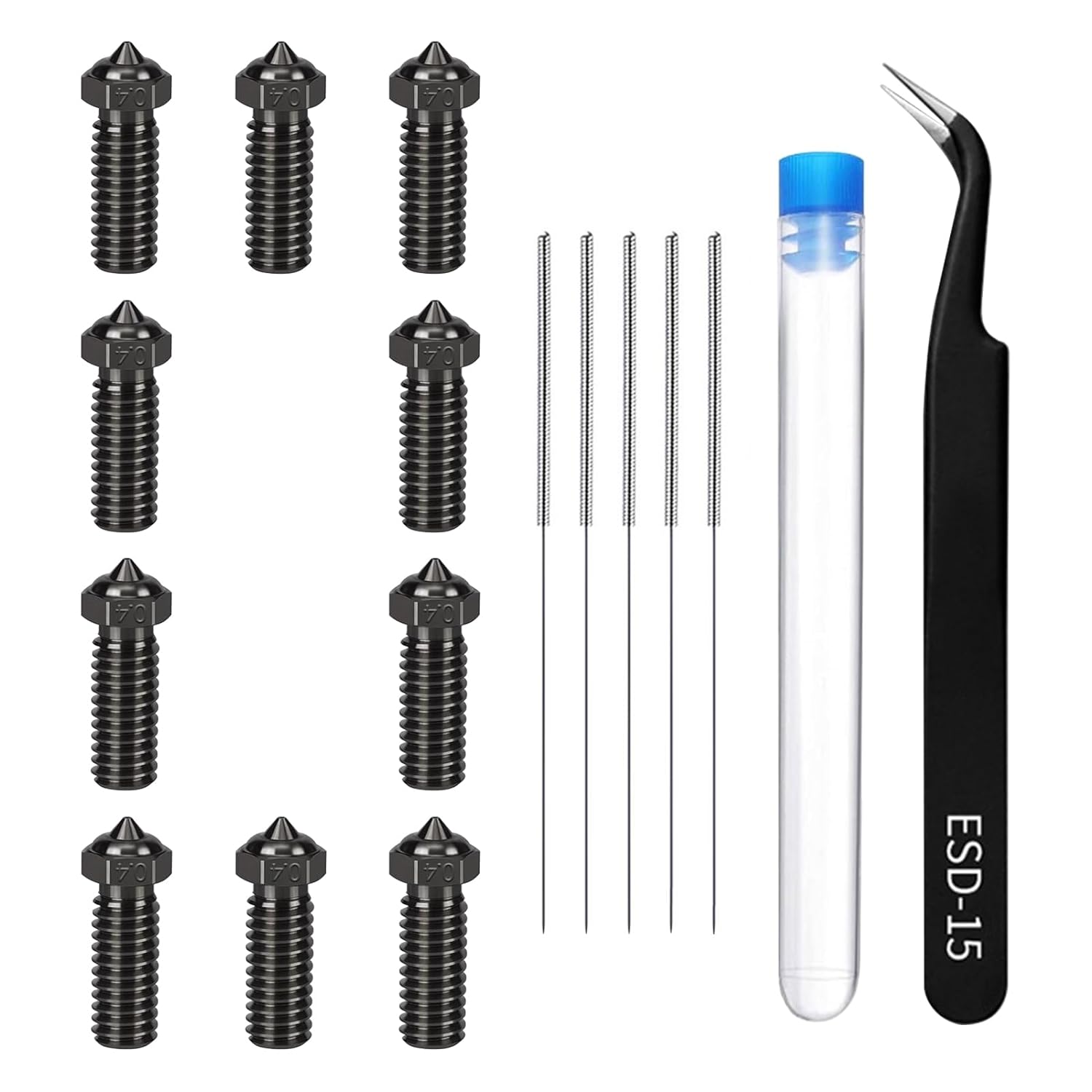

Package included: 10 pcs 0.4mm nozzles, 1 pcs curved tweezer, and 5 pcs 0.4mm needles for cleaning nozzle

How to replace nozzle

Step 1:

remove the nozzle front cover

1.png__PID:82d68d9e-dc8d-4bb4-97fa-3e4d22d5dd1d

Step 2:

Remove the hot end silicone sleeve
(Make sure the hot end is cool)

2.png__PID:d68d9edc-8ddb-4497-ba3e-4d22d5dd1dad

Step 3:

Remove the hot end nozzle.
(Make sure the hot end is cool)

3.png__PID:9edc8ddb-b497-4a3e-8d22-d5dd1dad4513
3-1.png__PID:8d9edc8d-dbb4-47fa-be4d-22d5dd1dad45

Step 4:

Install new nozzle

4.png__PID:dc8ddbb4-97fa-4e4d-a2d5-dd1dad451349

Step 5:

Heat the nozzle to 250 degrees
Hot tighten

5.png__PID:8ddbb497-fa3e-4d22-95dd-1dad4513496f

Step 6:

Install the silicone sleeve
(Make sure the hot end is cooled)

7.png__PID:dbb497fa-3e4d-42d5-9d1d-ad4513496ffe

Step 7:

Install magnetic print head front cover

9.jpg__PID:97fa3e4d-22d5-4d1d-ad45-13496ffe122a
