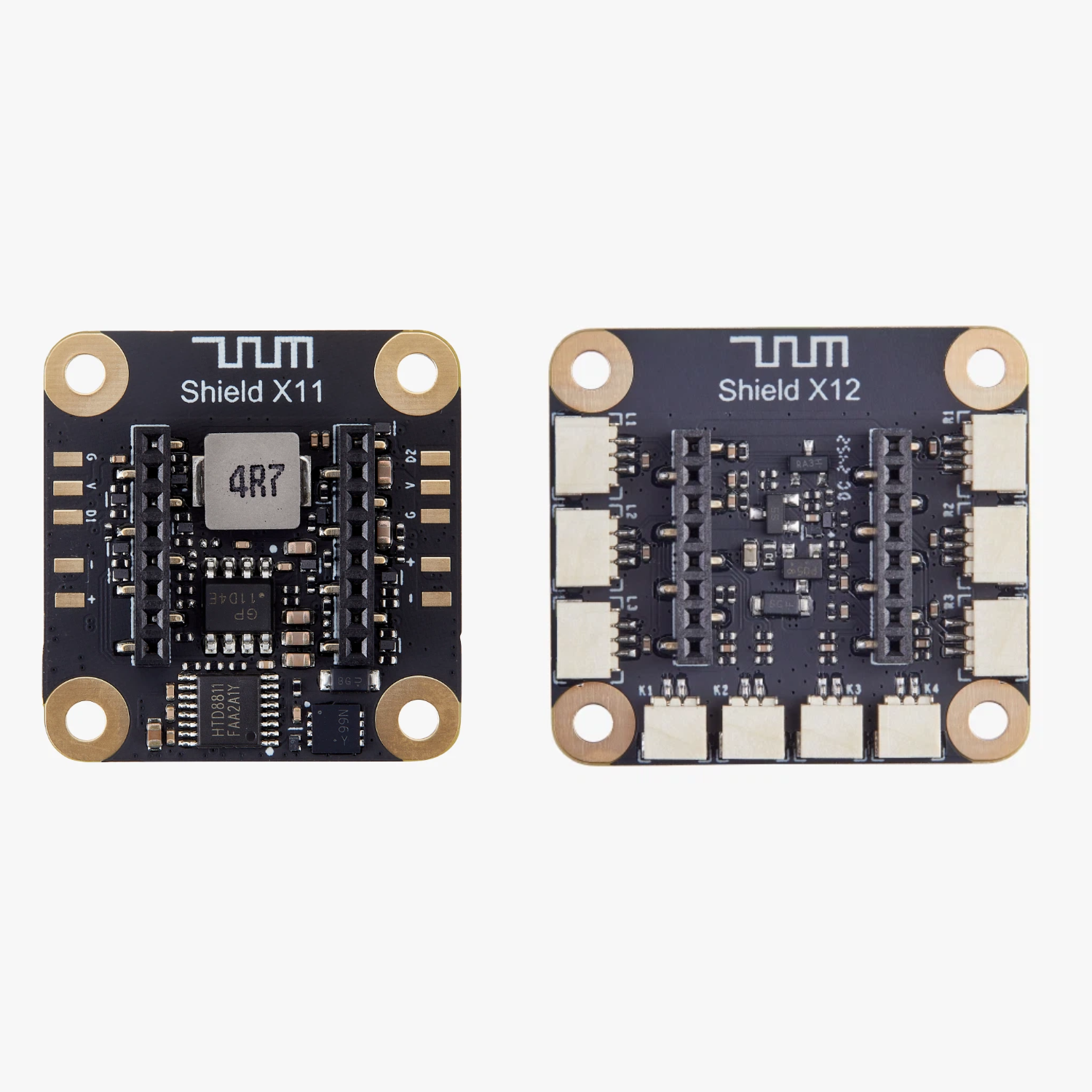

Remote Control Transmitter Shield / Receiver Shield for Bambu Lab

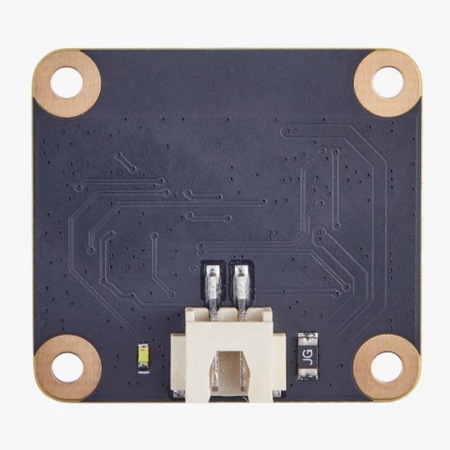

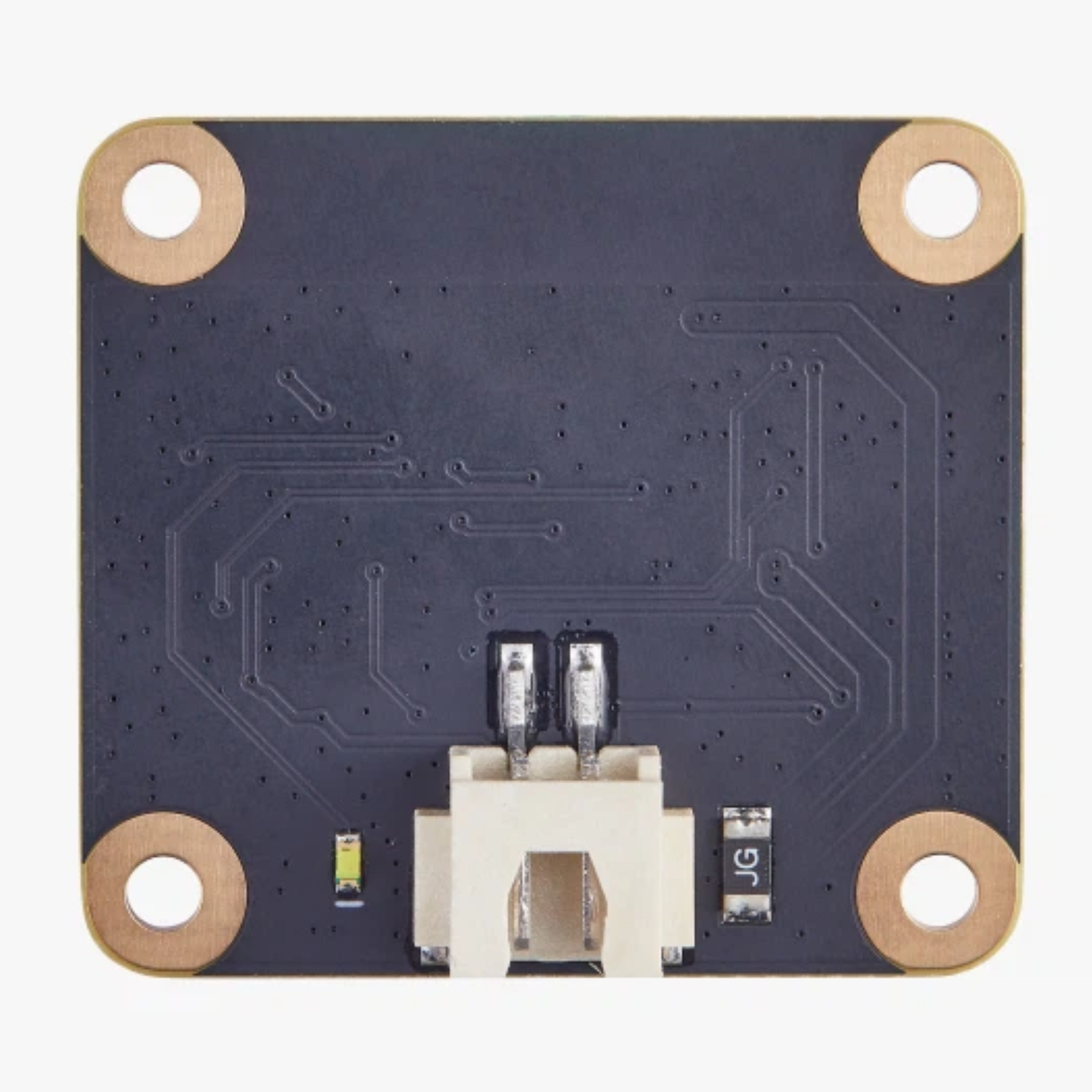

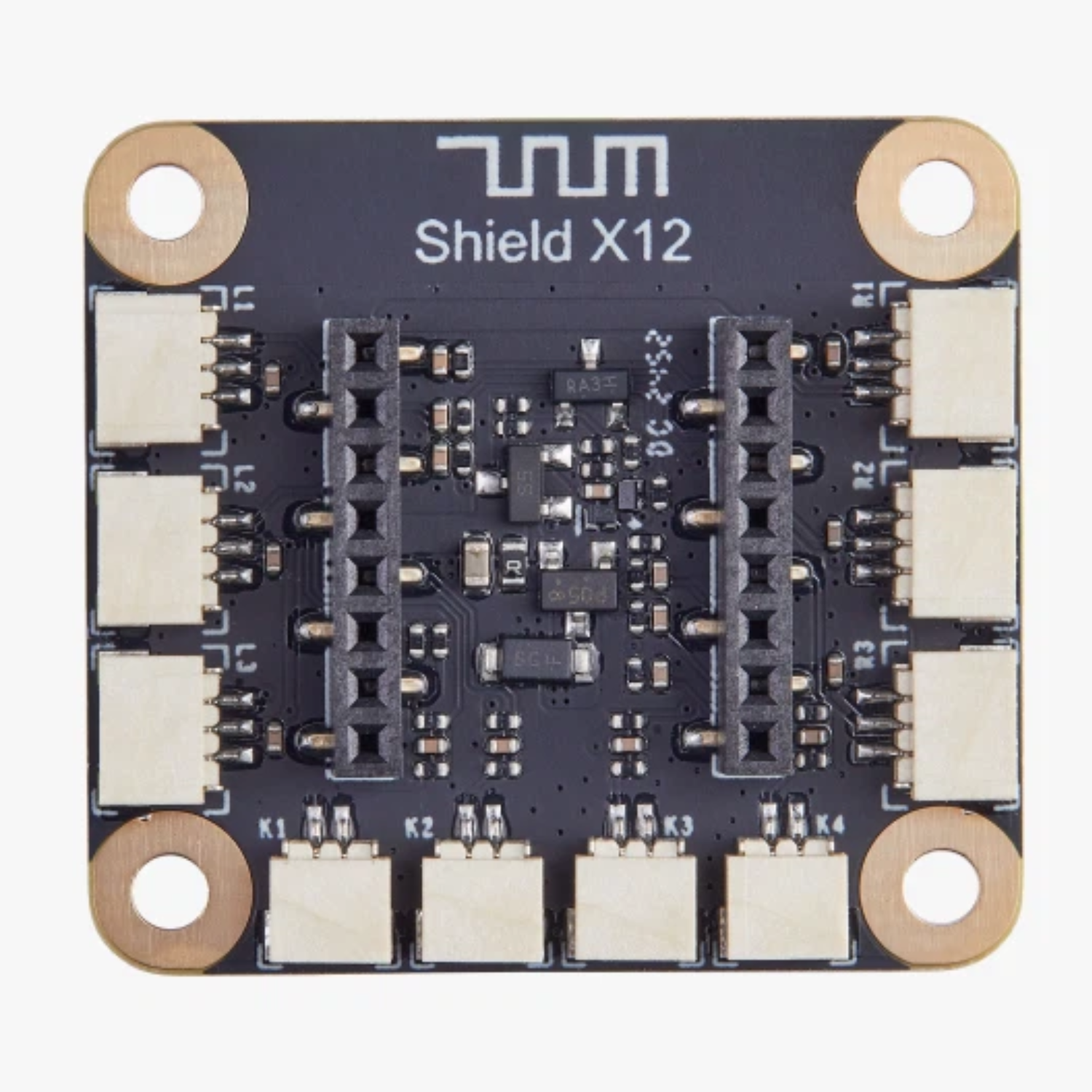

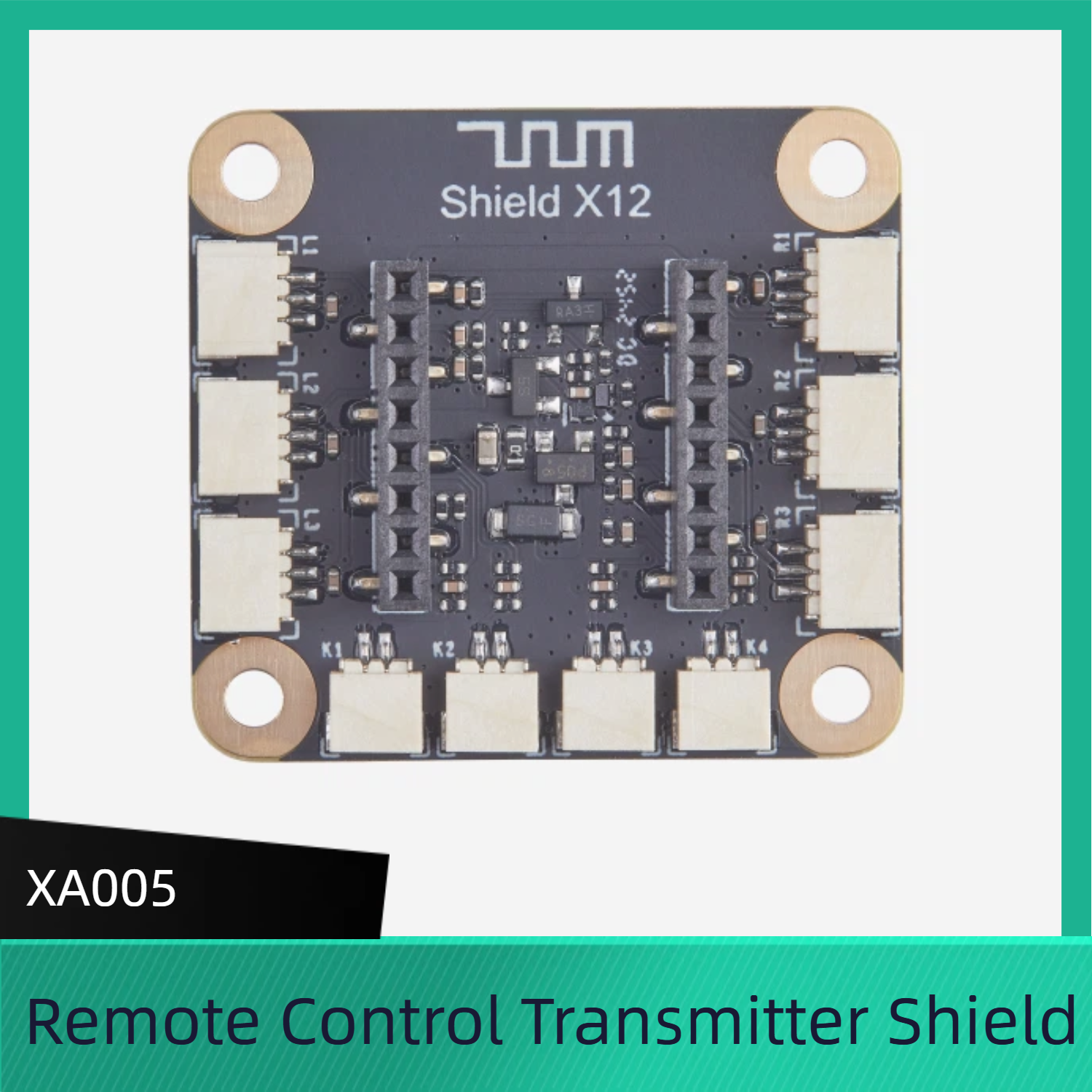

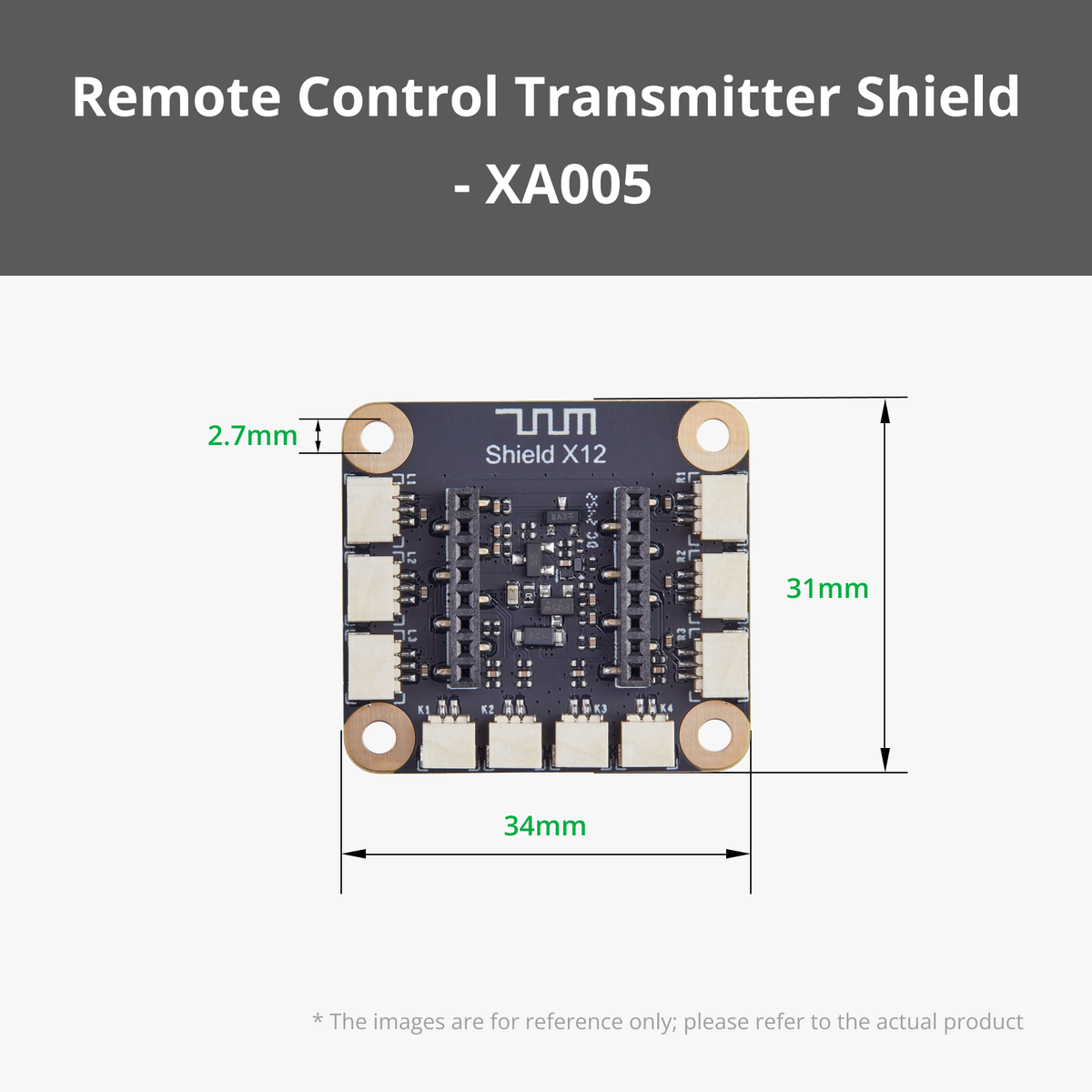

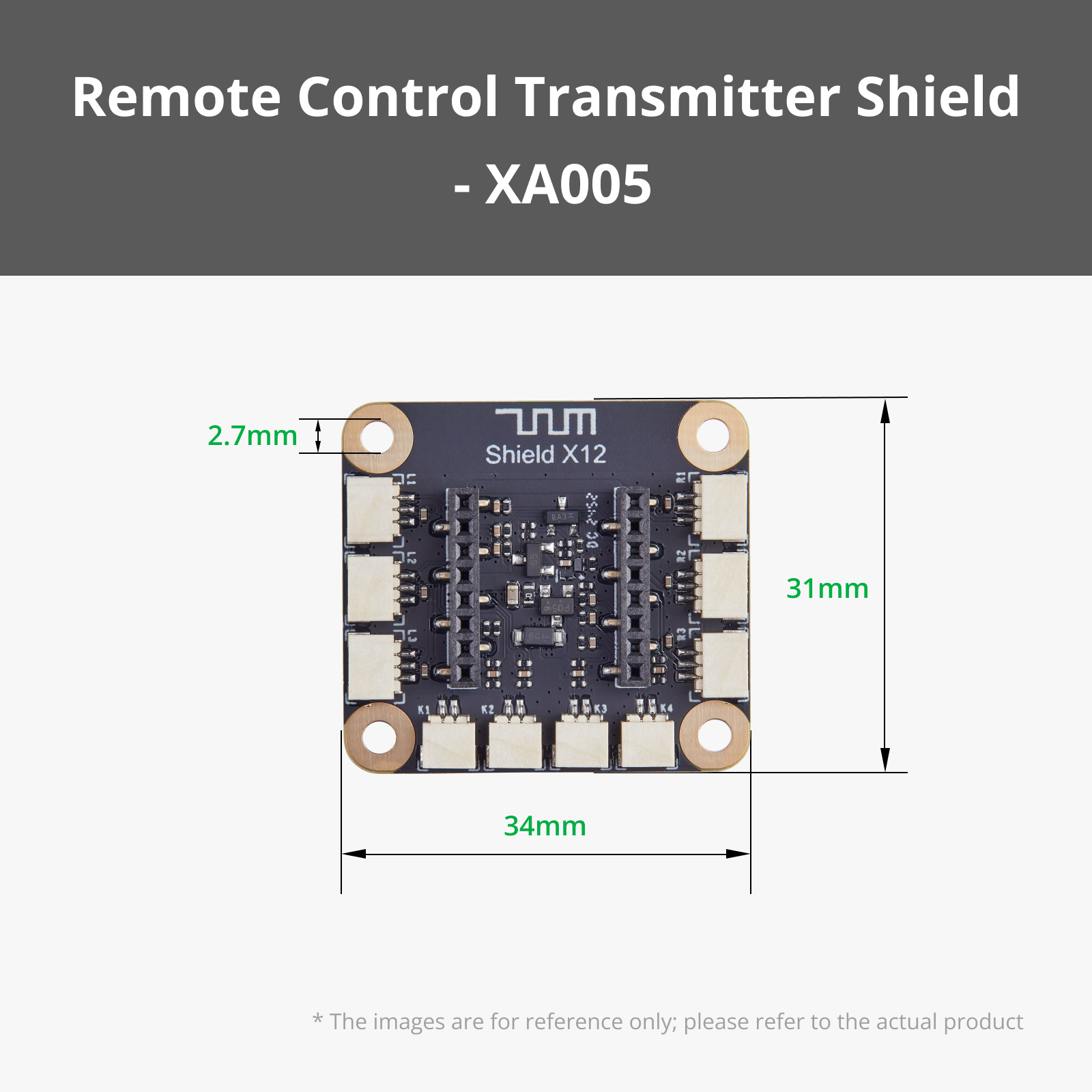

Remote Control Transmitter Shield - XA005

You can combine this product with a Multi-Function Core Board to form a Cyberbrick transmitter module. By pairing a Remote Control Receiver Shield with another Multi-Function Core Board, you can create a Cyberbrick receiver module. Connect joysticks and buttons to the transmitter module, and motors or servos to the receiver module, and you will have a minimal Cyberbrick remote control car project unit.

Can be combined with the Official R/C Combo Kits

Remote Control Toys

Product Specifications

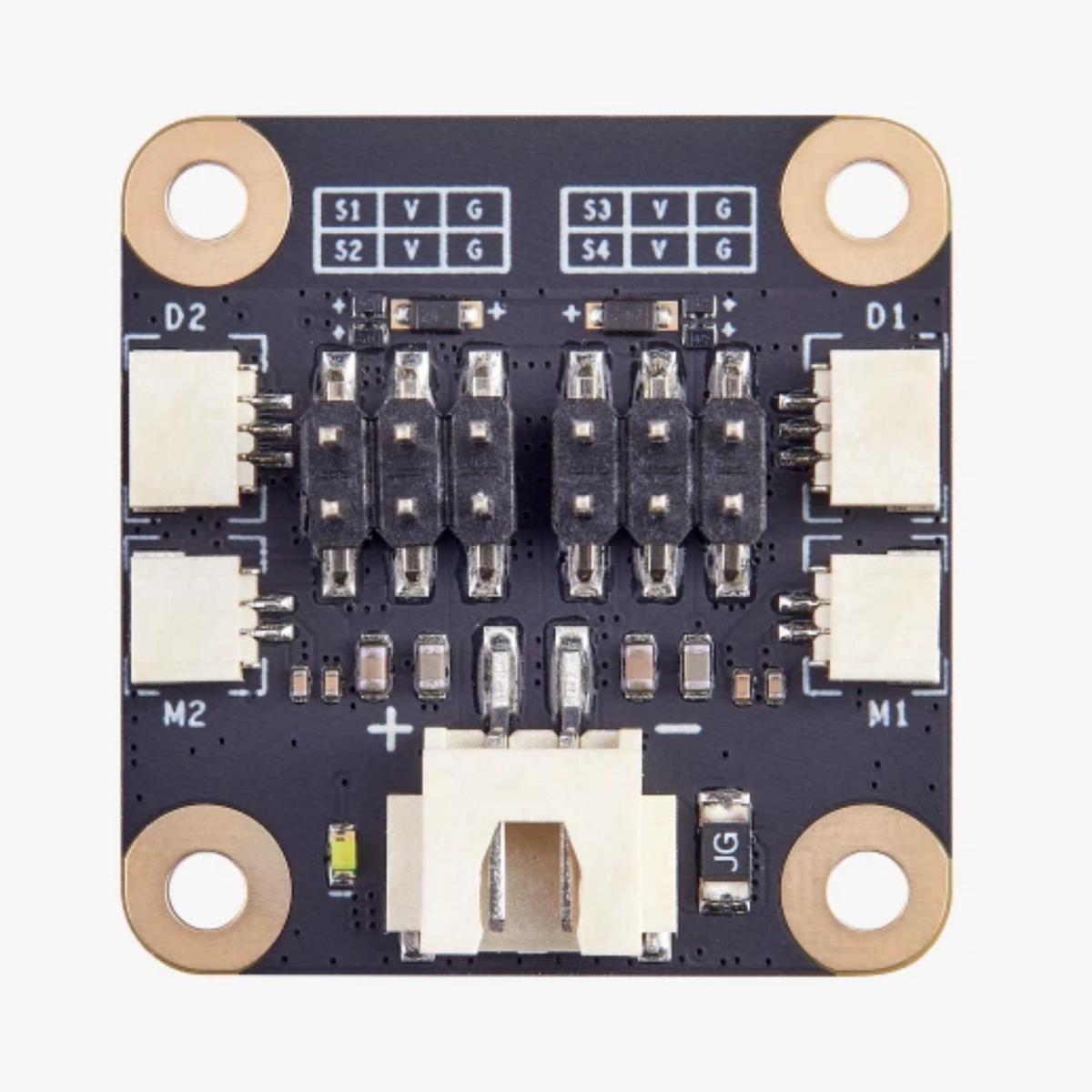

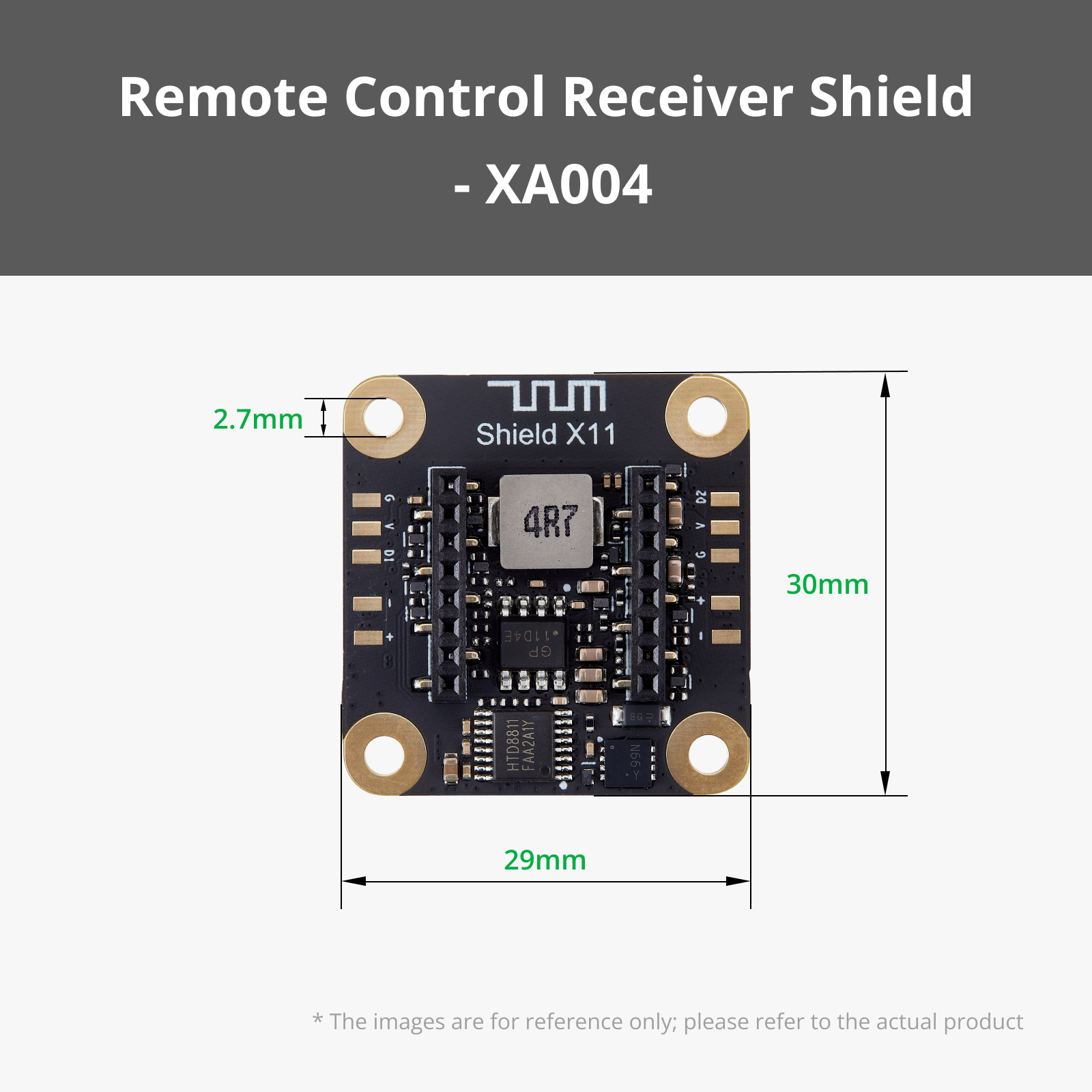

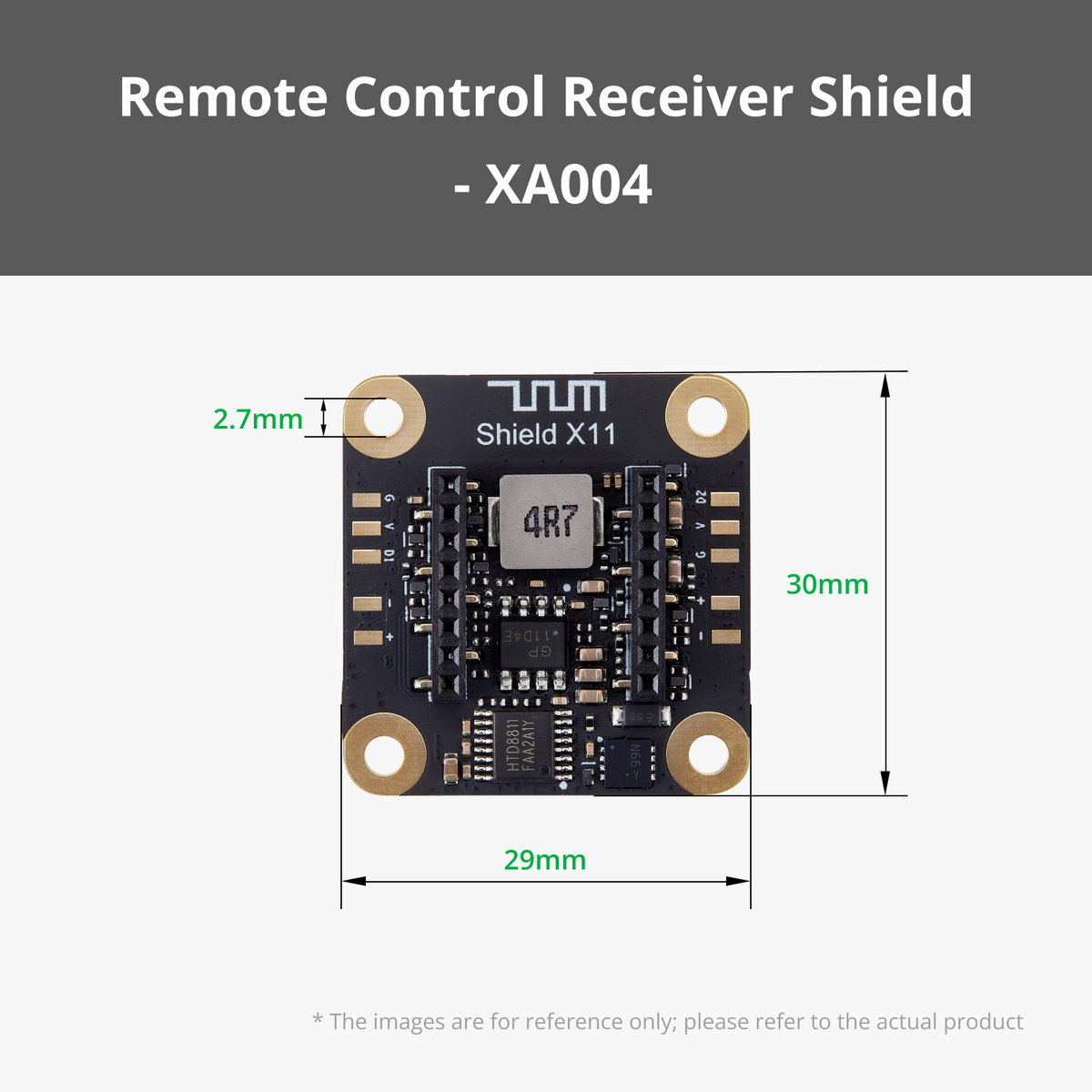

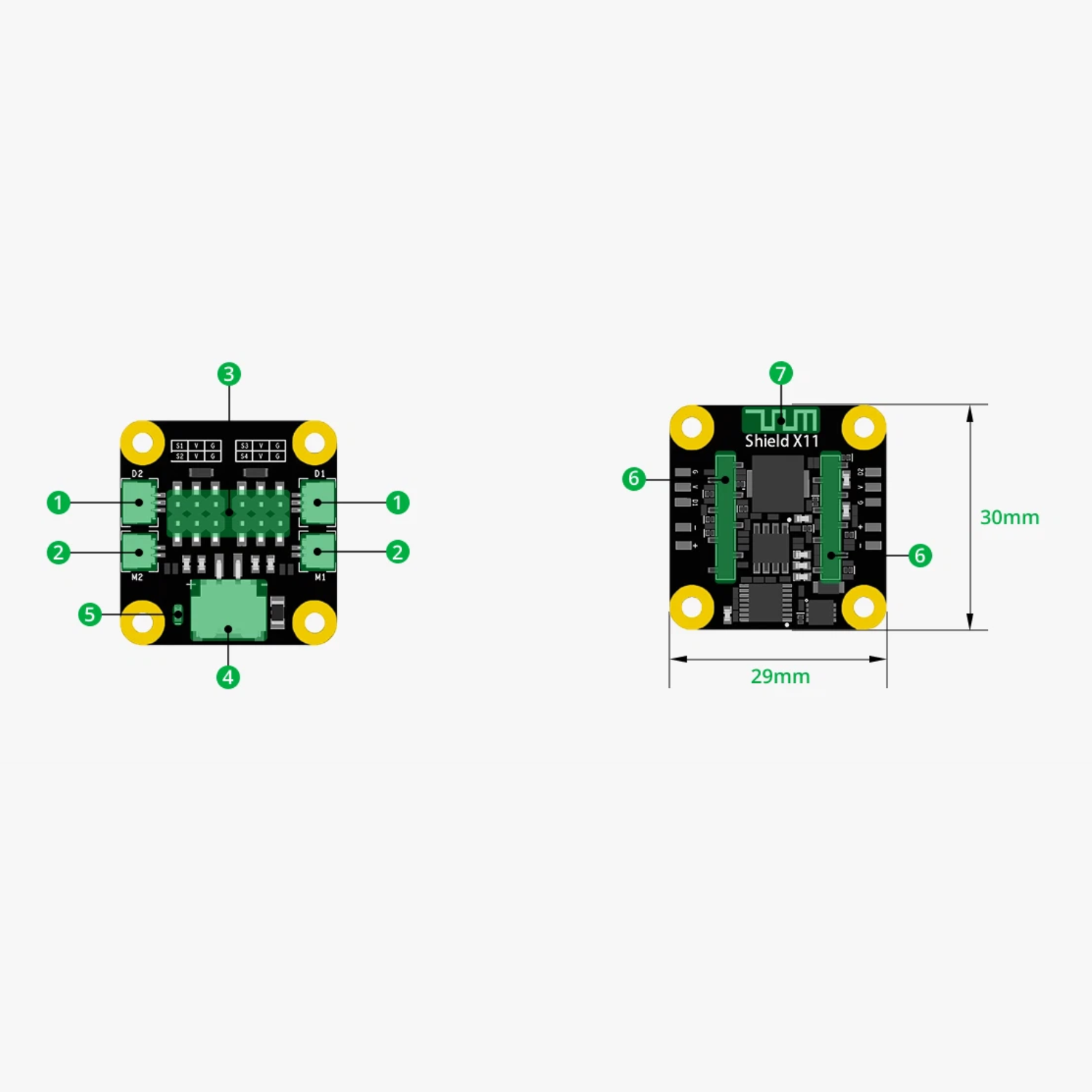

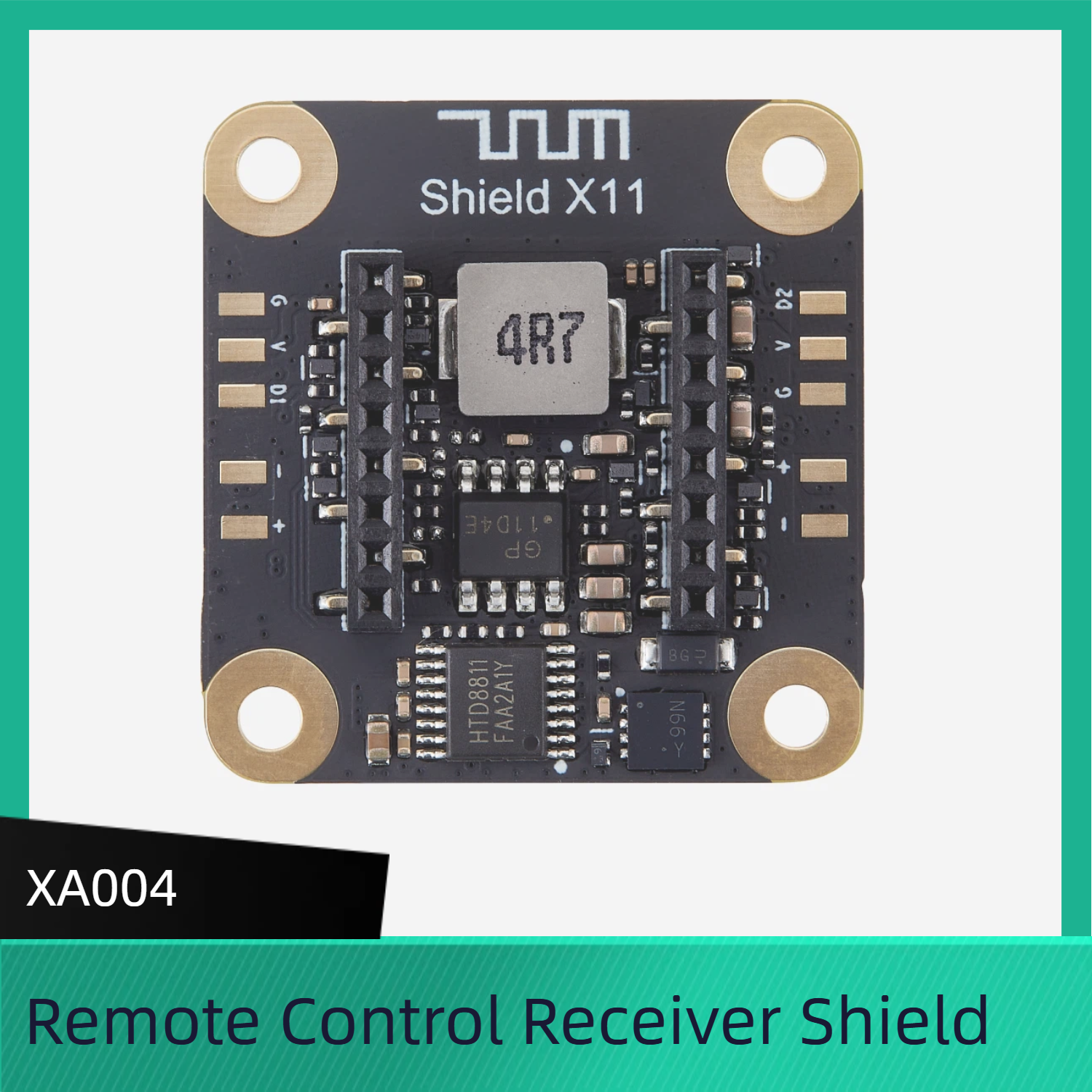

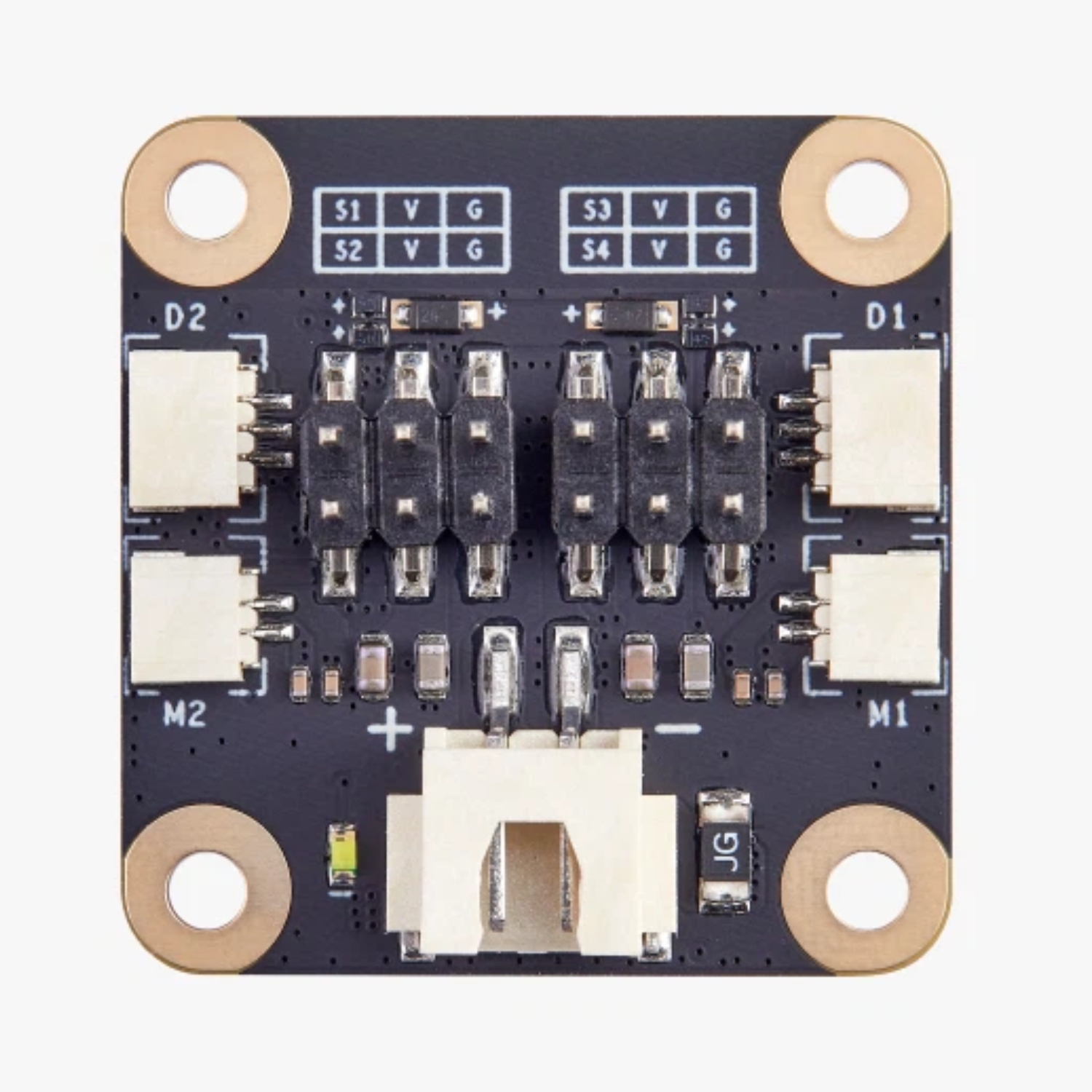

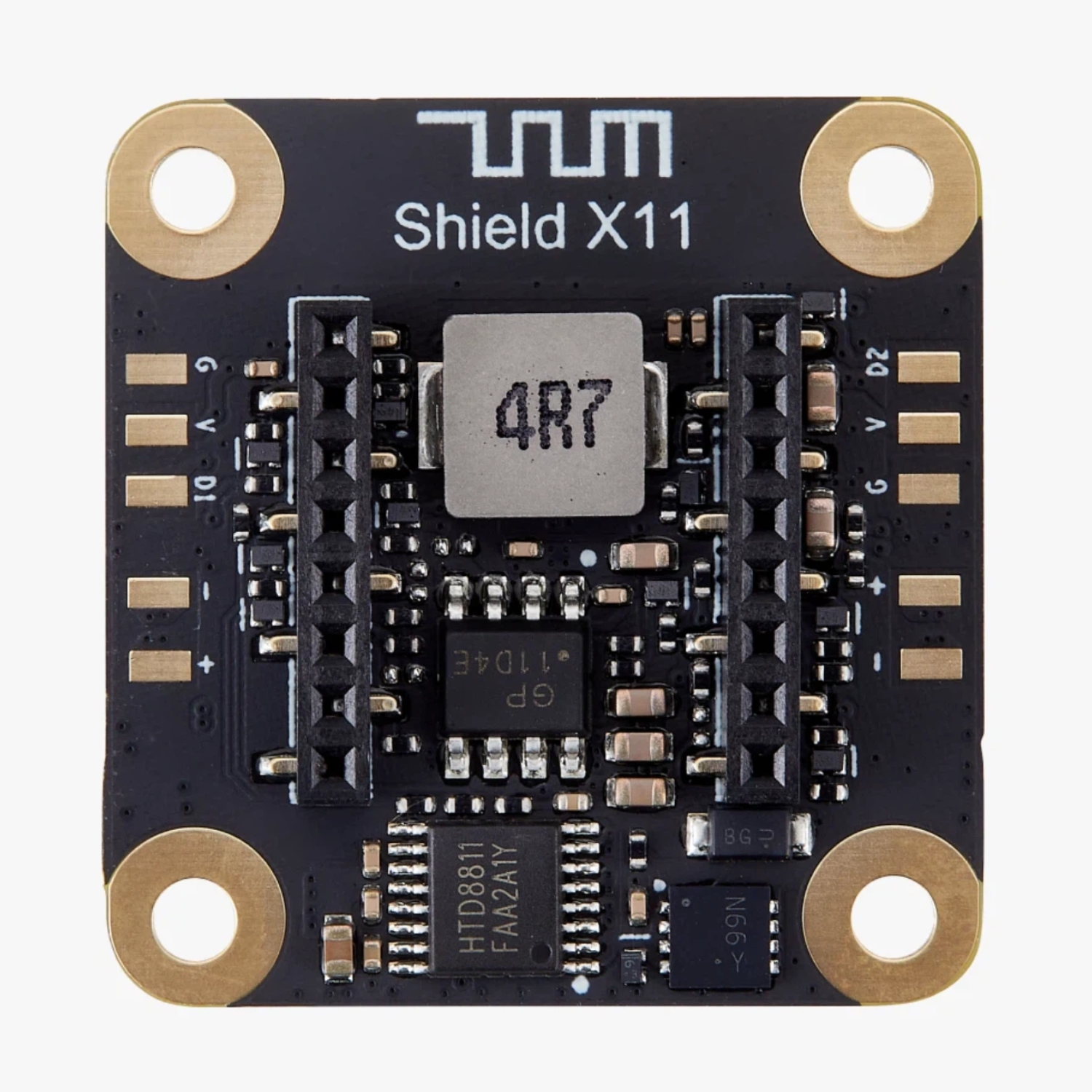

Remote Control Receiver Shield - XA004

You can combine this product with a Multi-Function Core Board to form a Cyberbrick receiver module. By pairing the Remote Control Transmitter Shield with another Multi-Function Core Board, you can create a Cyberbrick transmitter module. Connect joysticks and buttons to the transmitter module, and connect motors or servos to the receiver module, and you will have the minimal Cyberbrick remote control car project unit.

Can be combined with the Official R/C Combo Kits

Remote Control Toys

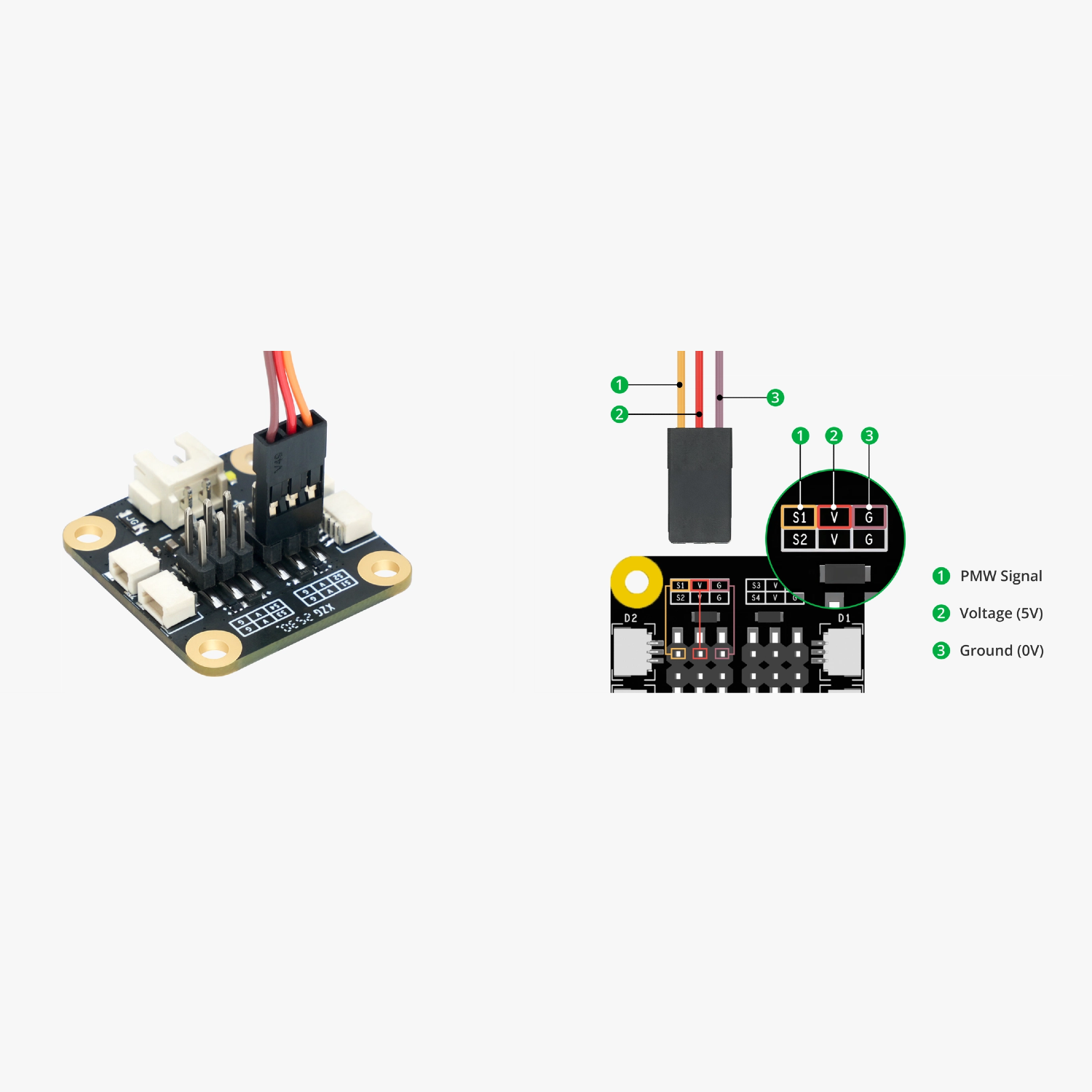

Servo Ports Pin Definition

Please strictly follow the wire sequence below to avoid damaging the components.

Product Specifications
