SUNLU Transparent Enclosure

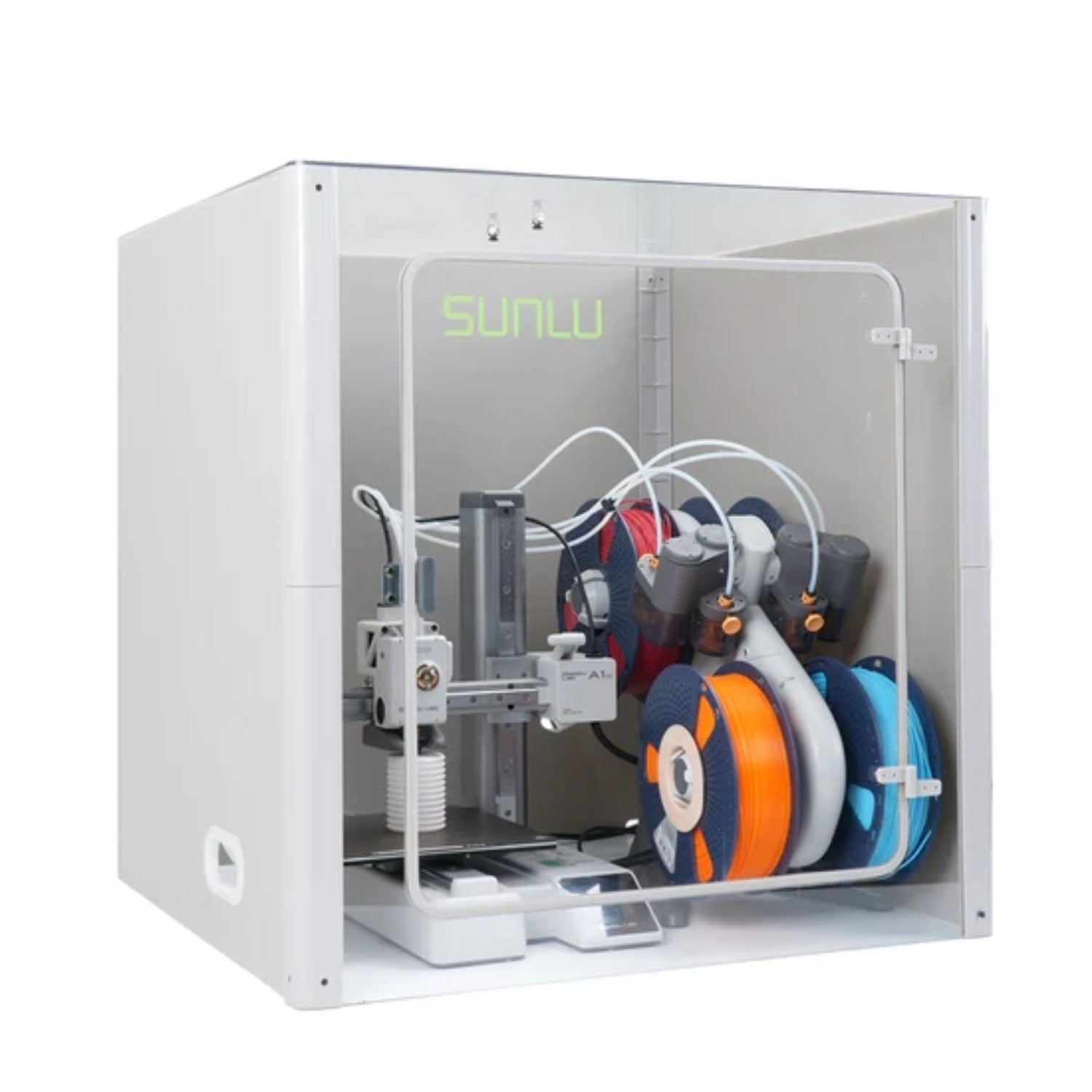

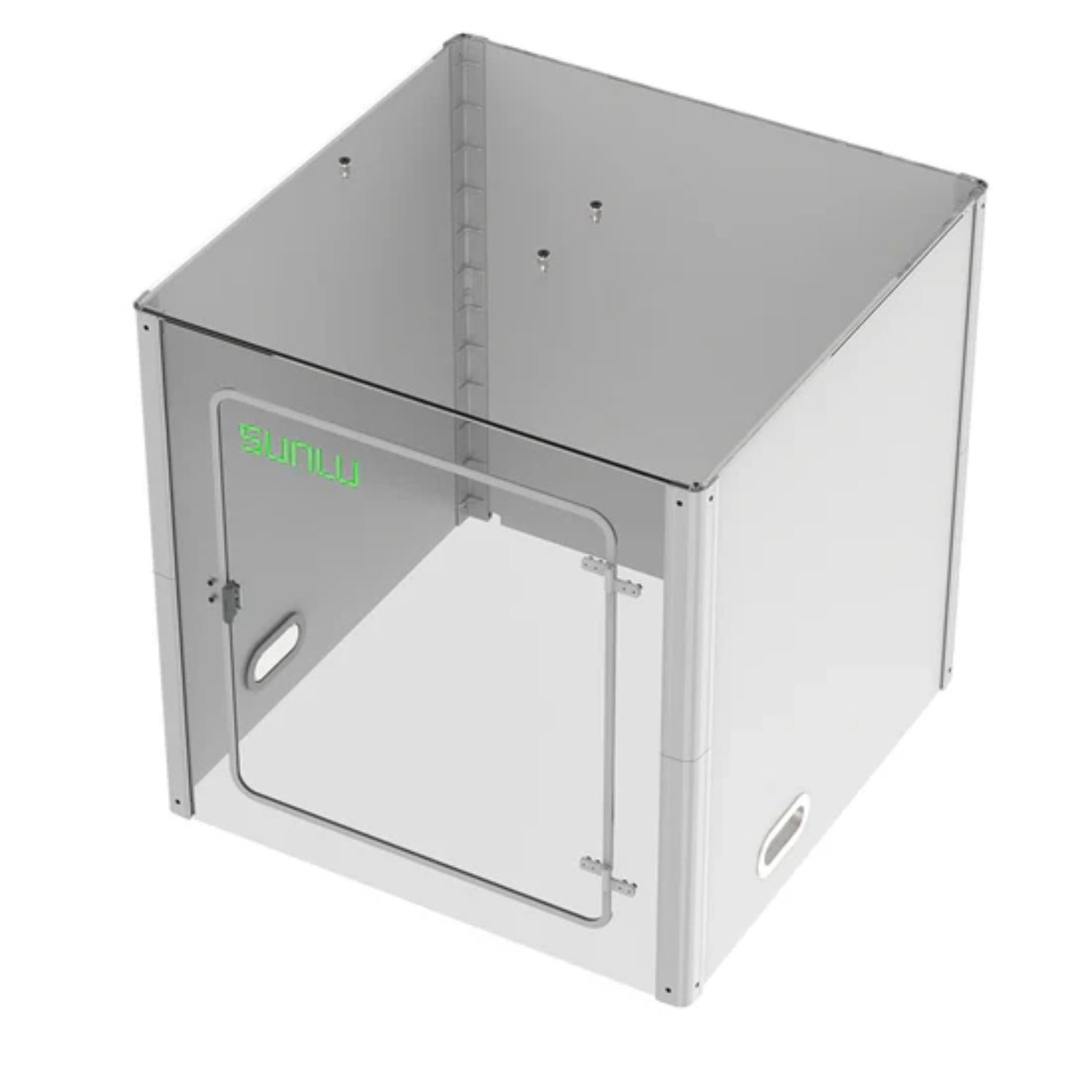

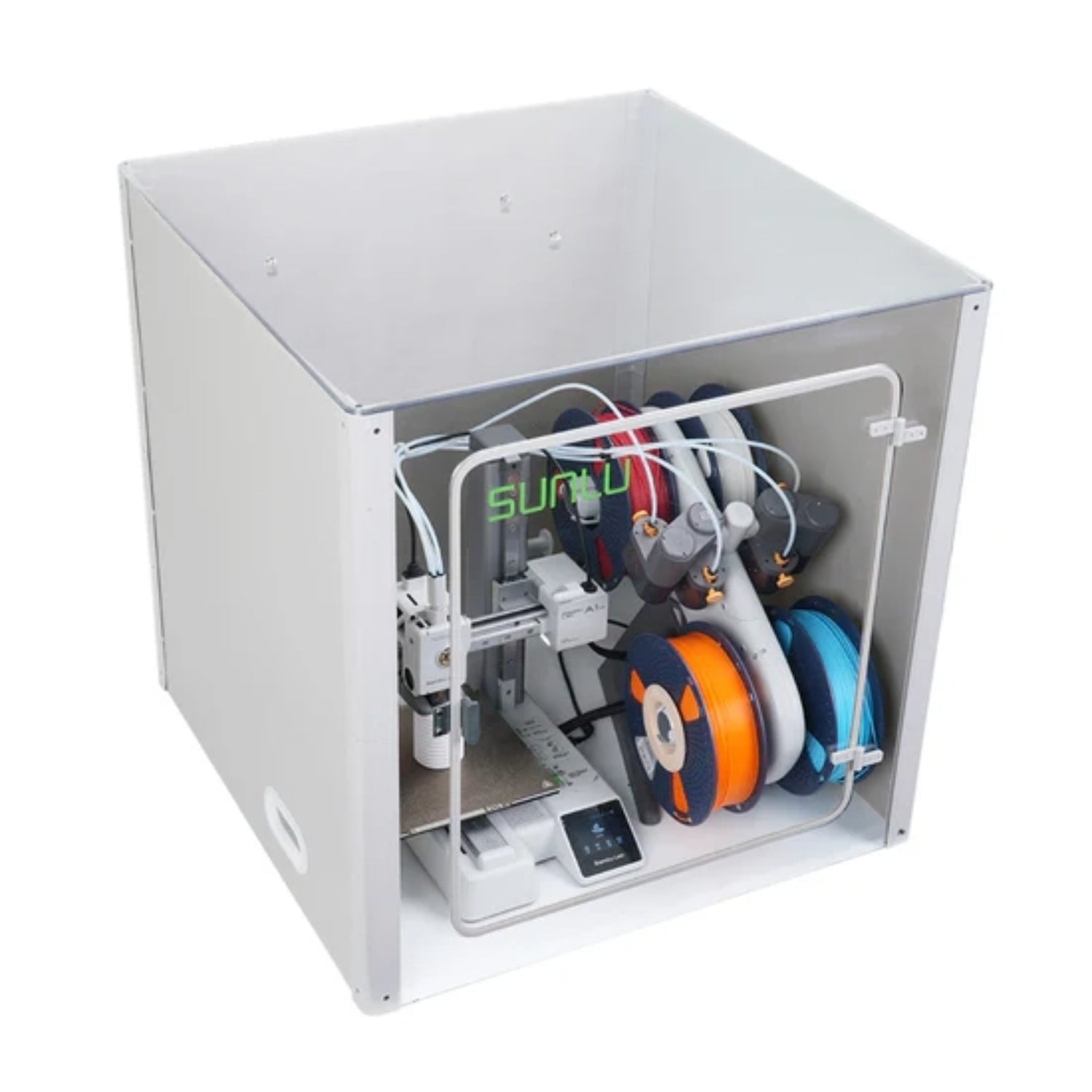

SUNLU Transparent 3D Printer Enclosure
Transparent top cover and front design, internal status at a glance, refusing to print anxiety (traditional thermal cover is too dark inside)

[Dustproof insulation] With the same heat preservation and dustproof effect of flame retardant aluminum foil cloth heat preservation cover on the market, but with more easy to clean characteristics (acrylic + PC material)

Flat and beautiful
The internal and external surfaces are smooth and flat, more beautiful than flame retardant fabric insulation cover. Both the dry box and AMS lite are “protected” together with the printer.

[Global visibility] Transparent top cover and front design, internal status at a glance, refusing to print anxiety (traditional thermal cover is too dark inside)

[Flat and beautiful] The internal and external surfaces are smooth and flat, more beautiful than flame retardant fabric insulation cover

[Extra Space] Both the dry box and AMS lite are “protected” together with the printer.

Assembly Steps:

Step 1: Take 2 Side columns (614.5mm) and insert them into both sides of the Side panel (570 x 600mm) and fix them with screws. (The side of the Side column with the screw holes is facing upwards).

Step 2: Take out the Backplate (570×600mm) and connect it with the Side panel (570×600mm) and fix it with screws.

Step 3: Remove the other Side panel (570×600mm), connect it with the Backplate (570×600mm) and fix it with screws.

Step 4: Install the Front cover (570×600mm).

Step 5: Finally, install the Top cover (600×600mm) and fix it with screws to complete the assembly.

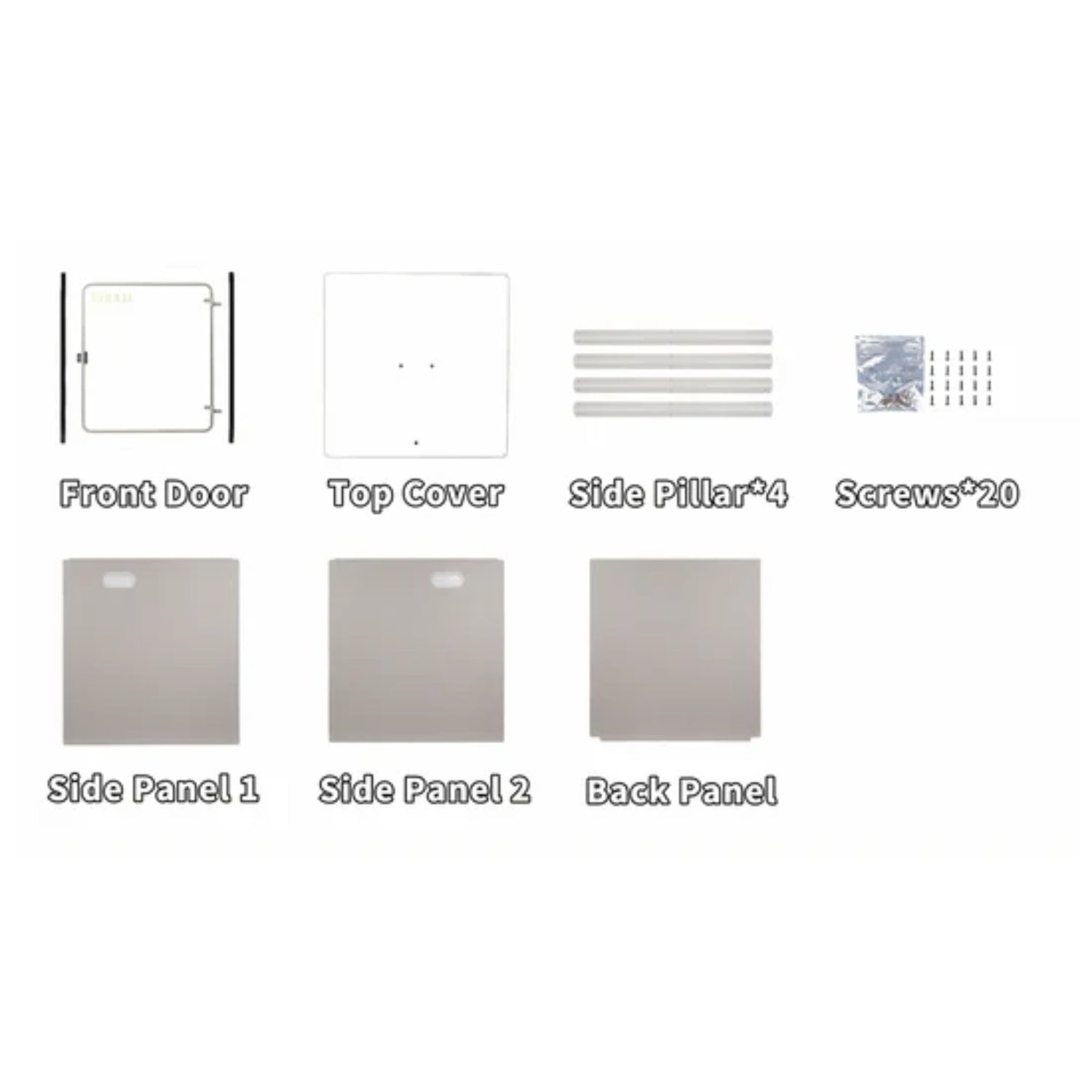

Packing Parameters:
① Side column (614.5mm) *4
② Top cover (600×600mm) *1
③ Backplate (570×600mm) *4
④ Side panel (570×600mm) *2
⑤ Front cover (570×600mm) *1
⑥ Screws *20
