Spare Parts for QIDI Plus5 Accessories

Plus5 Motherboard

The motherboard is responsible for coordinating the work of all hardware components to ensure the precise execution of the printing process.

Adapter Plate

The purpose of the Plus5 adapter board is to optimize electrical connections and improve stability and scalability.

Cautions for Use

Unplug the power: Never operate while powered. Turn off and unplug the printer, as residual standby current during hot-plugging can fry the boards.

Do not pull on wires: Grip the plastic connector itself or use tweezers to disconnect. Pulling wires directly causes internal breakage or poor contact.

AP Board

High-performance control - handles complex motion algorithms (such as high-speed printing, closed-loop control) to improve printing accuracy and speed.

Multi-tasking - manages printing, temperature control, network communication, camera monitoring and other tasks at the same time.

Intelligent expansion - supports advanced functions such as Wi-Fi/cloud control, multi-sensors, AI detection, etc.

Screen

4.3-inch IPS capacitive touchscreen which connects to the Mainboard which is used to control the printer through the touchscreen interface.

[Clear Display] This screen shows printing data clearly and helps you monitor every step of the printing process easily.

[Easy Installation] It fits well with matching printers and lets you finish replacement quickly with simple steps.

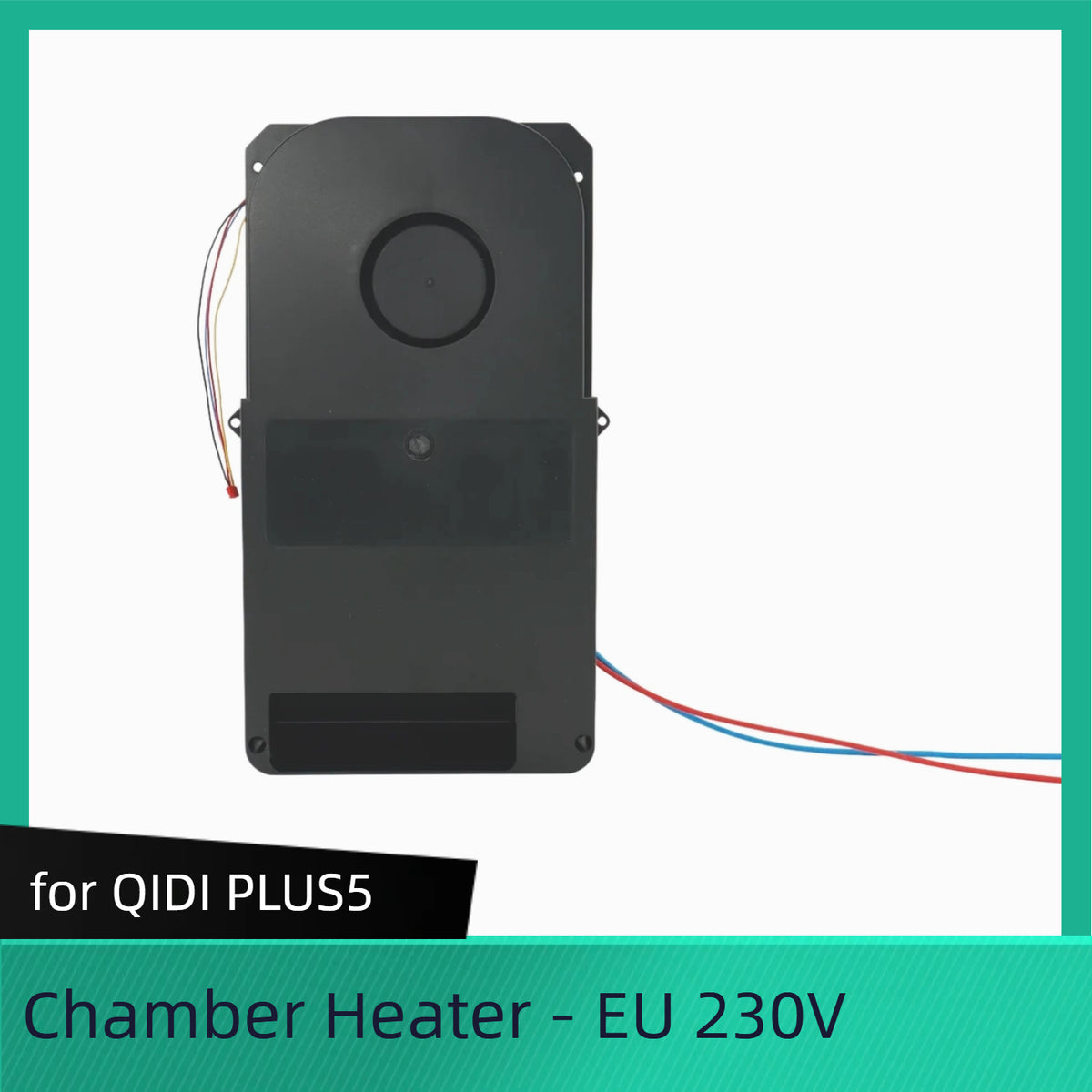

Plus5 Chamber Heater with fan

The QIDI Plus 5 Heater with fan is responsible for heating the printer's print chamber to keep it at a constant temperature. This helps create a stable printing environment and prevents problems such as material warping or poor adhesion, especially when using temperature-sensitive consumables. It ensures that the print chamber is at an optimal temperature, resulting in high-quality printing.

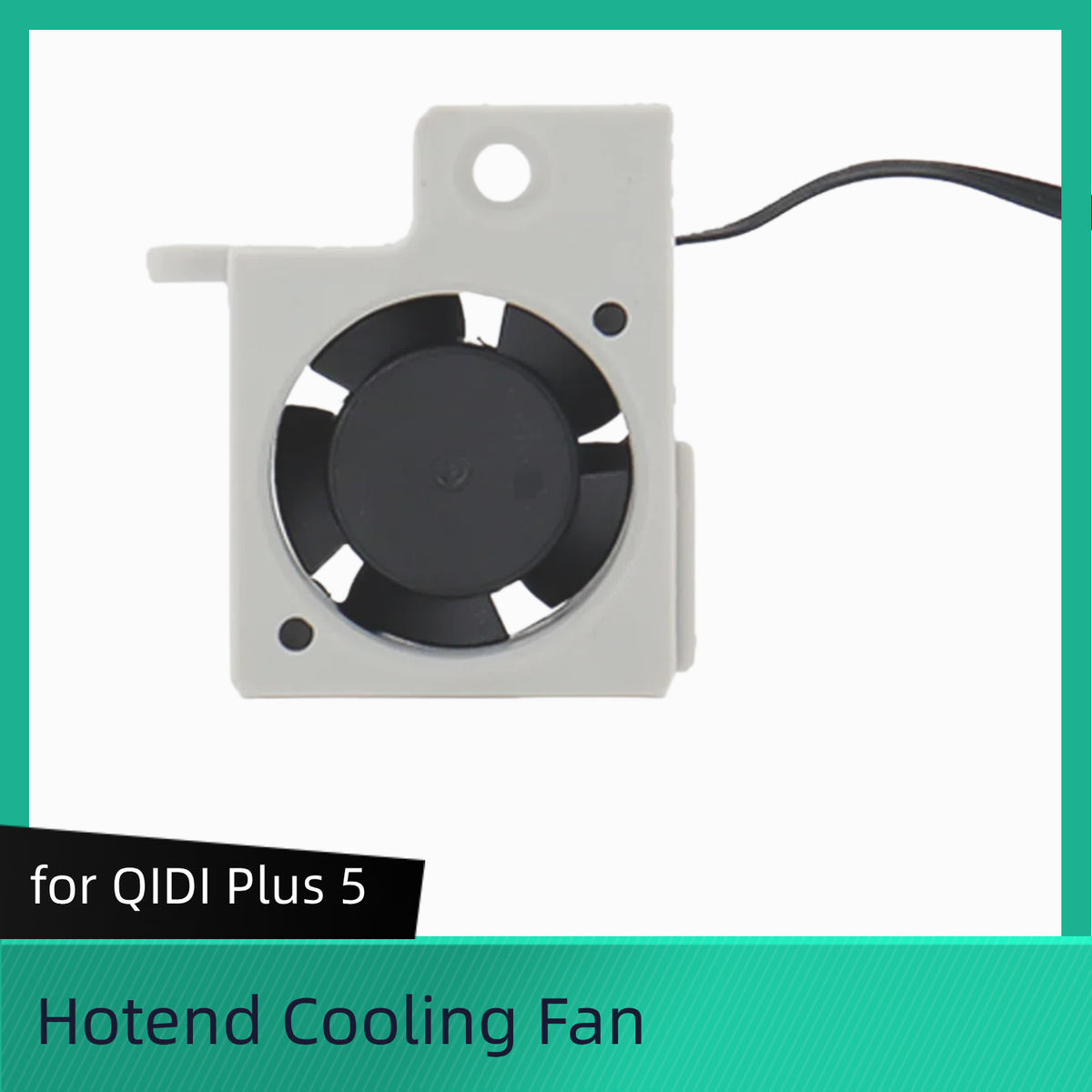

Plus5 Hotend Cooling Fan

The Hotend Cooling Fan cools the hotend to avoid premature filament softening and clogs.

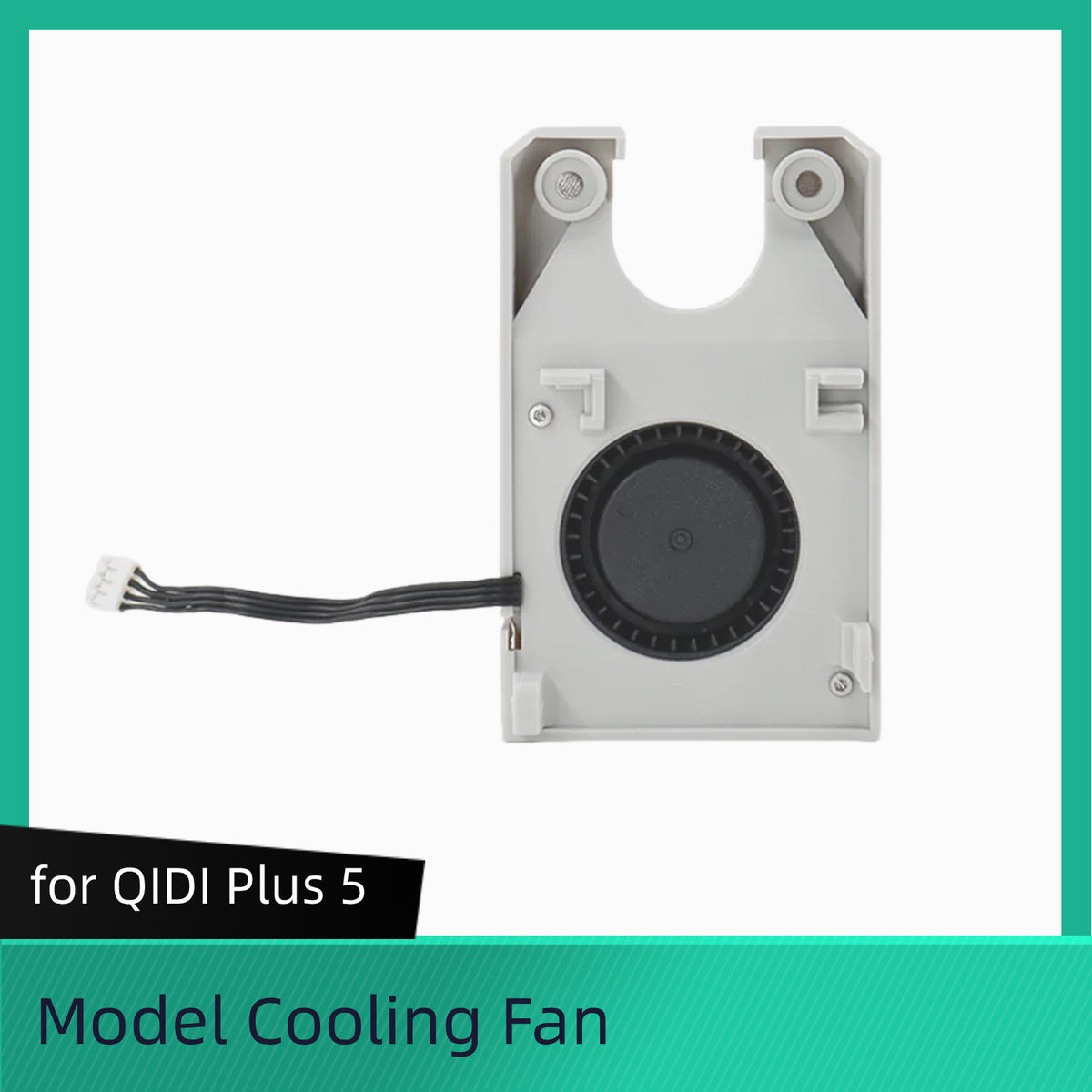

Plus5 Model Cooling Fan

The Part Cooling Fan, located at the toolhead's base, works in tandem with the Air Duct to swiftly cool extruded filament.

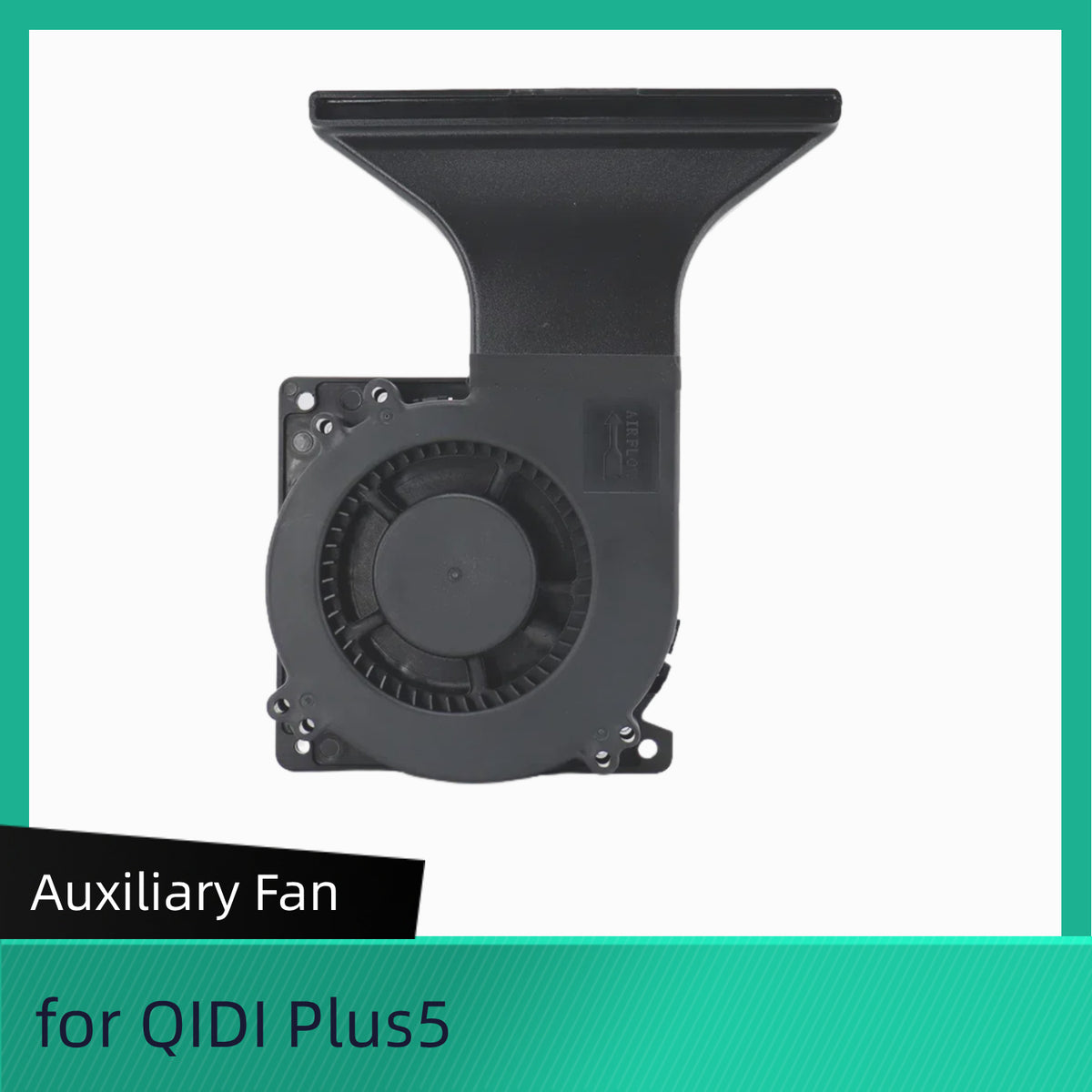

Plus5 Auxiliary Fan

The QIDI Plus5 Auxiliary Fan is a 4-Pin PWM Fan with RPM Feedback installed on the left side of the chamber, providing better cooling conditions for high-speed printing.

Plus5 Motherboard Fan

It is used to cool the motherboard.

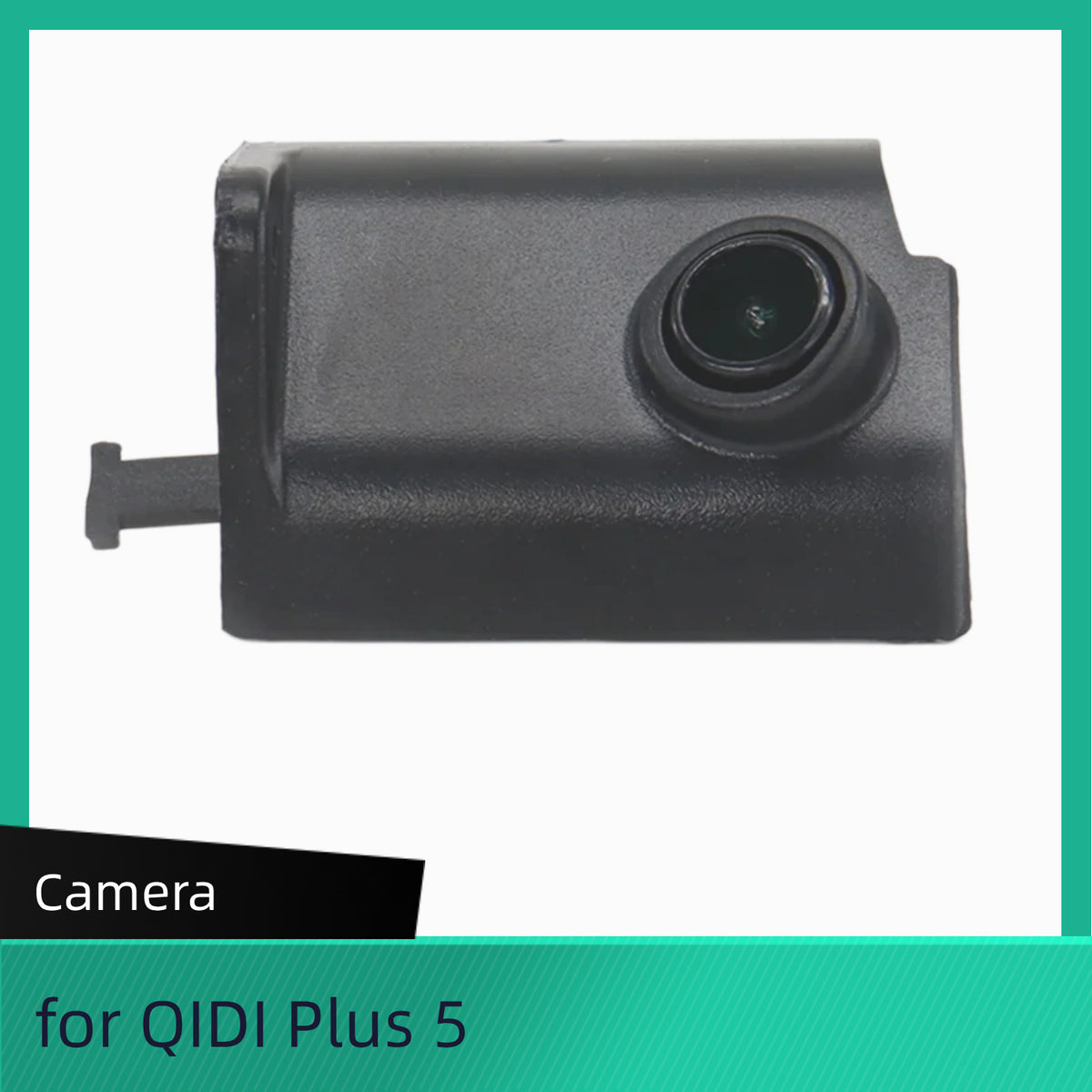

Plus 5 Camera

The camera is a low frame rate camera that enables remote live broadcast and time-lapse shooting.

Working Temperature:  -20°C to 70°C

Resolution Ratio: 1920*1080

Maximum Image Transfer Rate: 1-30fps

EFL: 2.3mm

FOV: 130°±15°

F/No: 2.0

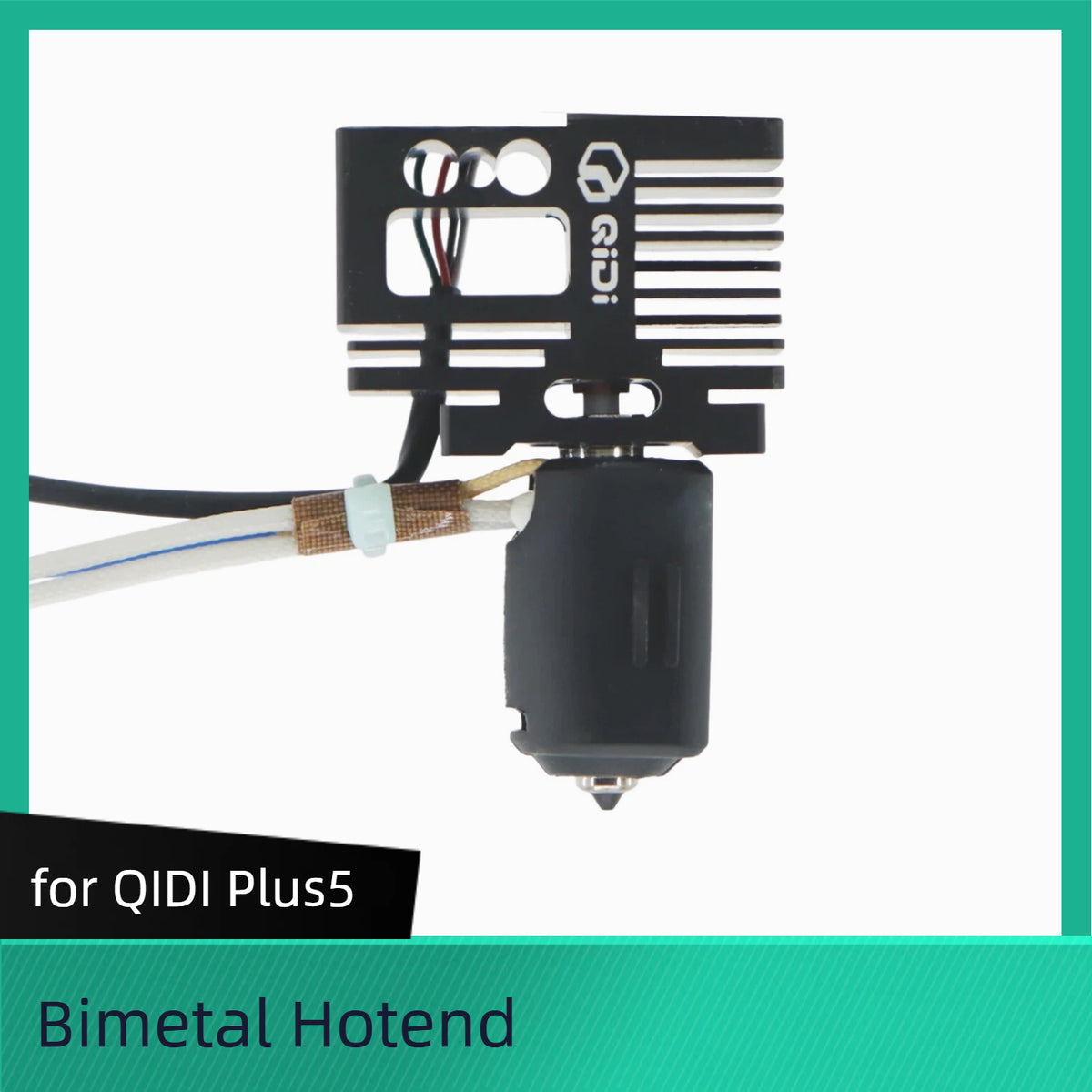

Plus 5 Bimetal Hotend

Unlocks High-Temp Printing up to 370°C.

Optimized for Reliable, High-Flow Extrusion.

Cautions for Use.

This accessory is compatible only with the Plus5. It is not compatible with other models. When replacing, ensure that the hotend cable clip is facing outward.

It is recommended to use only one type of filament in a single nozzle. Switching between multiple filaments in one nozzle may cause nozzle blockage.

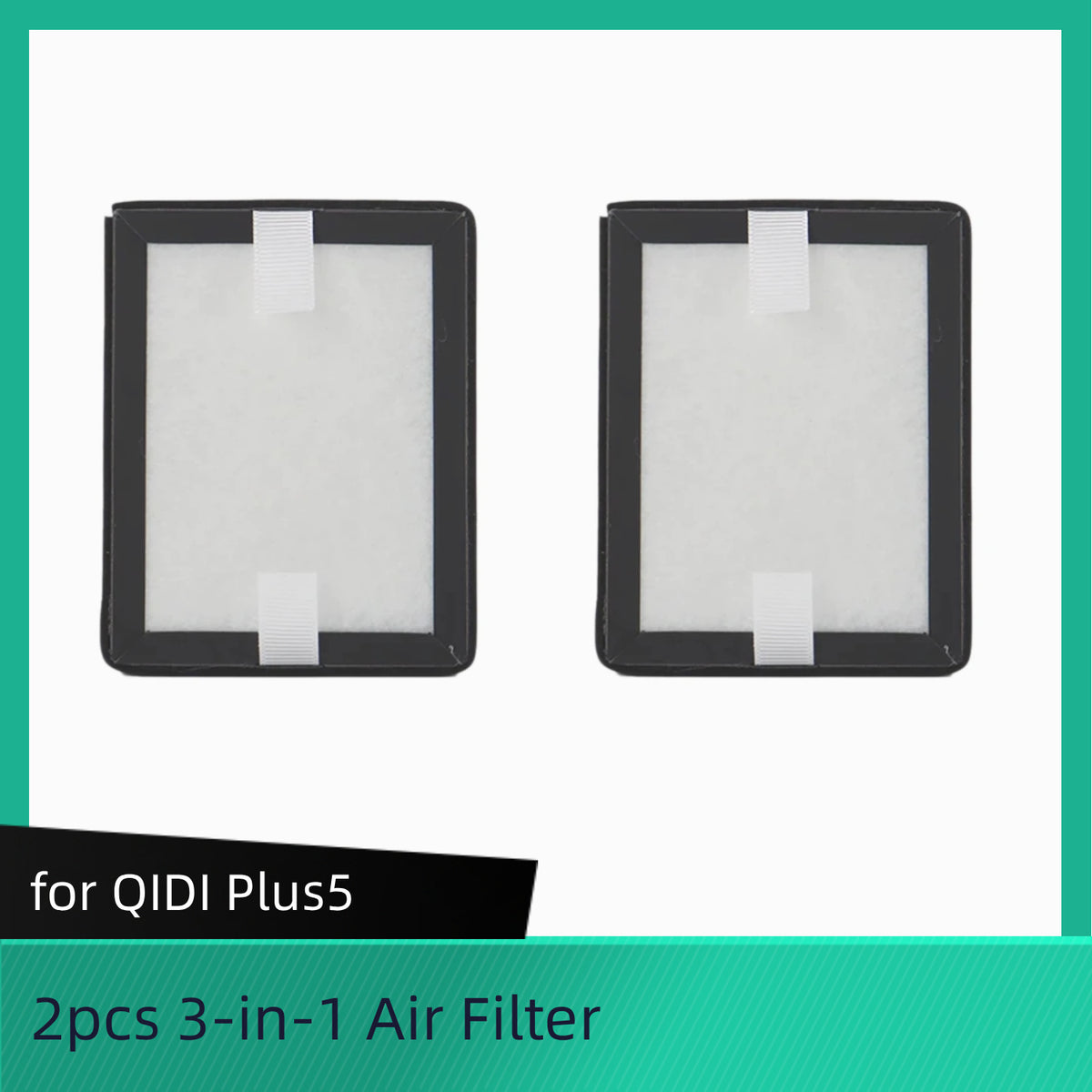

Plus5 3-in-1 Air Filter

This 3-in-1 air purification component integrates G3 pre-filter, H12 HEPA filter and activated carbon filter, forming a full-range protection. G3 pre-filter blocks hair, dust and other large particles; H12 HEPA filter captures 99.5% of particles above 0.3μm, reducing printing dust diffusion; coconut activated carbon effectively absorbs VOCs and odors generated by heating PLA, ABS, PETG and other consumables.

Cautions for Use

Recommended replacement cycle: 500-800 hours of cumulative printing (shortened to 300-500 hours for high-dust consumables such as carbon fiber, nylon).

Polar Cooler

Clog-Free Printing

Improved Print Quality

Built-in condensate filter for dry, clean air

Effective Cooling achieve air temps as low as 10°C

Effortless Installation

Compatible 3D Printer: PLUS5

Cautions for Use

When using active chamber heating with the Polar Cooler together, do not set the chamber temperature above the filament's softening point. For PLA, keep chamber temperature ≤ 45 °C to prevent clogging and print defects.

Plus5 Tool head Cable

[Tool‑Head Cable]:Replacement tool‑head cable for Plus5,transmits power and data signals between mainboard and moving print head.

[Flexible Durable Wire]:Flexible anti‑fatigue wire tolerates frequent high‑speed back‑and‑forth motion during printing.

[Stable Signal Transfer]:Reliable signal transmission avoids intermittent connection failures,print halts and error alerts.

[Exact Connector Fit]:Matches Plus5 original plug and wiring length,supports direct plug‑and‑play swap without modification.

Plus5 Screen Cable Display

Please ensure you carefully check your machine model before placing an order to ensure compatibility with this product.

For connecting to display screen and printer.

Nozzle Wiper

Please ensure you carefully check your machine model before placing an order to ensure compatibility with this product.

The Nozzle Wiper is used to clean up the waste overflowing from the nozzle of the printer. It consists of PP elastic structure, PTFE tube, and a lock screw.

When the PP elastic structure undergoes plastic deformation or fracture, the nozzle wiper can be replaced.

If slippage occurs, please replace the nozzle wiper.

Wiper Silicone Case

It is used to clean the hot nozzle before starting a print job.

Hotend Silicone Sock

Cautions for Use

The PLUS5 hotend heats up rapidly and reaches extremely high temperatures. Before replacing or performing maintenance, you must wait until the hotend cools down completely to room temperature, or use heat-resistant tweezers/needle-nose pliers for assistance.

During continuous ultra-high-temperature printing above 300°C, the degradation rate of the silicone will accelerate. If the silicone sock turns white, hardens, loses elasticity, or develops damaged edges, replace it promptly to prevent debris from falling onto the print bed.

5pcs PLUS5 Cutter Blade

Q2 Cutter Blade is used to cut the filament when replacing the filament or switching between multiple colors.

Plus5 Extruder

Cautions for Use

The Plus5 extruder and the filament runout sensor are designed as an integrated module, highly integrated and working together.

If the filament runout sensor malfunctions and needs replacement, it is recommended to purchase the entire Max4 extruder assembly. Disassembling or replacing the sensor component separately is not recommended.

This is to avoid installation errors, poor circuit connections, and other subsequent problems caused by module separation, thus ensuring the overall stability and safety of the equipment.

Plus5 Cool Plate Pro

Excellent adhesion.

Room temperature printing,energy-saving.

Smooth texture, double the durability.

Effortless Demolding.

Long-lasting durability, easy to clean.

Plus5 Dual-Sided PEI Plate

Double-sided design for durability.

Excellent adhesion.

Strong magnetic base for stability and convenience.

Compatible with various filaments.

Easy Maintenance.

Compatible 3D Printer: Plus5

Cautions for Use

1. Dust and grease accumulation on the build plate will reduce adhesion. Regular cleaning of the build plate surface with detergent and water is recommended to maintain optimal adhesion.

2. Increasing the hot bed temperature can enhance adhesion. Users should adjust the hot bed temperature according to their specific needs to achieve optimal adhesion.

3. Before removing a printed model, always wait a few minutes for the build plate to cool, allowing for easy removal. This prevents damage to the build plate and ensures a long product life.

4. This item is a consumable part and will degrade over time.

Plus5 Dual-Sided Smooth Plate Pro

Provides asmooth ground texture

Wide Compatibility

High Z-axis Precision Printing

Durable Spring Steel Core

Easy Model Removal

0.2mm+0.4mm+0.6mm+0.8mm Bimetal Nozzles

Engineered for Extreme Materials & Temperatures.

Precision-Machined for Flawless Prints.

Built for Longevity Under High Load.

Cautions for Use.

It is recommended to use only one type of filament in a single nozzle. Switching between multiple filaments with significant temperature differences may cause nozzle blockages.

Plus5 Tungsten Carbide Bimetal Nozzle

Integrated Quick-Release

Extreme Wear Resistance

Specialized for Abrasive Materials

Excellent High-Temperature Tolerance

Long-lasting High Precision

Cautions for Use

It is recommended to use only one type of filament in a single nozzle. Switching between multiple filaments with significant temperature differences may cause nozzle blockages.
