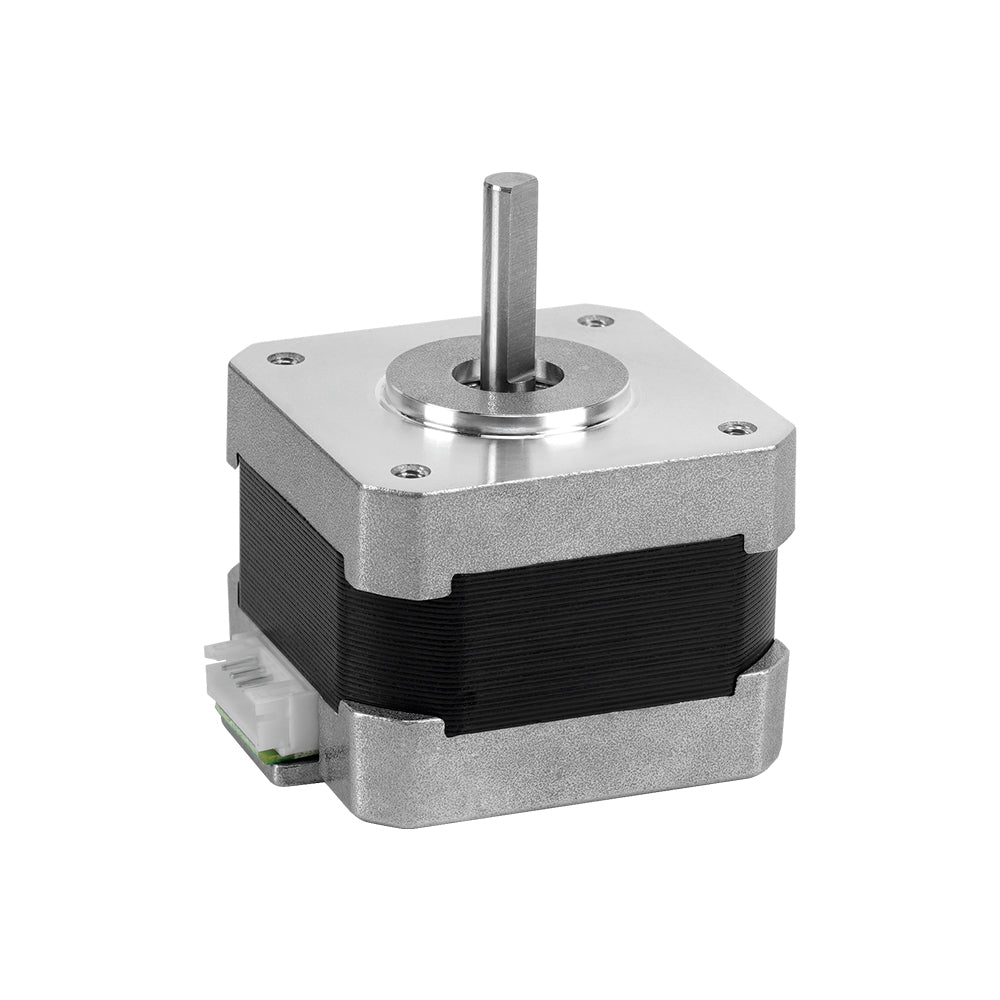

Nema 17 Stepper Motor with 1.7 x 1.7 inch (42 x 42 mm) Faceplate
Regular price
$9.00
Couldn't load pickup availability
Use this text to encourage communication or promote sharing on social networks.

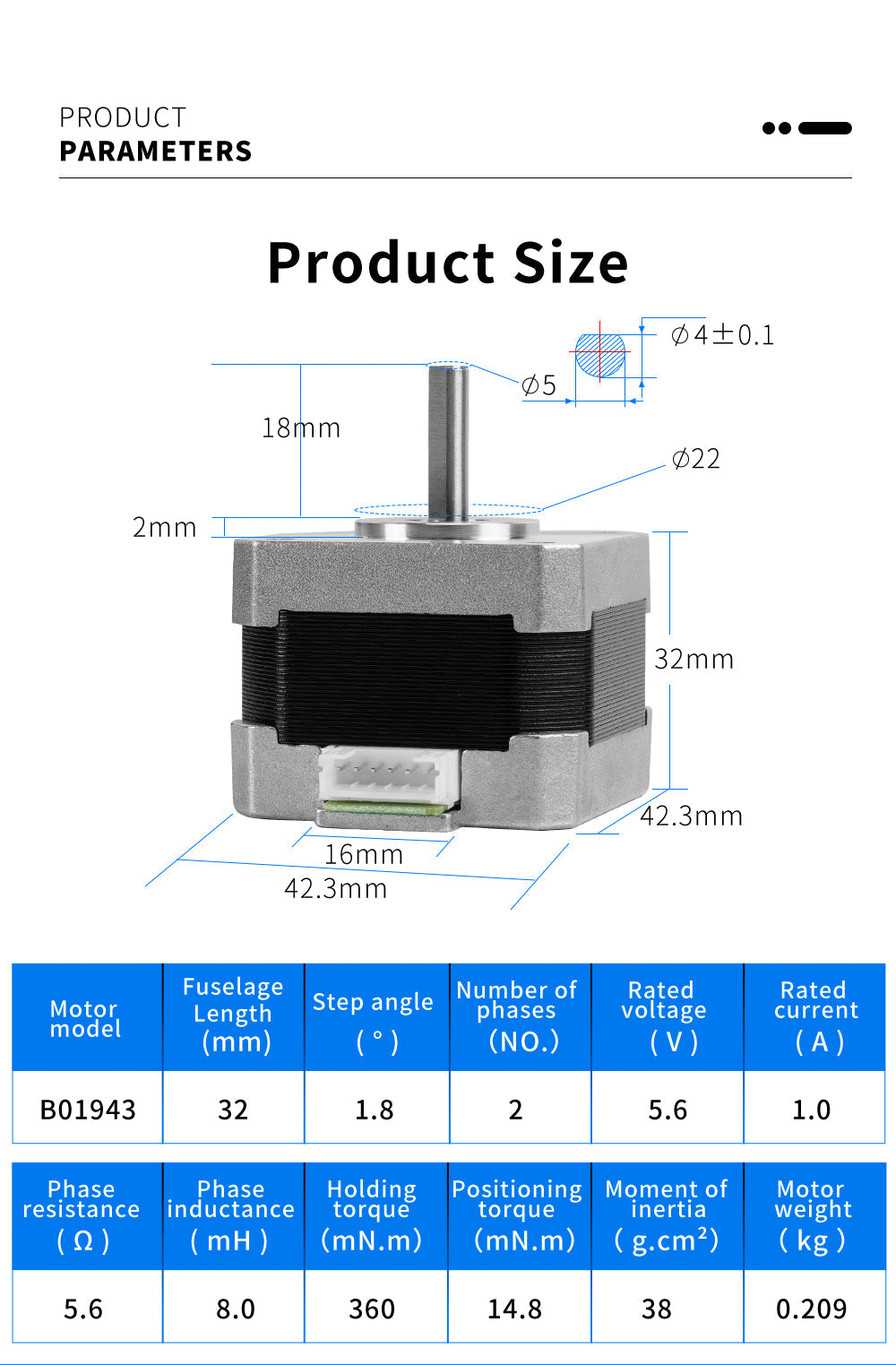

Shaft Size: φ5*18mm
Connector: 6 pins
Step Angle: 1.8°
Number of Phases: 2
Rated Voltage: 5.6V
Rated Current: 1.0A
Phase Resistance: 5.6Ω
Phase Induction: 8.0mH
Holding Torque: 360mN.m
Positioning Torque: 14.8mN.m
Net Weight: 209g
Note:
This item doesn't include cable inside.
Package includes:
Nema 17 stepper motor * 1pcs / 2pcs / 3pcs
FREE shipping from our Chinese warehouse.
The picture is for reference only. Please adhere to the original products in case of any mistake.
