High Flow Nozzle for AnkerMake M5 / M5C
Regular price
$0.50
Couldn't load pickup availability
Use this text to encourage communication or promote sharing on social networks.
Introducing the AnkerMake high-flow nozzle - Designed with a high-flow rate, this nozzle provides a faster and smoother printing experience for all your 3D printing needs.

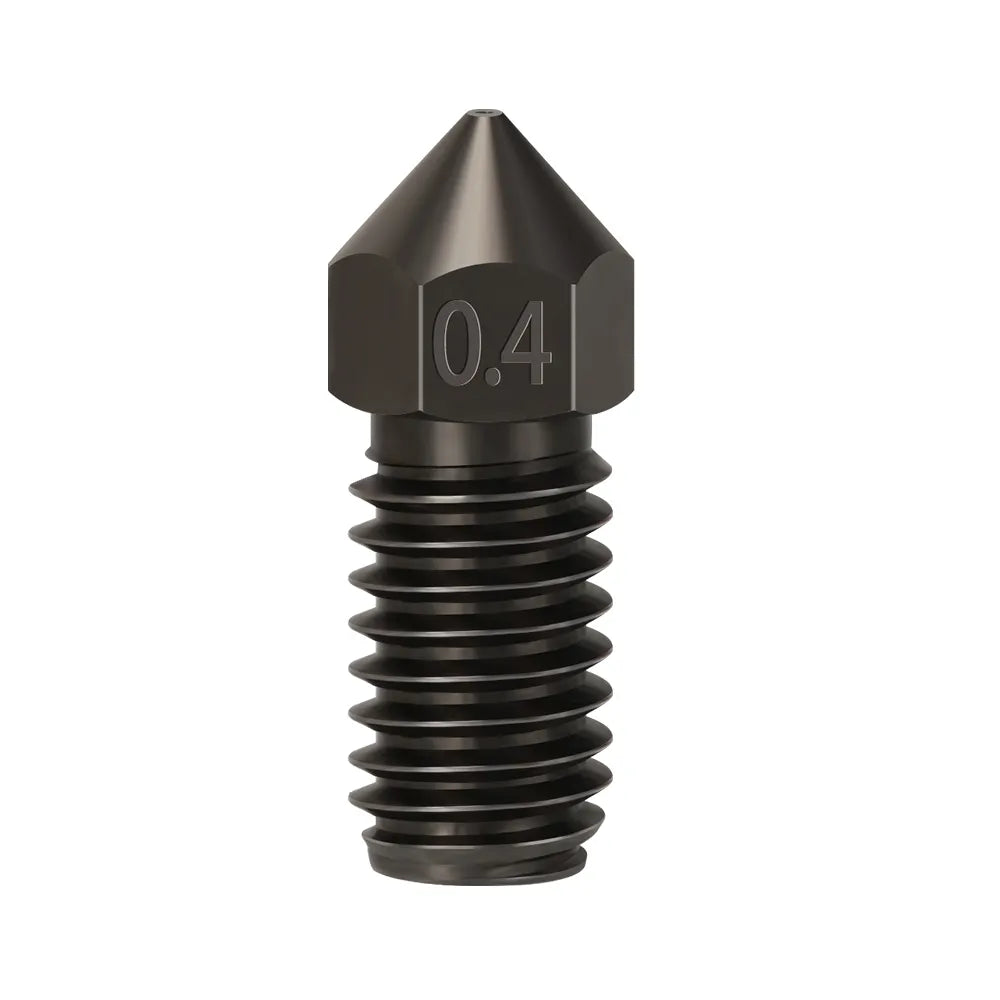

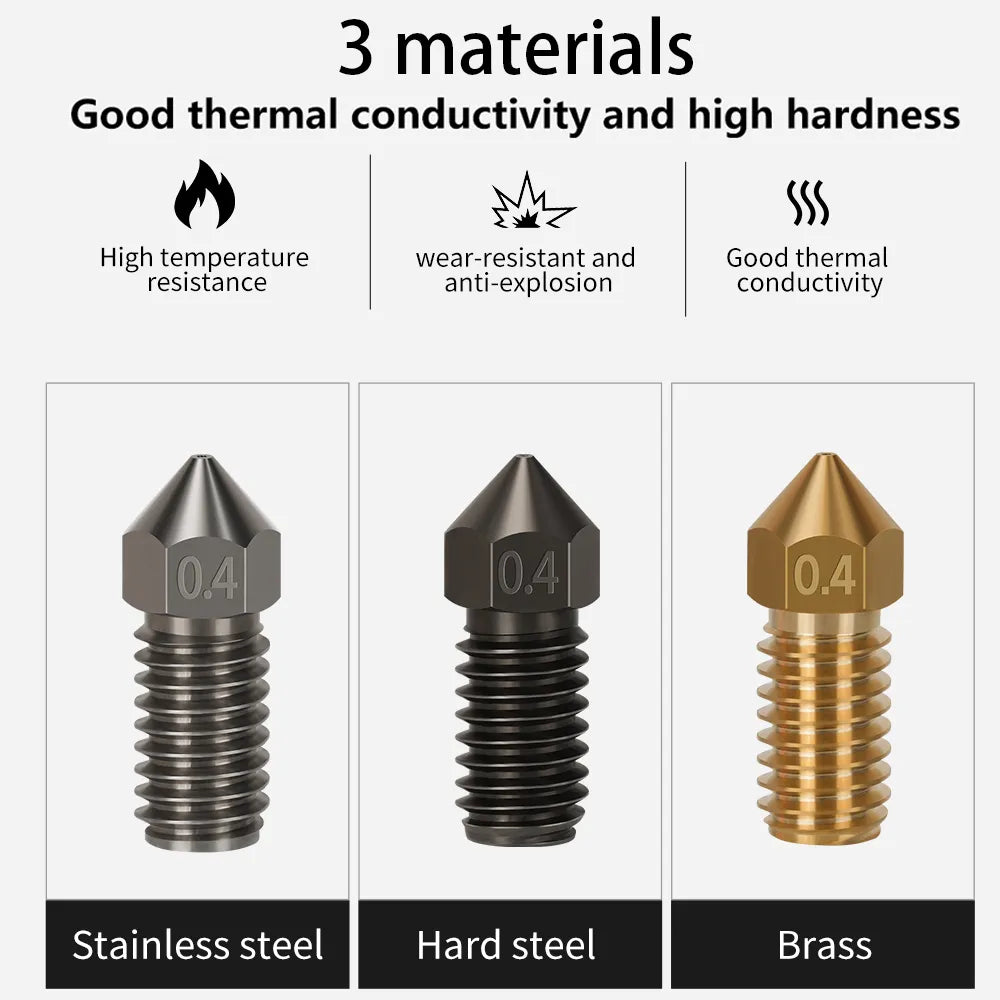

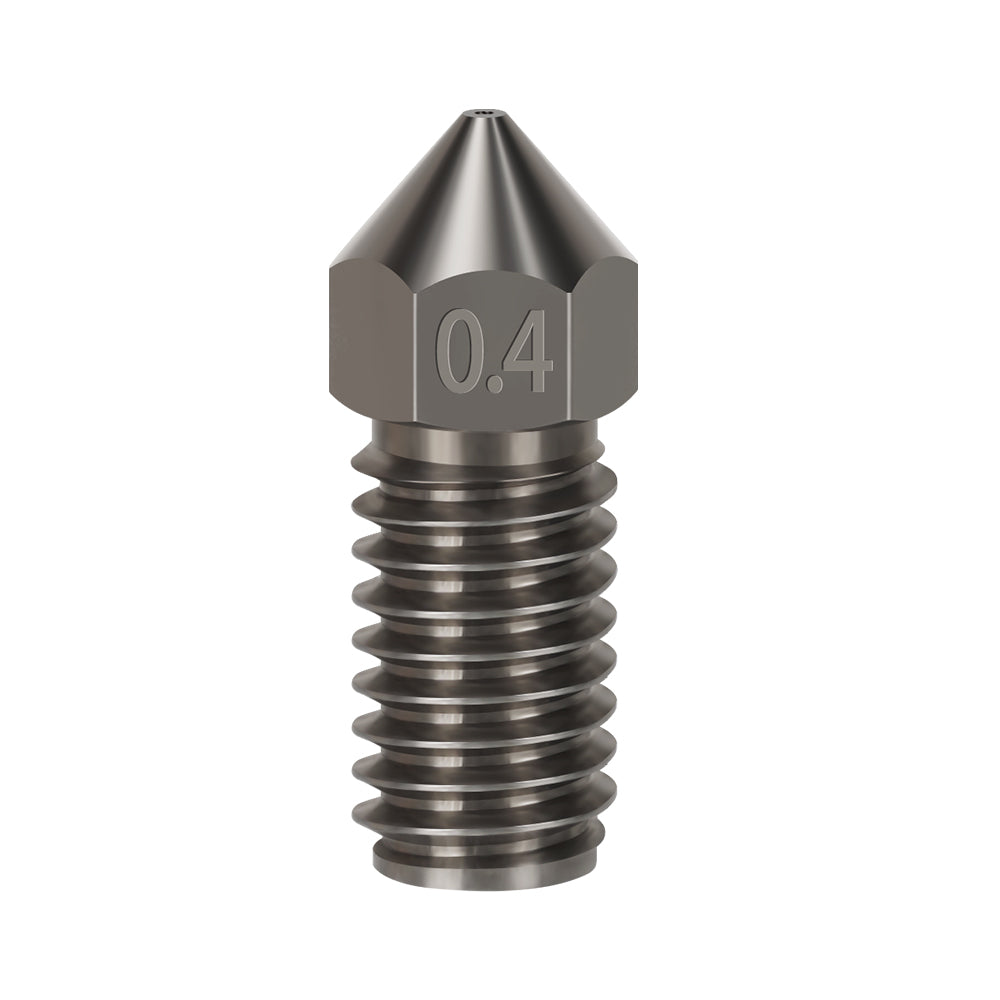

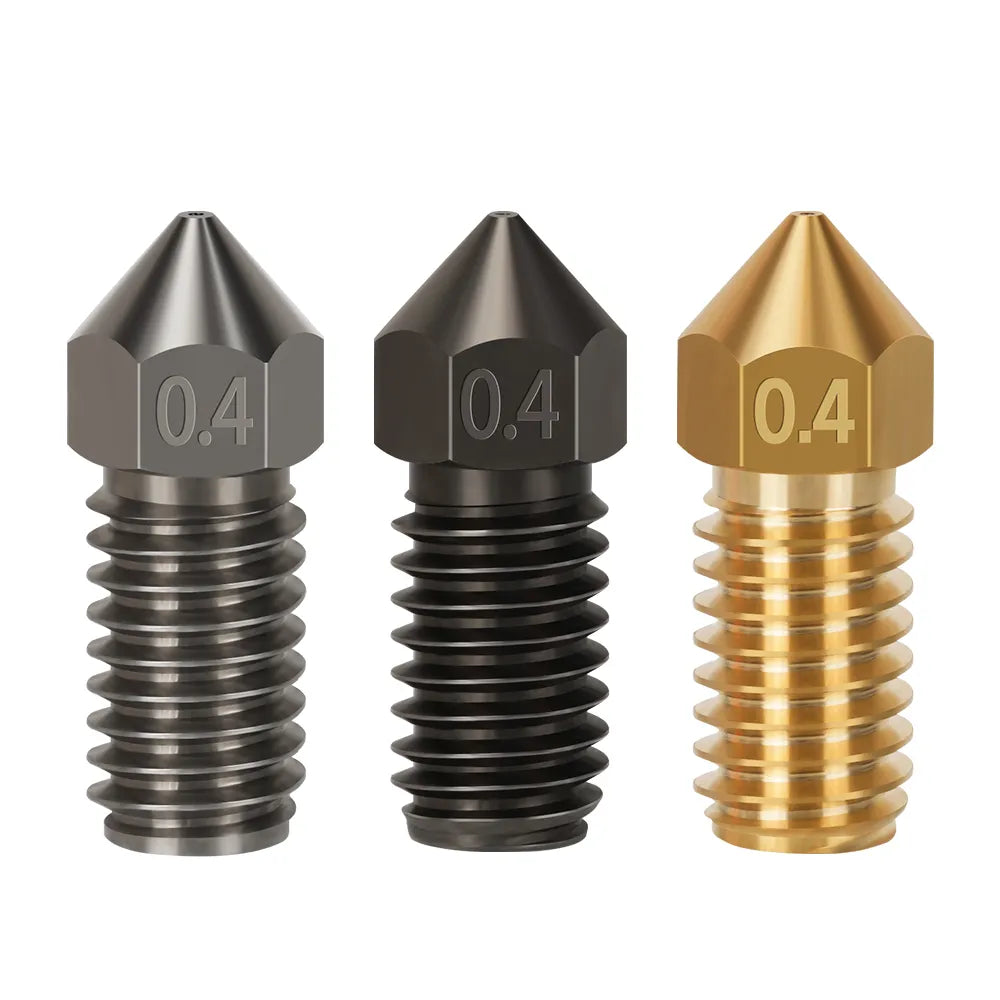

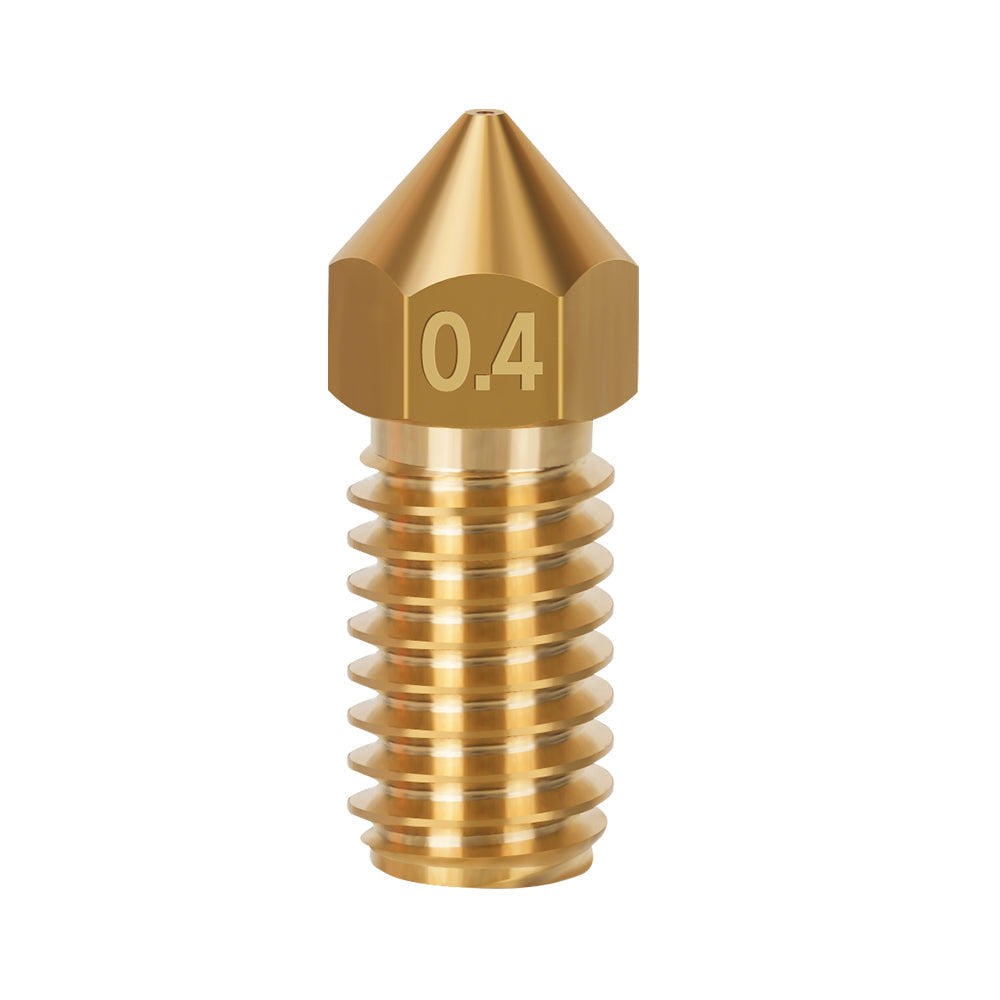

Available in three different materials - stainless steel(high-temperature resistance), hard steel(wear-resistant and anti-explosion), and brass(good thermal conductivity).
Compatible with 1.75mm PLA, PETG, ABS, TPU, and PA 3D printer materials. With just one nozzle replacement, you can improve your printing speed and achieve the effect of a high-flow nozzle.
How Exchange Nozzles for AnkerMake M5 / M5C?
- Remove any loaded filament. Pre-heat the nozzle to 365°F/180℃.
- Raise the extruder 200mm and move it to the middle of the X-axis.
- Take out the M6 hex socket. Remove the nozzle with the M6 hex socket. Be careful, It’s hot and can cause burns.
- Install the new nozzle. Again,be careful, It’s hot!

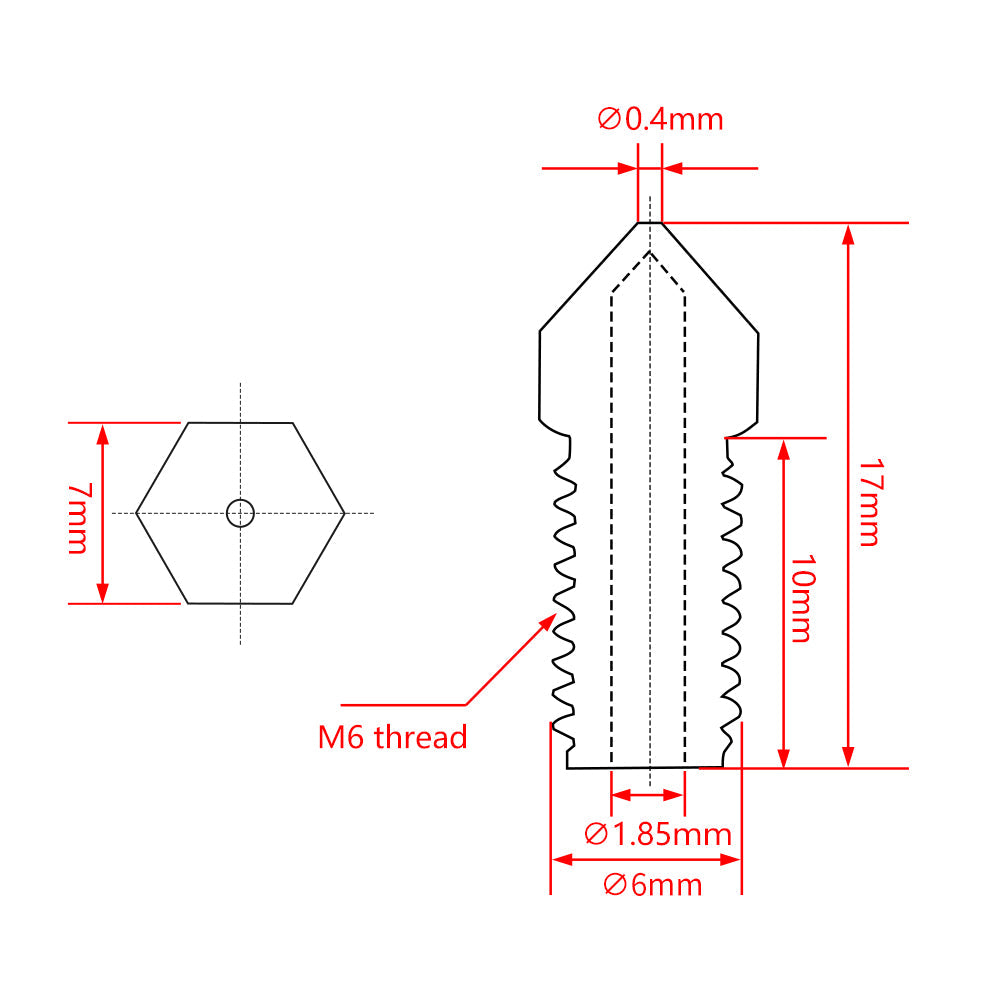

Screw diameter: 6mm
Nozzle size: 0.4mm

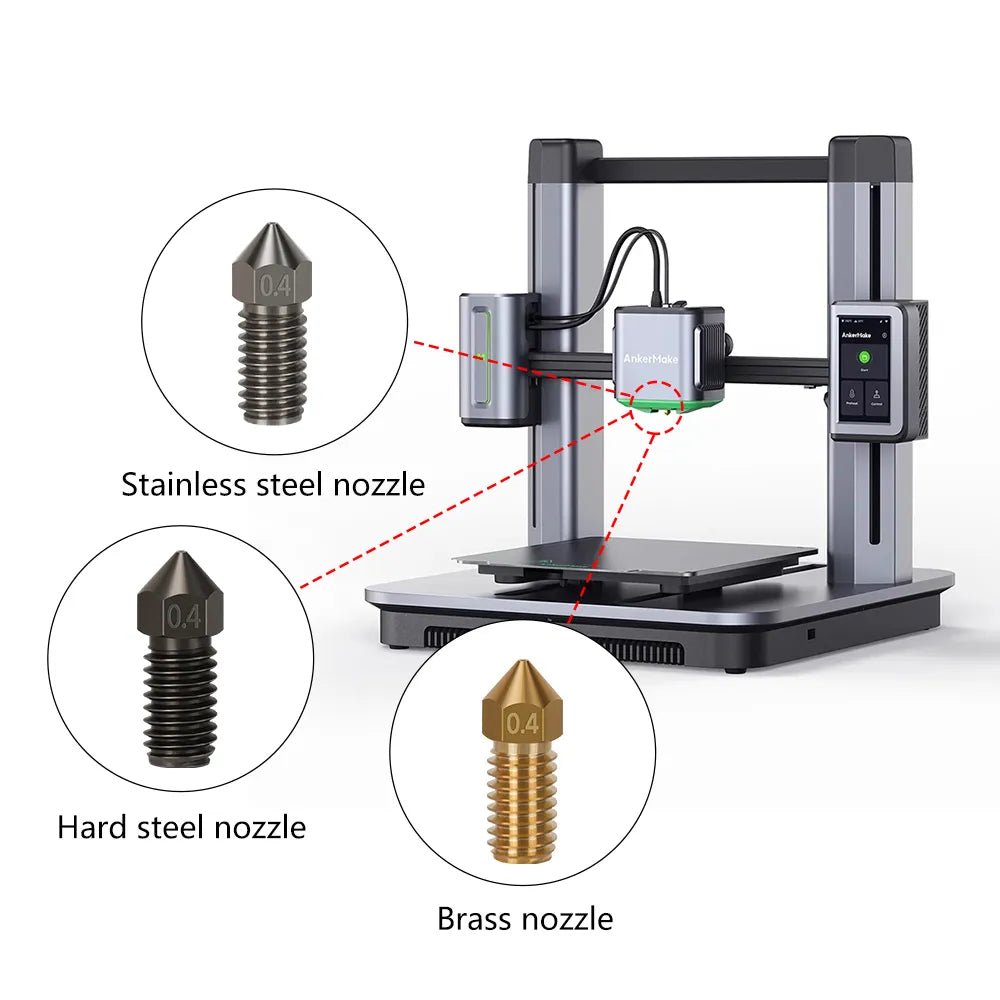

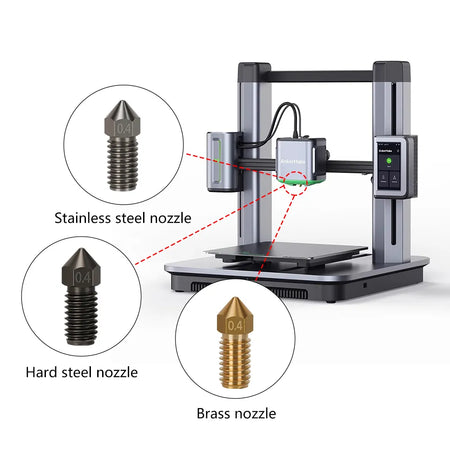

Suitable for: AnkerMake M5 / M5C 3D Printers
| 3D Printer Nozzle Performance Comparison | |||||
|---|---|---|---|---|---|
| Type | Thermal Conductivity (W/m.k) |
Hardness (Mohs) |
Maximun Printing Temp |
Coefficent of Thermal Expansion (µm/m.℃) |
Applicable Materials |
| Brass Nozzle | 105 | 3.0 | 300 | 18.0 | PLA, ABS, TPU, PA, PETG, etc. |
| Stainless Steel Nozzle | 17 | 5.0 | 350 | 6.0 | Food, Pills, etc. |
| Copper Plated Nozzle | 330 | 6.0 | 500 | 16.7 | PEEK, PEL, Carbon Fiber, Fiberglass, Wood Fiber, Metal Fiber, etc. |
| Hardened Steel
Nozzle (Blackened / Nickel Plated) |
22 | 7.8 | 450 | 8.0 | |
| Hardened Stainless Steel Nozzle | 22 | 8.0 | 450 | 6.0 | |
| Ruby Nozzle | 18 | 9.0 | 550 | 5.3 | For All Materials |
