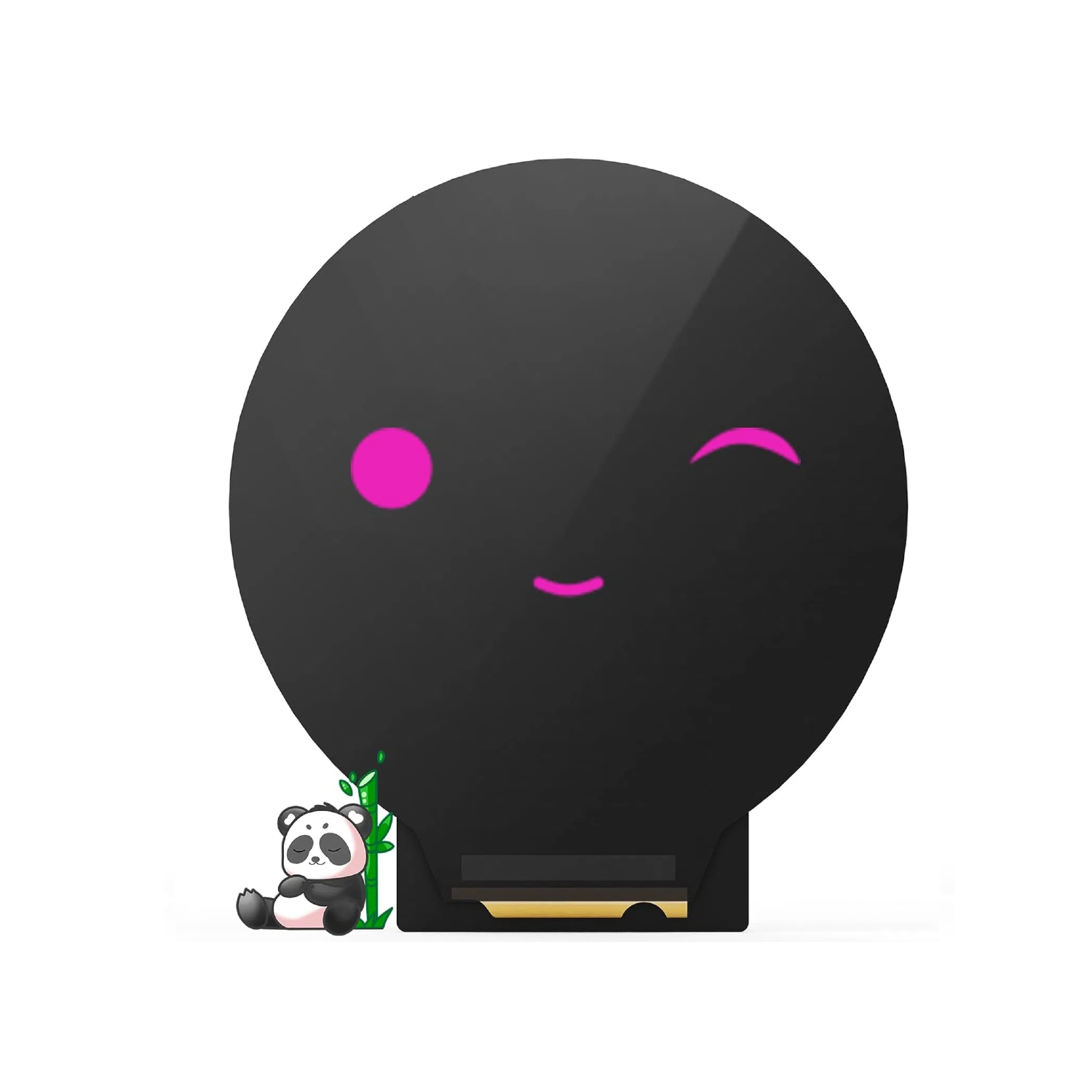

for BIGTREETECH Panda KNOMI Screen Upgrade Kit Customize Firmware Display

Customizable UI firmware for enhanced user experience on Bambu Lab 3D printers.

Over-the-Air (OTA) updates for easy installation and maintenance.

Compatible with Bambu Lab P1, X1, A1, and A1 Mini models for seamless integration.

Improves display functionality and interface responsiveness for better control.

User friendly design makes it accessible for both beginners and experienced users.

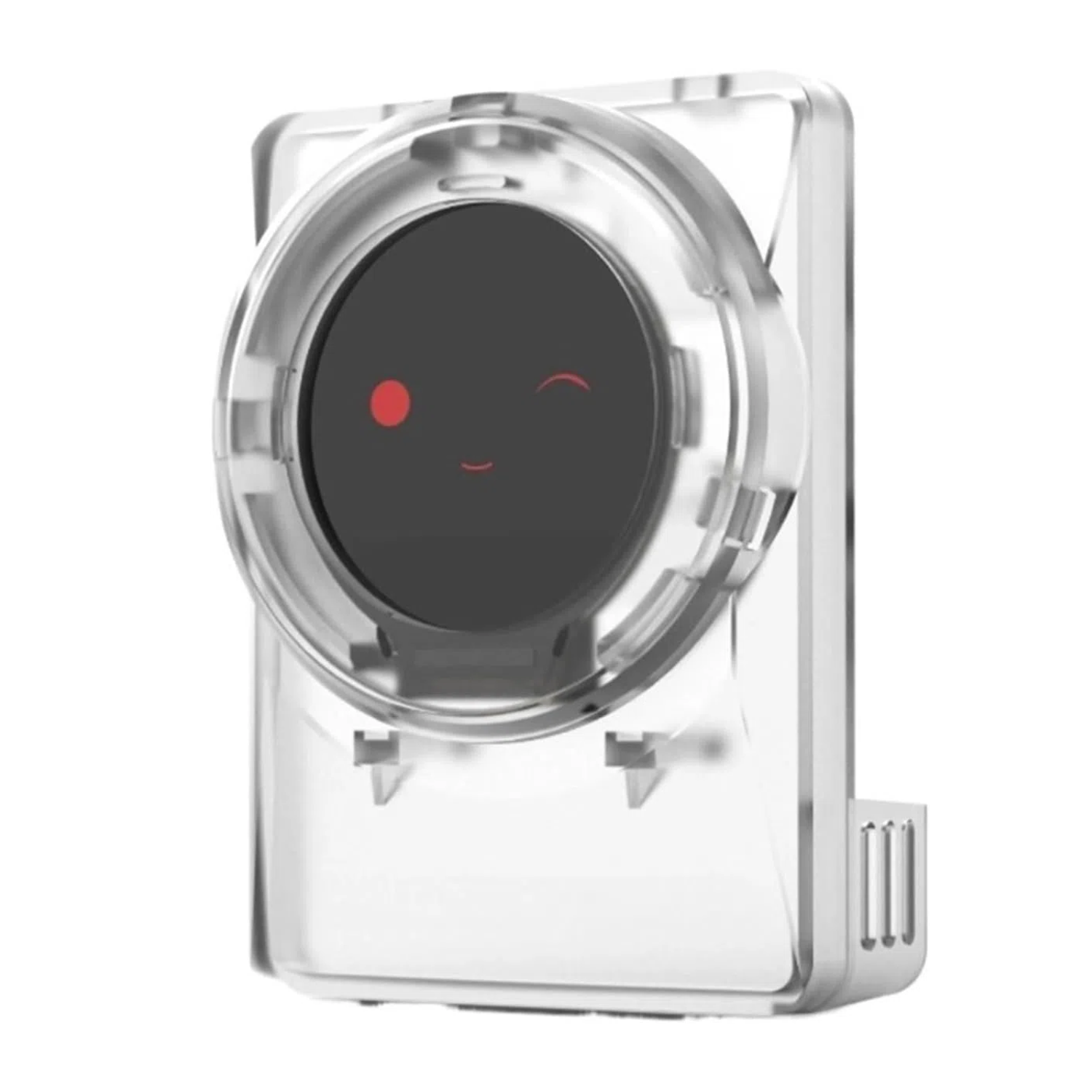

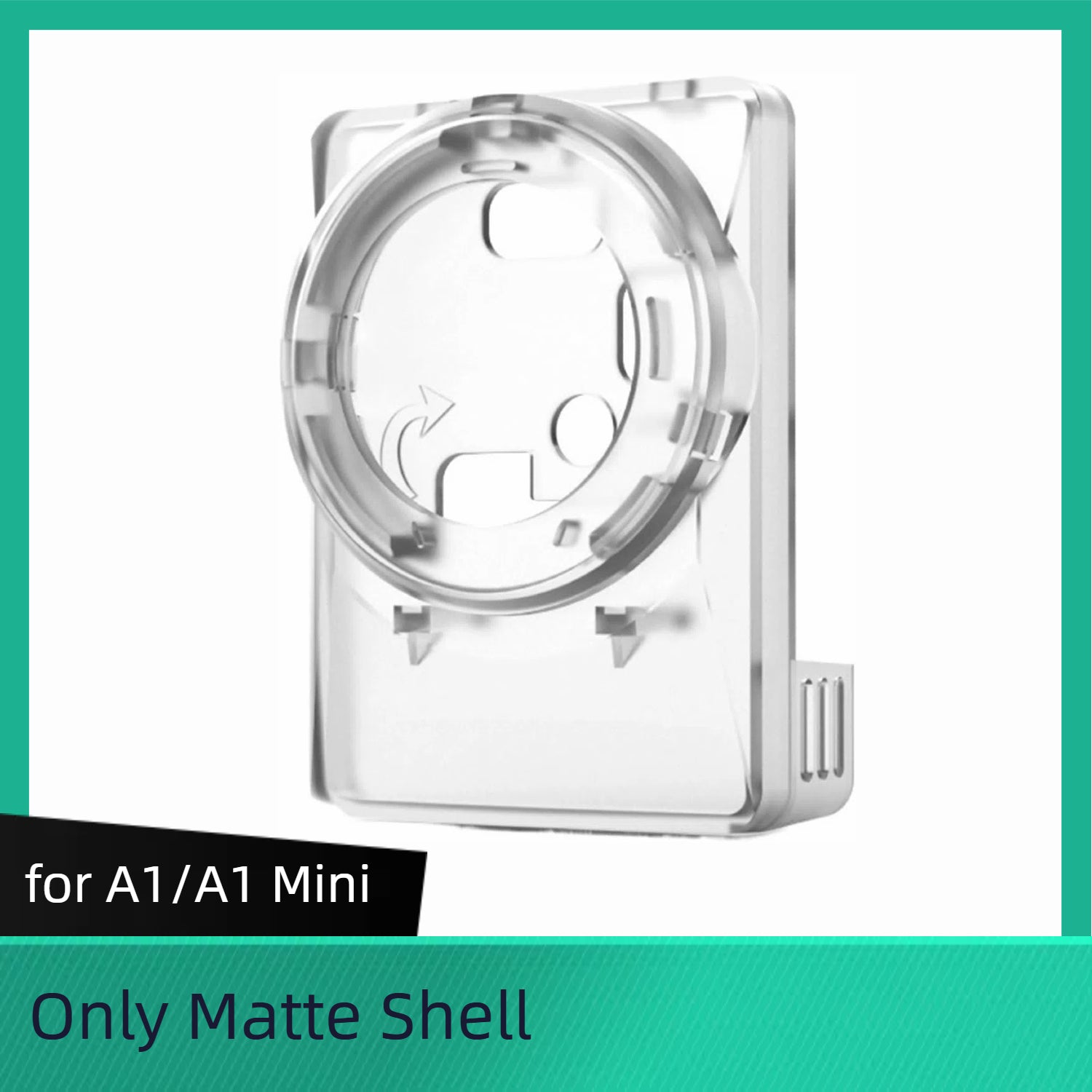

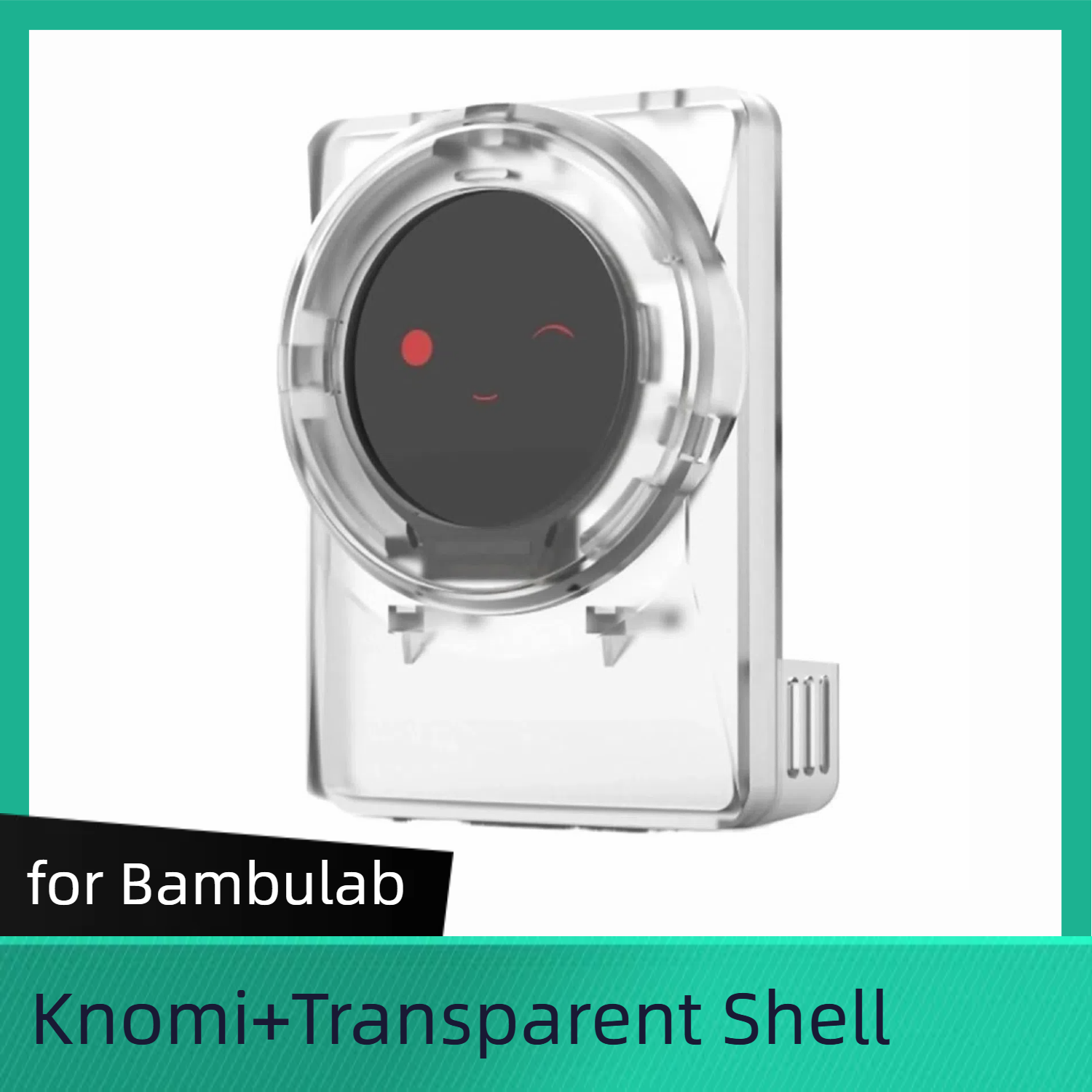

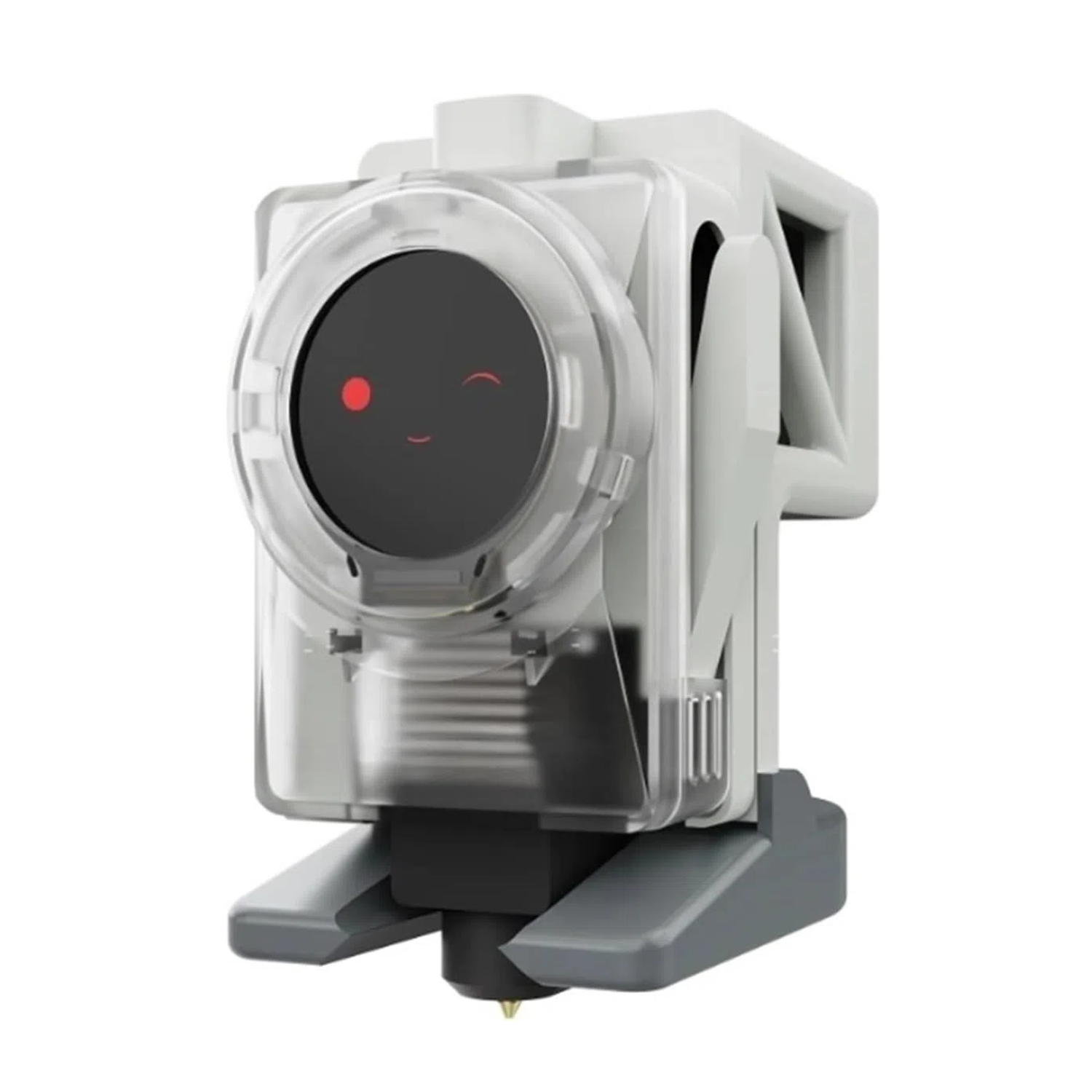

【For Bambu-Lab Printers】The combo includes Panda Knomi, and a plastic matte shell that seamlessly integrates with your A1/A1 Mini extruders, offering it a futuristic look and also keeping the printhead from fingerprint and scratches. You can swap the matte shell for a custom look with the 3 open-source stl files offered. BTT Panda Knomi can also be used on P1P/P1S/X1C/X1E with the mounting shell printed by your own (stl file offered on Github), and Panda Branch may be needed for power supply.

【Fully Customizable UI】With fully customizable GIFs and personalizable expressive color scheme (just remember, your GIFs should have a transparent background), Panda Knomi screen revolutionizes the way you interact with your printers! You can dial-in any style you like conveniently from your phone’s web UI. 3 printing progress display options are offered: Percentage-Only; GIF-Only; Percentage&GIFs Combo(10 sec each). Bring your printer to life with BTT Panda Knomi!

【OTA Update】The Panda Knomi screen supports over-the-air updates. Drag and drop the firmware to update your Panda Knomi in one step and watch as your product gets even better over time with more features and improvements. BTT Panda Knomi is not affected by Bambu-Lab’s upcoming firmware and security changes in that it only reads from Bambu-Lab’s network, not control.

【Instant Animation Feedback】BIGTREETECH Panda Knomi display helps to monitor your printer and transforms its actions into corresponding animations, giving you an at-a-glance update of the printer’s status. Enjoy real-time updates and wireless convenience Panda Knomi brings you, ensuring your printer's status is always clear.

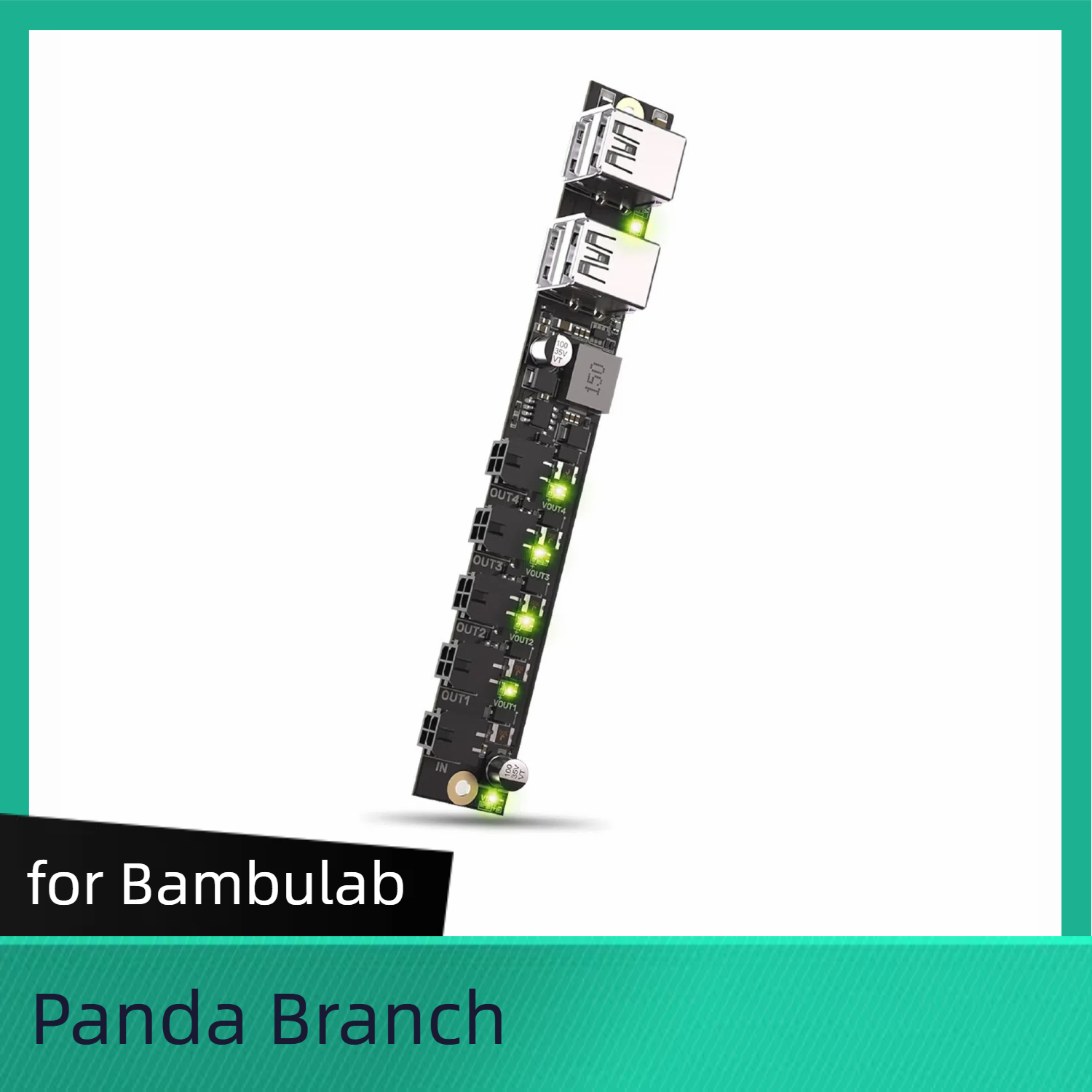

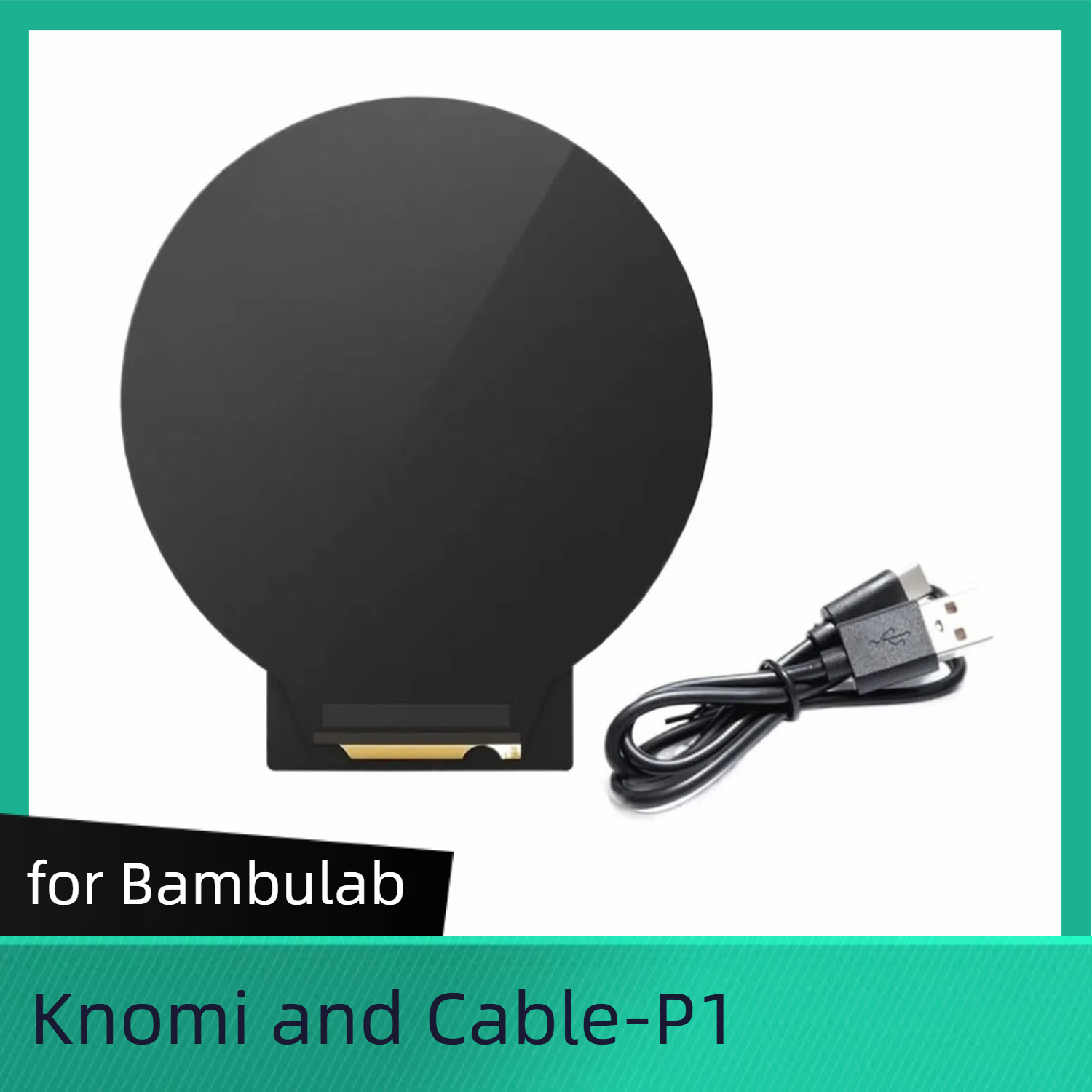

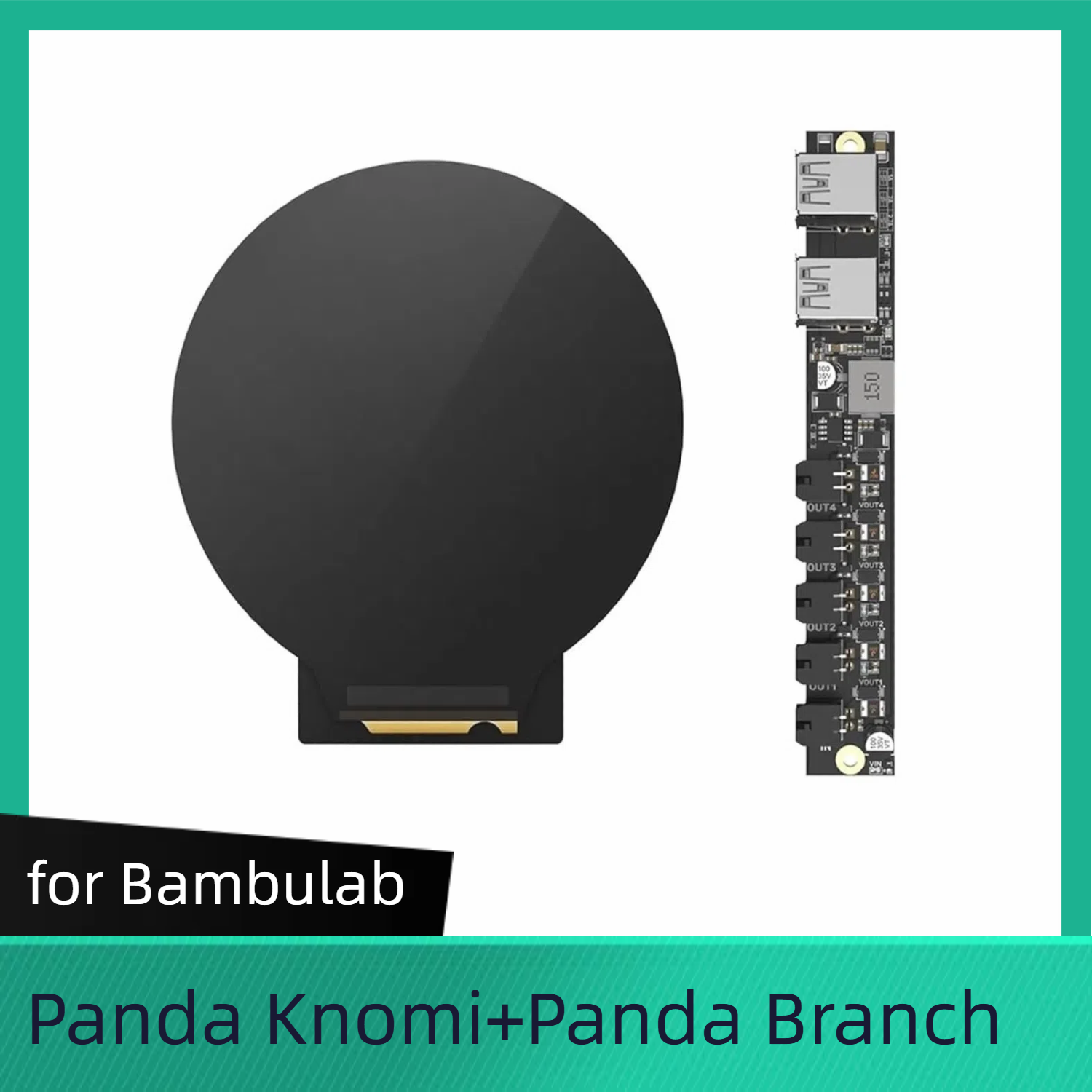

【Note】BIGTREETECH Panda Knomi uses the printers’ AMS bus / USB port (on P1P & P1S) for power and data. To retain use of your AMS or AMS Lite, you may need the Panda Branch expansion board to run both simultaneously. For P1P/P1S, you can buy a USB-C cable to power Panda Knomi from the Bambu USB port if you don’t use panda touch. Otherwise, a Panda Branch is still needed.

Panda Knomi Compatibility: For Bambu Lab A1/P1/X1 Series

Panda Knomi Github：https://github.com/bigtreetech/PandaKnomi

wikihttps://bttwiki.com/PandaKnomi.html

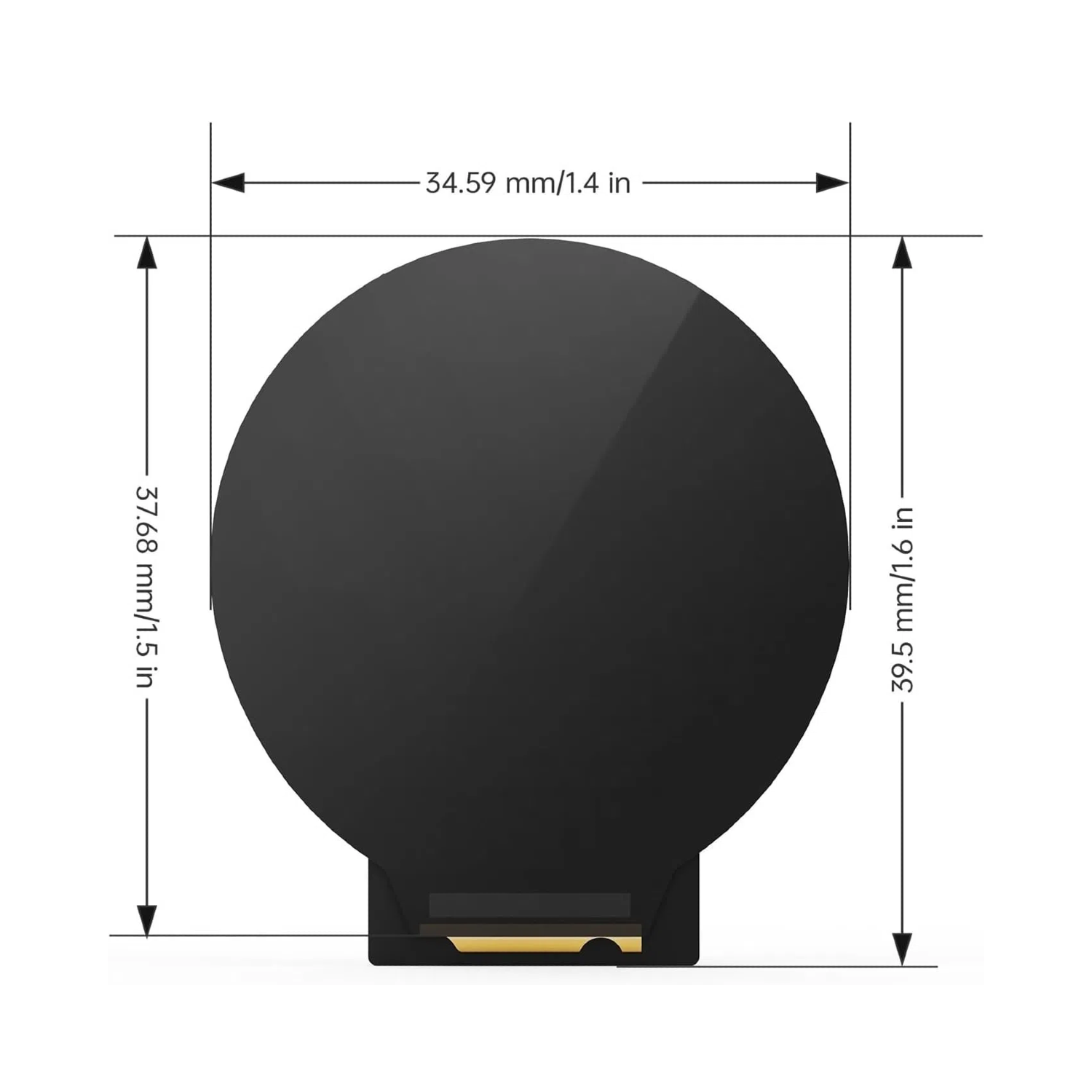

Dimensions

Overall Dimensions: 36mm x 40mm x 11mm

Screen Size: 1.28 inches

Screen

Resolution: 240x 240

Display Area: 32.4mm (H) x 32.4mm (V)

Viewing Angle: 178°

Backlight Brightness: 400 Cd/m²

Driver Chip: GC9A01

Power Supply

Input: DC 5V-24V

Logic Voltage: DC 3.3V

Rated Power: 0.65W

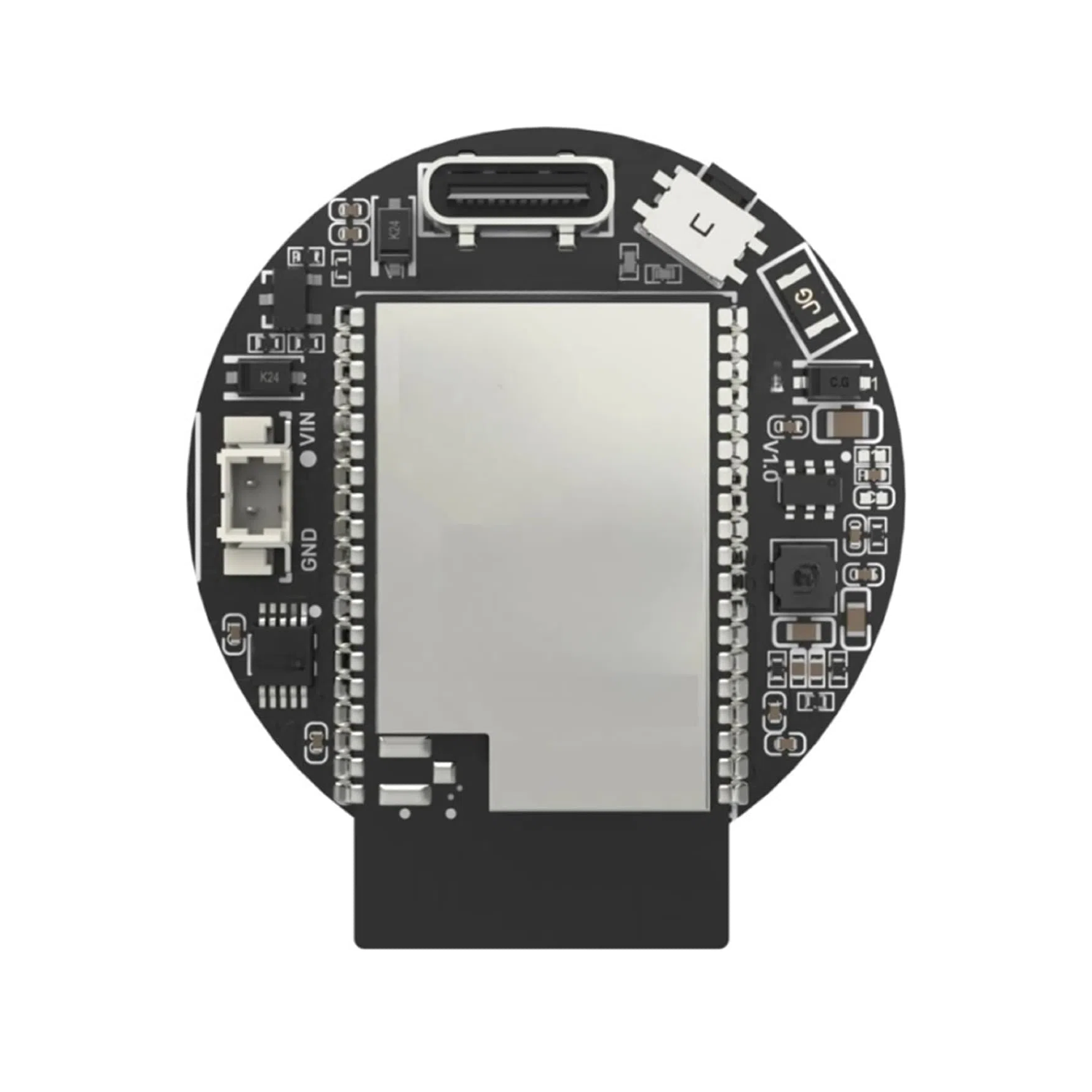

Communication & Memory

Communication: ESP32-WIFI 802.11 b/g/n (802.11n, up to 150 Mbps), operating center frequency range: 2412 - 2484 MHz

Memory: Flash: 16MB; FSRAM: 8MB

Operating & Storage Conditions

Operating Temperature: -20°C to +70°C

Storage Temperature: -30°C to +80°C

Backlight Lifespan: >20,000 hours

Compatibility: For Bambu Lab X1/P1 and A1 series printers

Shell

Material: Plastic

Working Temperature: -30°C to +130°C

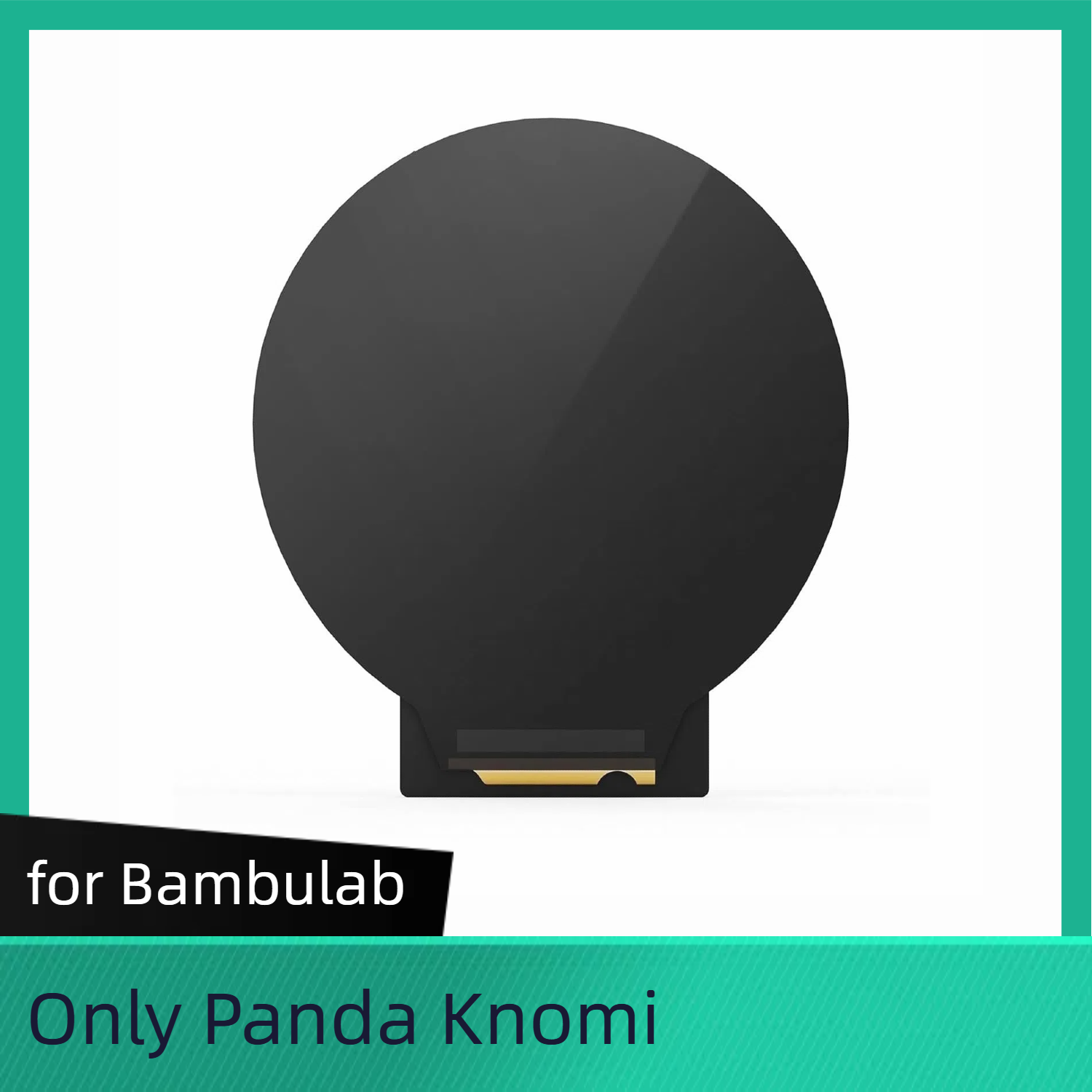

PANDA KNOMI
*A1/P1/X1 Series Compatibility

*Many Mounting Options

*KNOMI UI

*Wide Viewing Angle

*OTA Firmware Updates

KNOMI UI

Instant Feedback. Expressive Design.

Knomi’s UI transforms printer monitoring into an engaging experience with its expressive features. Enjoy real-time updates and wireless convenience, ensuring your printer's status is always clear.

Three Incredible Printing Progress Display Options

√ Percentage-Only

√ GIF-Only

√ Alternating Percentage & GIFs Every 10-seconds

Customize UI, Animations, and Shells

Your PANDA KNOMI is more than just a tool—it’s a canvas for your creativity.

Adjust the UI colors and animation effects to your liking, and choose from three unique shell models. Transform your A1 printer into a reflection of your personal style and aesthetic.

Wide-Viewing Angle,
Vibrant Colors, Clear Visibility

The vibrant, high-quality display ensures convenient monitoring of your printer’s status with clarity, from any perspective.

Your Panda Knomi is Constantly Improving——
OTA Firmware Updates

Drag and drop the firmware to update in one easy step.
