for Bambu Lab Part / Cooling Fan / Chamber Heat Circulation Fan / Chamber Exhaust Fan/MC Board Fan-H2 Series

Cooling Fan for Hotend - H2 Series

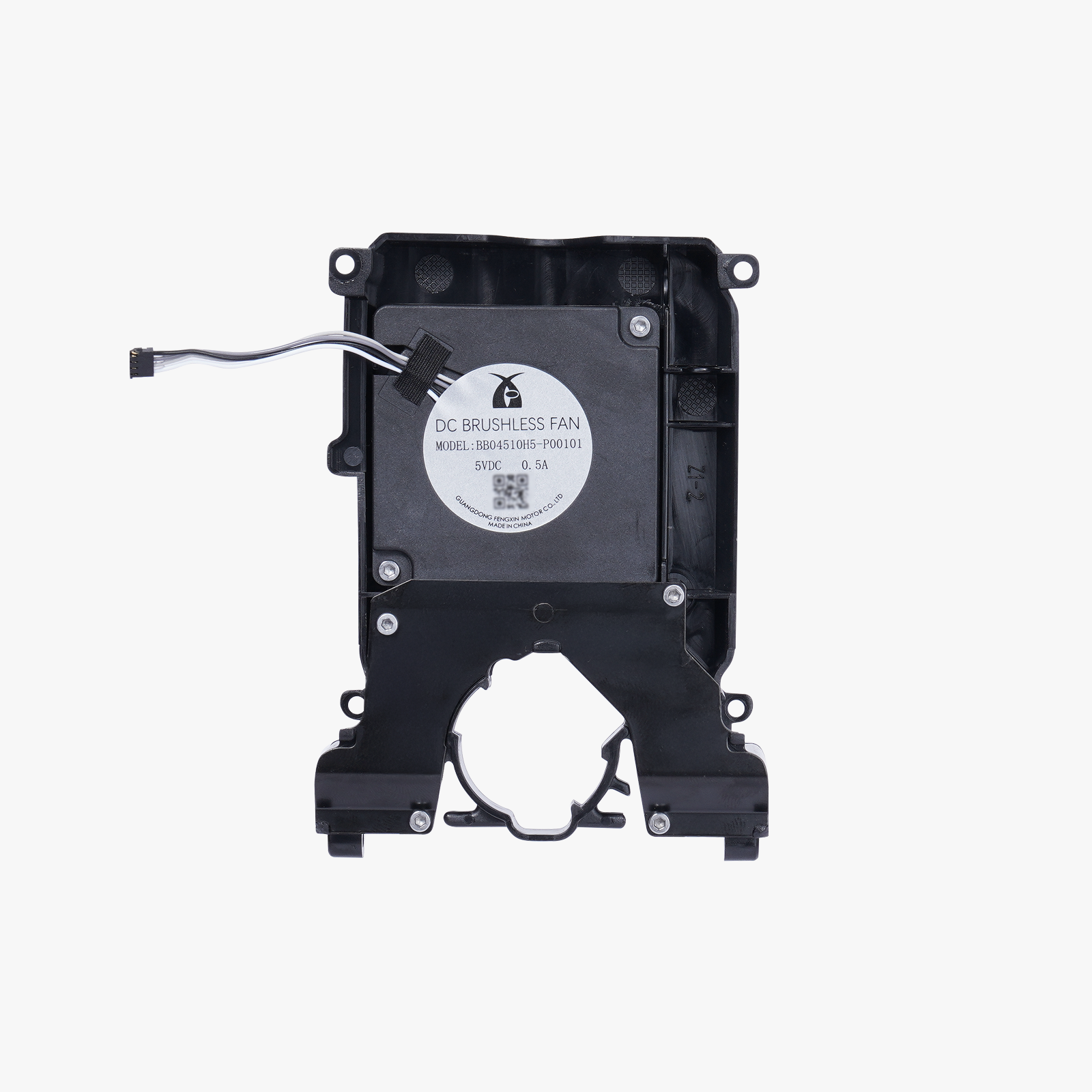

The Cooling Fan for Hotend, situated between the TH board and extruder, cools the hotend to avoid premature filament softening and clogs.

Installation

Learn more about H2D / H2S Cooling Fan for Hotend on  https://wiki.bambulab.com/zh/h2/maintenance/replace-cooling-fan-for-hotend

In the Box

For H2D

- Cooling Fan for Hotend*1

- M2.5-8 Screw*2
- BT2.6-8 Screw*2

For H2S

- Cooling Fan for Hotend*1
- BT2-4 Screw*2

Special note for H2S: If your product SKU is FAH047, please make sure to check the fan orientation before installation. If the orientation is incorrect, follow the Appendix steps to adjust it. If your product SKU is FAH047-V1, you can skip the appendix instructions and proceed with installation directly.

Compatibility

H2D and H2D Laser
H2S and H2S Laser

Product Specifications

Part Cooling Fan for - H2 Series

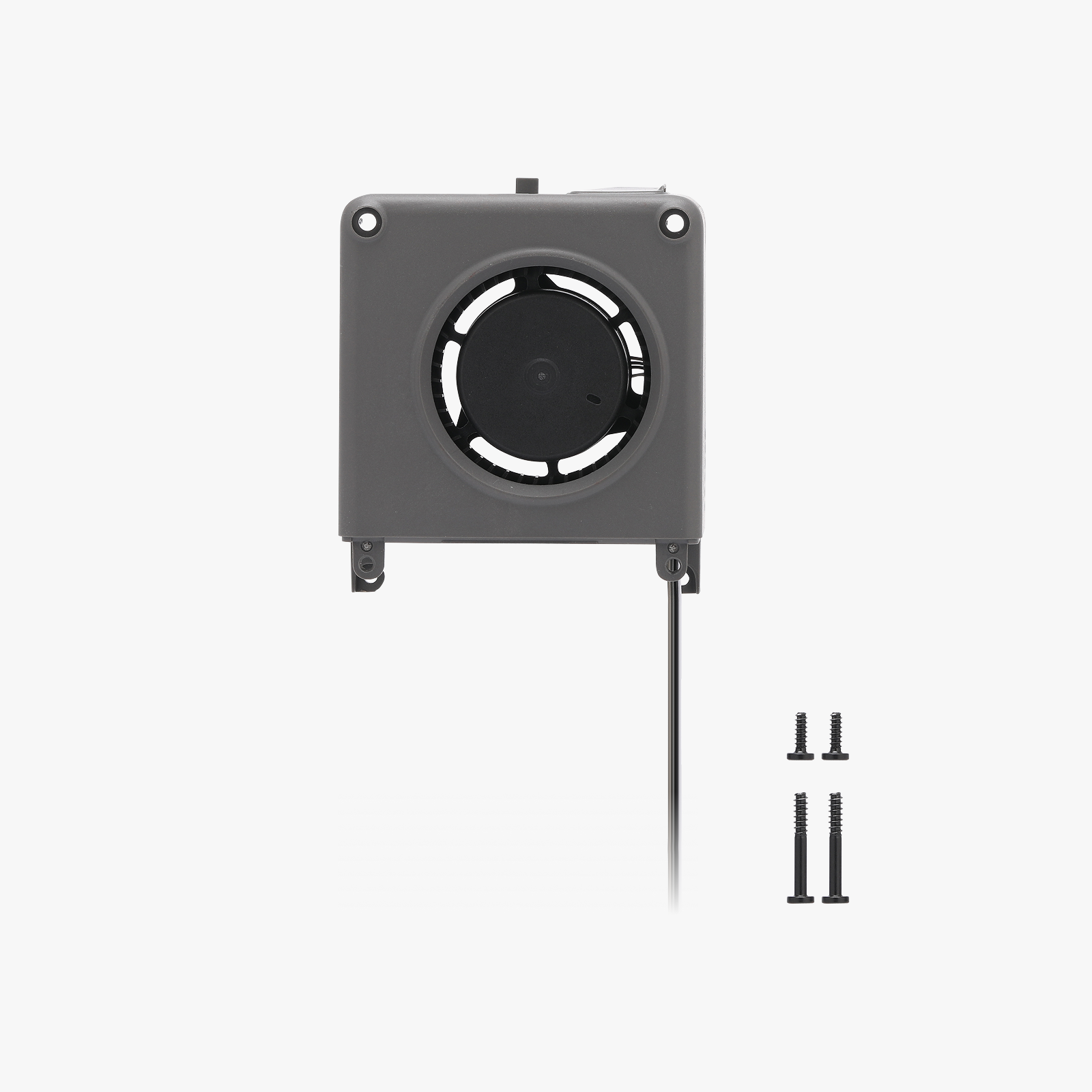

The Part Cooling Fan, located at the toolhead's base, works in tandem with the Air Duct to swiftly cool extruded filament.

Installation

Learn more about H2D / H2S Part Cooling Fan On https://wiki.bambulab.com/zh/h2/maintenance/replace-part-cooling-fan

In the Box

For H2D

- Part Cooling Fan*1
- BT2.6-8 Screw*2
- BT3-20 Screw*2

For H2S

- Part Cooling Fan*1
- BT2-6.5 Screw*1
- BT2-5 Screw*2

Compatibility

H2D and H2D Laser

H2S and H2S Laser

Product Specifications

Chamber Exhaust Fan

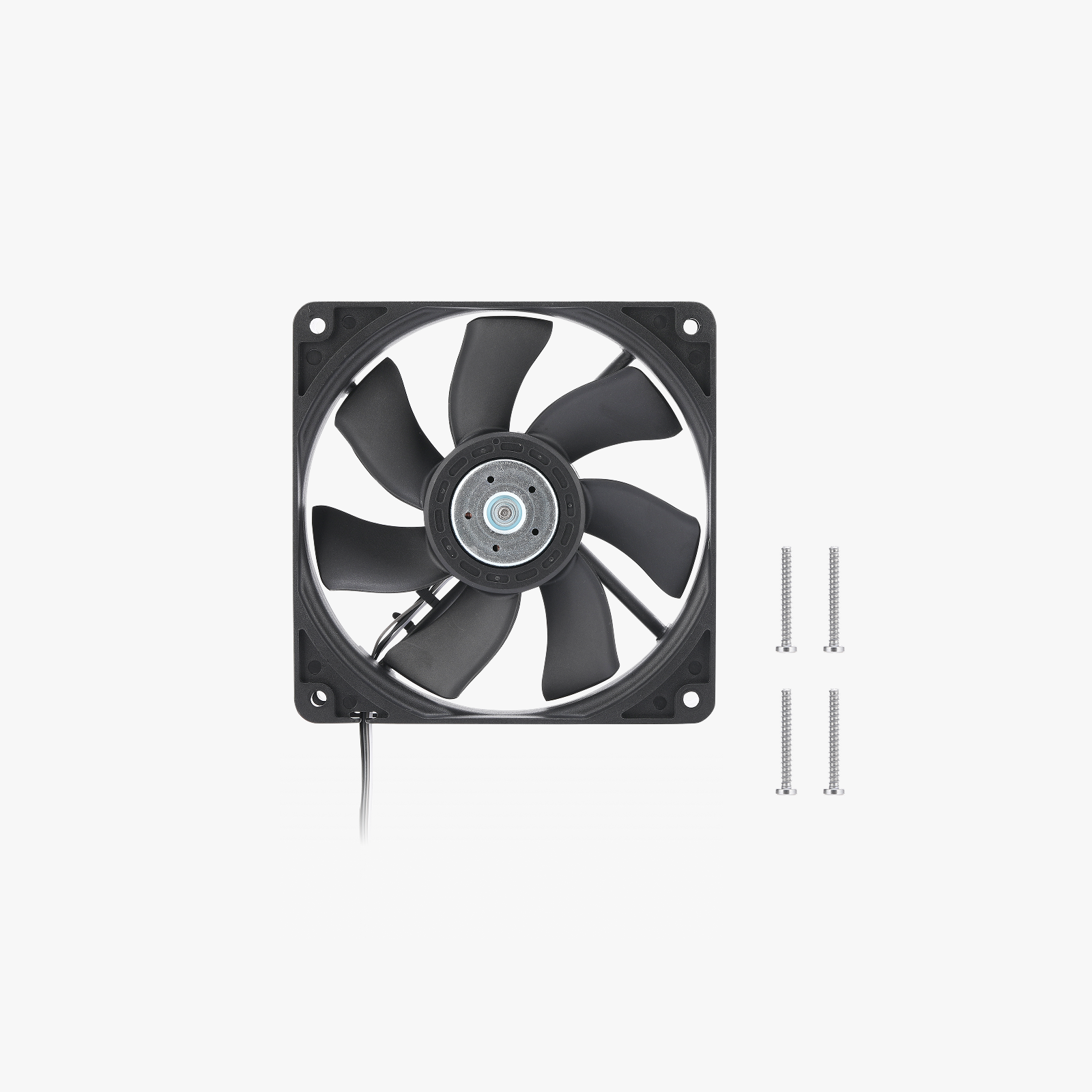

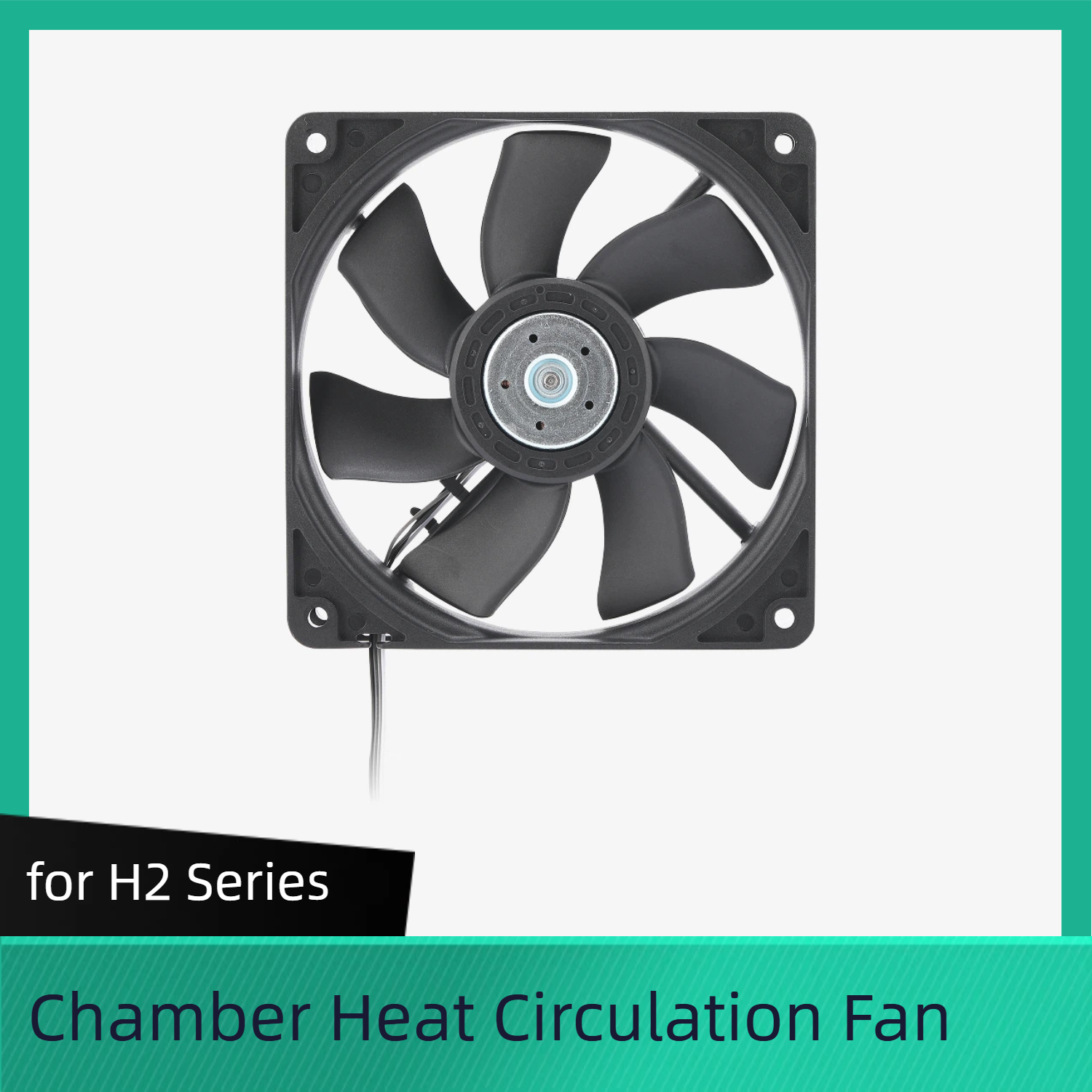

The Chamber Heat Circulation Fan is installed in the right inner lining of the printer. Its primary function is to maintain an even temperature throughout the chamber by circulating heated air, which helps ensure stable printing conditions and prevents temperature fluctuations during the printing process.

Installation

Learn more about Chamber Heat Circulation Fan on

Replace H2D Right Inner Lining Assembly/ Chamber Heat Unit/ Chamber Heat Circulation Fan | Bambu Lab Wiki

In the Box

- Chamber Heat Circulation Fan*1

- BT4-32 Screw*4

- Double-Sided Tape*2

Compatibility

H2 Series

Product SpecificationsMC Board Fan - H2 Series

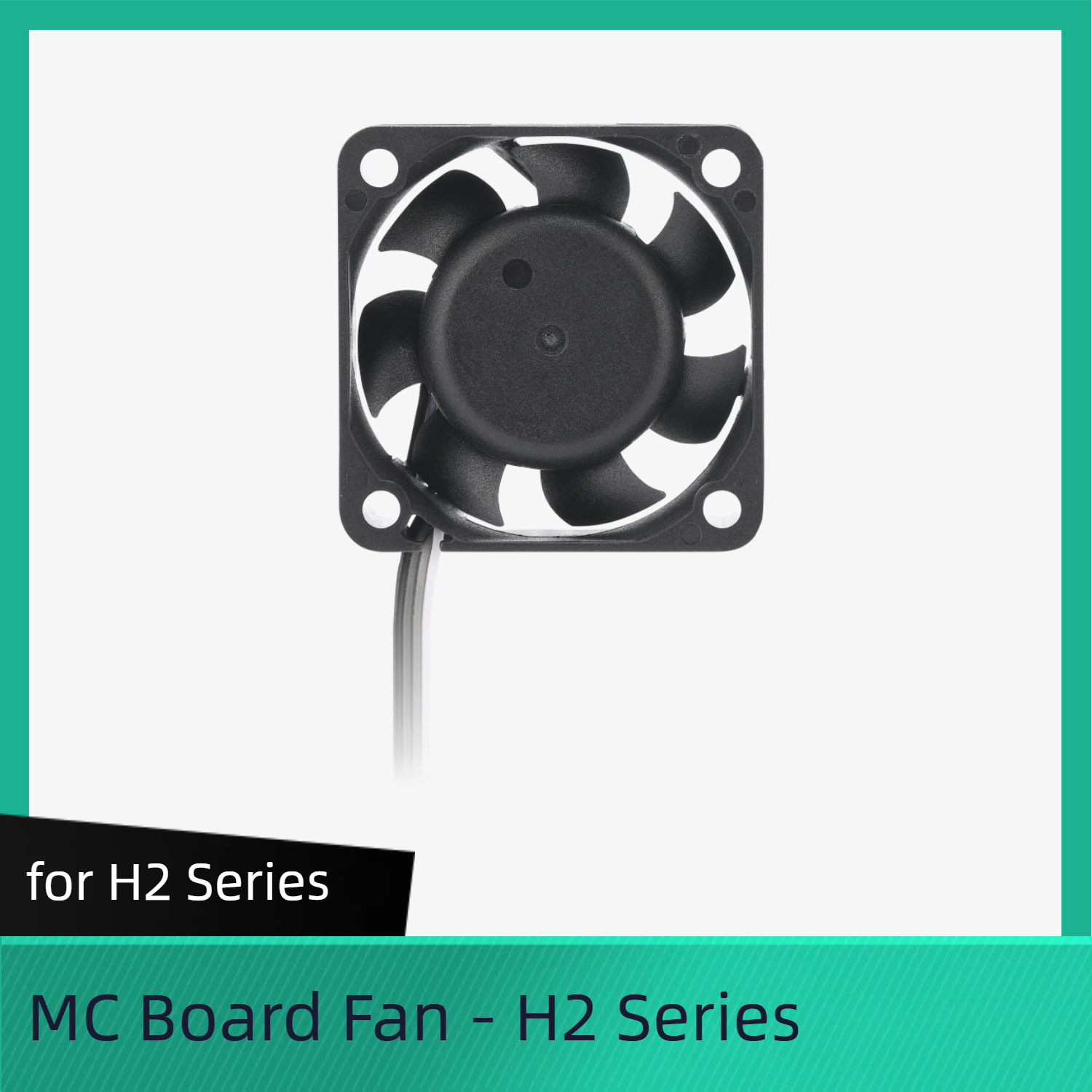

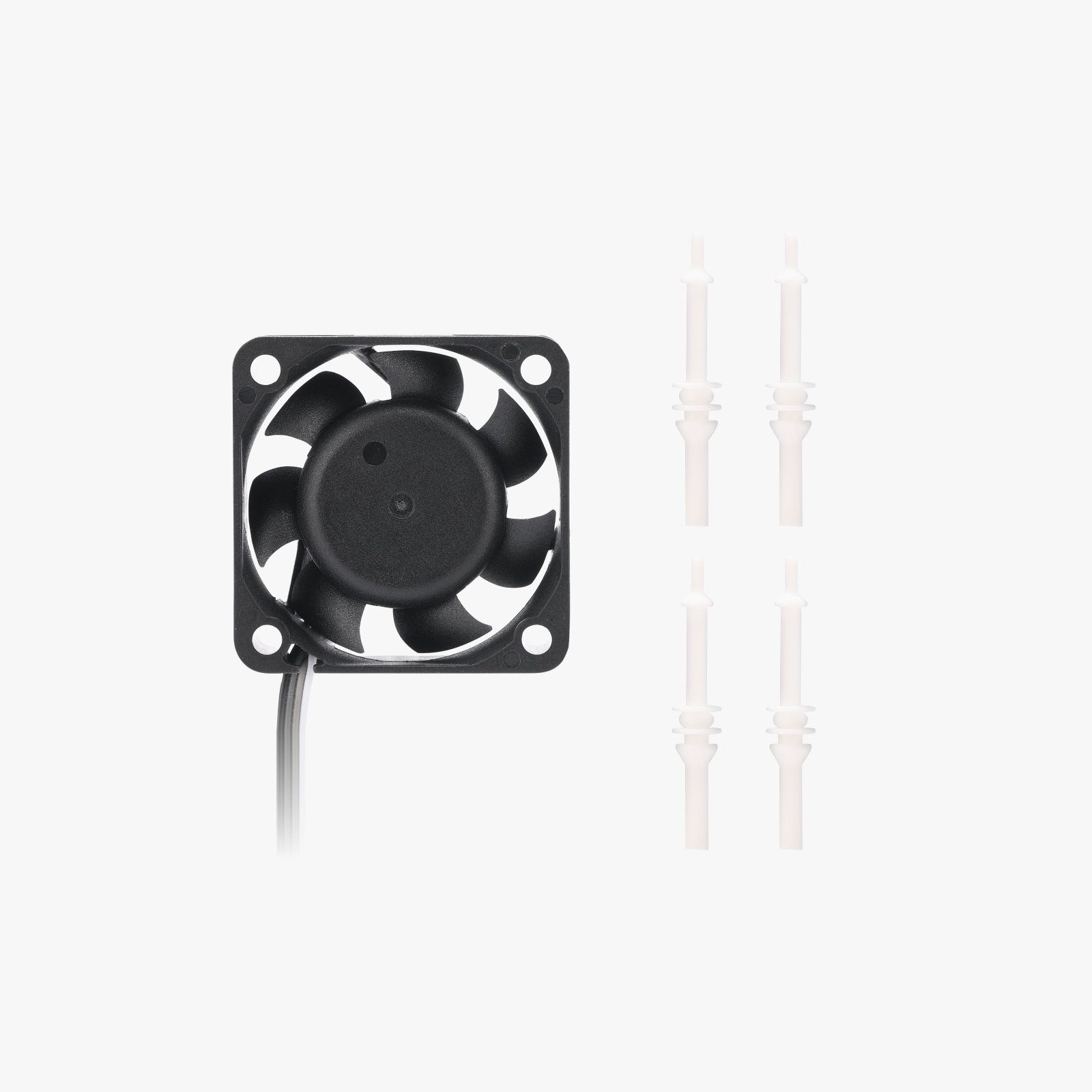

The MC Board Fan is used to regulate the temperature and dissipate heat for the MC board.

Installation

Learn more about MC Board Fan on https://wiki.bambulab.com/zh/h2/maintenance/replace-mc-board-fan

In the Box

- MC Board Fan*1

- Soft Screw*4

Compatibility

H2 Series

Product Specifications

Chamber Exhaust Fan

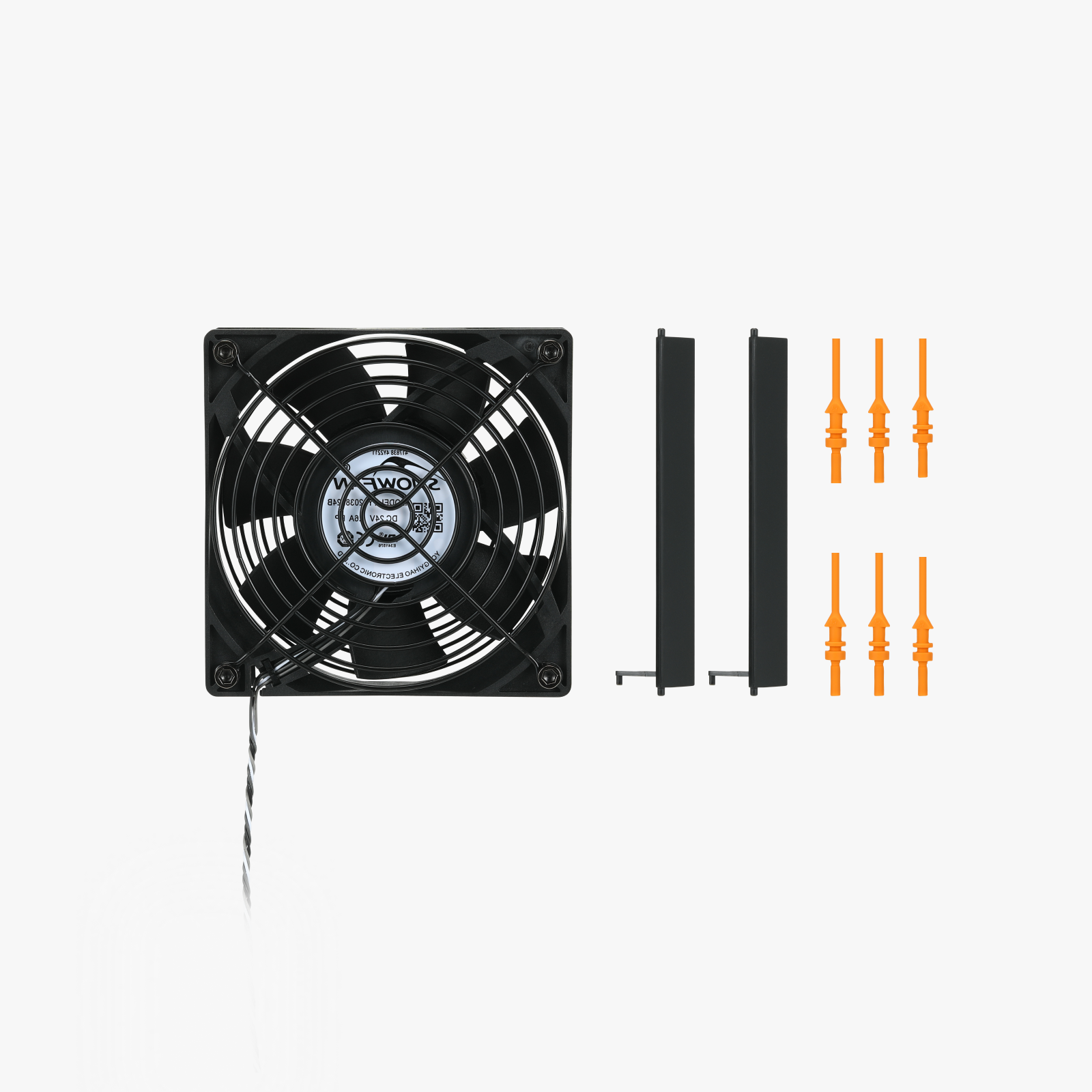

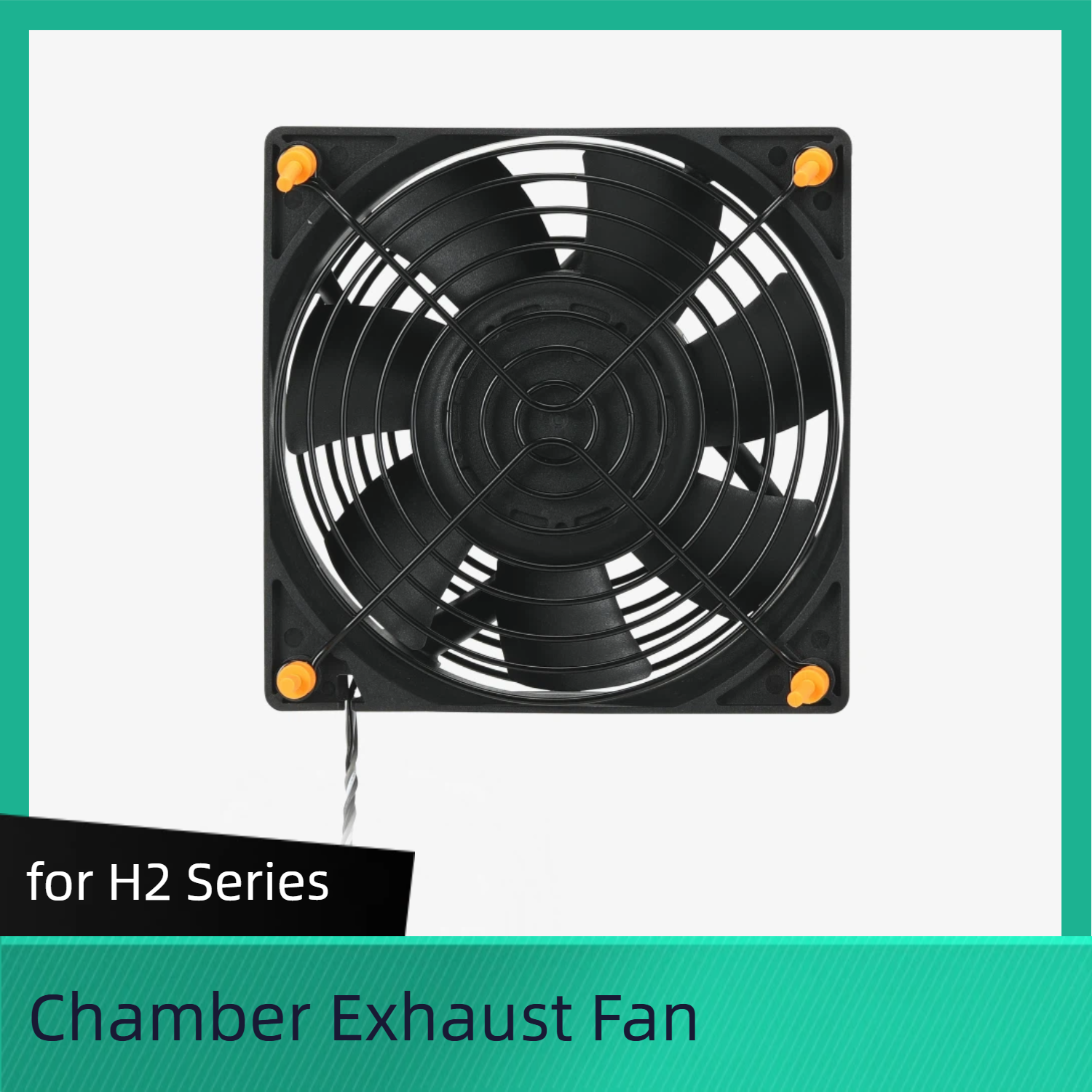

The Chamber Exhaust Fan, mounted on the right inner liner behind the activated carbon filter, vents air from the printer's interior.

Installation
Learn more about the Chamber Exhaust Fan on https://wiki.bambulab.com/zh/h2/maintenance/replace-chamber-exhuast-fan

In the Box

- Chamber Exhaust Fan*1

- Soft Screw*6

- Active Chamber Exhaust*2

Compatibility

H2 Series

Product Specifications
