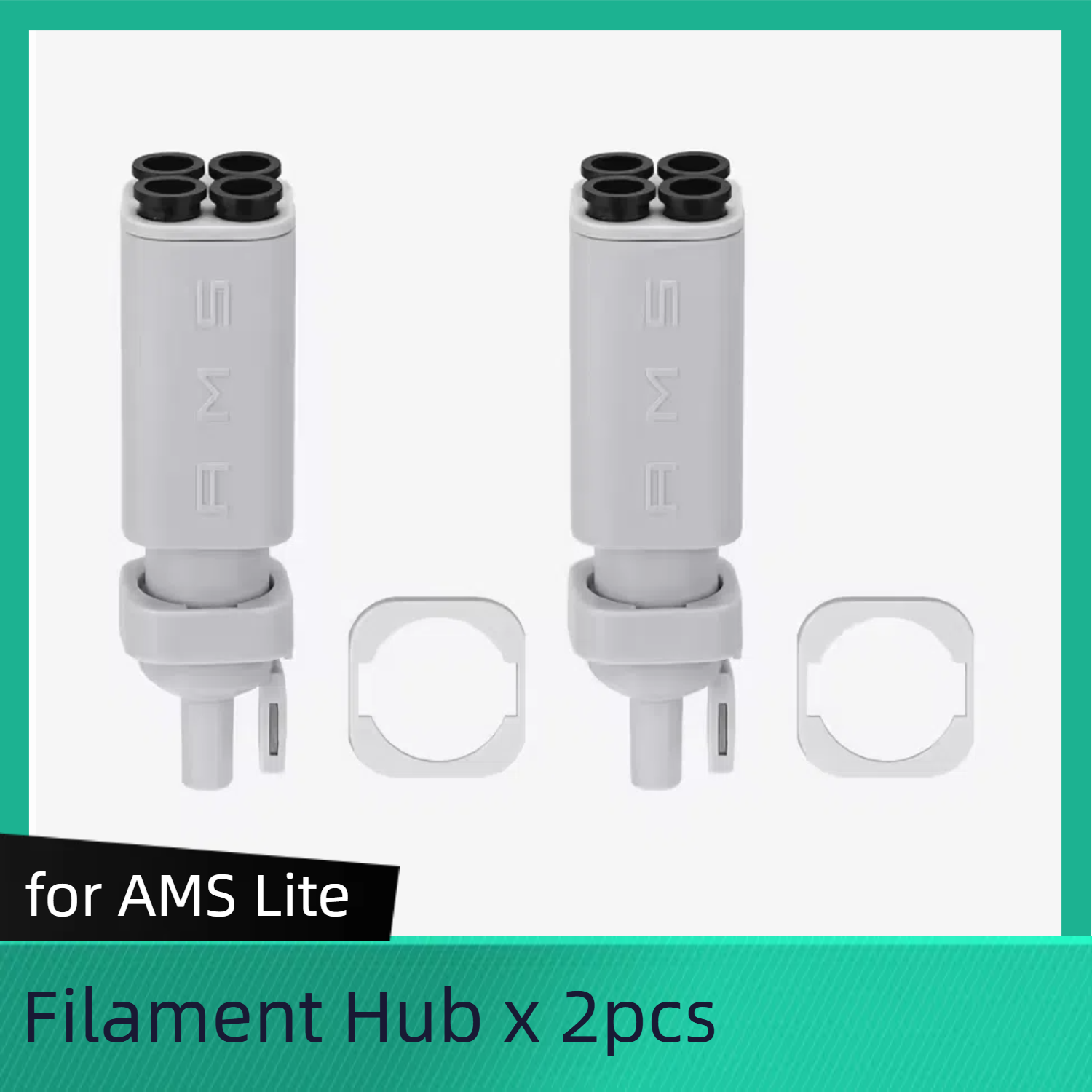

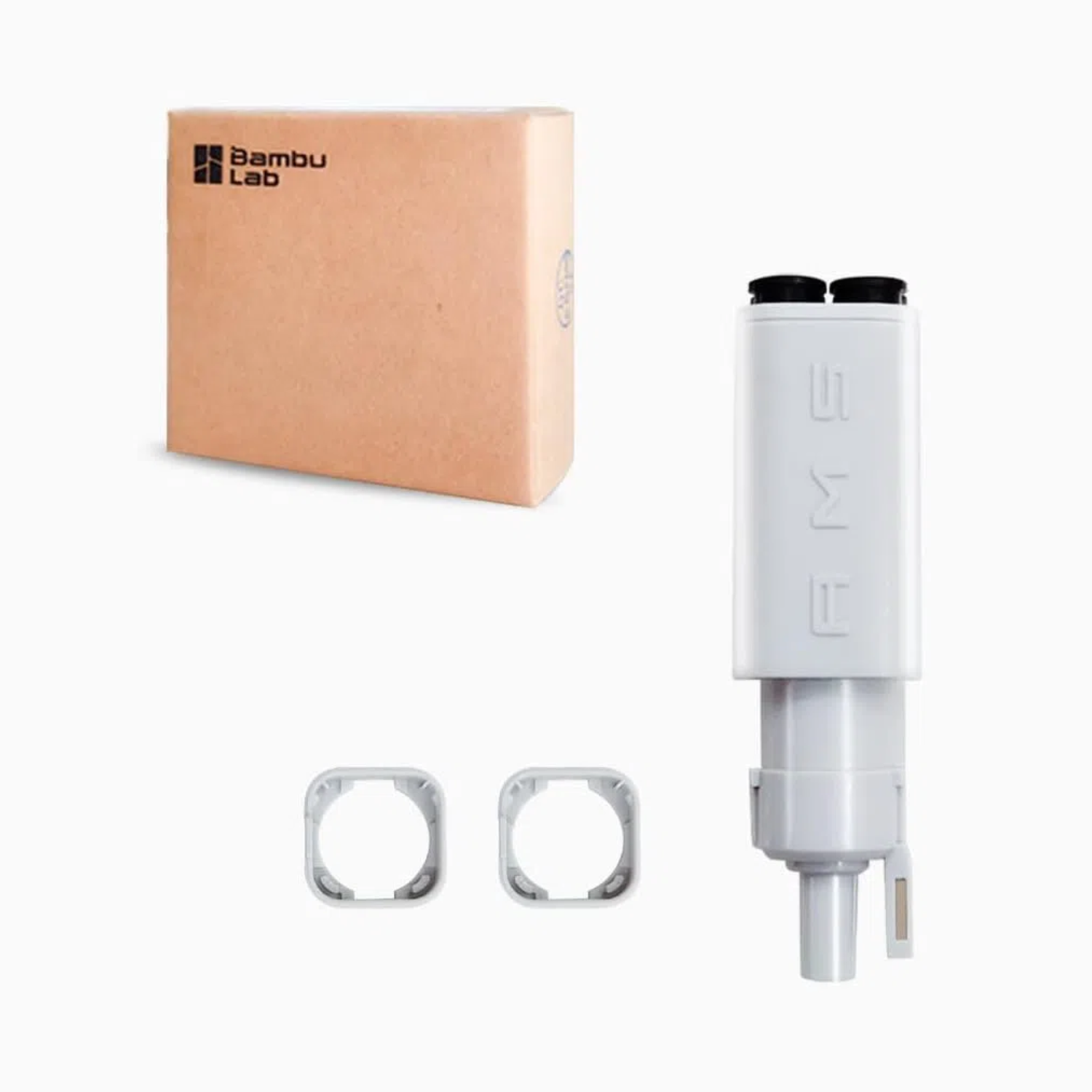

Bambu Lab Five way Components switch Filament Hub AMS
Couldn't load pickup availability
Use this text to encourage communication or promote sharing on social networks.
Disassembly
Step 1: Remove the Filament Press Block
Remove the rotating wheel by using an H1.5 hex key wrench to unscrew 2 screws A. Then, take off the pressure block.
Step 2: Remove the Filament Hub Assembly
Use a wrench to delicately pry off the Filament Hub Cap. Then, remove the Filament Hub Assembly along with the corresponding spring.
Step 6: Install the Filament Hub Assembly.
Insert the spring into the Filament Hub base, and thread the cover onto the filament hub.
Verify the installation orientation as shown in the diagram below, and then attach the Filament Hub to the base.
Apply slight pressure to connect the Filament Hub with the base, and press to check for any looseness.
For Bambu Lab 3D printer accessories AMS lite five way components switch consumables during multi-color or multi-component printing

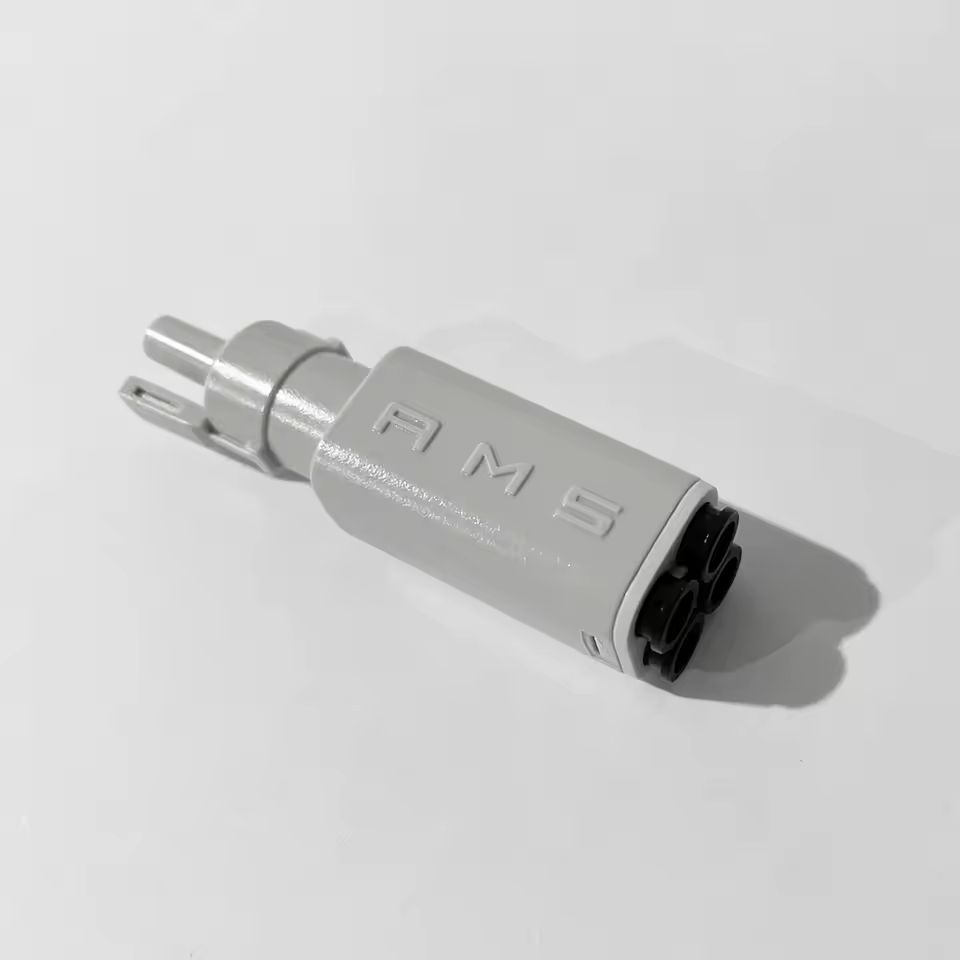

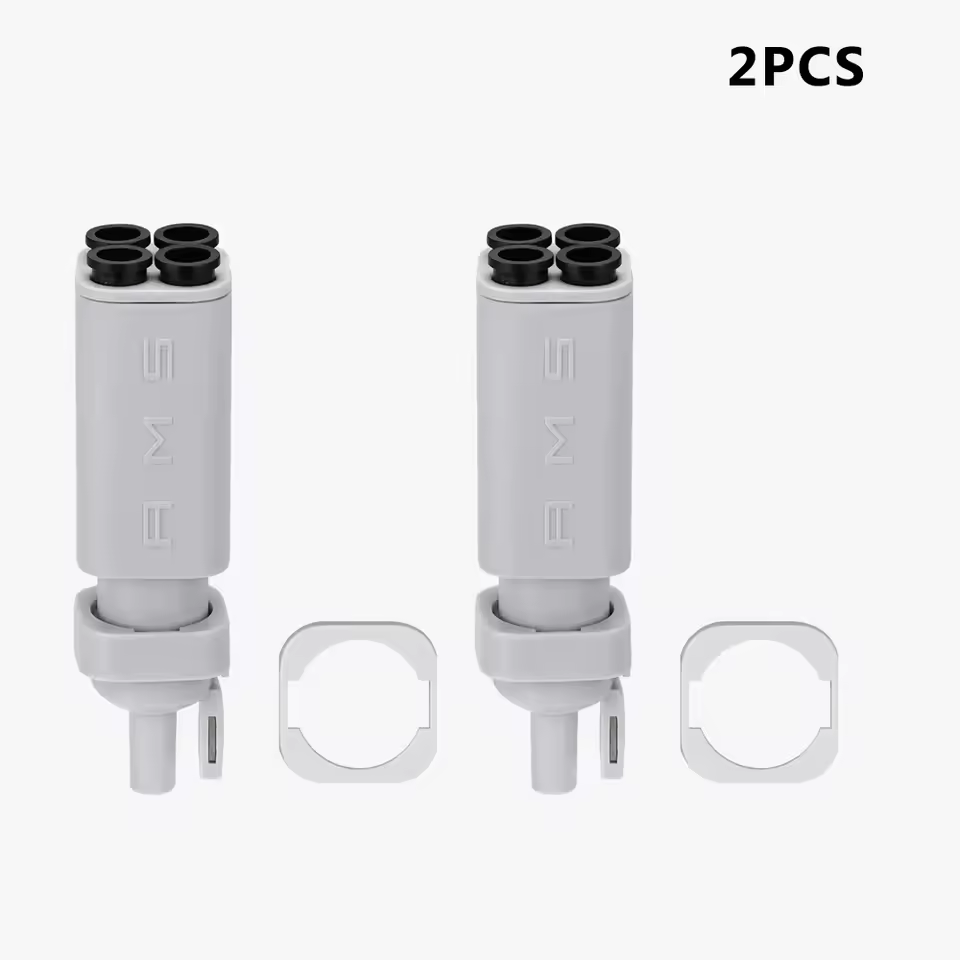

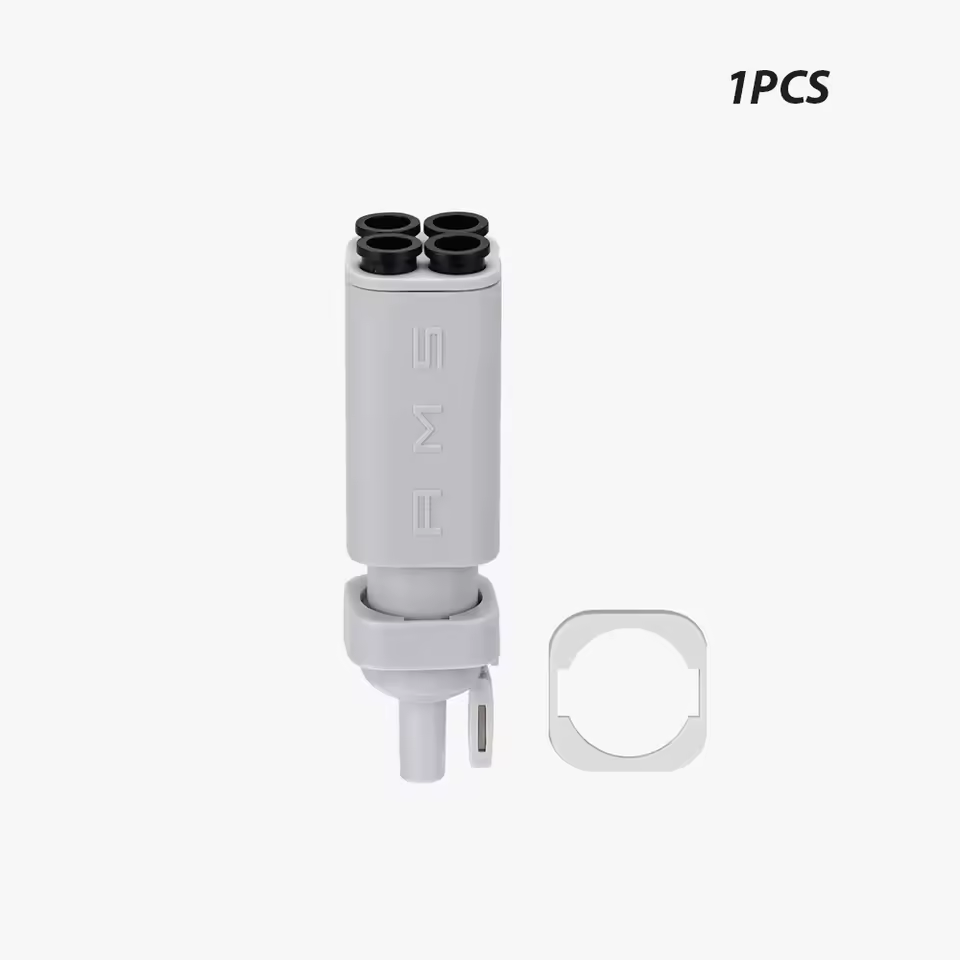

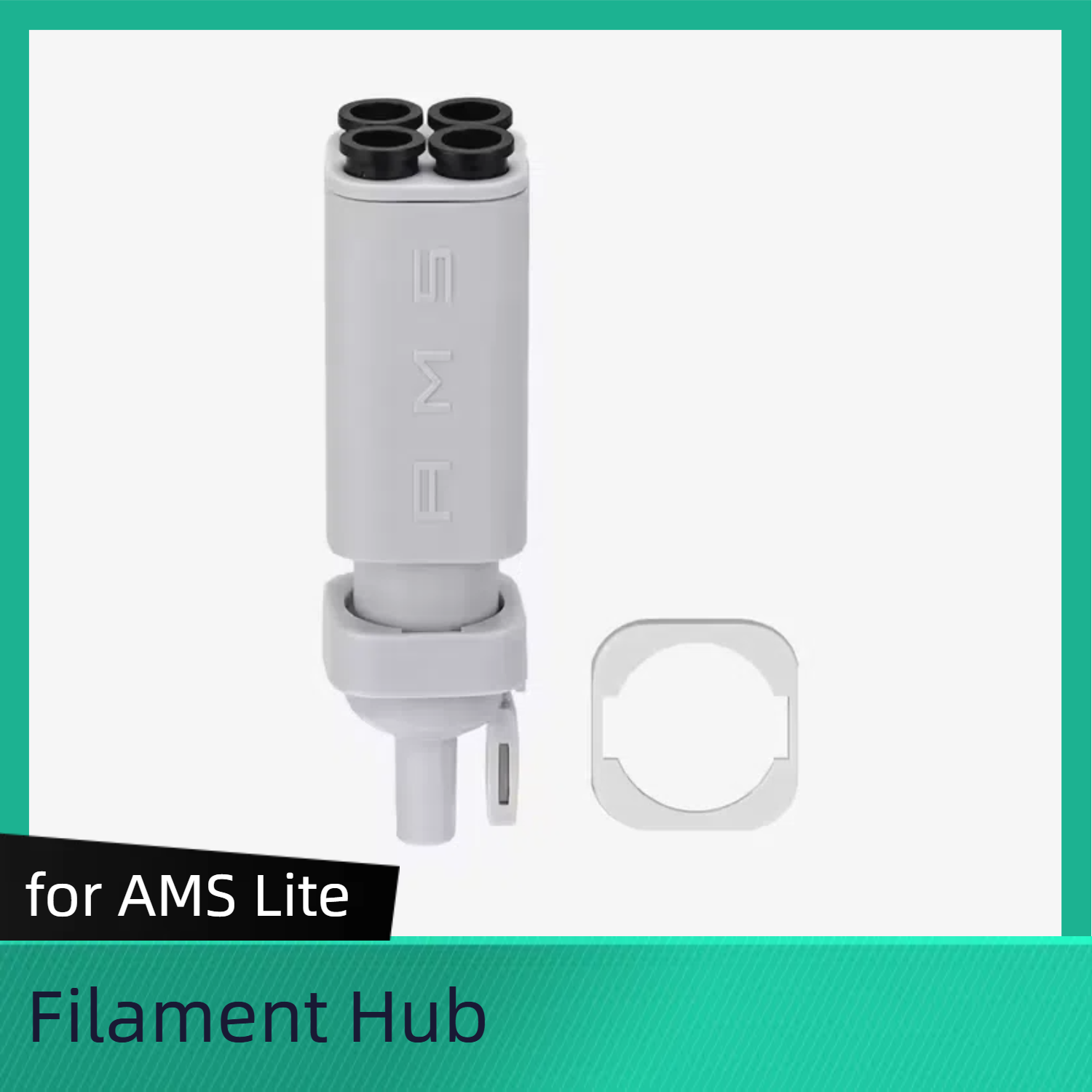

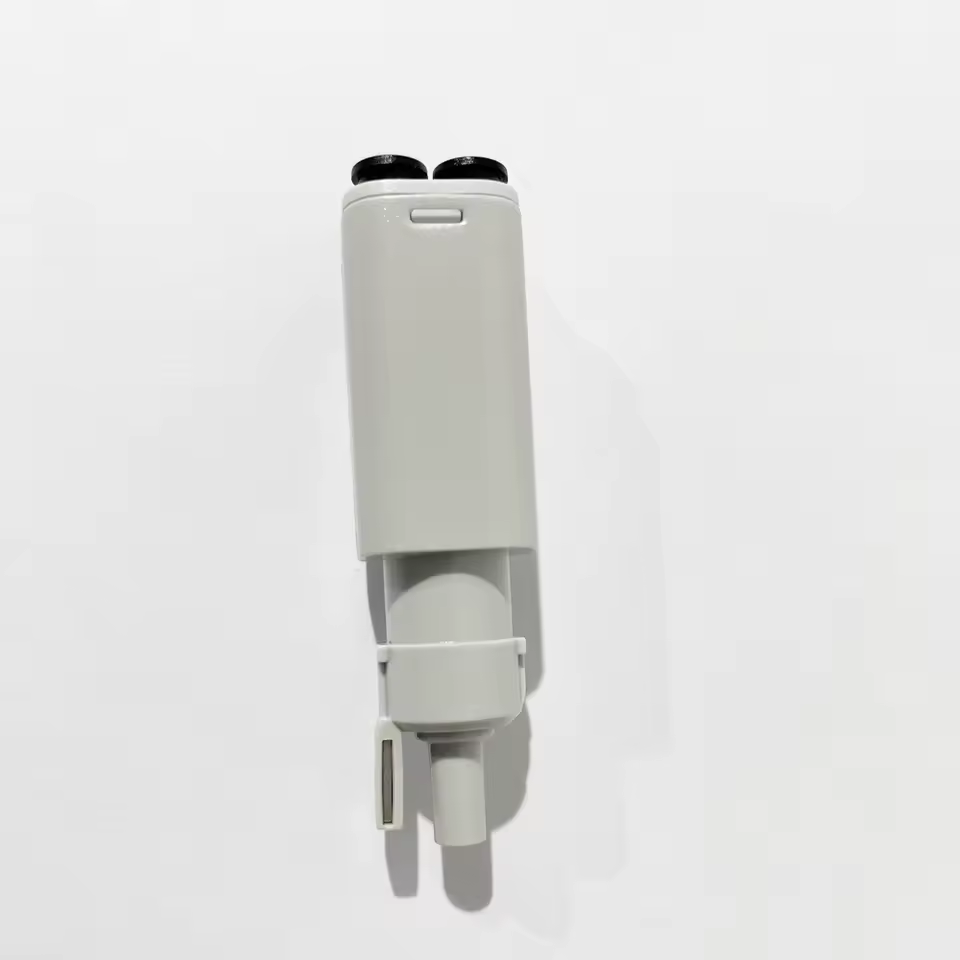

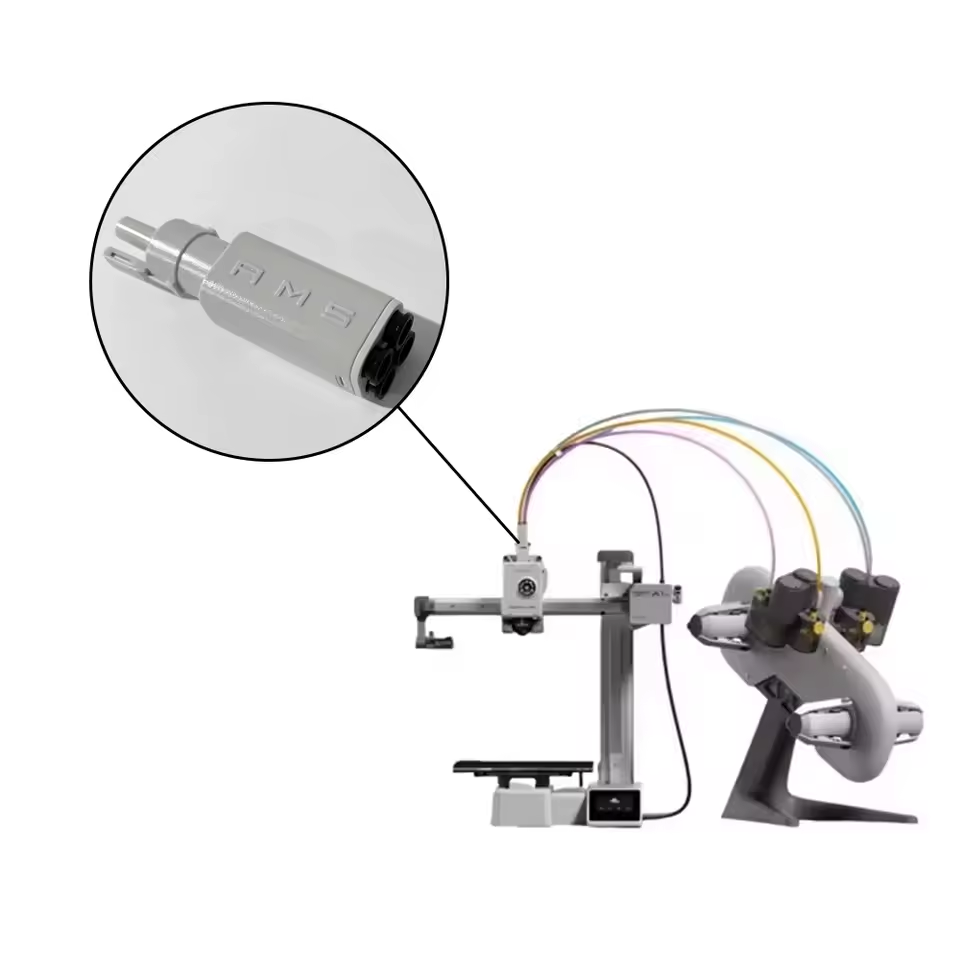

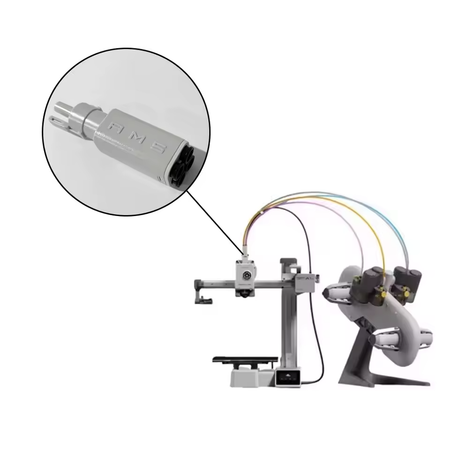

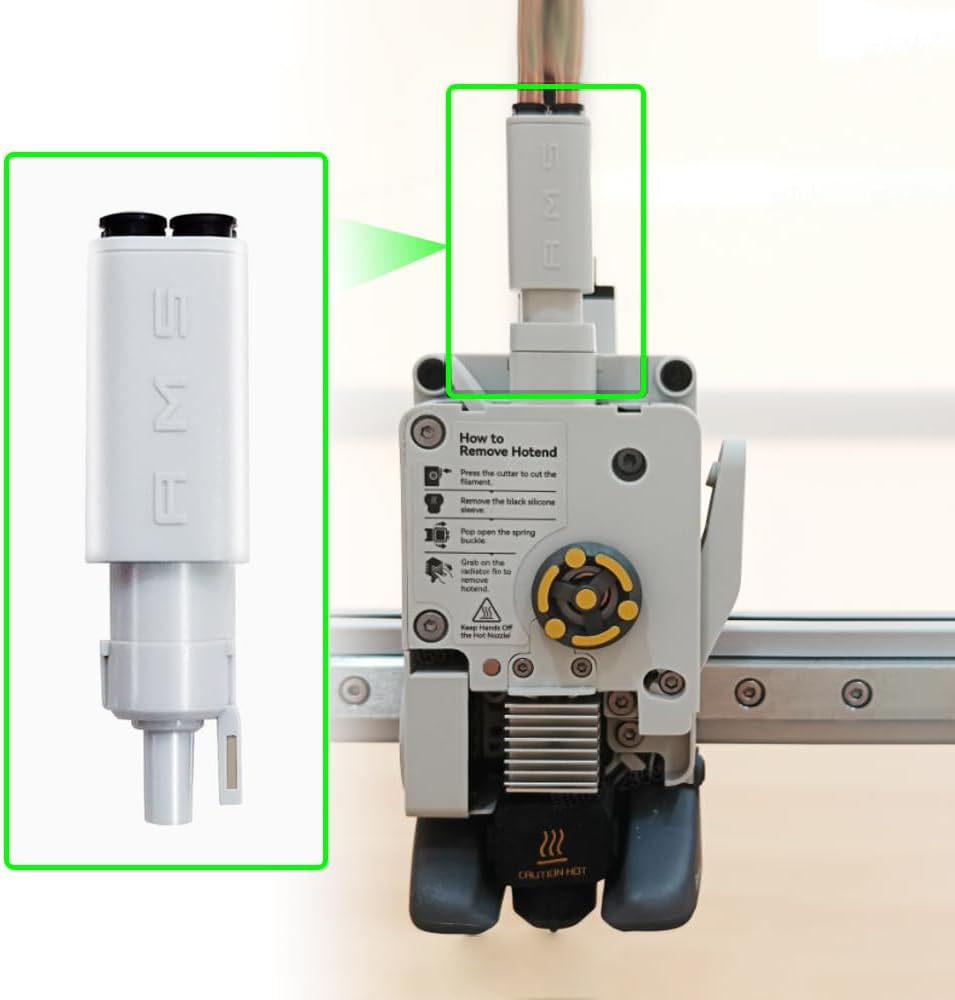

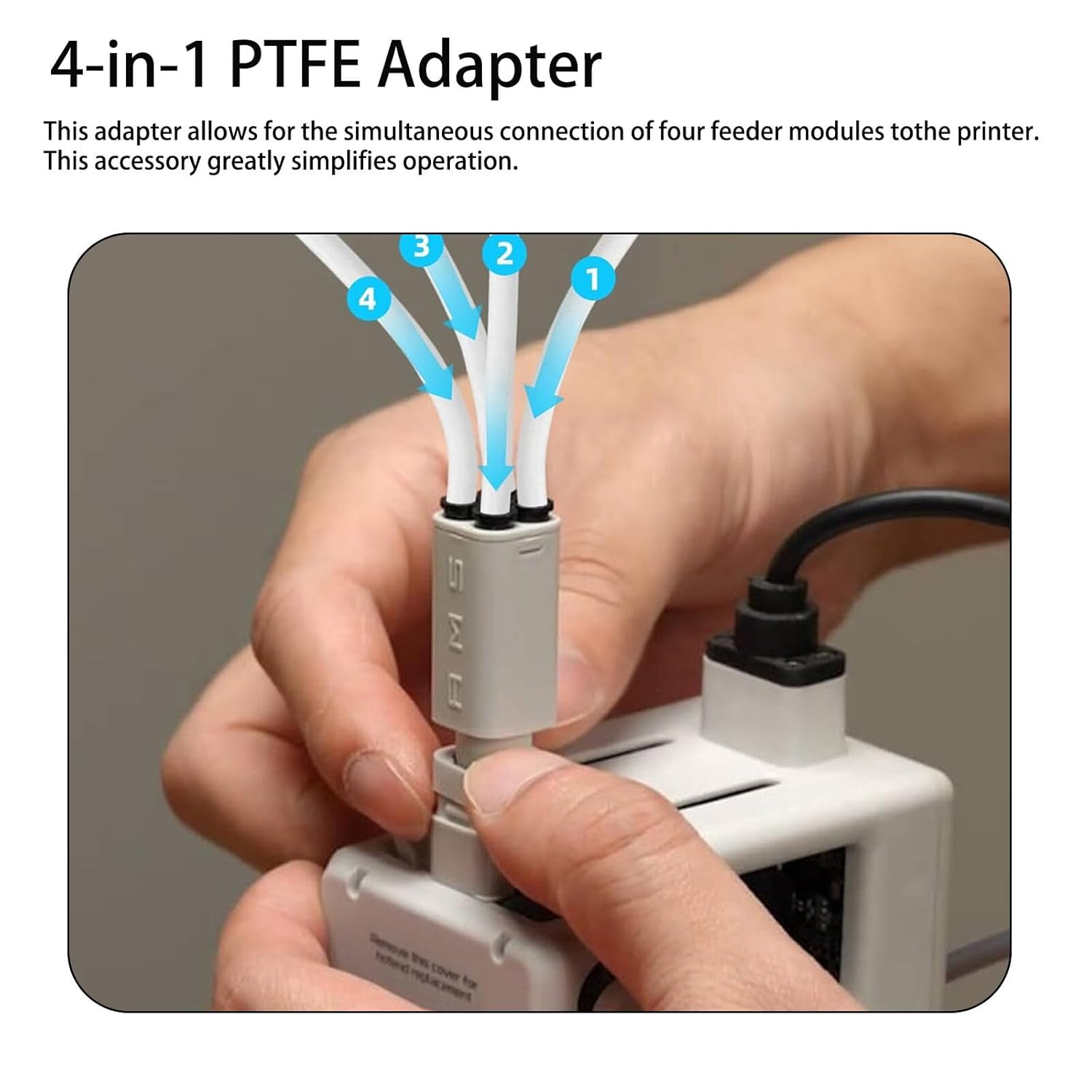

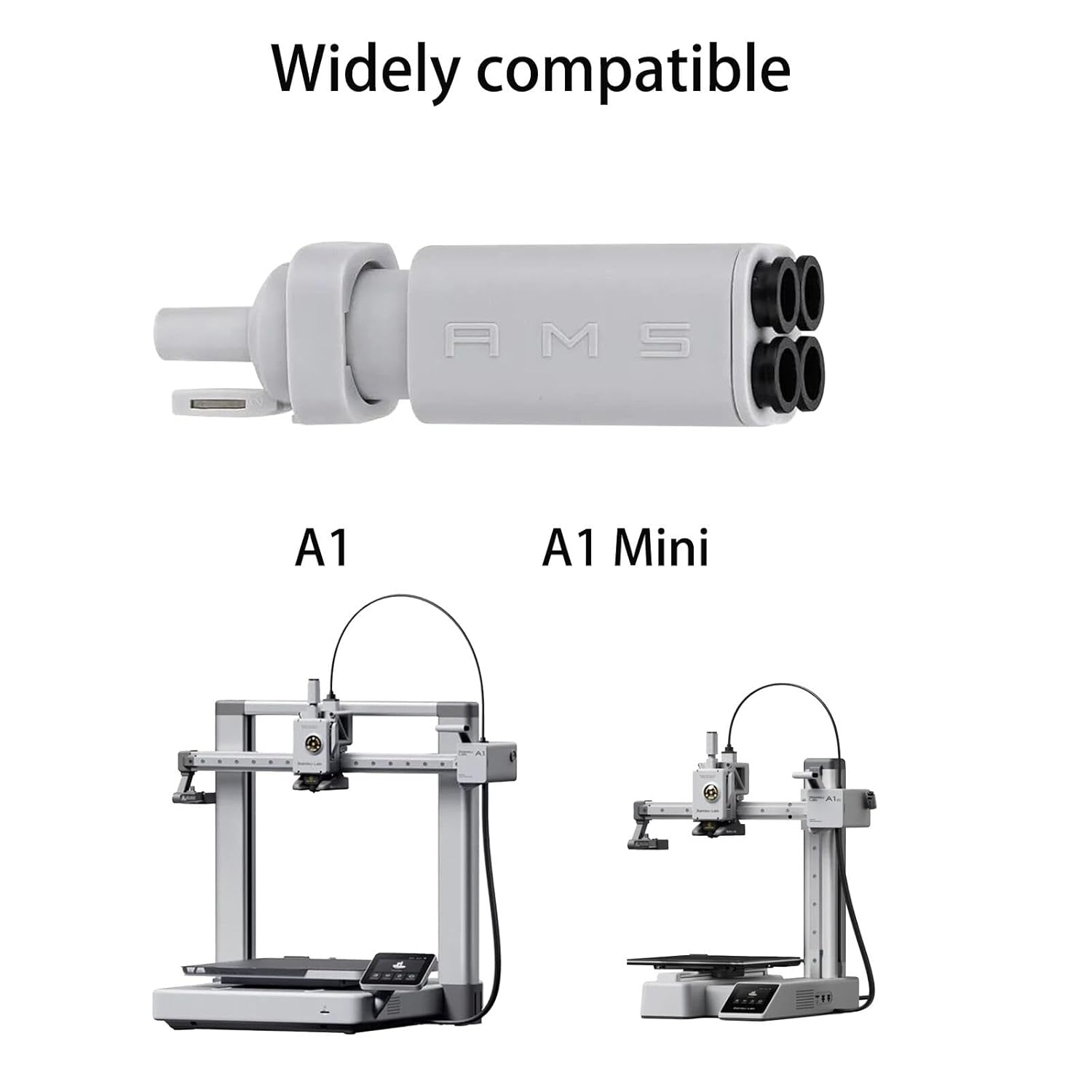

Introduction: AMS lite five way components are used to switch consumables during multi-color or multi-component printing processes. One end of the five way component is connected to four different PTFE pipes (up to four consumables), while the other end is connected to the top of the extruder for feeding.
