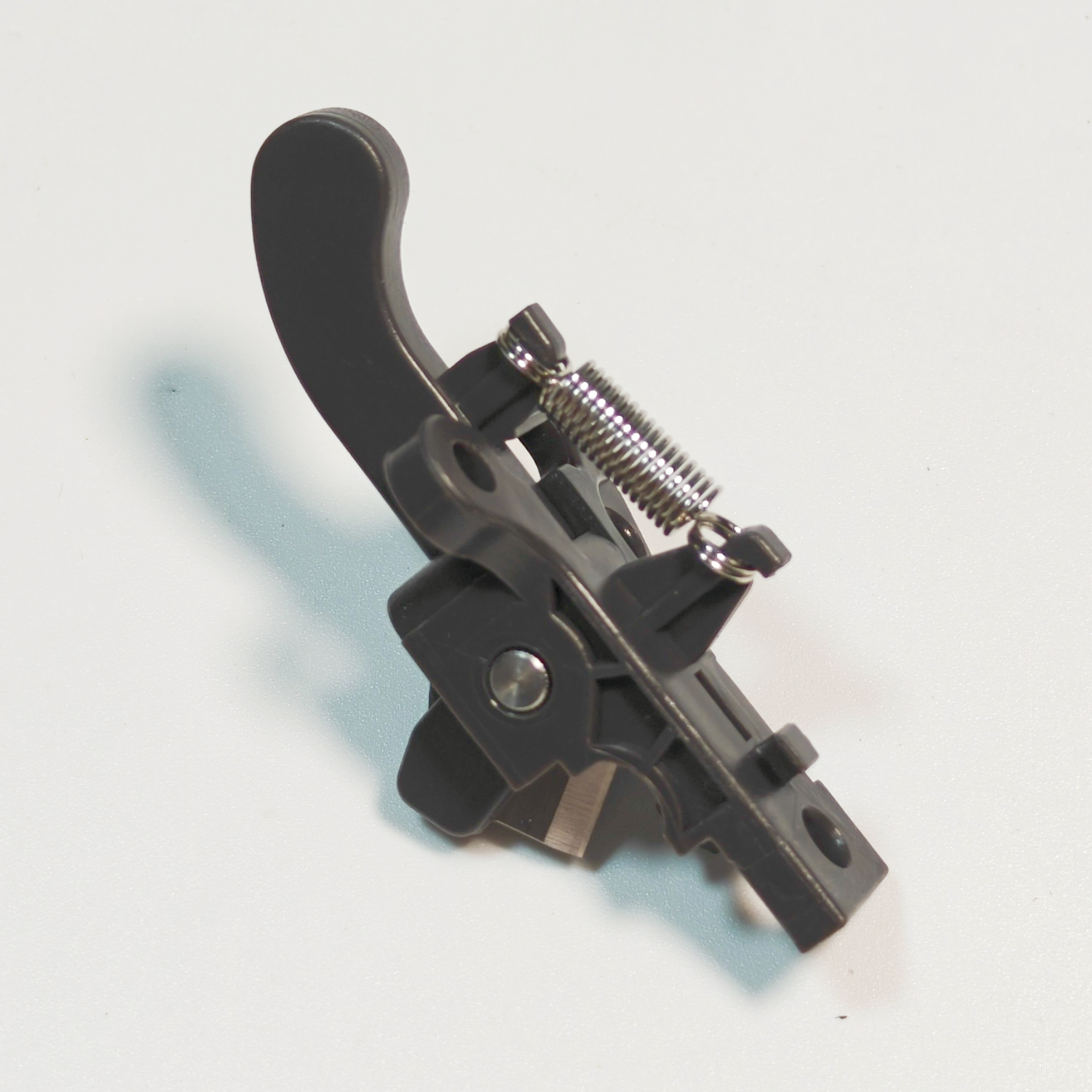

for Anycubic S1C Kobra S1C Filament Cutter
Couldn't load pickup availability
Use this text to encourage communication or promote sharing on social networks.

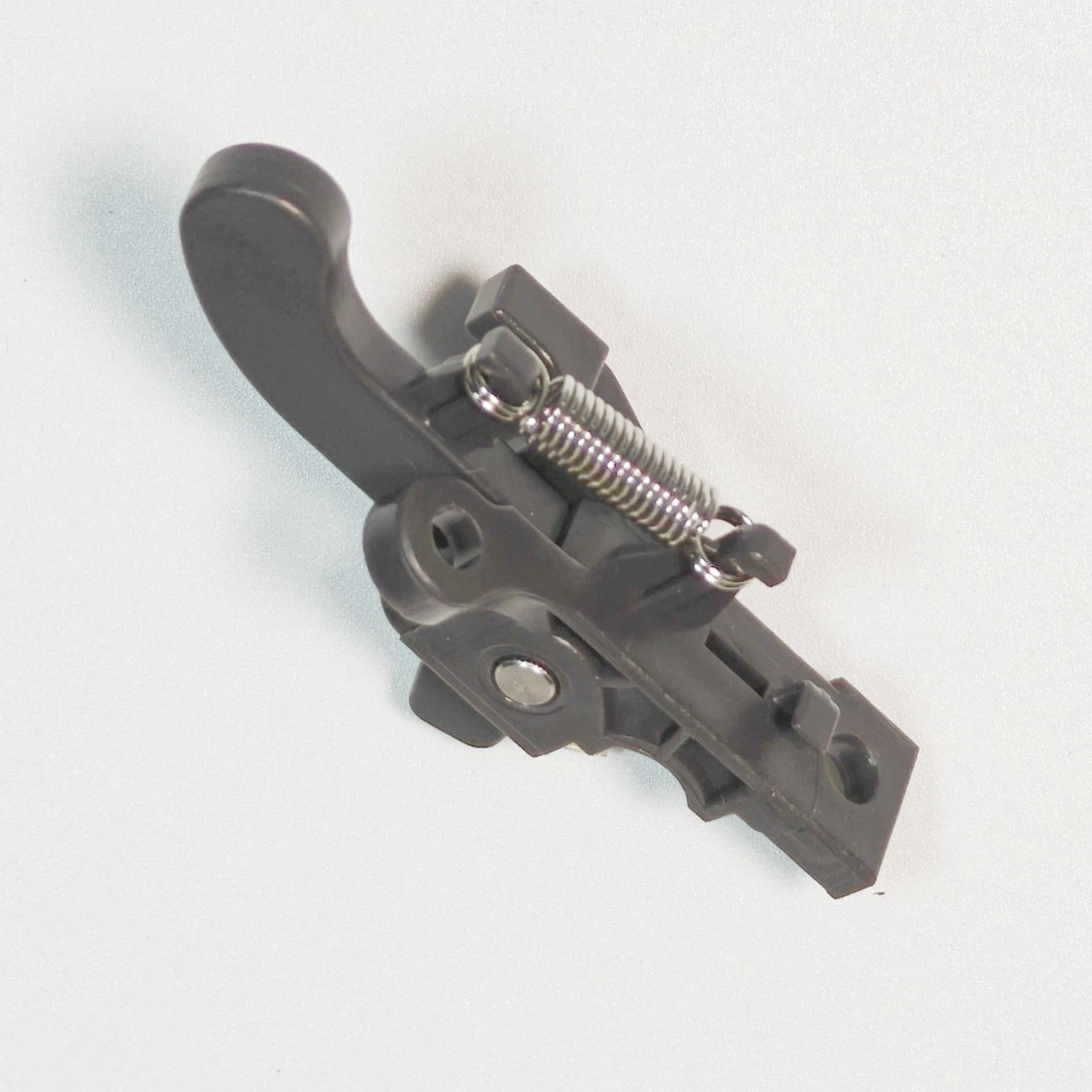

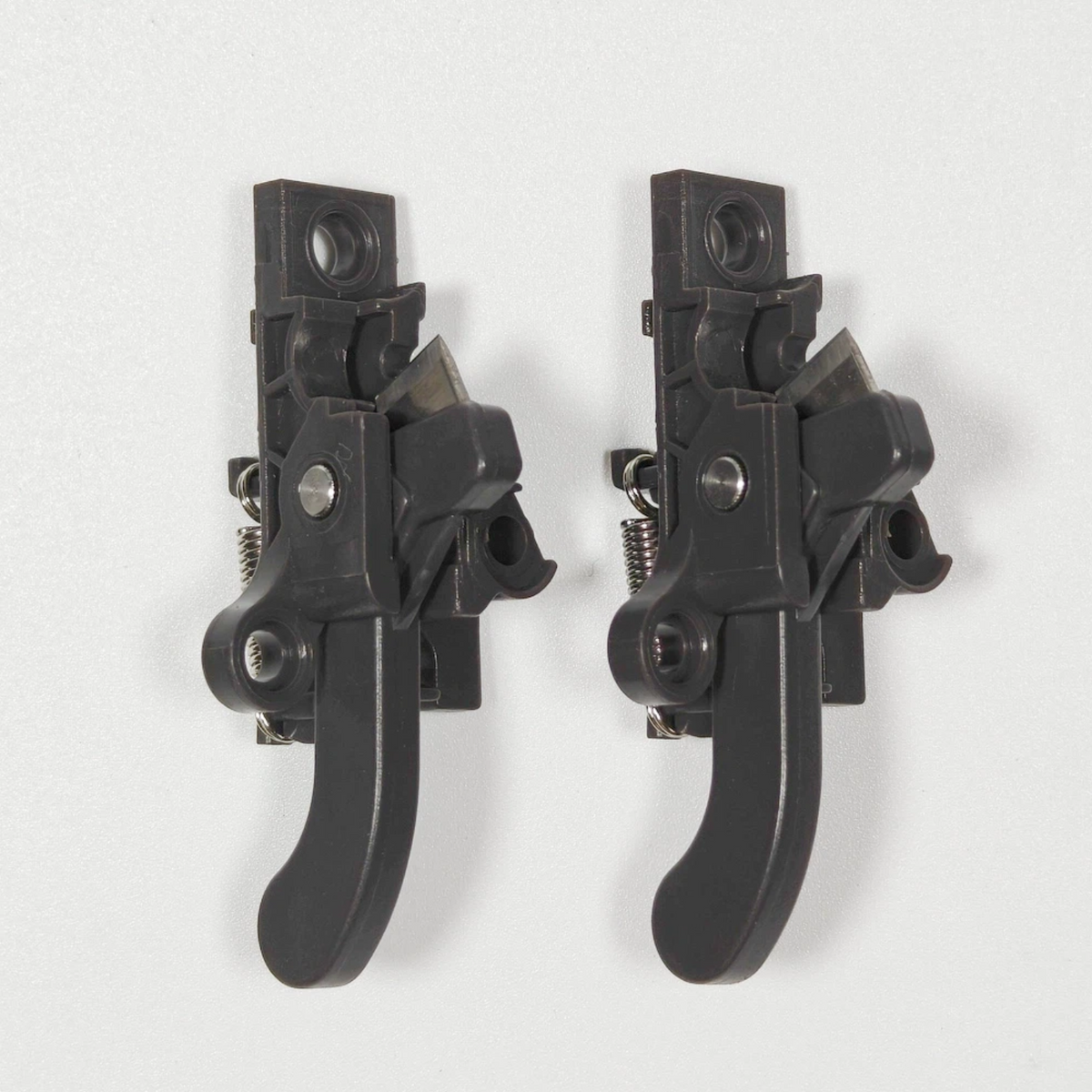

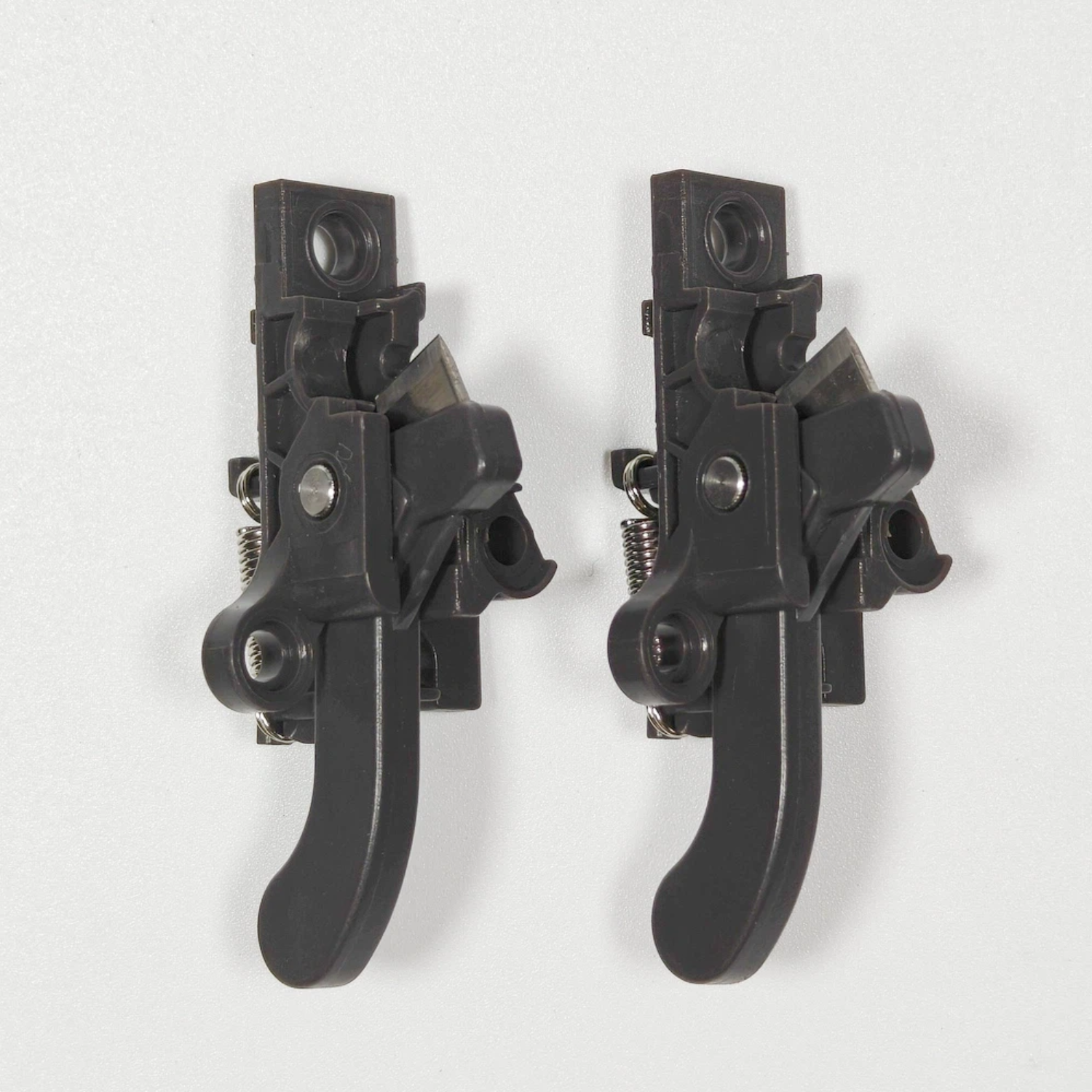

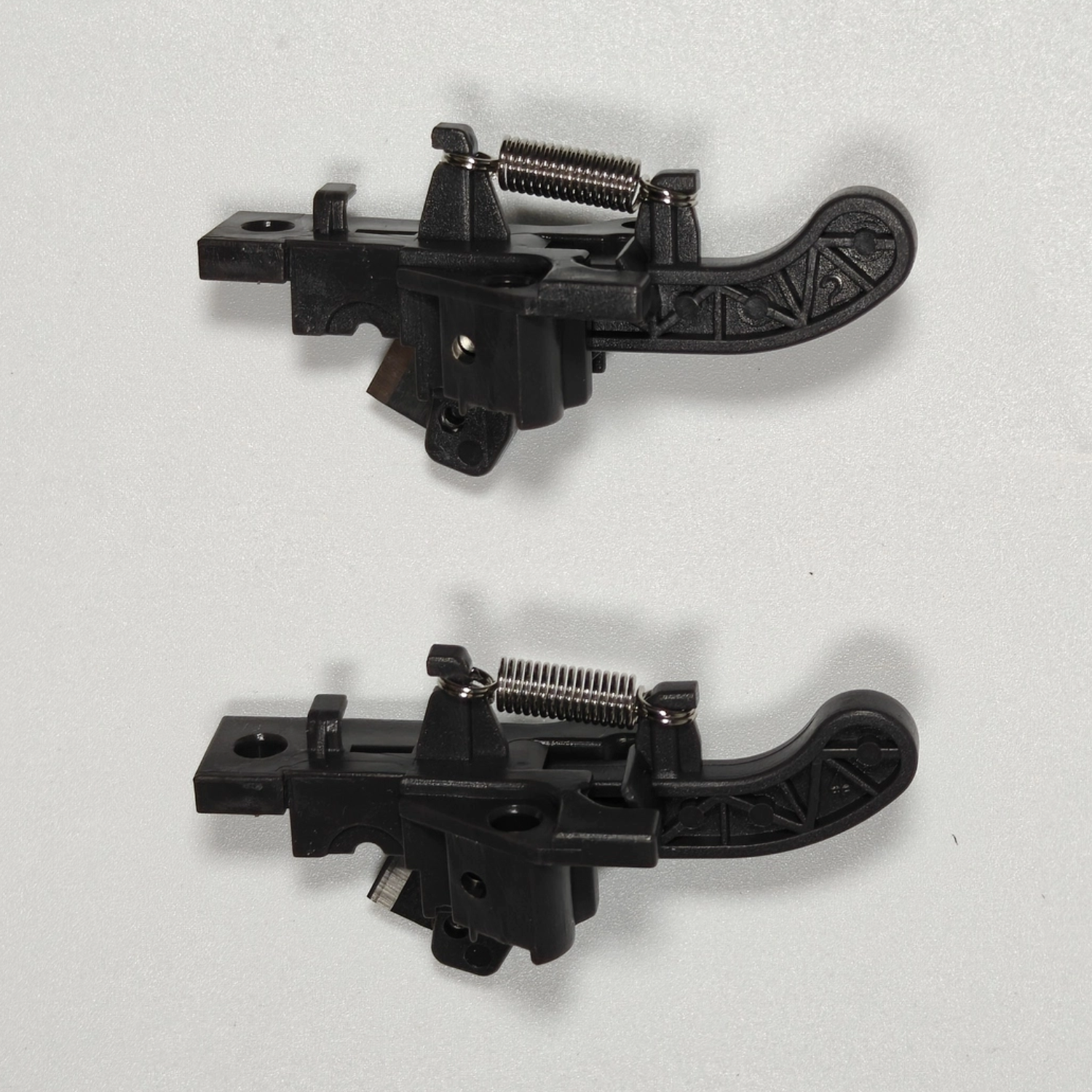

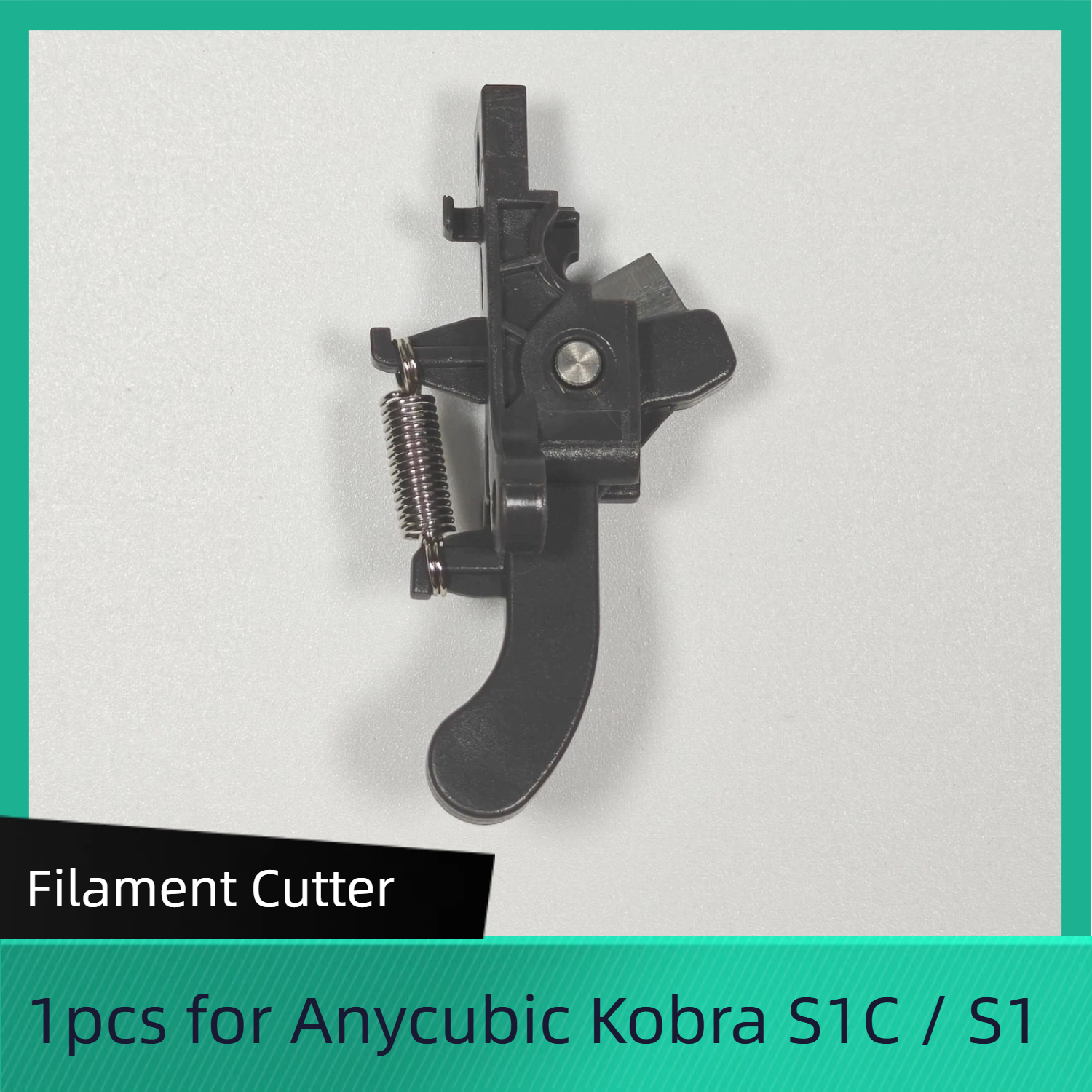

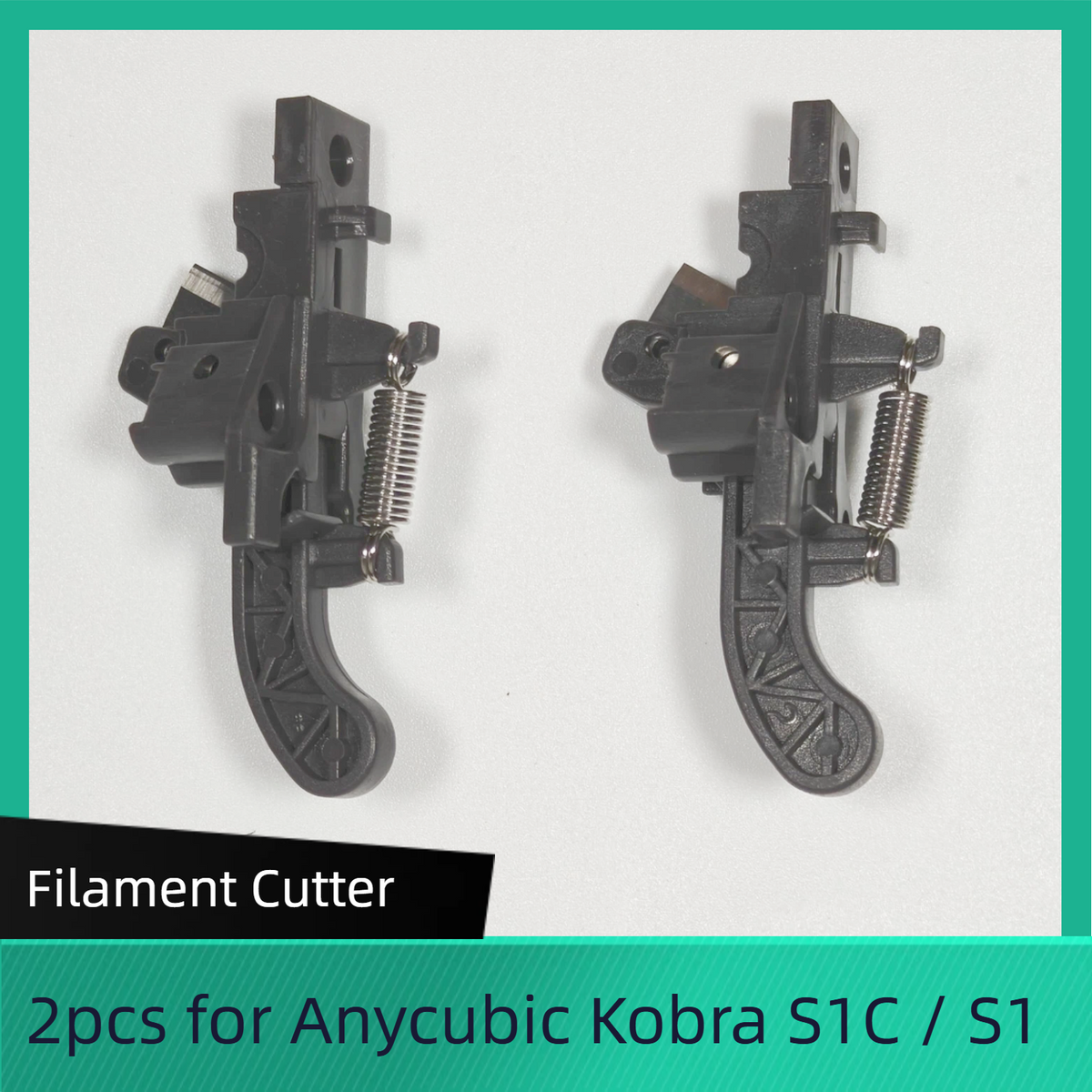

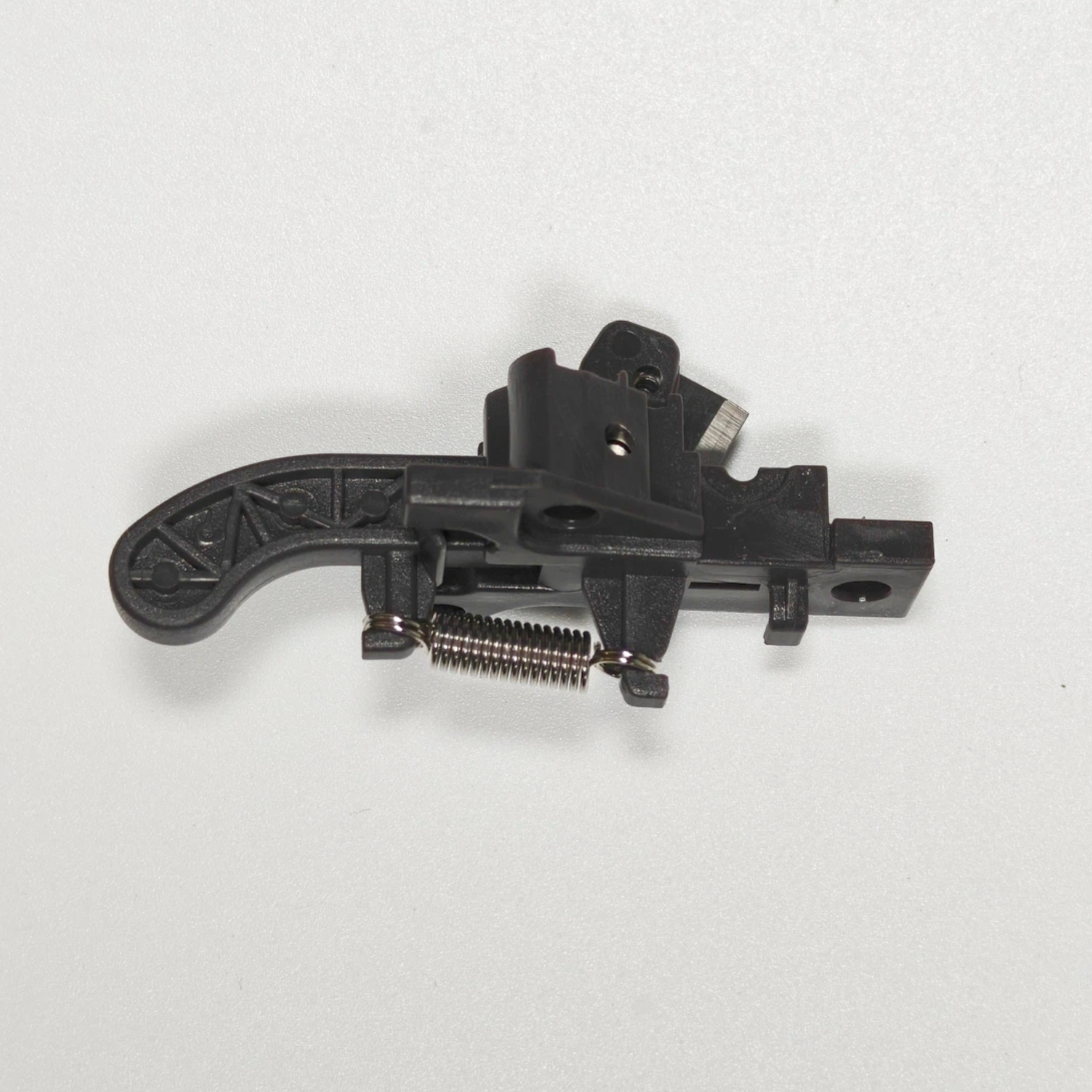

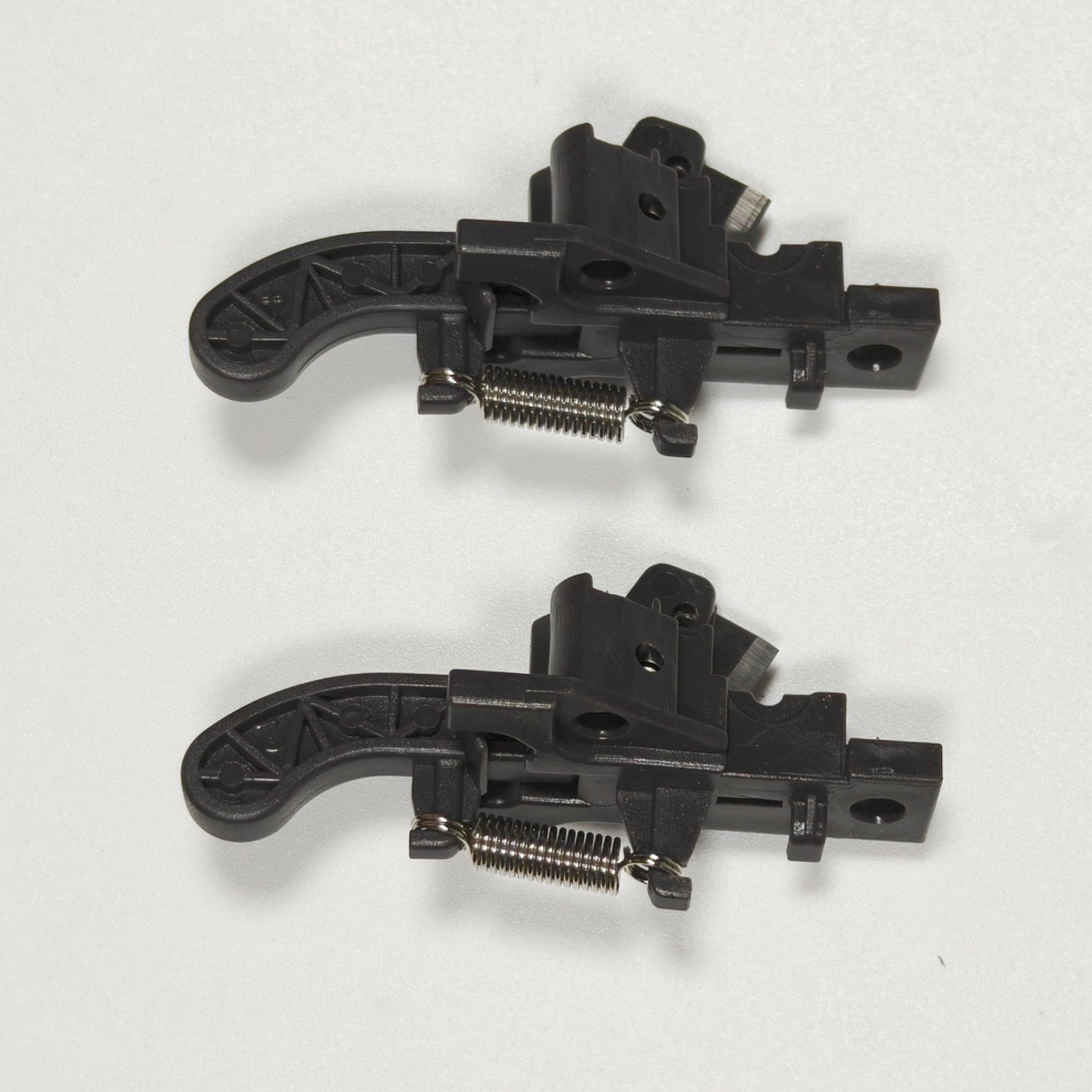

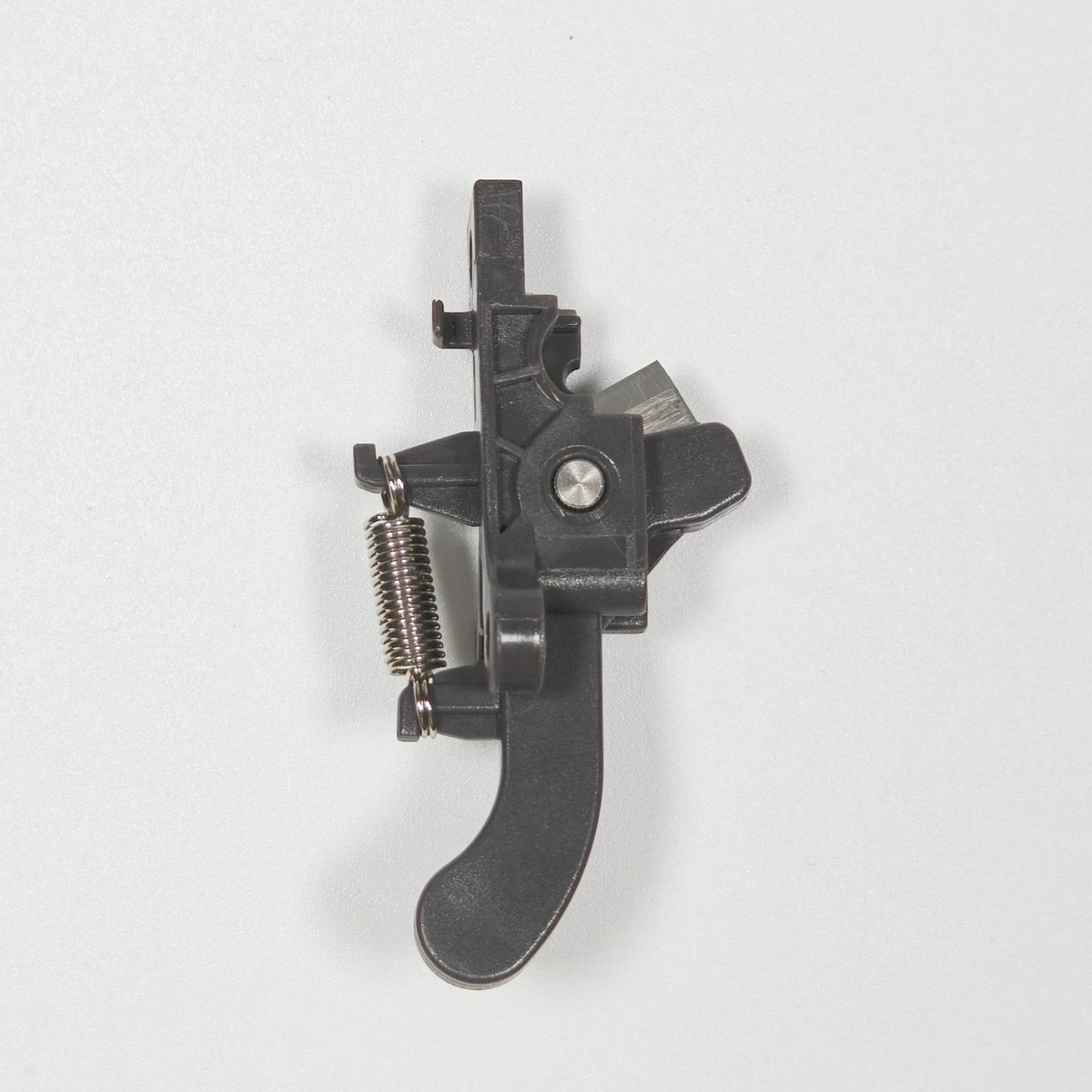

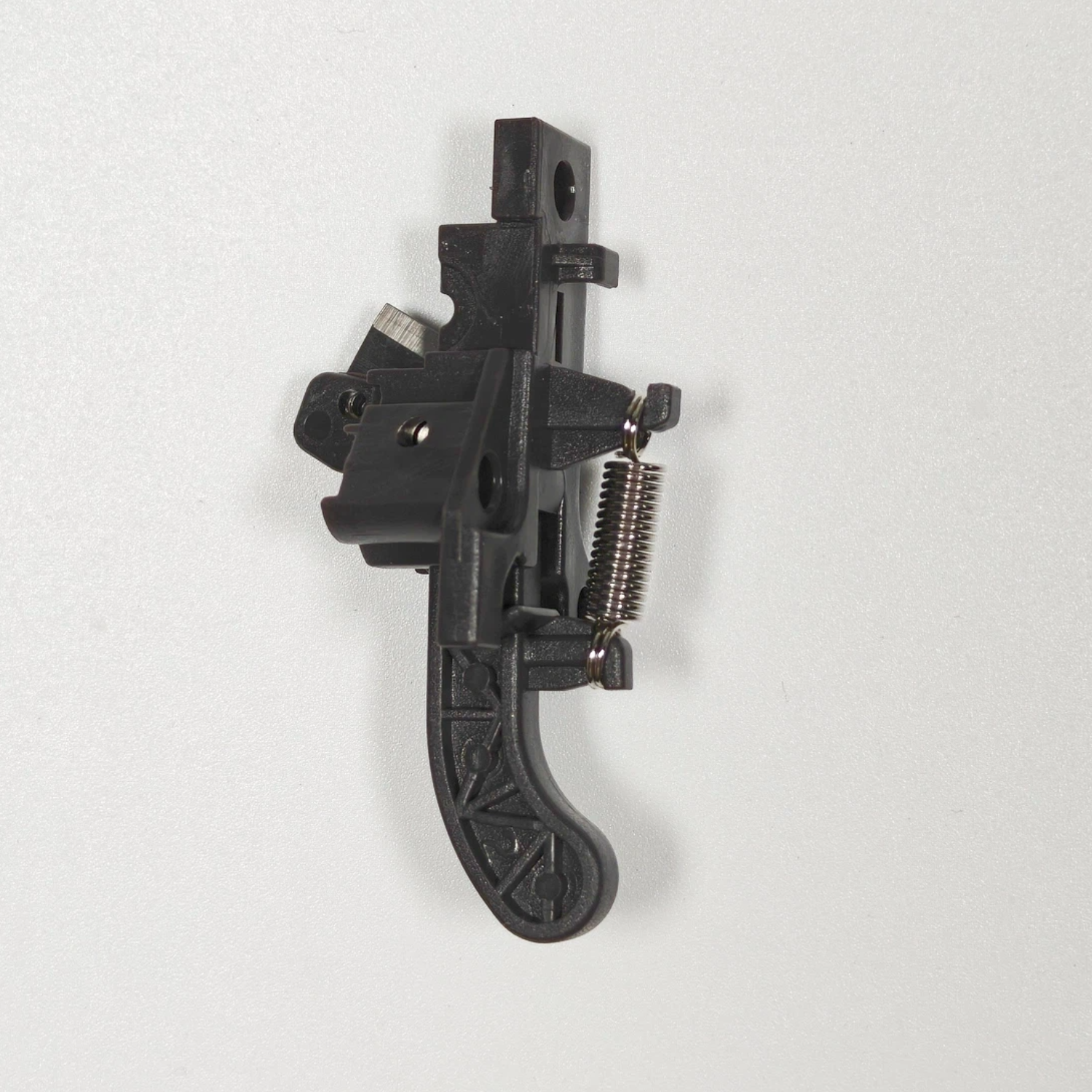

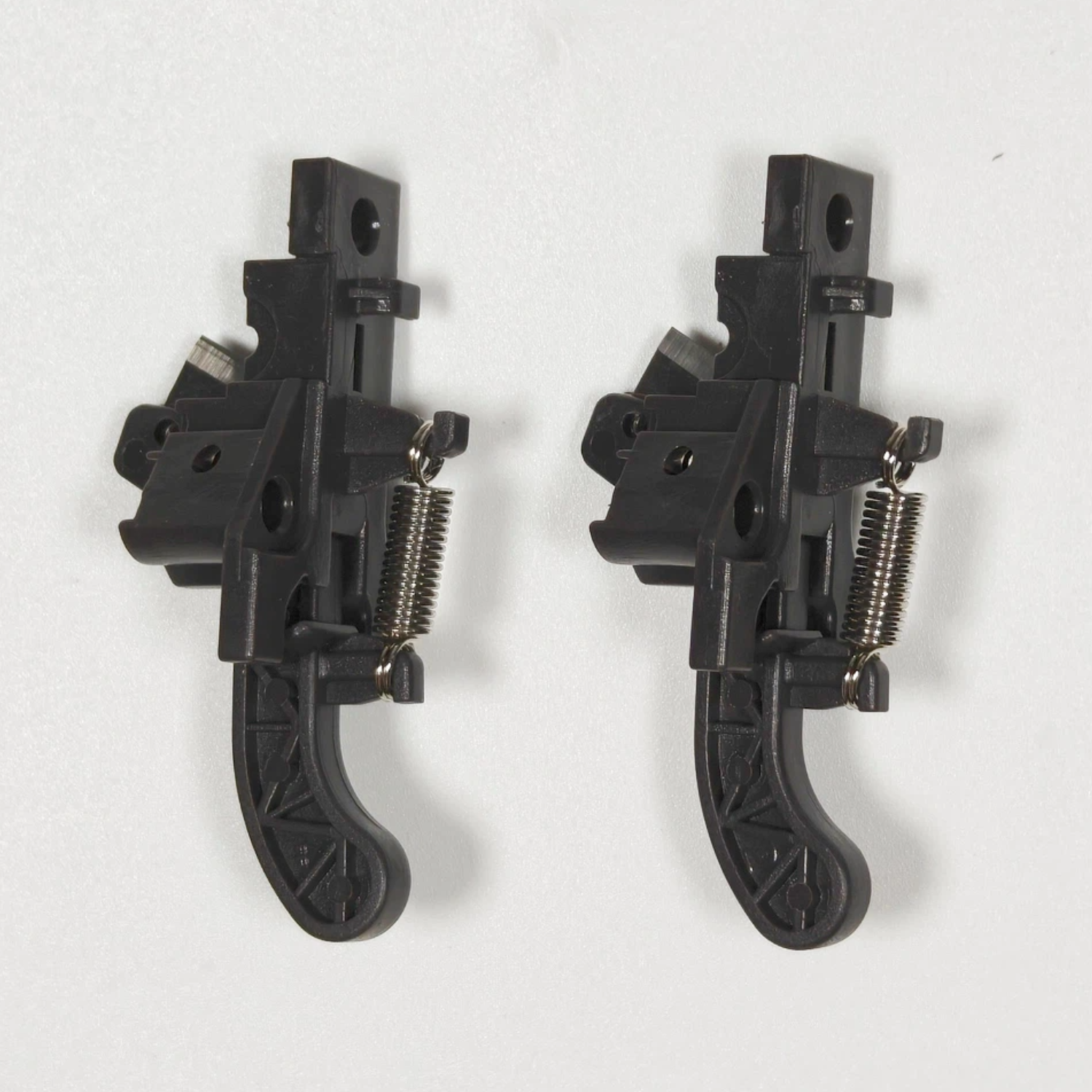

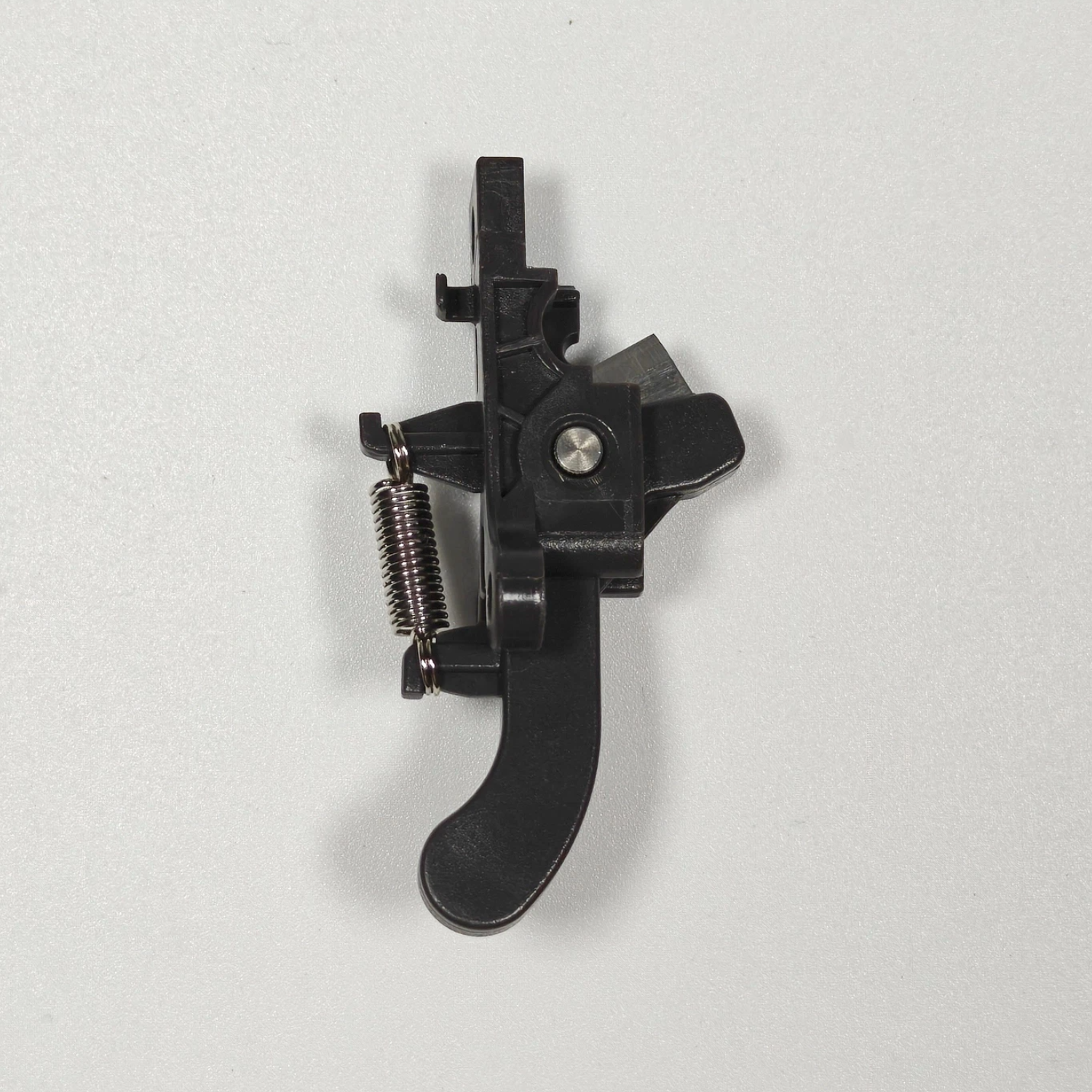

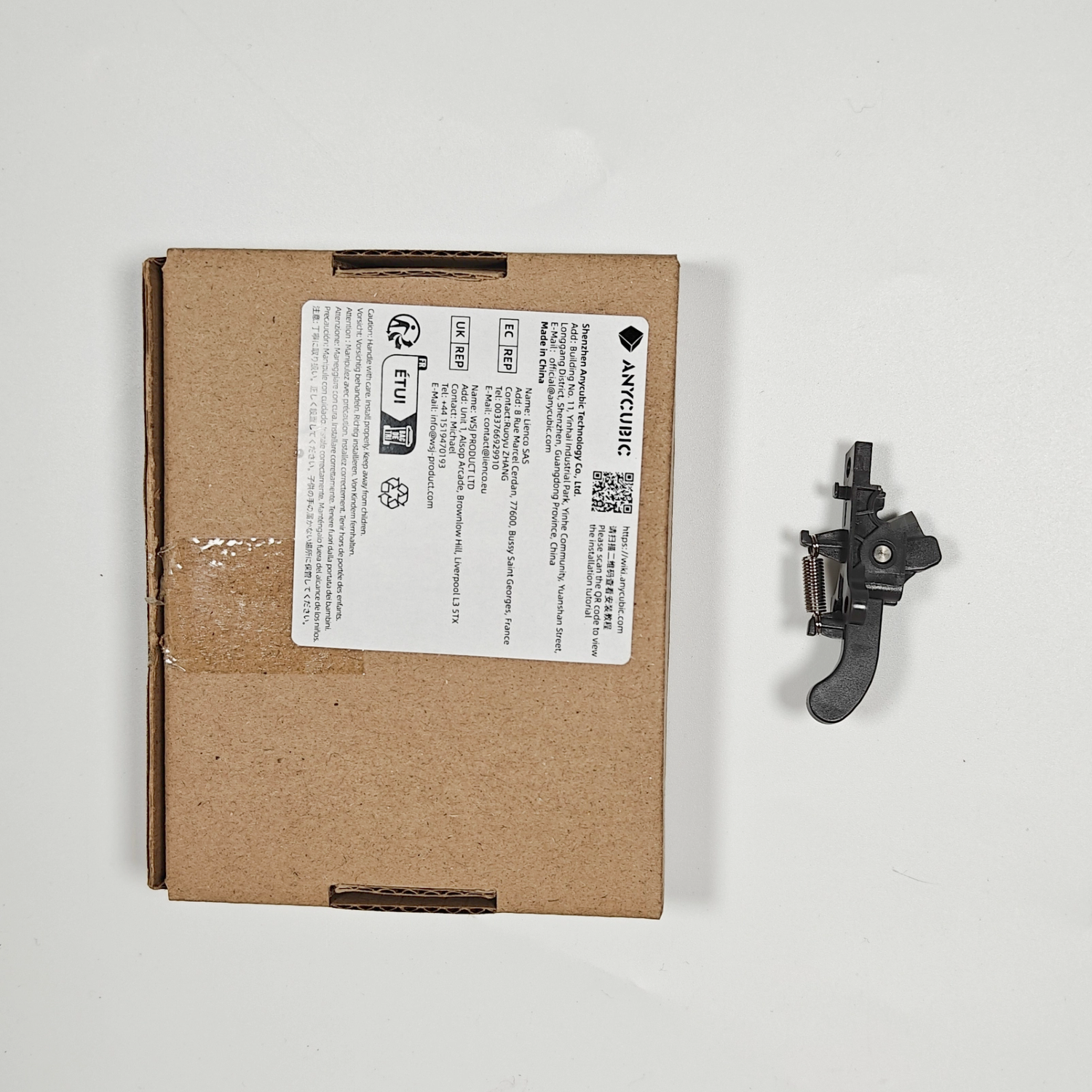

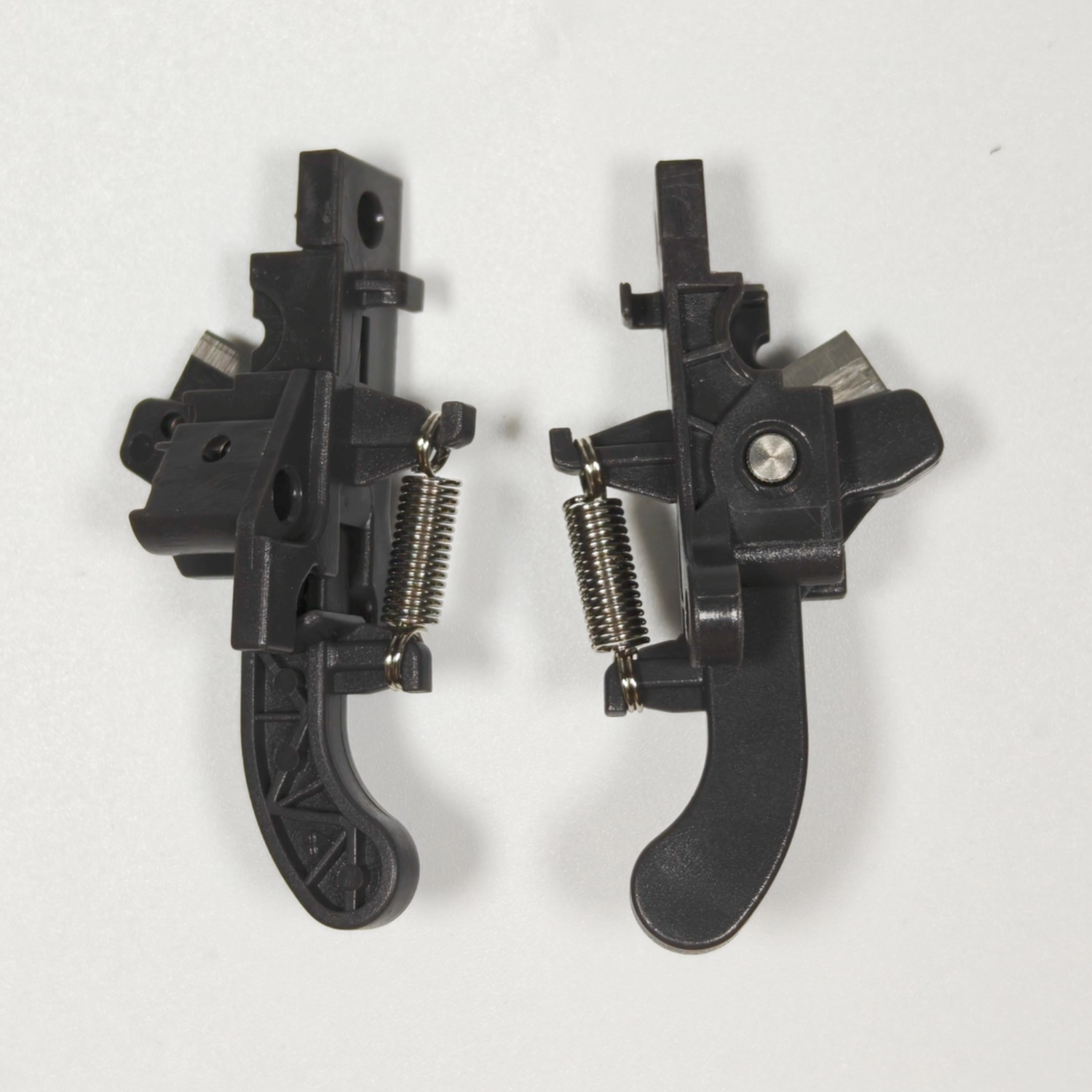

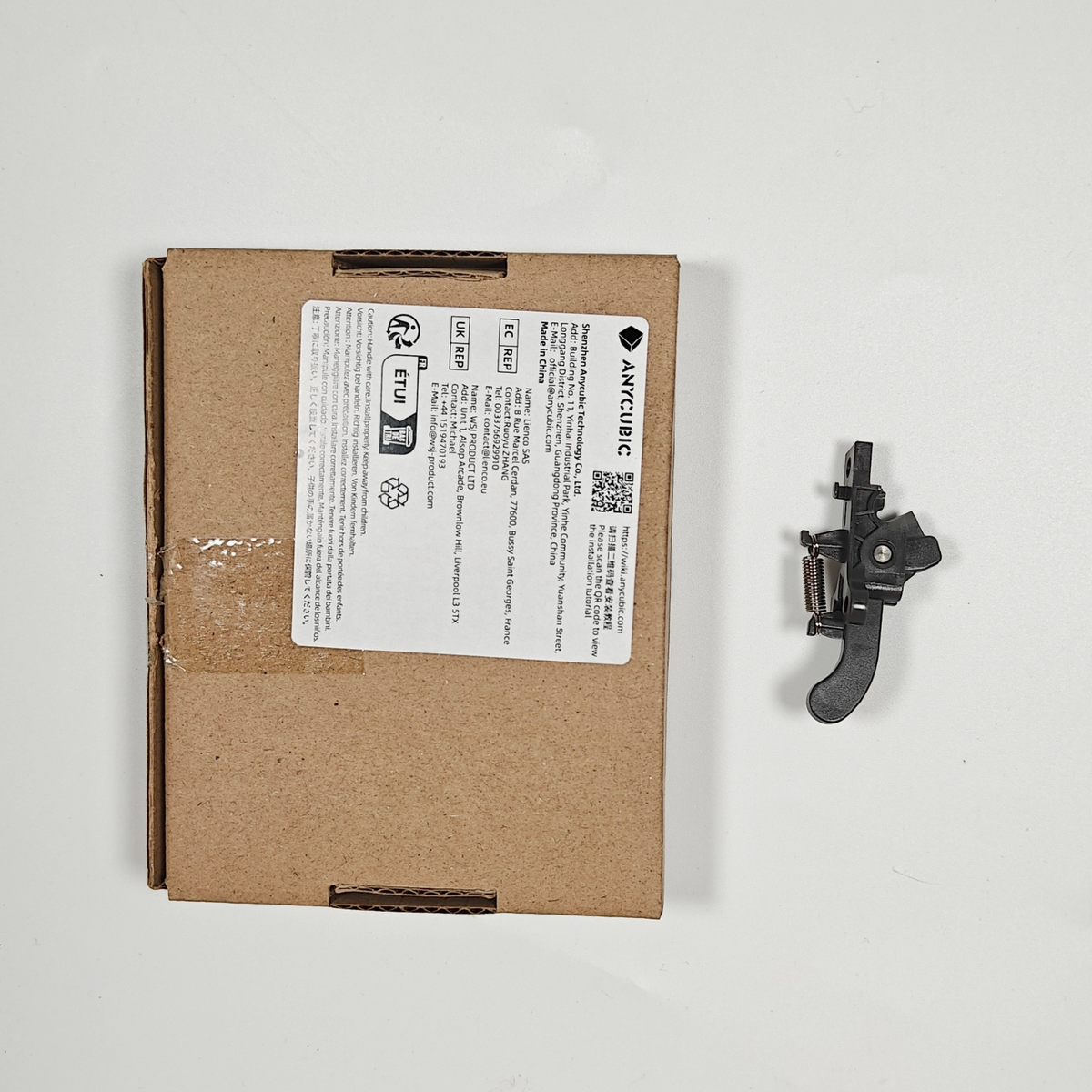

Kobra S1C Filament Cutter for Anycubic Kobra S1 Combo FDM 3D Printers Replacement
Compatible for Anycubic Kobra 3 Combo 3D printer.
Kobra S1-Cutter Replacement Guide:
Tools: S2.0 Allen key
Disassembly Steps:
Step 1: Turn off the device
Before replacing accessories, make sure to turn off the printer and disconnect the power cord to ensure safe operation.
Step 2: Disassemble the Cutter

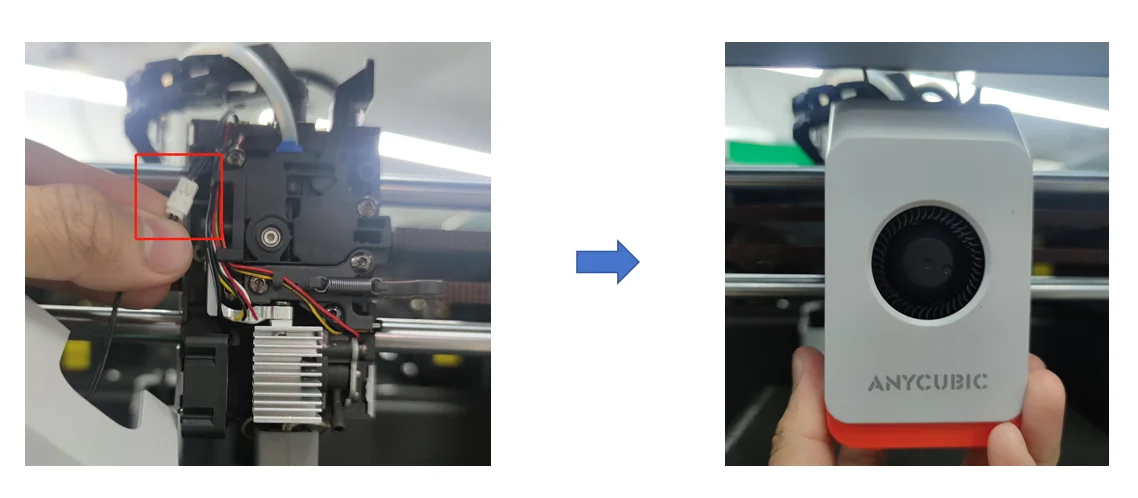

①Disassemble the print head module housing, unplug the model cooling fan connection line, and remove the housing.
②Use the S2.0 Allen key to unscrew the cutter assembly fixing screws.
③Take out the cutter assembly and be careful of scratches.
Step 3: Replace the cutter assembly
①Replace the cutter assembly and fix it with an S2.0 Allen key.
When arranging wires, press the wires to the right
②Connect the housing cooling fan connection line and install the print head module housing.
