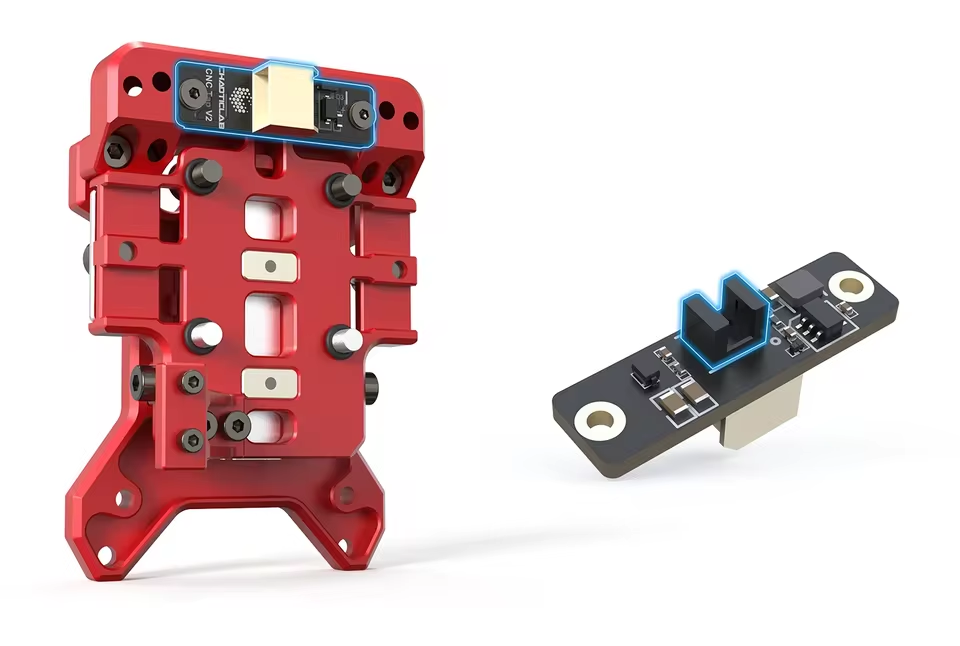

CNC Voron Tap V2 Optical Microswitch Pre-tightened linear Guide

Specifications

Material：CNC All Metal(AL6061/SS304)

Net Weight：65g(including the X-axis limit switch bracket)

Sensor Type：EE-SX4320

Voltage：5-24V

Linear Guideways：HIWIM MGN7H

Compatibility：VORON2.4 R2, Trident(With MGNH12)

XY TRAVEL INFLUENCE:

The thickness of the CNC VORON TAP V2 is similar to that of the 2.4R2 X carriage,

so no adjustments to the relevant settings are necessary.


HARDWARE REQUIREMENTS:

• YOU MUST USE THE MGN12H X-AXIS
You must already be using the MGN12 based X-Axis. CNC VORON TAP V2 does not fit on the older MGN9 based X-axis.

• CW2 STYLE MOUNTED EXTRUDER REQUIRED

CNC VORON TAP V2 replaces the X-carriage mount, and requires that the mounting screws come in from the front of the carriage
like CW2, not the back like CW1. There are mounts for LGX and Galileo available.
BED MOUNT MUST BE SECUREWhen CNC VORON TAP V2 is probing, the nozzle will contact the bed with a force of approximately 500-800 grams. Your bed should not move during this. Bed motion compromises the accuracy of CNC VORON TAP V2, so it is not recommended for Voron 1.8, Legacy, or Switchwire designs.
If you want to know if CNC VORON TAP V2 is right for you, tap your finger on the bed firmly. If the bed moves, CNC VORON TAP V2
is not right for you.

•  GOOD MECHANICAL CONDITION
CNC VORON TAP V2 is far more precise than previous Z sensing systems, and we have found it can reveal previously unnoticed
problems in a printer. If your printer has known mechanical issues (such as cracked components) fix them before.
 •  LUBRICATING LINEAR RAILS
Linear rails ship with oil that is designed to prevent corrosion during the shipping and storage process. This oil should be replaced with a lubricant
of your choice. We recommend using an NLGI0 or NLGI1 rated grease. WD-40 makes a good white lithium grease with a spray applicat or nozzle
that works well in this application.

FOLLOW THE STEPS BELOW TO GREASE YOUR RAIL WITHOUT DISASSEMBLY:

1. Use WD-40 degreaser or another degreaser of your choice and spray directly into the ball bearing area indicated by the arrow. Ensure that you spray liberally on both sides and run the block up and down the rail several times after spraying.
2. Drop a few drops of isopropyl alcohol down the rail on either side to flush out the WD-40 degreaser.
3. Spray your lubricant on either side of the rail liberally and run the block up and down the rail repeatedly to allow the lubricant to reach all of the balls within the block.

More information

https://github.com/Chaoticlab/CNC-Tap-for-Voron/tree/master/Manual

*When using the CNC VORON TAP V2 with the Carbon Fiber Tube Kit for Voron2.4 X-Axis (300)/(350), an additional printed part is required to adjust the mounting position of the X-axis limit switch bracket. CNC Voron Tap V2 Compatatible Carbon Fiber Kit Adapter and Old Version Hall Sensor Adapter MOD link:
https://github.com/Chaoticlab/CNC-Tap-for-Voron/tree/master/STL/CNC_VORON_TAP_V2
