E3D V6 CHT Hardened Steel Nozzle High Flow Nozzle
Couldn't load pickup availability
Use this text to encourage communication or promote sharing on social networks.
CHT Nozzle V6 Hardened Steel E3D V6 Nozzle High Flow 3d Printer Nozzle Clone CHT for Ender 3 Hotend Titan Extruder Prusa i3 MK3

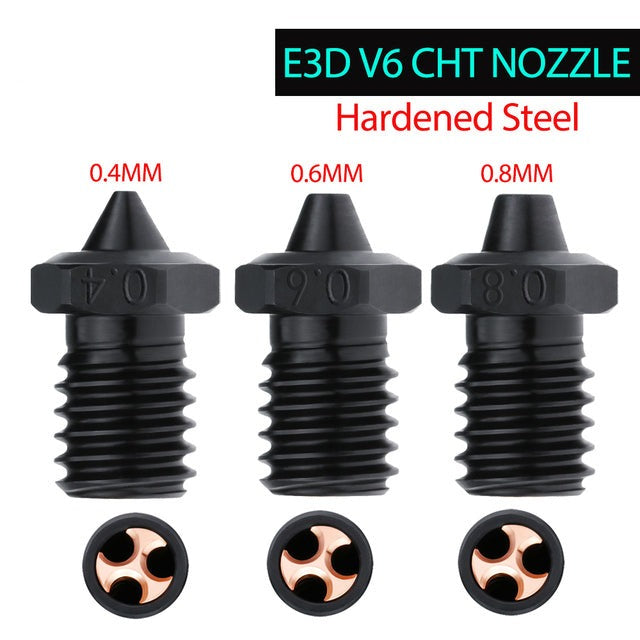

Nozzle Hole: 0.4/0.6/0.8MM

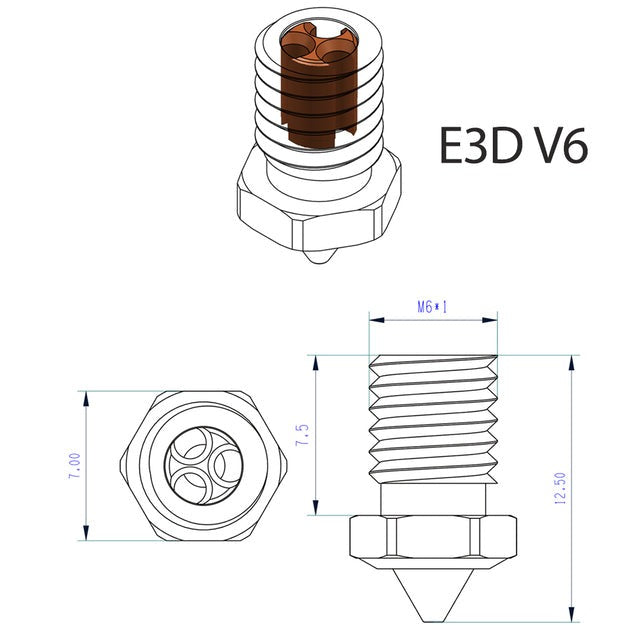

Thread: M6.

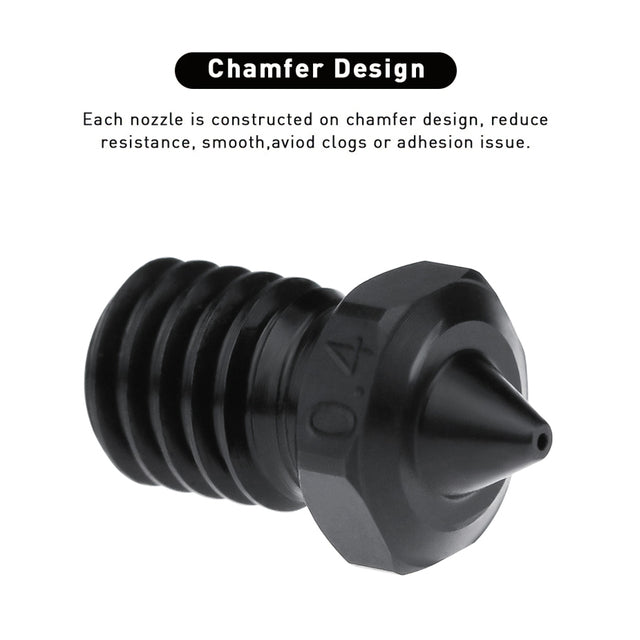

ChamferDesign
Each nozzle is constructed on chamfer design, reduce resistance, smooth, aviod clogs or adhesion issue.

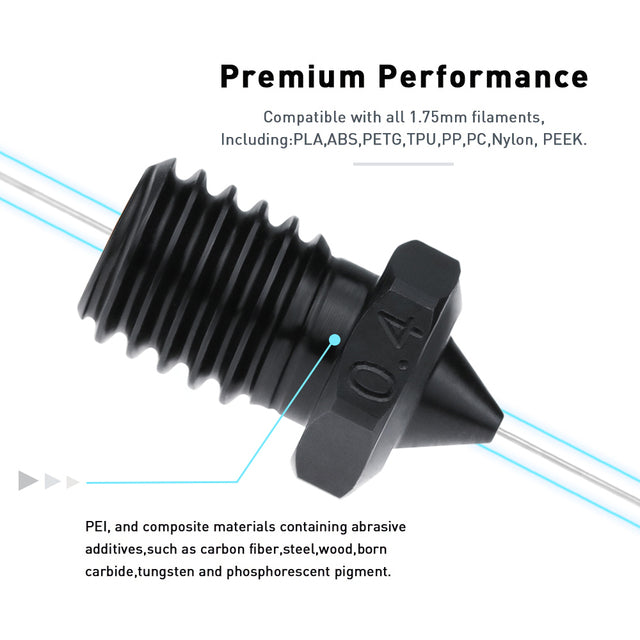

PremiumPerformance
Compatible with all 1.75mm filaments,Including: PLA, ABS, PETG, TPU, PP, PC, Nylon, PEEK.
PEI. and composite materials containing abrasive additives, such as carbon fiber, steel, wood, born carbide，tungsten and phosphorescent pigment.

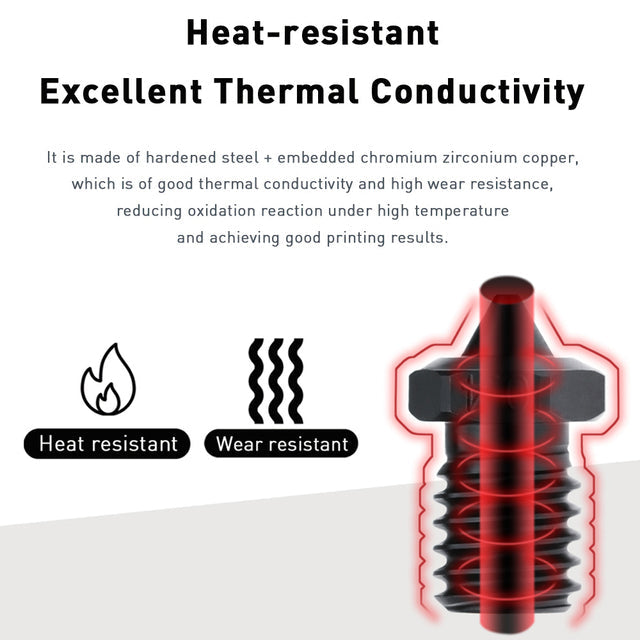

Heat-resistant
Excellent Thermal Conductivity
It is made of hardened steel+ embedded chromium zirconium copper,
which is of good thermal conductivity and high wear resistance, reducing oxidation reaction under high temperature and achieving good printing results.

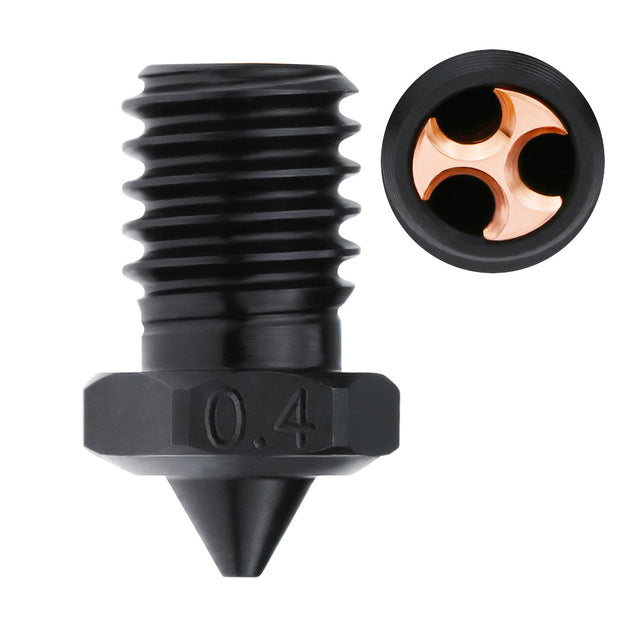

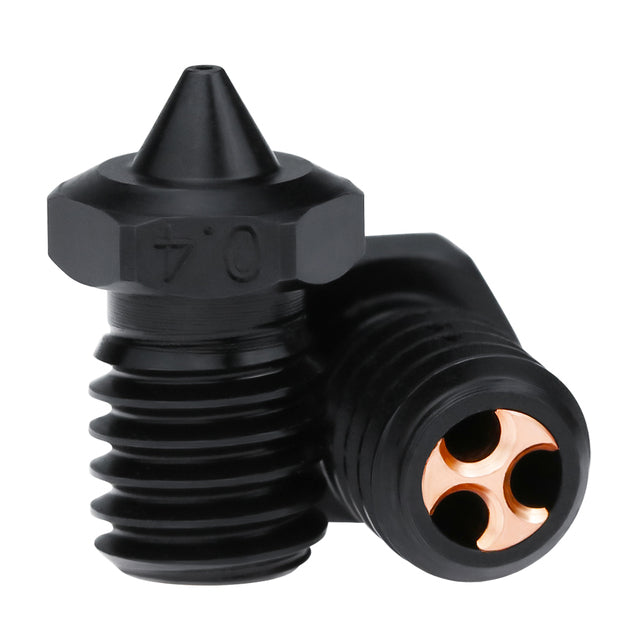

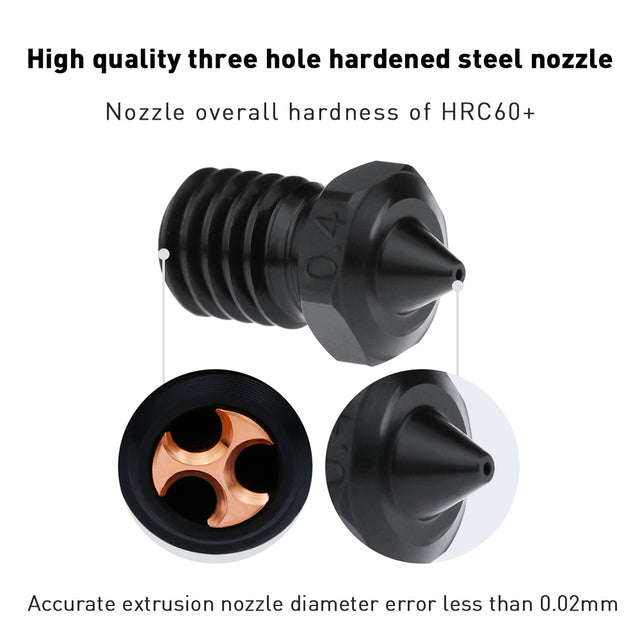

High quality three hole hardened steel nozzle
Nozzle over all hardness of HRC60+
Accurate extrusion nozzle diameter error less than 0.02mm
| 3D Printer Nozzle Performance Comparison | |||||
|---|---|---|---|---|---|
| Type | Thermal Conductivity (W/m.k) |
Hardness (Mohs) |
Maximun Printing Temp |
Coefficent of Thermal Expansion (µm/m.℃) |
Applicable Materials |
| Brass Nozzle | 105 | 3.0 | 300 | 18.0 | PLA, ABS, TPU, PA, PETG, etc. |
| Stainless Steel Nozzle | 17 | 5.0 | 350 | 6.0 | Food, Pills, etc. |
| Copper Plated Nozzle | 330 | 6.0 | 500 | 16.7 | PEEK, PEL, Carbon Fiber, Fiberglass, Wood Fiber, Metal Fiber, etc. |
| Hardened Steel
Nozzle (Blackened / Nickel Plated) |
22 | 7.8 | 450 | 8.0 | |
| Hardened Stainless Steel Nozzle | 22 | 8.0 | 450 | 6.0 | |
| Ruby Nozzle | 18 | 9.0 | 550 | 5.3 | For All Materials |
