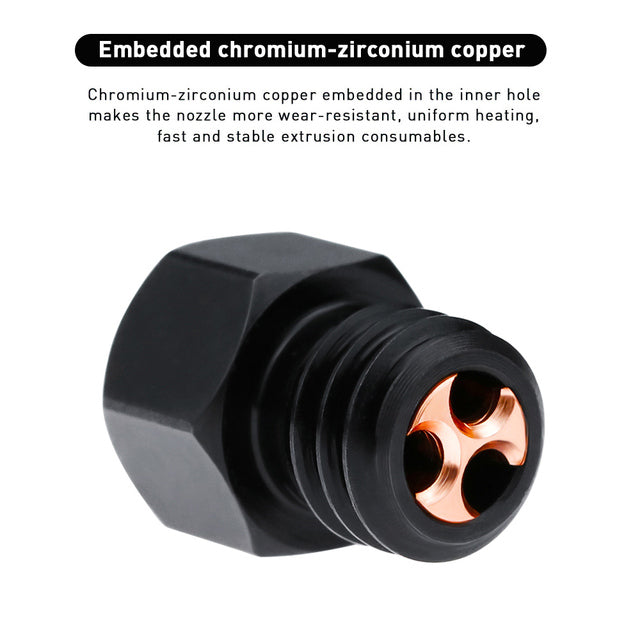

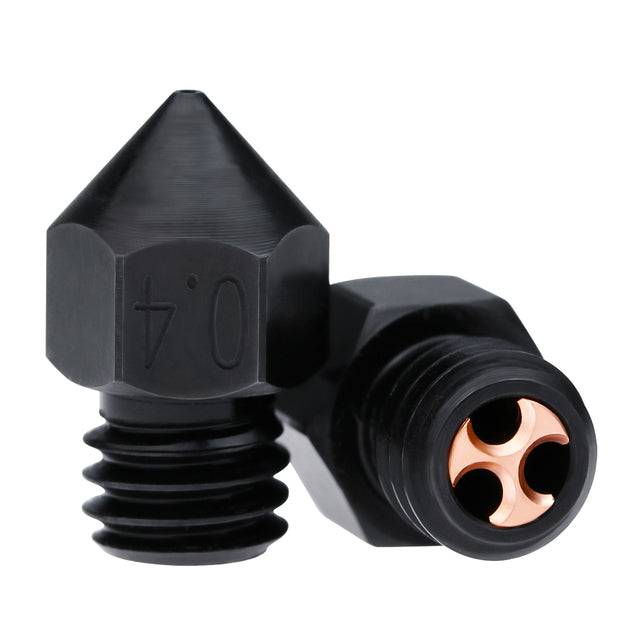

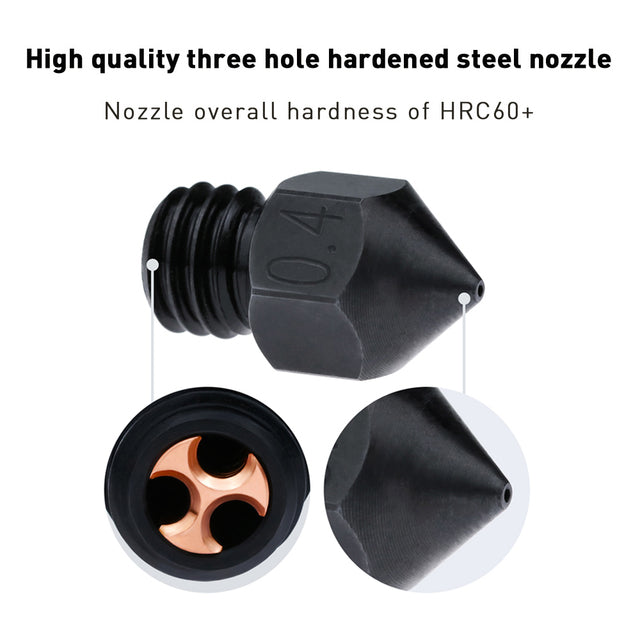

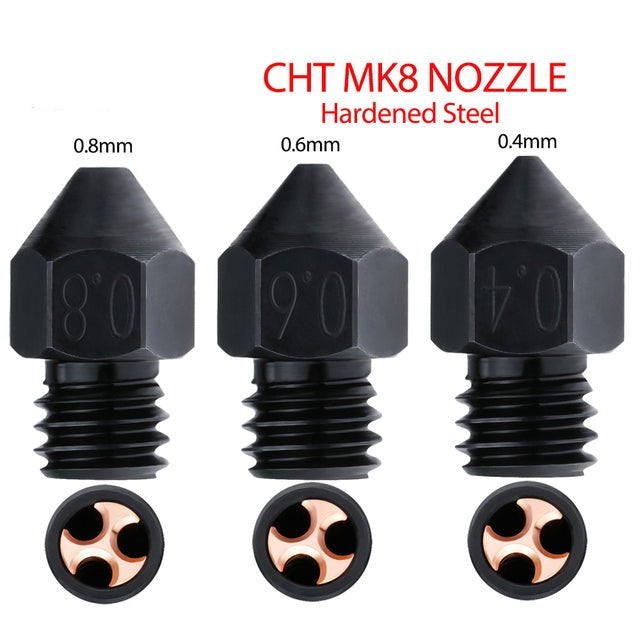

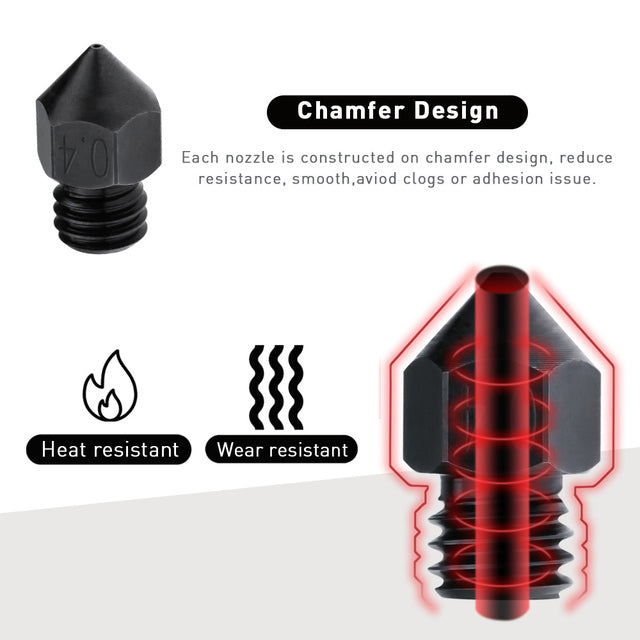

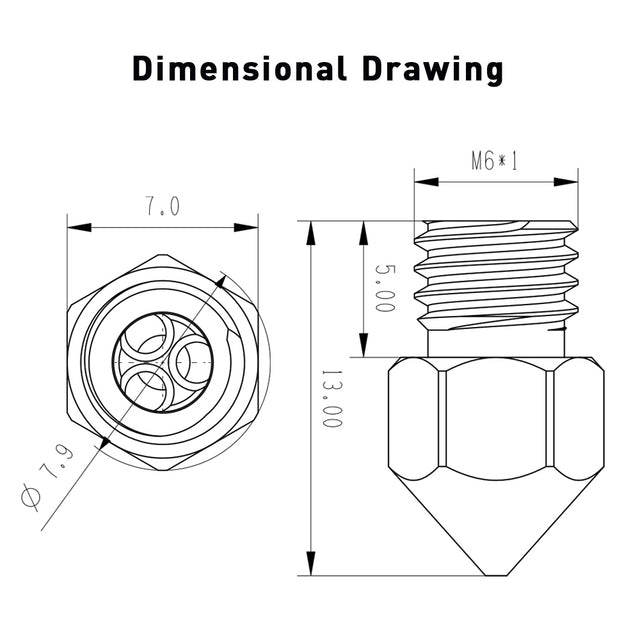

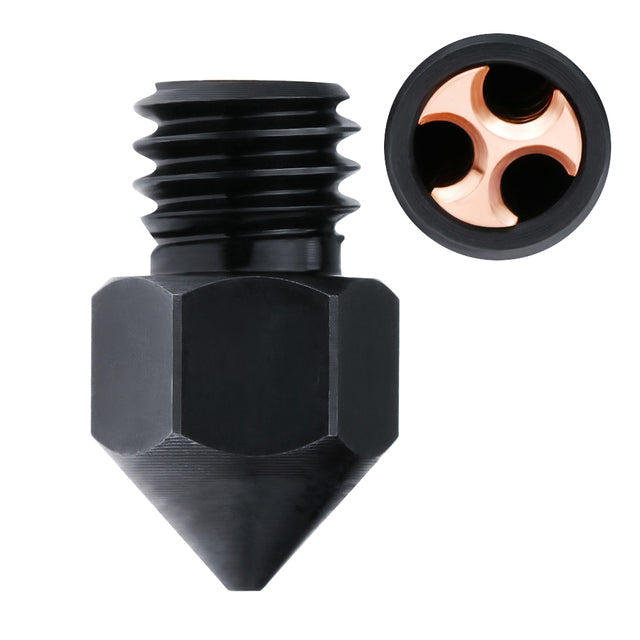

CHT Nozzle MK8 High flow 1.75mm Filament Hardened Steel Nozzles
Regular price
$5.00
Couldn't load pickup availability
Use this text to encourage communication or promote sharing on social networks.

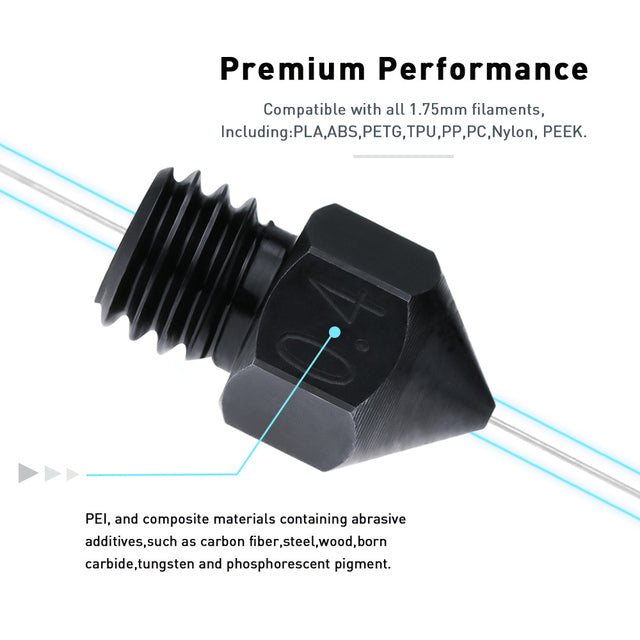

MK8 High Flow Clone CHT Harden Steel Nozzle for Ender 3 Ender 3 V2 Ender 5 CR10 3D Printers. Fit for 1.75mm Filaments, including PLA, PETG, TPU, ABS, PP, PC, Nylon, PEEK, etc.
| 3D Printer Nozzle Performance Comparison | |||||
|---|---|---|---|---|---|
| Type | Thermal Conductivity (W/m.k) |
Hardness (Mohs) |
Maximun Printing Temp |
Coefficent of Thermal Expansion (µm/m.℃) |
Applicable Materials |

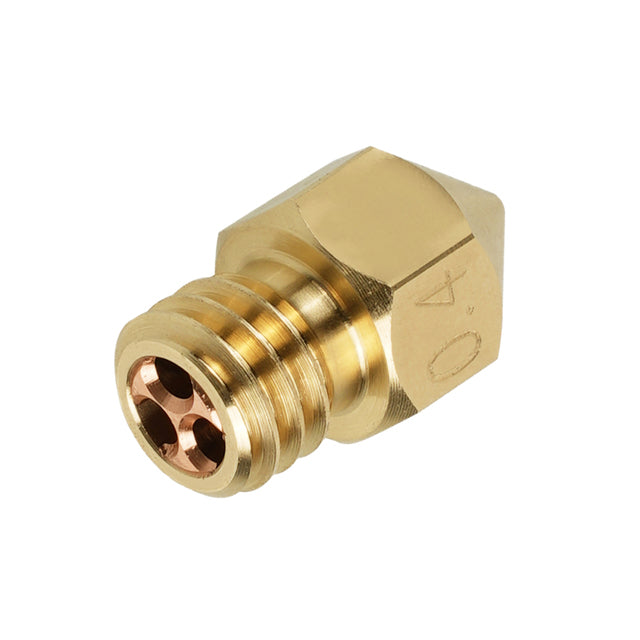

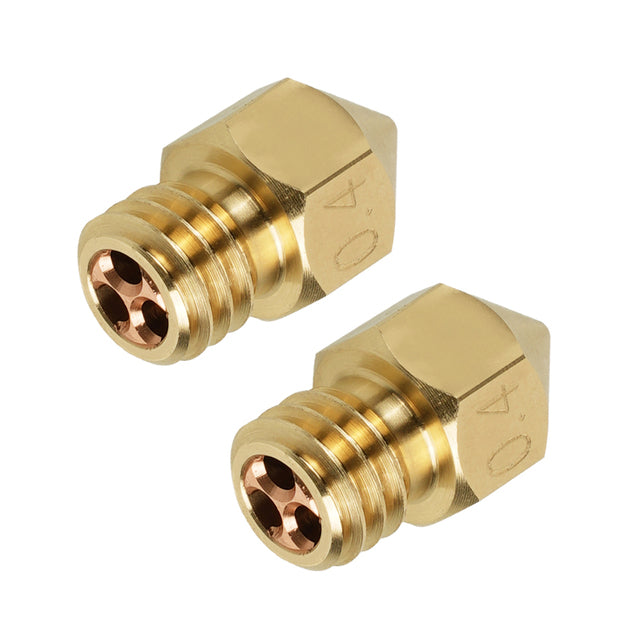

| Brass Nozzle | 105 | 3.0 | 300 | 18.0 | PLA, ABS, TPU, PA, PETG, etc. |
| Stainless Steel Nozzle | 17 | 5.0 | 350 | 6.0 | Food, Pills, etc. |
| Copper Plated Nozzle | 330 | 6.0 | 500 | 16.7 | PEEK, PEL, Carbon Fiber, Fiberglass, Wood Fiber, Metal Fiber, etc. |
| Hardened Steel
Nozzle (Blackened / Nickel Plated) |
22 | 7.8 | 450 | 8.0 | |
| Hardened Stainless Steel Nozzle | 22 | 8.0 | 450 | 6.0 | |
| Ruby Nozzle | 18 | 9.0 | 550 | 5.3 | For All Materials |
