42-60 Stepper Motor
Regular price
$54.78
Couldn't load pickup availability
Use this text to encourage communication or promote sharing on social networks.

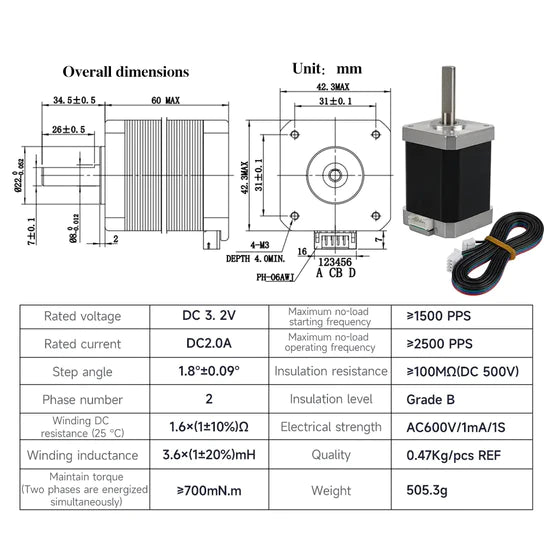

42-60 Stepper Motor Specs
| Details |
| Rated voltage | DC 3.2V | |
| Rated current |
|
|
| Step angle | 1.8°±0.09° | |
| Phase number | 2 | |
| Winding DC resistance(25°C) | 1.6x(1±10%)Ω | |
| Winding inductance | 3.6x(1+20%)mH | |
| Maintain torque (Two phases are energized simultaneously) | =700mN.m | |
| Maximum no-load starting frequency | 21500 PPS | |
| Maximum no-load operating frequency | 22500 PPS | |
| Insulation resistance | =100MΩ (DC 500V) | |
| Insulation level | Grade B | |
| Electrical strength | AC 600V/1mA/1S | |
| Quality | 0.47Kg/pcs REF | |
| Weight | 505.3g |
Package includes:

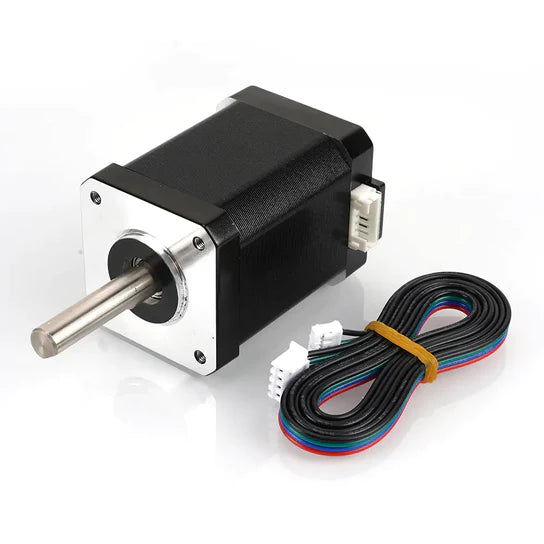

42-60 Stepper Motor * 1PCS + Motor Cable * 1PCS
FREE shipping from our Chinese warehouse. The picture is for reference only. Please adhere to the original products in case of any mistakes.
